Description

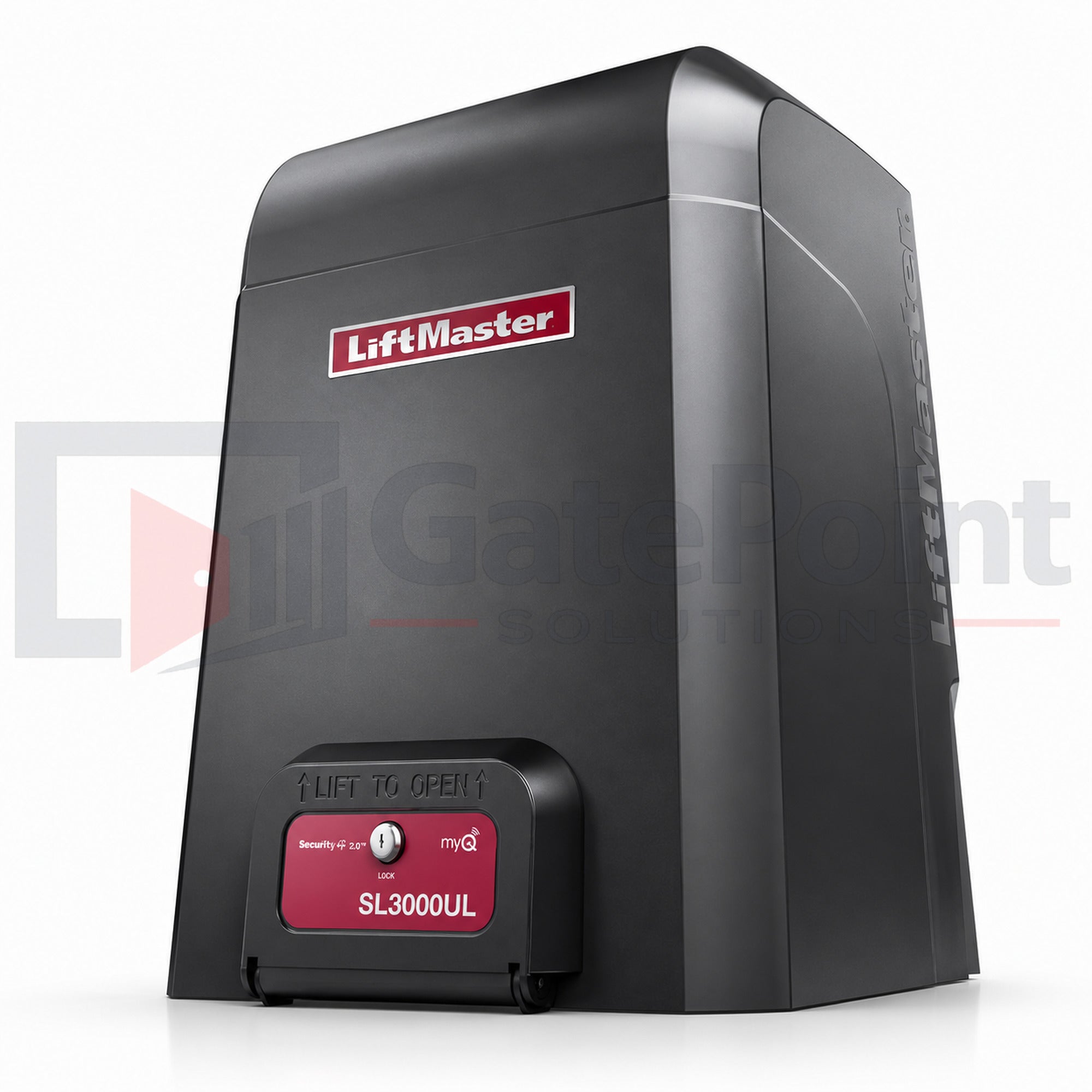

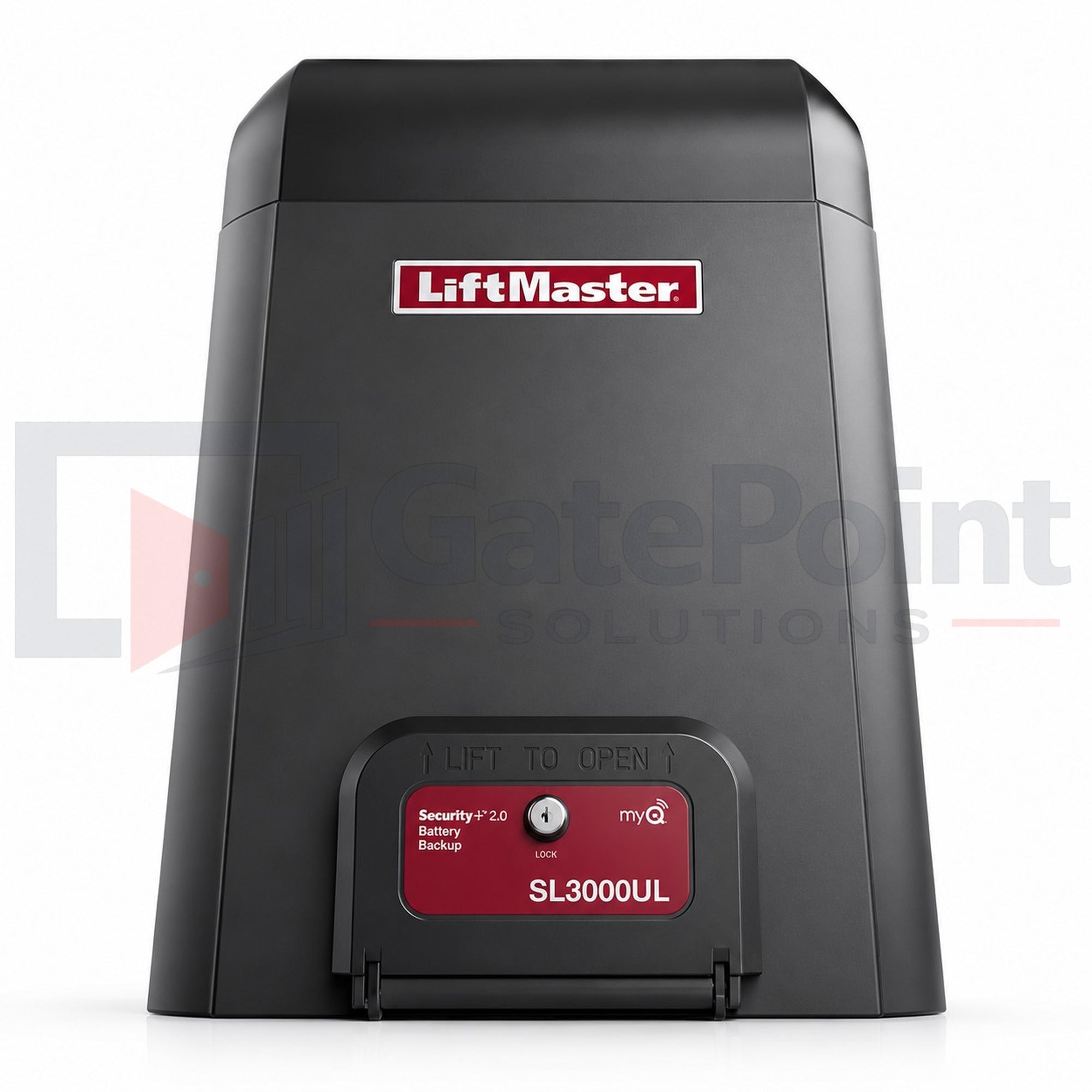

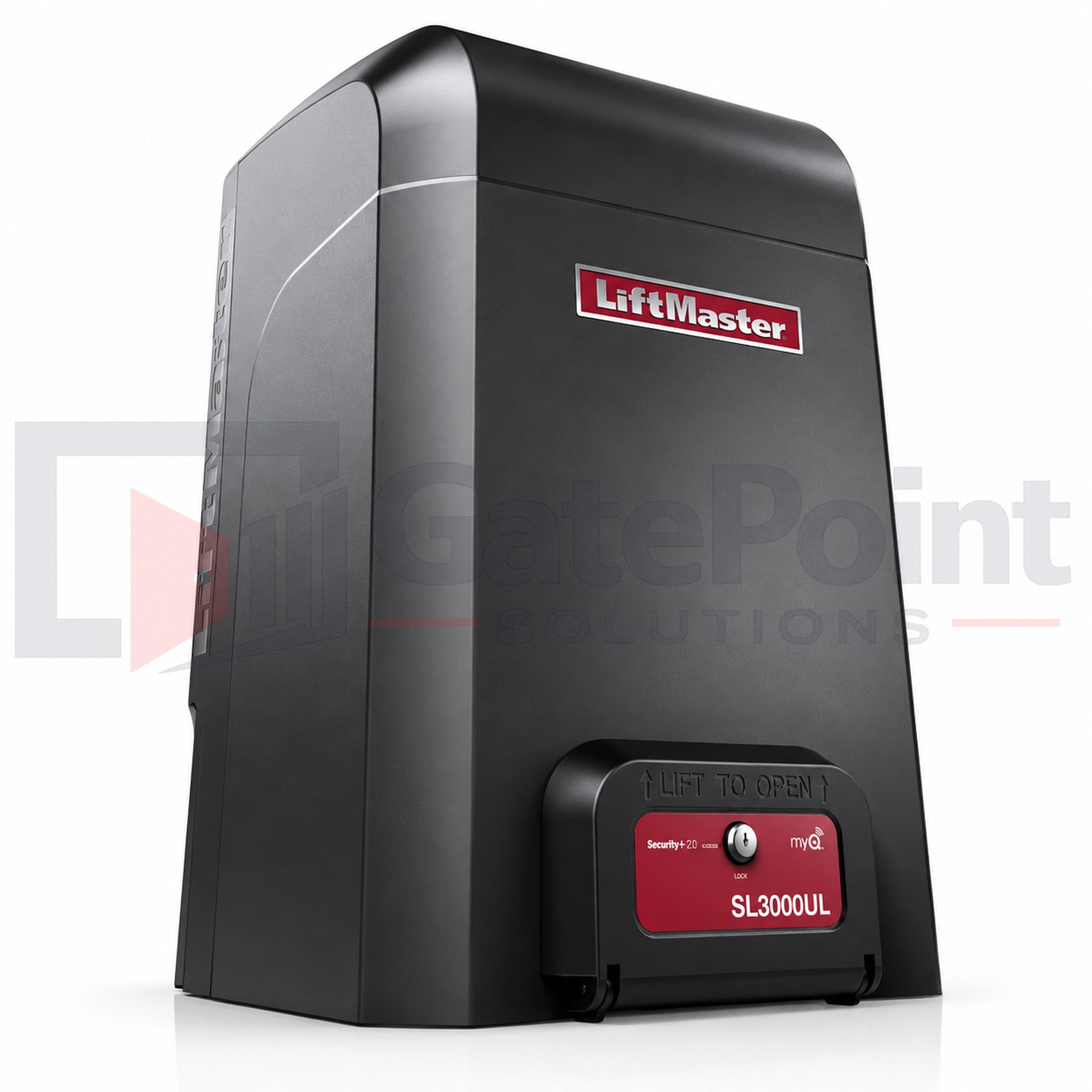

The LiftMaster SL3000101UL is a high-traffic commercial AC slide gate operator engineered for demanding continuous-duty applications requiring maximum reliability, precision gate control, and long-term performance. Designed for commercial facilities, industrial properties, distribution centers, gated communities, warehouses, and high-cycle perimeter security applications, the SL3000101UL combines heavy-duty mechanical construction, monitored safety systems, and advanced smart connectivity for dependable commercial gate operation.
Powered by a 1 HP continuous-duty motor with Class H insulation, the SL3000101UL is built to withstand high-cycle, high-temperature operating environments. The legacy Elite heavy-duty commercial gear-driven transmission and commercial oil-bath 30:1 wormgear reduction system provide smooth, consistent gate movement while helping reduce mechanical wear over time. Precision mechanical limit switches maintain accurate gate positioning throughout travel, even after manual disconnect operation, while integrated surge suppression technology helps protect the system from industrial surges and lightning strikes up to 50 feet away.
Integrated myQ® Technology enables secure remote monitoring and control from virtually anywhere, while wireless dual-gate communication synchronizes gate operation without requiring costly trenching between operators. Quick Close and Anti-Tailgate functionality help minimize unauthorized access opportunities in high-traffic environments.
The SL3000101UL includes monitored entrapment protection devices and is UL® Listed for Class I, II, III, and IV applications. Security+ 2.0® encrypted radio communication helps safeguard property access while providing extended remote range performance. An inherent reversing sensor system detects obstructions and reverses or stops gate movement when necessary, while a built-in pre-motion warning alarm activates three seconds prior to gate travel for additional site safety.
Included Accessories:
LMRRUL Monitored Retro-Reflective Photo Eye: Heated monitored retro-reflective photo eye with widened beam engineered to maintain alignment; sensing range up to 50 ft.
S505AL Monitored Resistive Edge: Pressure-sensitive monitored edge designed to detect obstructions and stop or reverse gate movement.
Specifications:
- Model: SL3000101UL
- Product Type: High Traffic Commercial Slide Gate Operator
- Motor Power: 1 HP Continuous-Duty Motor
- Motor Insulation: Class H
- Duty Rating: Continuous Duty
- Gate Speed: 12 in. per second
- Transmission: Commercial Oil-Bath Gear-Driven Transmission
- Gear Reduction: 30:1 Wormgear Reduction
- Chain Type: #41 Black Oxide Chain (25 ft. Supplied)
- Input Voltage: 115VAC Single-Phase
- Optional 3-Phase Conversion: 208/240/480/575VAC with 3PHCONV Kit
- Accessory Power: 24VDC 500mA Output
- Auxiliary Power Outlets: 2
- Wireless Communication: Dual-Gate Wireless Synchronization
- Security Technology: Security+ 2.0® Encrypted Radio
- Remote Capacity: Up to 50 Remotes On-Board
- Monitored Safety Inputs: 3 Main Board / 3 Expansion Boards
- UL® Usage Classification: Class I, II, III, IV
- Operating Temperature: -4°F to 140°F (-20°C to 60°C)
- Operating Temperature with Heater: -40°F to 140°F (-40°C to 60°C)
- Chassis Construction: 1/4 in. Gold Zinc-Plated Steel
- Cover Material: High-Density UV-Resistant One-Piece Polyethylene
- Operator Weight: 140 lbs.
- Dimensions: 26.51 in. H × 18.14 in. W × 20.39 in. D
- Manufacturer: LiftMaster
Key Features:
- Heavy-duty commercial gear-driven transmission for high-cycle reliability
- 1 HP continuous-duty motor designed for high-temperature commercial applications
- Industrial surge and lightning suppression protection
- Precision mechanical limit switch system maintains accurate gate positioning
- myQ® enabled remote monitoring and control
- Wireless dual-gate communication eliminates trenching requirements
- Quick Close and Anti-Tailgate functionality for enhanced site security
- Inherent reversing sensor detects obstructions during operation
- Pre-motion warning alarm activates before gate movement
- Manual disconnect allows gate operation during service or power loss
- Monitored safety entrapment protection devices for UL 325 compliance
- LED diagnostic display simplifies installation and troubleshooting
- Programmable auxiliary relays support expanded accessory integration
- External alarm reset button instantly resets built-in safety alarm siren
- HomeLink® compatible with supported vehicle systems
