Description

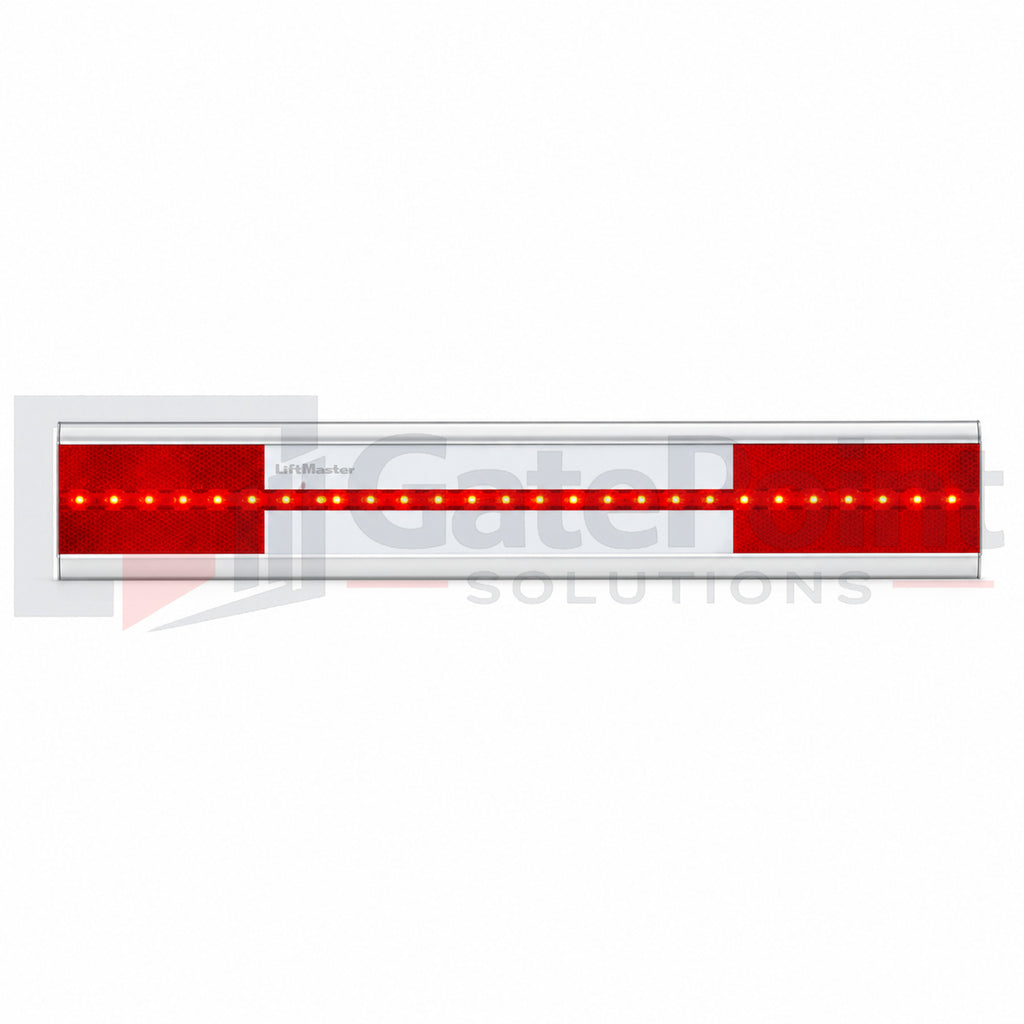

The LiftMaster MALED17 is a commercial-grade 17-foot aluminum barrier gate arm featuring integrated red LED illumination for maximum visibility, safety, and performance. Designed exclusively for LiftMaster Mega Arm and Mega Arm Tower barrier gate systems, this extra-long arm is ideal for controlling wider traffic lanes while maintaining excellent day and night visibility.
Key Features
- 17-Foot Barrier Gate Arm – Extended length provides effective access control for wide vehicle lanes, commercial entrances, and industrial facilities.
- Integrated Red LED Lighting – Continuous red LED illumination improves arm visibility during nighttime operation and low-light conditions.
- Designed for Mega Arm Systems – Engineered specifically for LiftMaster Mega Arm and Mega Arm Tower barrier gate operators.
- Heavy-Duty Aluminum Construction – Corrosion-resistant aluminum arm delivers exceptional durability and long-term outdoor performance.
- Patented 3-Inch Round Arm Design – Unique round profile with flat sides provides enhanced rigidity, stability, and professional appearance.
- IP68 Waterproof LED System – Fully sealed LED assembly protects against water, dust, and harsh environmental conditions.
- DOT Reflective Tape on Both Sides – Improves visibility for approaching vehicles during daylight and nighttime operation.
- 12VDC LED Operation – Efficient low-voltage LED technology designed for continuous operation.
- Requires MALED17C Counterweight – Designed for proper balance and performance when paired with the LiftMaster MALED17C 17-foot LED Arm Counterweight.
- Breakaway Protection Compatible – Supports 48-inch breakaway connectors to help minimize operator damage from vehicle impacts.
Technical Specifications
- Arm Length: 17 ft
- Arm Diameter: 3 in.
- Construction: Aluminum
- LED Voltage: 12VDC
- LED Type: 3528 IP68 Silica Gel Filled LEDs
- Power Consumption: 14.4W per 4-meter roll
- Operating Temperature: -25°C to +60°C (-13°F to 140°F)
- Visibility Features: Integrated Red LEDs and DOT Reflective Tape
- Counterweight Requirement: MALED17C Counterweight (Sold Separately)
Ideal Applications
- Commercial Parking Facilities
- Distribution Centers
- Industrial Sites
- Airports & Transportation Facilities
- Gated Communities
- Security Checkpoints
- Truck Yards
- Wide-Lane Access Control Systems
What's Included
- LiftMaster MALED17 17 ft Aluminum LED Barrier Arm
- Integrated Red LED Lighting
- DOT Reflective Safety Tape
Note: MALED17C 17-foot LED Arm Counterweight is required and sold separately.
The LiftMaster MALED17 combines extended reach, integrated LED safety lighting, and rugged aluminum construction to provide dependable vehicle access control in demanding commercial and industrial environments. Its highly visible design helps improve traffic safety while delivering the durability and reliability expected from LiftMaster access control solutions.
