Description

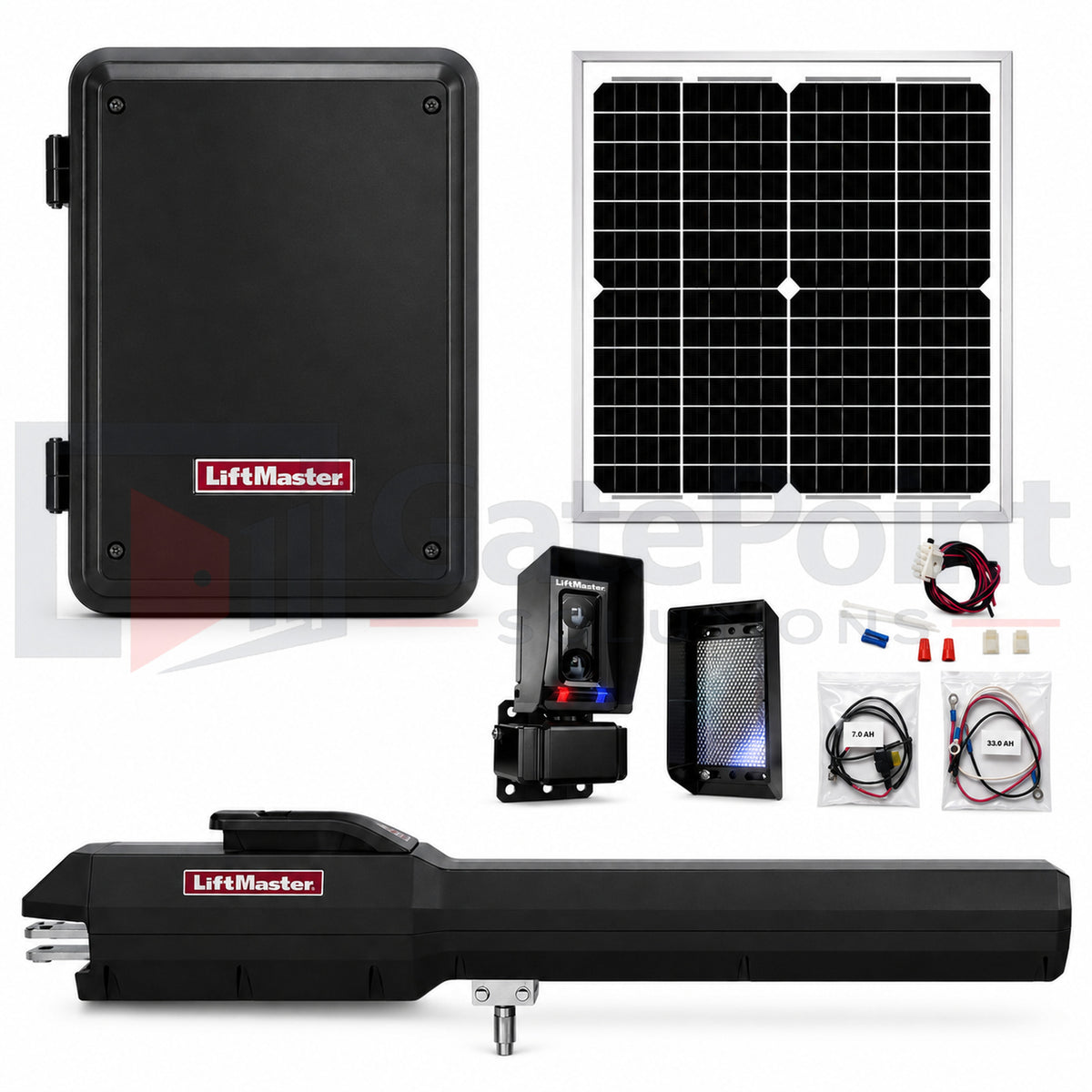

LiftMaster LA500PKGUL Single Swing Gate Operator Solar Kit
The LiftMaster LA500PKGUL Single Swing Gate Operator Solar Kit combines LiftMaster's commercial-grade LA500 linear actuator system with the essential solar components needed for compatible solar-powered installations. Designed for residential, light commercial, community, and controlled-access swing gates, this package provides a dependable solution for locations where conventional AC power may be unavailable or impractical to install.
Built around the LiftMaster LA500PKGUL, the system uses a 24VDC continuous-duty operator designed for demanding swing gate applications. The included solar harness, 20-watt 12V solar panel, and solar panel mounting bracket provide the core components needed to configure the LA500 for solar operation.
What's Included
- (1) LiftMaster LA500PKGUL 24VDC Single Swing Gate Operator Package
- (1) LiftMaster K94-37236 Solar Harness
- (1) 20W 24V Solar Panel
- (1) Solar Panel Mounting Bracket
Key Features
- Solar-powered configuration for locations where running AC power to the gate is difficult or impractical
- 24VDC continuous-duty operation for dependable residential and light commercial gate applications
- Heavy-duty linear actuator design
- Integrated battery backup system
- Compatible with appropriately sized solar installations
- Built-in myQ® technology for supported connectivity applications
- Security+ 2.0® encrypted radio technology
- Soft start/soft stop operation helps reduce stress on the gate and operator
- Quick Close and Anti-Tailgate functionality
- Supports monitored entrapment protection devices
- Manual disconnect provides access during service or emergency situations
- UL Listed for UL 325 compliant gate operator applications
Why Choose the LiftMaster LA500PKGUL Solar Kit?
The LiftMaster LA500PKGUL provides the performance of LiftMaster's LA500 swing gate platform while offering the flexibility of solar power. This makes the package especially useful for driveway gates, remote entrances, ranch and rural properties, gated communities, commercial properties, and other installations where extending utility power to the gate would be difficult or expensive.
Rather than sourcing the solar components individually, this GatePoint Solutions package combines the LA500PKGUL with a K94-37236 solar harness, 20W 12V solar panel, and mounting bracket in one convenient kit.
LiftMaster LA500PKGUL Solar Kit Frequently Asked Questions
Can the LiftMaster LA500PKGUL operate on solar power?
Yes. The LA500 platform supports compatible solar-powered installations when properly configured with the appropriate solar equipment and batteries.
What solar equipment is included with this kit?
This package includes a K94-37236 solar harness, one 20W 12V solar panel, and one solar panel mounting bracket in addition to the LA500PKGUL operator package.
Does this kit operate a single or dual swing gate?
This particular package is configured for a single swing gate. A separate LA500 dual solar package is available for applications requiring two synchronized actuator arms.
What size gate can the LiftMaster LA500 operate?
The LA500 is designed for swing gates up to 18 ft. long and 1,600 lbs., depending on the gate configuration and installation conditions. Proper gate construction, hardware, balance, site conditions, and installation are important when selecting an operator.
Is a 20W solar panel enough for every LA500 installation?
Not necessarily. Solar requirements depend on factors including geographic location, available sunlight, gate usage, accessory loads, battery capacity, and site conditions. Higher-demand installations may require additional solar capacity. Solar installations should be sized according to current LiftMaster specifications.
Can access-control equipment be connected to a solar LA500?
Yes, compatible access-control and safety devices can be used, but every connected accessory adds to the system's power consumption. Accessory loads should be considered when sizing the solar and battery system.
Does the LA500 solar system still use batteries?
Yes. The solar panel is used to maintain/charge the gate operator's battery system. The operator runs from its DC battery power rather than operating directly from the solar panel.
Can I use two LA500 actuators for a dual swing gate?
Yes. For dual swing gate applications, the LA500 can be configured with a compatible secondary actuator. GatePoint Solutions also offers a Dual LA500 Solar Gate Operator Kit specifically for dual-gate installations.
Professional Installation Recommended
Automatic gate operators must be installed with the appropriate monitored entrapment protection devices and configured according to the current LiftMaster installation instructions and applicable UL 325 requirements. Solar performance also depends heavily on proper panel placement, battery condition, system load, and site-specific solar exposure.
Where can I find the LiftMaster LA500 manual and wiring diagram?
GatePoint Solutions provides links to available LiftMaster LA500 installation manuals, product documentation, wiring information, troubleshooting resources, and technical documents in the Resources section below.
