Description

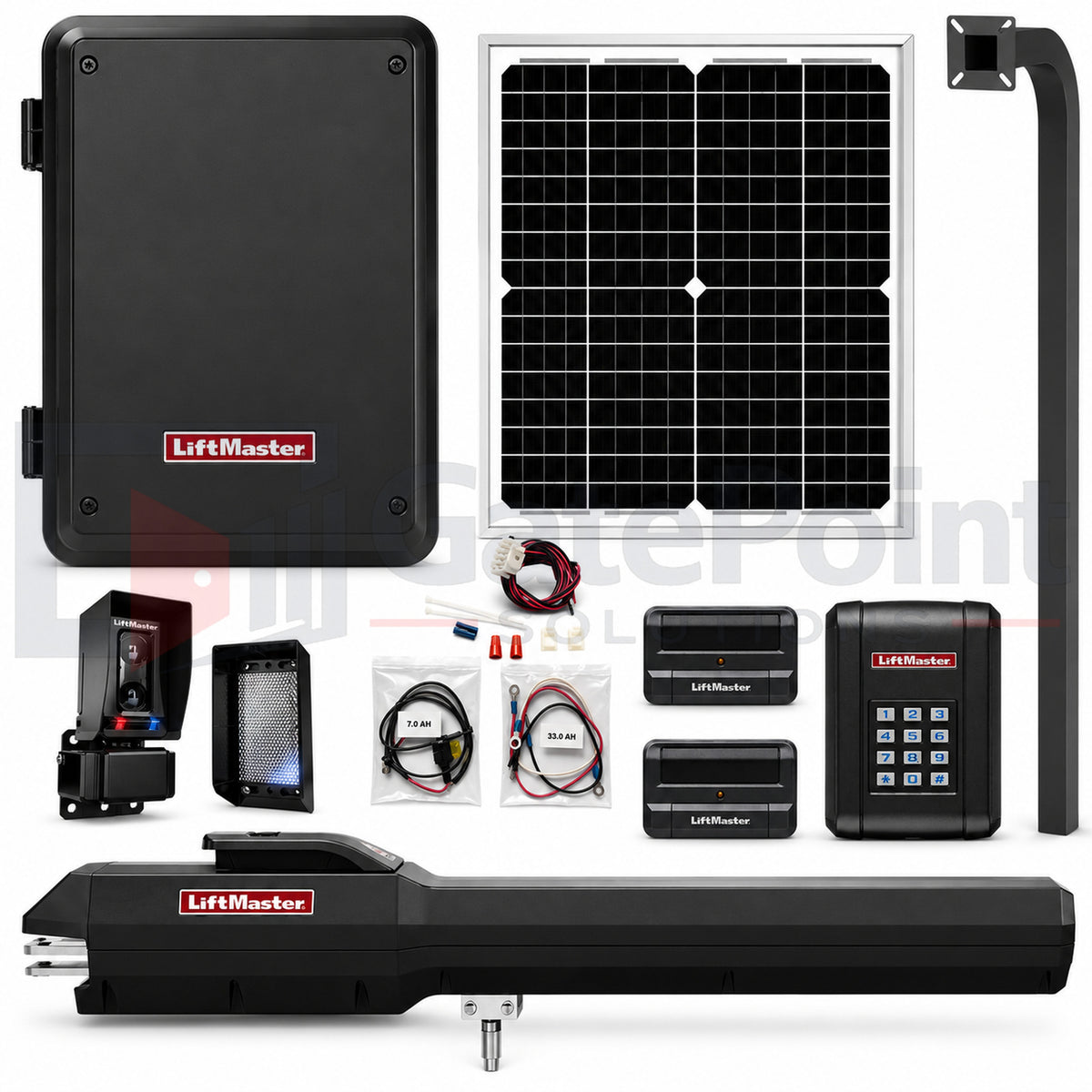

The LiftMaster LA500PKGUL Single Solar Gate Operator Kit with KPW5, (2) 811LMX Remotes & 72" In-Ground Pedestal combines LiftMaster's LA500 linear swing gate operator platform with solar power equipment and essential access-control accessories in one convenient package.
Designed for single swing gate applications, this kit adds a LiftMaster KPW5 wireless keypad, two 811LMX remote controls, and a 72" in-ground gooseneck pedestal to the LA500 solar configuration. It's an excellent solution for residential driveways, estates, ranch entrances, rural properties, gated entrances, and light commercial applications where conventional AC power at the gate may be difficult or expensive to install.
The LA500 platform provides dependable 24VDC linear actuator operation, while the included solar equipment provides the foundation for compatible off-grid installations. The KPW5 gives authorized users keypad access at the entrance, while the two 811LMX remotes provide convenient vehicle access.
What's Included
- (1) LiftMaster LA500PKGUL 24VDC Single Swing Gate Operator Package
- (1) LiftMaster K94-37236 Solar Harness
- (1) 20W 12V Solar Panel
- (1) Solar Panel Mounting Bracket
- (1) LiftMaster KPW5 Wireless Keypad
- (2) LiftMaster 811LMX Single-Button Remote Controls
- (1) GatePoint Solutions 72" In-Ground Gooseneck Pedestal
Key Features
- Complete single swing gate package combining operator, solar equipment, keypad, remotes, and pedestal
- Solar-powered configuration ideal for entrances where AC utility power is difficult to provide
- LiftMaster LA500PKGUL 24VDC linear swing gate operator
- KPW5 wireless keypad provides convenient coded entry
- Includes (2) 811LMX remote controls for vehicle access
- 72" in-ground gooseneck pedestal provides a dedicated mounting location for the keypad
- Integrated battery-powered gate operation
- Solar-ready configuration with included harness, panel, and bracket
- Soft start/soft stop helps reduce stress on the gate and operator
- Security+ 2.0® encrypted radio technology
- Built-in myQ® technology for supported applications
- Quick Close and Anti-Tailgate functionality
- Supports monitored entrapment protection devices
- UL Listed for UL 325 compliant gate operator applications
Why Choose This LiftMaster LA500 Solar Gate Operator Kit?
This package is designed for buyers who need more than just a gate operator.
Instead of separately sourcing the LA500 operator, solar equipment, wireless keypad, vehicle remotes, and keypad pedestal, GatePoint Solutions combines the core equipment into one package built around a single swing gate entrance.
The LiftMaster KPW5 wireless keypad provides convenient PIN-based entry without requiring control wiring between the keypad and operator. The included 72" in-ground pedestal gives the keypad a dedicated mounting point near the driveway, while two LiftMaster 811LMX remotes provide convenient access from authorized vehicles.
Combined with the LA500PKGUL and included solar equipment, the package is particularly well suited for residential driveways, ranches, estates, remote entrances, rural properties, and other controlled-access locations where extending AC utility power to the gate may not be practical.
LiftMaster LA500PKGUL Single Solar Kit Frequently Asked Questions
What is included with this LA500 solar gate operator kit?
The package includes the LiftMaster LA500PKGUL operator package, K94-37236 solar harness, 20W 12V solar panel, solar panel mounting bracket, KPW5 wireless keypad, two 811LMX remotes, and a 72" in-ground gooseneck pedestal.
Is this kit for a single or dual swing gate?
This package is configured for a single swing gate using one LA500 actuator. For entrances with two swing gate leaves, a dual LA500 solar package should be used.
What does the LiftMaster KPW5 keypad do?
The KPW5 wireless keypad provides convenient coded access to compatible LiftMaster gate operator systems. Users can enter an authorized PIN at the gate rather than requiring a handheld remote.
Why does the kit include a 72" pedestal?
The included 72" in-ground gooseneck pedestal provides a mounting location for the KPW5 keypad at the driveway entrance. The in-ground design allows the pedestal to be securely installed adjacent to the vehicle approach.
What are the two LiftMaster 811LMX remotes used for?
The included 811LMX single-button remotes allow authorized users to activate the gate from compatible vehicles or locations within operating range.
What size gate can the LiftMaster LA500 operate?
The LA500 platform is designed for swing gates up to 18 ft. long and 1,600 lbs., subject to gate construction, hardware, installation geometry, site conditions, and other application requirements.
Can this LA500 kit operate completely from solar power?
The LA500 supports compatible solar installations. The included solar harness, 20W panel, and mounting bracket provide the package's base solar equipment.
Actual solar requirements depend on available sunlight, geographic location, gate cycles, battery capacity, accessory power consumption, and site conditions. The system should be sized according to current LiftMaster specifications.
Does the solar panel directly power the gate operator?
No. The LA500 operates from its DC battery system, while the solar equipment is used to replenish the batteries. This allows stored battery energy to operate the gate when sunlight is unavailable.
Do the KPW5 and remotes increase solar power consumption?
Accessory selection should always be considered when sizing a solar gate system. One advantage of the wireless KPW5 and handheld 811LMX remotes is that they do not represent the same continuous operator-side accessory load as some hardwired access-control equipment. The overall installation should still be sized according to LiftMaster's current solar requirements.
Professional Installation Recommended
Automatic swing gate operators require proper gate construction, actuator placement, electrical configuration, and monitored entrapment protection.
Installation should follow the current LiftMaster documentation and applicable UL 325 requirements. Solar performance depends heavily on panel placement, available sunlight, battery condition, expected gate cycles, accessory loads, and other site-specific conditions.
Where can I find the LiftMaster LA500 manual and wiring diagram?
GatePoint Solutions provides links to available LiftMaster LA500 installation manuals, product documentation, wiring information, troubleshooting resources, and technical documents in the Resources section below.
