Description

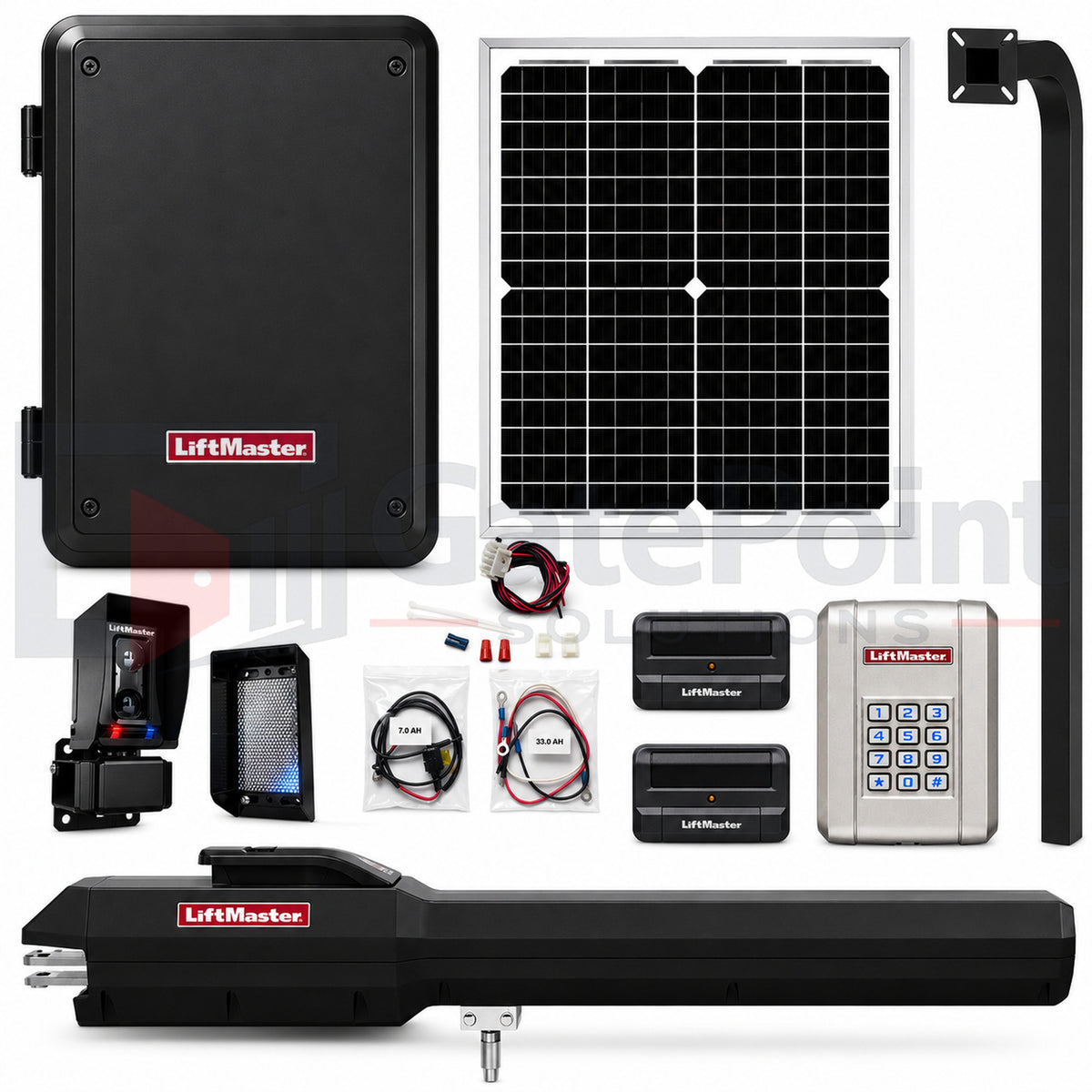

The LiftMaster LA500PKGUL Single Solar Gate Operator Kit with KPW250, (2) 811LMX Remotes & 72" In-Ground Pedestal combines a heavy-duty LiftMaster linear swing gate operator, solar power equipment, commercial-capacity wireless keypad, vehicle remotes, and pedestal into one comprehensive access package.
Designed for single swing gate applications, this kit is particularly well suited for residential communities, commercial properties, ranch entrances, estates, private facilities, and remote controlled-access locations where conventional AC power may be difficult or expensive to extend to the gate.
At the center of the system is the LiftMaster LA500PKGUL 24VDC linear actuator, a residential/light-commercial operator rated for swing gates up to 18 ft. or 1,600 lbs. and designed with battery backup and solar capability.
For access control, the package upgrades to the LiftMaster KPW250 Wireless Keypad, providing capacity for up to 250 permanent PINs and 10 unique temporary PINs. Its wireless design eliminates the need to run control wiring from the keypad back to the operator, making it especially useful for driveway and solar gate installations.
What's Included
- (1) LiftMaster LA500PKGUL 24VDC Single Swing Gate Operator Package
- (1) LiftMaster K94-37236 Solar Harness
- (1) 20W 12V Solar Panel
- (1) Solar Panel Mounting Bracket
- (1) LiftMaster KPW250 Wireless Commercial Keypad
- (2) LiftMaster 811LMX Single-Button Remote Controls
- (1) GatePoint Solutions 72" In-Ground Gooseneck Pedestal
Key Features
- Complete single swing gate solar package with operator, solar equipment, access controls, and pedestal
- LiftMaster LA500PKGUL 24VDC linear actuator platform
- Rated for compatible swing gates up to 18 ft. or 1,600 lbs.
- Solar-ready configuration for locations where conventional AC power is difficult to provide
- KPW250 wireless commercial keypad with up to 250 permanent PINs
- Supports up to 10 unique temporary PINs
- Wireless keypad installation eliminates the need for control wiring between the keypad and operator
- (2) 811LMX remotes provide convenient vehicle gate access
- 72" in-ground gooseneck pedestal provides a dedicated keypad mounting location
- Battery backup and energy-efficient DC operation
- Security+ 2.0® encrypted radio technology
- Smooth start/stop operation helps reduce gate and hardware wear
- Supports monitored entrapment protection devices
- UL Listed for UL 325 compliant applications
Why Choose the LA500 Solar Kit with KPW250?
This package takes the basic LA500 solar system a step further by adding an access-control solution designed for properties requiring substantially more user capacity than a basic residential keypad.
The included KPW250 supports up to 250 permanent PINs and 10 temporary PINs, making the package a strong option for properties where multiple residents, employees, vendors, maintenance personnel, tenants, or other authorized users may require gate access. LiftMaster specifically positions the KPW250 for larger commercial applications and gated entrances for small businesses.
Because the KPW250 communicates wirelessly and operates from its own battery, there's no need to trench a separate keypad control cable back to the gate operator. LiftMaster specifies a 9V lithium battery and operating range of up to 500 ft. in open-field conditions.
Combined with the LA500PKGUL, solar equipment, two 811LMX remotes, and 72" pedestal, the result is a versatile single-gate package for remote and controlled-access entrances.
LiftMaster LA500PKGUL + KPW250 Frequently Asked Questions
What is included with this LA500 solar kit?
This package includes the LA500PKGUL operator package, K94-37236 solar harness, 20W 12V solar panel, solar panel mounting bracket, KPW250 wireless keypad, two 811LMX remotes, and 72" in-ground pedestal.
How many codes can the LiftMaster KPW250 store?
The KPW250 supports up to 250 permanent four-digit PINs and 10 unique temporary PINs, making it appropriate for installations requiring access for multiple users.
What's the difference between the KPW250 and KPW5?
The biggest difference for this application is user capacity. The KPW250 supports up to 250 permanent PINs, while the KPW5 supports up to five permanent PINs. Both support up to 10 temporary PINs.
For a private residence with only a few users, the KPW5 package may be sufficient. For businesses, communities, multi-user properties, and entrances requiring more individual access codes, the KPW250 package is the stronger choice.
Is the KPW250 suitable for outdoor gate installations?
Yes. LiftMaster states that the KPW250's electronics meet NEMA 4X water-protection requirements, and the keypad is designed for outdoor environments.
Does the KPW250 need wiring back to the LA500?
No. The KPW250 is a wireless keypad, eliminating the need for control wiring between the keypad and compatible operator.
What size gate can the LiftMaster LA500 operate?
LiftMaster rates the LA500 for swing gates up to 18 ft. or 1,600 lbs. Proper gate construction, hardware, installation geometry, and site conditions remain important when determining suitability.
Can the LA500PKGUL operate using solar power?
Yes. LiftMaster identifies the LA500 as a solar-ready system intended to provide an option where utility power isn't readily available.
Is the included 20W panel enough for every installation?
Not necessarily. Solar requirements vary according to gate usage, geographic location, sunlight exposure, battery configuration, accessory loads, and other site conditions.
The included 20W 12V panel forms the solar package we're selling, but the installation should be sized according to the current LiftMaster solar specifications for the specific application.
Professional Installation Recommended
Automatic gate operators require appropriate monitored entrapment protection devices and proper installation according to the gate configuration. LiftMaster states that external entrapment protection devices must be added to meet UL 325 requirements.
Solar installations should also account for expected daily gate cycles, accessory loads, battery capacity, panel placement, geographic location, and available sunlight.
Where can I find the LiftMaster LA500 manual and wiring diagram?
GatePoint Solutions provides links to available LiftMaster LA500 installation manuals, product documentation, wiring information, troubleshooting resources, and technical documents in the Resources section below.
LiftMaster LA500 Replacement Parts
Need parts for an existing LA500 operator? Shop our selection of LiftMaster LA500PKGUL and LA500UL Replacement Parts, including control boards, actuator components, control boxes, batteries, harnesses, brackets, electrical components, hardware, and other genuine LiftMaster replacement parts.
Shop LiftMaster LA500 Replacement Parts →
Related Swing Gate Operators
Looking for additional swing gate operator options? Browse our selection of Residential Swing Gate Operators, Commercial Swing Gate Operators, and Swing Gate Operators for residential, community, and commercial access applications.
