Description

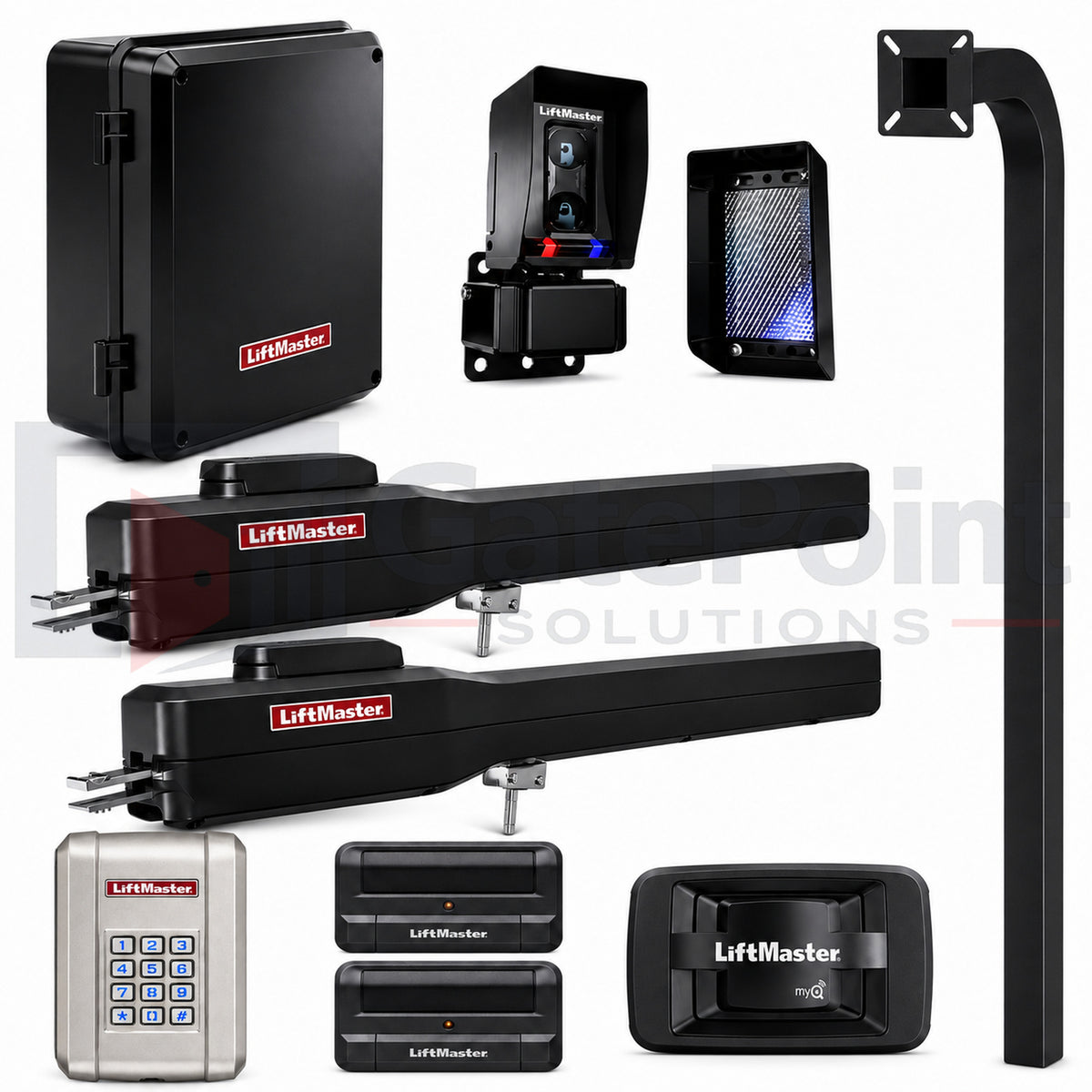

The LiftMaster LA500PKGUL Dual Swing Gate Operator Kit with KPW250, (2) 811LMX Remotes, 828LM Internet Gateway & 72" In-Ground Pedestal combines a complete dual-actuator LA500 gate operator system with higher-capacity wireless access control, vehicle remotes, myQ connectivity equipment, and a dedicated keypad pedestal.
Designed for dual swing gate entrances, this GatePoint Solutions package combines the LiftMaster LA500PKGUL primary operator system with the LA500DCS secondary actuator to automate two compatible swing gate leaves. The package is ideal for gated communities, HOA entrances, residential estates, multi-user properties, businesses, and light commercial applications requiring dependable dual-gate automation with greater access-control capacity.
At the center of the system is LiftMaster's 24VDC LA500 linear actuator platform, rated for compatible swing gates up to 18 ft. or 1,600 lbs. The LA500 provides battery backup, smooth start/stop operation, Security+ 2.0® technology, and integration with compatible LiftMaster access-control equipment.
The included LiftMaster KPW250 Wireless Keypad provides capacity for up to 250 permanent PINs and 10 temporary PINs, making this configuration particularly useful for properties with a larger number of authorized users.
What's Included
- (1) LiftMaster LA500PKGUL 24VDC Primary Swing Gate Operator Package
- (1) LiftMaster LA500DCS 24VDC Secondary Actuator Arm
- (1) LiftMaster KPW250 Wireless Keypad
- (2) LiftMaster 811LMX Single-Button Remote Controls
- (1) LiftMaster 828LM Internet Gateway
- (1) GatePoint Solutions 72" In-Ground Gooseneck Pedestal
Key Features
- Complete dual swing gate operator package
- Includes LA500PKGUL primary system + LA500DCS secondary actuator
- Designed for entrances with two swing gate leaves
- 24VDC linear actuator gate operator platform
- Rated for compatible gates up to 18 ft. or 1,600 lbs. per gate leaf
- KPW250 wireless keypad for higher-capacity multi-user access
- Supports up to 250 permanent PINs and 10 temporary PINs
- Wireless keypad installation eliminates traditional control wiring between the keypad and compatible operator
- Includes (2) 811LMX remotes for convenient vehicle access
- 828LM Internet Gateway provides Internet connectivity for compatible myQ-enabled gate operators
- 72" in-ground pedestal provides a dedicated mounting location for the KPW250
- Battery-backed operation
- Security+ 2.0® radio technology
- Smooth start/stop operation helps reduce wear
- Supports monitored entrapment protection equipment
- UL Listed for UL 325 gate operator applications
LiftMaster specifically lists both the KPW250 and 828LM as accessories for the LA500 platform.
Why Choose the LA500 Dual Gate Operator Kit with KPW250?
This package is designed for properties that need two-leaf swing gate automation plus access for a larger number of users.
The LA500PKGUL provides the primary actuator and control system, while the included LA500DCS secondary actuator operates the second gate leaf. LiftMaster identifies the LA500DCS specifically as the secondary 24VDC actuator for dual swing gate applications.
For access control, the KPW250 provides substantially greater user capacity than the KPW5. The KPW250 can store up to 250 permanent four-digit PINs, compared with five permanent PINs on the KPW5, while both support up to 10 temporary PINs.
That makes this package particularly attractive for:
- Gated communities and HOA entrances
- Multi-user residential properties
- Apartment and condominium entrances
- Small businesses
- Commercial properties
- Private facilities
- Residential estates
- Other dual-gate controlled-access entrances
Two LiftMaster 811LMX remotes provide convenient single-button vehicle access and use LiftMaster's Security+ 2.0 encrypted DIP technology.
The included 828LM Internet Gateway connects compatible myQ-enabled LiftMaster gate operators to the Internet through an Ethernet connection to the property's router, enabling supported myQ functionality.
Finally, the 72" in-ground gooseneck pedestal provides a dedicated driveway mounting location for the KPW250.
LiftMaster LA500PKGUL Dual + KPW250 Frequently Asked Questions
What makes this a dual LA500 gate operator system?
This kit includes both the LA500PKGUL primary operator package and LA500DCS secondary actuator. The LA500DCS operates the second gate leaf in a compatible dual swing gate installation.
What is included with this complete kit?
The package includes the LA500PKGUL, LA500DCS secondary actuator, KPW250 wireless keypad, two 811LMX remotes, 828LM Internet Gateway, and 72" in-ground pedestal.
How many PIN codes can the KPW250 store?
The KPW250 supports up to 250 permanent four-digit PINs and 10 unique temporary PINs.
What's the difference between the KPW5 and KPW250 LA500 kits?
The primary difference is user capacity.
The KPW5 supports up to 5 permanent PINs, while the KPW250 supports up to 250 permanent PINs. Both support up to 10 temporary PINs.
For a residence with only a few regular users, the KPW5 package may be sufficient. The KPW250 version is better suited to communities, businesses, multi-user properties, and other entrances requiring many individual access codes.
Does the KPW250 require control wiring back to the LA500?
No. The KPW250 communicates wirelessly with compatible LiftMaster operators. LiftMaster specifies an open-field operating range of up to 500 ft., although actual range varies with site conditions and obstructions.
What does the LiftMaster 828LM do?
The 828LM Internet Gateway connects compatible myQ-enabled LiftMaster gate operators to the Internet. It connects to the property's router through Ethernet and enables supported myQ functionality.
What size gates can the LA500 operate?
LiftMaster rates the LA500 platform for compatible swing gates up to 18 ft. or 1,600 lbs. Proper gate construction, hinges, installation geometry, hardware, and site conditions must also be considered.
Does the LA500 have battery backup?
Yes. Battery backup is a standard feature of the LA500 platform, allowing continued operation during many AC power interruptions.
Can this system be converted to solar later?
The LA500 is a solar-ready platform, so compatible solar equipment can be incorporated into an appropriately designed installation.
GatePoint Solutions also offers dedicated LA500 Dual Solar Gate Operator Kits for customers who want a solar configuration from the beginning.
Professional Installation Recommended
Dual automatic swing gates require proper gate construction, actuator geometry, electrical configuration, synchronization, and monitored entrapment protection.
LiftMaster states that external entrapment protection devices must be added as required to meet UL 325 standards. Installers should follow the current LiftMaster installation documentation when determining appropriate photo eyes, safety edges, and other monitored protection devices.
Where can I find the LiftMaster LA500 manual and wiring diagram?
GatePoint Solutions provides links to available LiftMaster LA500 installation manuals, product documentation, wiring information, troubleshooting resources, and technical documents in the Resources section below.
