Description
The LiftMaster LA500PKGUL Dual Solar Gate Operator Kit with KPW250, (2) 811LMX Remotes & 72" In-Ground Pedestal combines a complete dual-actuator LA500 swing gate system with solar power equipment and a higher-capacity wireless access-control package.
Designed for dual swing gate entrances, this kit combines the LiftMaster LA500PKGUL primary operator system with the LA500DCS secondary actuator to automate two compatible swing gate leaves. The included solar equipment provides the foundation for installations where conventional AC utility power may be difficult, costly, or impractical to extend to the gate.
For access control, this package includes the LiftMaster KPW250 Wireless Keypad, which supports up to 250 permanent PINs and 10 temporary PINs. This makes the kit particularly attractive for gated communities, commercial properties, multi-user entrances, ranches, private facilities, estates, and other locations requiring solar gate automation with access for a larger number of authorized users.

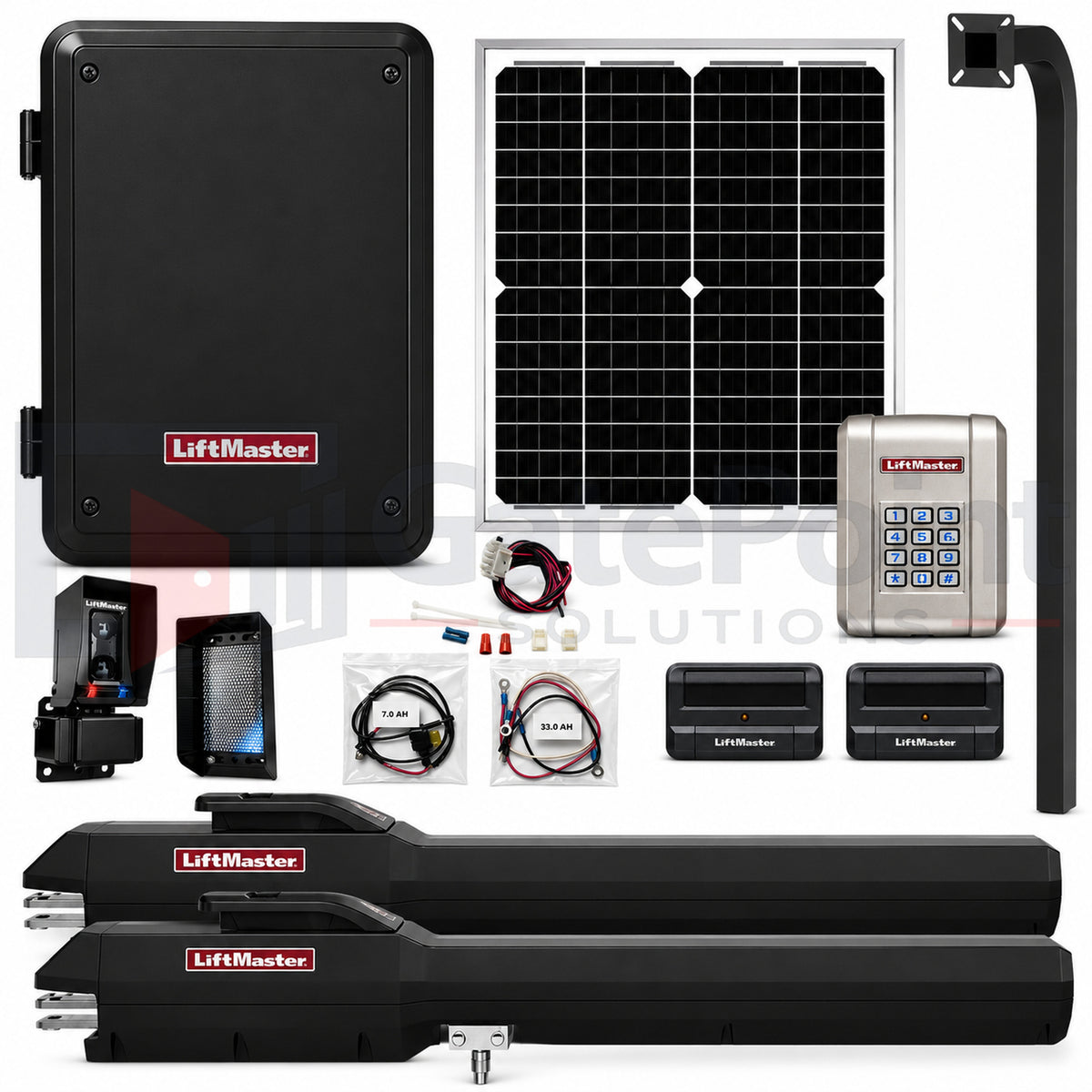

What's Included
- (1) LiftMaster LA500PKGUL 24VDC Primary Swing Gate Operator Package
- (1) LiftMaster LA500DCS 24VDC Secondary Actuator Arm
- (1) LiftMaster K94-37236 Solar Harness
- (1) 20W 12V Solar Panel
- (1) Solar Panel Mounting Bracket
- (1) LiftMaster KPW250 Wireless Commercial Keypad
- (2) LiftMaster 811LMX Single-Button Remote Controls
- (1) GatePoint Solutions 72" In-Ground Gooseneck Pedestal
Key Features
- Complete dual swing gate solar package
- Includes LA500PKGUL primary operator + LA500DCS secondary actuator
- Designed to automate compatible entrances with two swing gate leaves
- LiftMaster 24VDC linear actuator platform
- Solar-ready configuration for locations where utility power is unavailable or impractical
- KPW250 wireless keypad supports up to 250 permanent PINs
- Supports up to 10 unique temporary PINs
- Wireless keypad design eliminates the need for control wiring from the keypad to the compatible operator
- (2) 811LMX remote controls for convenient vehicle access
- 72" in-ground gooseneck pedestal for keypad mounting
- Battery-backed DC operation
- Smooth start/stop operation helps reduce wear on gate hardware
- Security+ 2.0® encrypted radio technology
- Supports compatible LiftMaster access-control technology
- Supports monitored entrapment protection devices
- UL Listed for UL 325 gate operator applications
LiftMaster specifically identifies the LA500 as solar-ready and supports wireless dual-gate communication, making the platform well suited to this type of dual solar configuration.
Why Choose the LA500 Dual Solar Kit with KPW250?
This package is designed for applications that require dual-gate automation, solar capability, and access for a larger number of users.
The LA500PKGUL provides the primary operator and control system, while the LA500DCS secondary actuator operates the second gate leaf. Together, they create the foundation for a synchronized dual swing gate installation.
The included KPW250 takes the package beyond a basic residential access setup. With capacity for up to 250 permanent PINs and 10 temporary PINs, it provides considerably greater user-management capability than the KPW5 and is specifically positioned by LiftMaster for larger commercial applications and gated small-business entrances.
That makes this package especially attractive for:
- Gated communities and HOA entrances
- Multi-user residential properties
- Commercial entrances
- Ranch and rural property entrances
- Private facilities
- Residential estates
- Remote controlled-access locations
- Properties where extending AC power to the gate would be difficult or expensive
The included two 811LMX remotes provide convenient access for regular vehicle users, while the 72" in-ground pedestal creates a dedicated driveway mounting location for the KPW250.
LiftMaster LA500PKGUL Dual Solar Kit Frequently Asked Questions
What makes this a dual LA500 system?
The package includes the LA500PKGUL primary operator system and LA500DCS secondary actuator. The secondary actuator operates the second gate leaf in a properly configured dual swing gate installation.
How many access codes can the KPW250 store?
The LiftMaster KPW250 supports up to 250 permanent PINs and 10 unique temporary PINs, providing substantially more user capacity than a basic residential wireless keypad.
What's the difference between the KPW250 and KPW5 versions of this kit?
The biggest difference is user capacity.
The KPW5 supports up to 5 permanent PINs, making it well suited to residential applications with relatively few regular users. The KPW250 supports up to 250 permanent PINs, making it the stronger option for communities, businesses, and other multi-user properties. Both support temporary PIN functionality.
Does the KPW250 need control wiring back to the gate operator?
No. The KPW250 provides wireless communication with compatible LiftMaster gate operators, eliminating the need to run traditional control wiring between the keypad and operator. Its sealed electronics meet NEMA 4X water-protection requirements for outdoor environments.
What size gates can the LiftMaster LA500 operate?
LiftMaster rates the LA500 platform for swing gates up to 18 ft. or 1,600 lbs. Proper gate construction, hinge condition, installation geometry, hardware, and site conditions must also be considered when determining operator suitability.
Can the dual LA500 system operate using solar power?
Yes. LiftMaster identifies the LA500 as a solar-ready system and specifically highlights solar power as an option for locations where utility power is not readily available.
What solar equipment comes with this kit?
This GatePoint Solutions package includes one K94-37236 solar harness, one 20W 12V solar panel, and one solar panel mounting bracket.
Is one 20W solar panel sufficient for every dual LA500 installation?
Not necessarily. Solar requirements depend on available sunlight, geographic location, daily gate cycles, battery capacity, accessory loads, and site conditions.
A dual-actuator installation can also require more energy than a comparable single-gate system. The installation should therefore be sized according to current LiftMaster solar requirements rather than assuming one solar configuration is appropriate for every site.
Does the solar panel directly power the LA500 actuators?
No. The LA500 operates from its DC battery system. Solar equipment replenishes the battery system so stored energy remains available to operate the gates.
Can additional access-control equipment be added?
Yes. Compatible vehicle detection, access control, communication, and safety equipment can be incorporated into the system. Additional electrical loads should be considered when sizing the solar and battery configuration.
Professional Installation Recommended
A dual automatic swing gate requires proper actuator geometry, gate construction, electrical configuration, synchronization, and entrapment protection.
LiftMaster states that external entrapment protection devices must be added as required to meet UL 325 standards. Installers should follow current LiftMaster documentation and determine the appropriate monitored photoelectric sensors, safety edges, and other protection devices for the specific installation.
Solar installations should also account for panel orientation, available sunlight, battery condition and capacity, daily gate cycles, accessory loads, and geographic location.
Where can I find the LiftMaster LA500 manual and wiring diagram?
GatePoint Solutions provides links to available LiftMaster LA500 installation manuals, product documentation, wiring information, troubleshooting resources, and technical documents in the Resources section below.
