Description
Meet the LiftMaster LA412PKGUL 12VDC Solar Residential Actuator Package — a purpose-built, off-grid swing gate automation system designed for homes and rural estates that demand reliability, safety, and energy efficiency without relying on utility power.
- Motor & Drive: P3 Motors® 12VDC continuous-duty motor delivers smooth, quiet operation for residential swing gates with consistent performance under daily use.
- Power Source: Solar-powered DC system that runs entirely on a solar-charged battery setup, ideal for properties with limited or no grid access; supports up to 30W 12V panels.

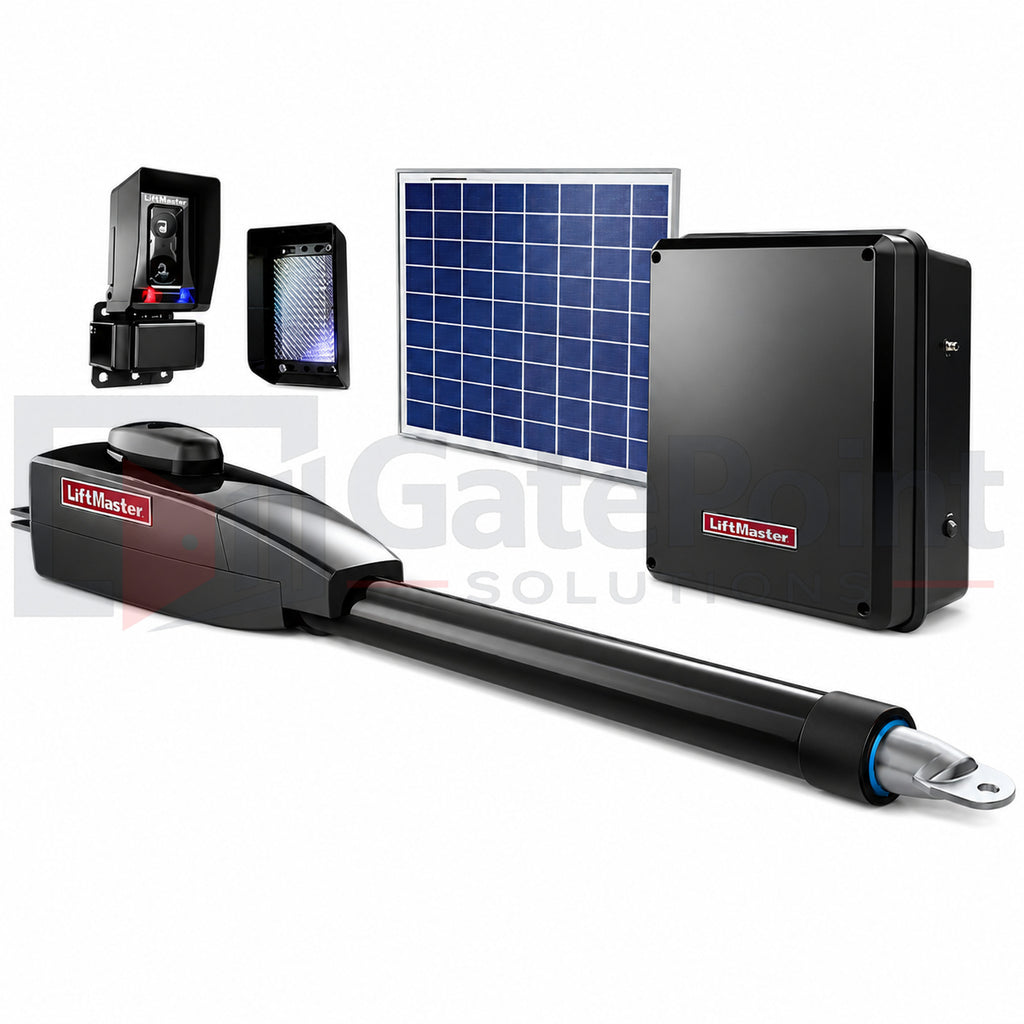

- System Includes: 12VDC Solar Residential Linear Actuator, Solar Control Box, 10-Watt Solar Panel Kit, Retro-Reflective Photo Eye, Integrated Security+ 2.0 encrypted access, and myQ smart control hardware.
- Control & Connectivity: myQ Smart Control Platform with Security+ 2.0 encrypted communication enables remote monitoring, real-time notifications, and secure wireless access control from a mobile device.
- Safety & Compliance: UL safety architecture, reversing sensor, entrapment protection, auto-open on power or battery depletion for emergencies, and fire department compliance features.
- Dual-Gate Optimization: Synchronized Close support for dual-gate configurations, Party-Pass extended open capability, and anti-tailgate security logic to safeguard entry and exit flows.
- Operational Features: Smooth soft-start/stop, mid-travel reversal for mechanical protection, Quick-Close, and a keyed manual disconnect for emergency operation.
- Durable Construction: 1/4" gold zinc-plated steel chassis, all-metal worm gear drive, UV-resistant two-piece polycarbonate cover, and commercial-duty aluminum housing for long-term outdoor use.
- Dimensions & Weight: Actuator height 6.06", width 37.96", depth 3.9" with a total system weight around 206 lbs; arm weight 19 lbs; control box 13 lbs.
- Weather & Temperature: Operates from -4°F to 140°F (-20°C to 60°C) without heater; optional heater extends range to -40°F (-40°C) up to 140°F (60°C) for extreme climates.
- Performance & Maintenance: Mid-travel reversal protects gears, ensures safe operation, and automatic battery monitoring helps prevent unexpected outages.
This solar residential actuator package is built for homeowners who value independence from electrical outages, predictable performance, and modern remote control capabilities. It’s especially well-suited for rural driveways, gated properties, and estates where a dependable perimeter system enhances security while minimizing energy costs and wiring complexity. The combination of P3 Motors technology, integrated battery backup, and encrypted wireless access delivers a comprehensive solution that’s easy to install, maintain, and monitor from anywhere via the myQ app.
