Description

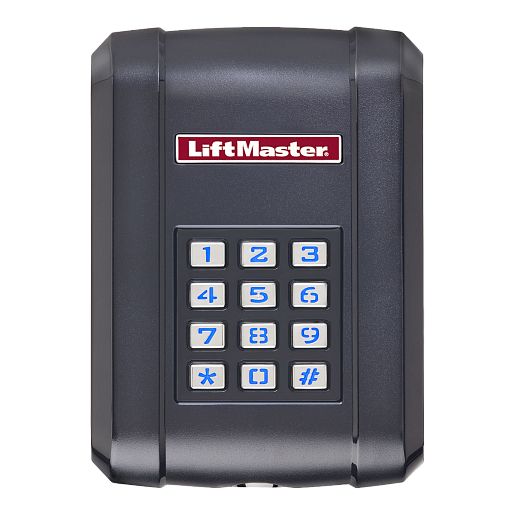

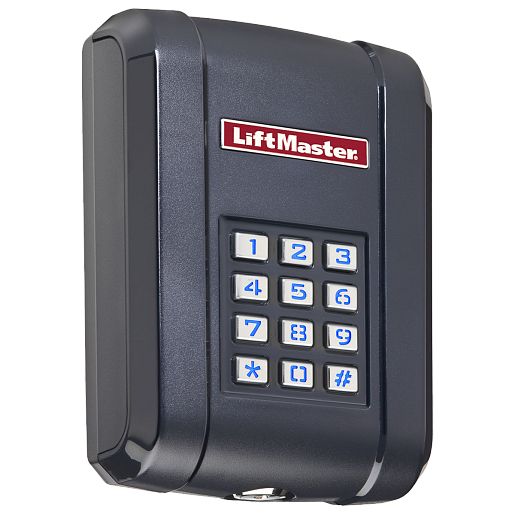

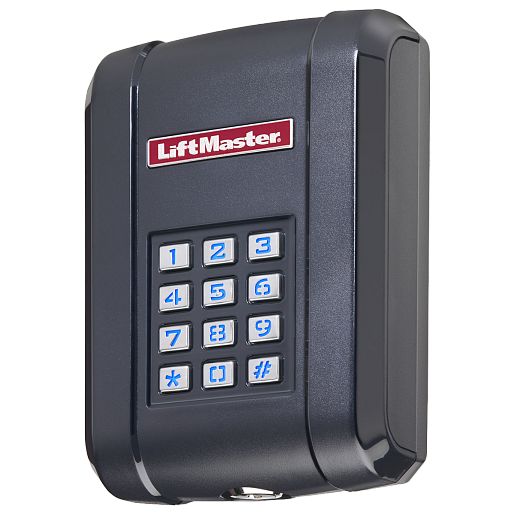

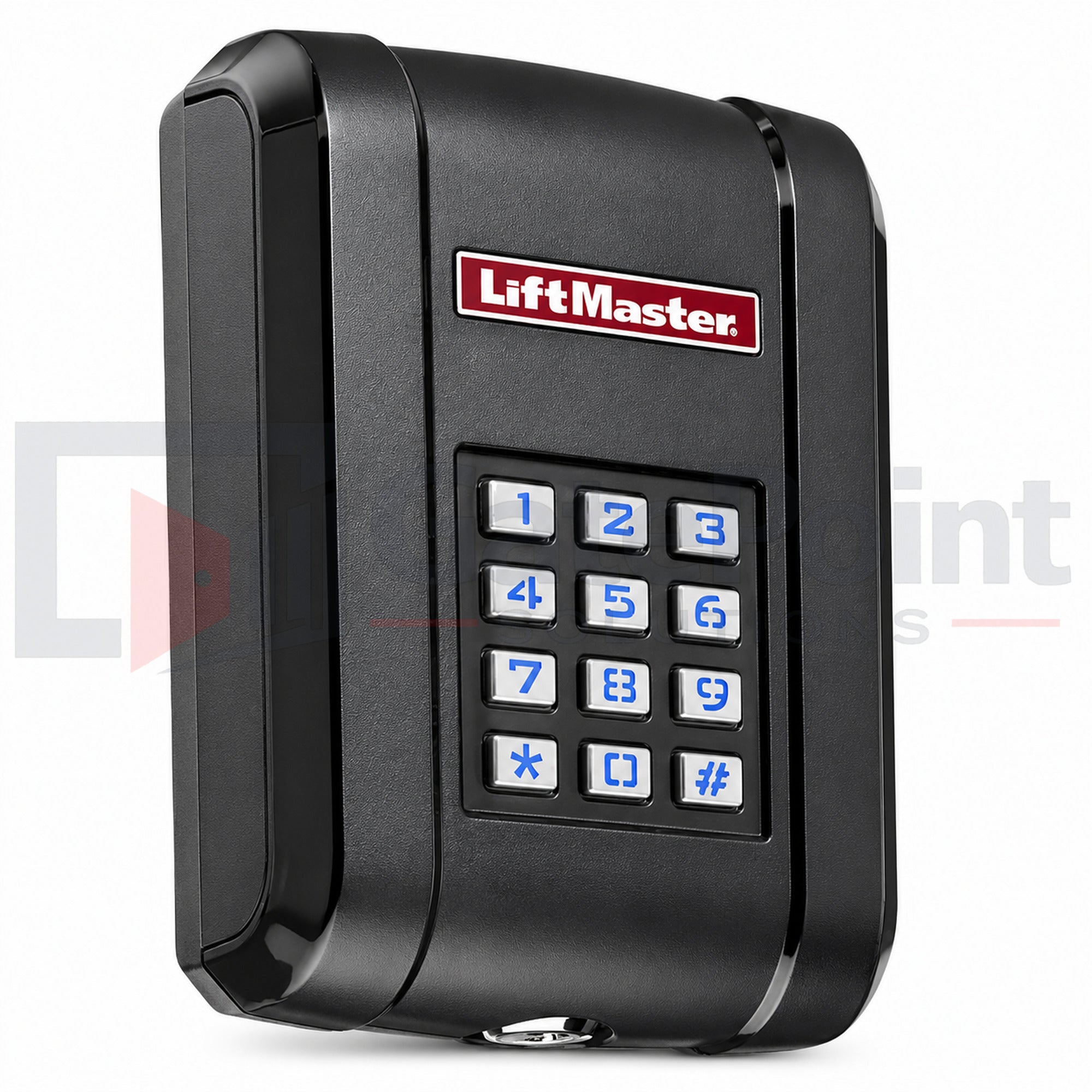

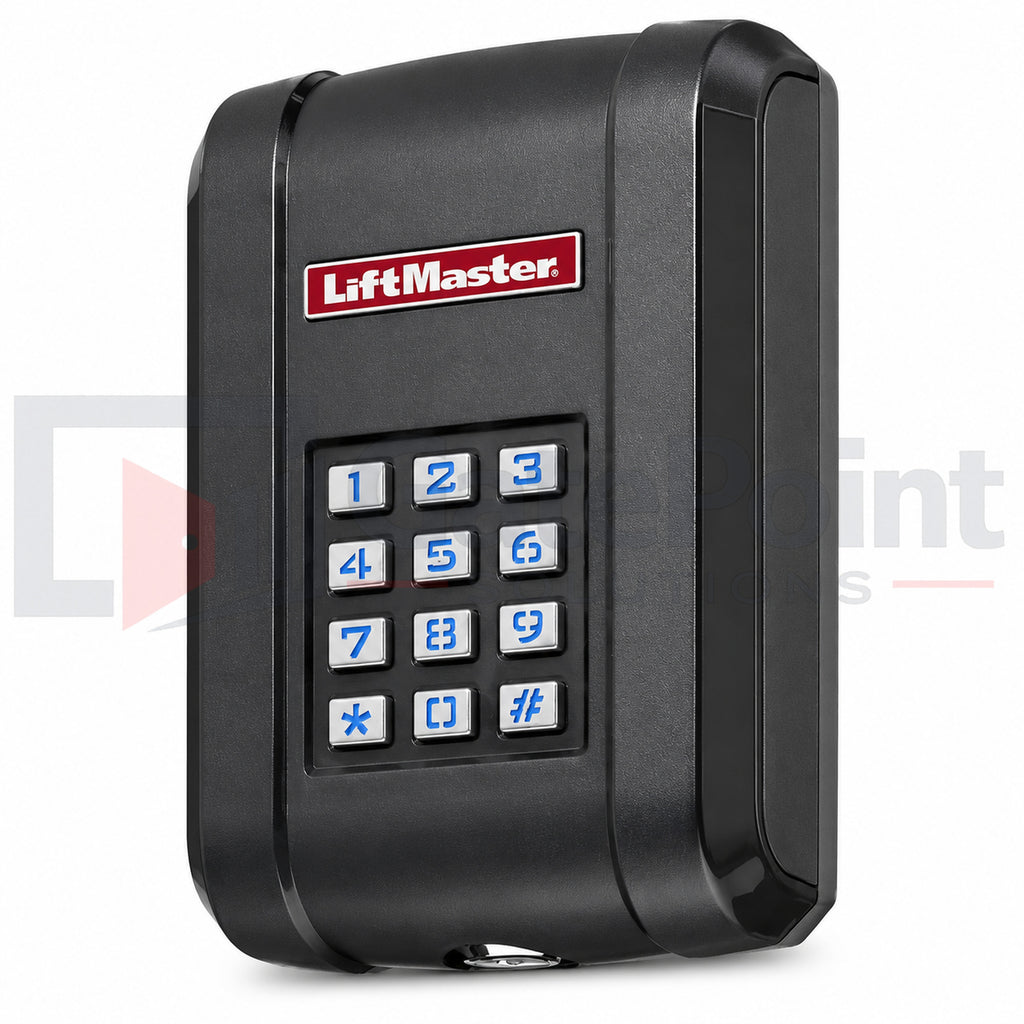

The LiftMaster KPW5MC is a wireless commercial security keypad designed for secure residential and commercial gate access control applications. Engineered exclusively for LiftMaster® Security+ 2.0® systems, the KPW5MC combines durable outdoor construction, wireless convenience, and advanced PIN management capabilities into a reliable keypad access solution for automatic gate and door operator systems.
Designed for residential gate operators, solar gate systems, and smaller commercial access applications, the KPW5MC supports up to 5 permanent PIN codes and 10 temporary PINs for flexible user management. Temporary PINs can be configured for limited-use access between 1 and 9 activations, making the keypad ideal for visitor, vendor, delivery, and service access control scenarios.
The rugged high-impact polycarbonate housing, sealed electronics, and NEMA 4X-rated weather protection provide dependable outdoor performance in demanding environments. A blue backlit metal keypad ensures reliable visibility in low-light conditions, while the fully enclosed internal antenna improves protection against vandalism and environmental exposure.
Powered by an industry-leading 5-year lithium battery, the KPW5MC delivers dependable long-term wireless performance and improved cold-weather operation.
Specifications:
- Model: KPW5MC
- Product Type: Wireless Commercial Security Keypad
- Manufacturer: LiftMaster
- Technology: Security+ 2.0®
- Permanent PIN Capacity: 5 Users
- Temporary PIN Capacity: 10 Unique Temporary PINs
- Temporary PIN Usage Range: 1 to 9 Uses
- Wireless Communication: Yes
- Standalone Operation: Yes
- Maximum Controlled Gates/Doors: 1
- Operating Temperature: -4°F to 140°F (-20°C to 60°C)
- Enclosure Rating: NEMA 4X Weather Protection
- Keypad Illumination: Blue LED Backlit Metal Keypad
- Battery Type: Long-Life Lithium Battery
- Estimated Battery Life: Up to 5 Years (Based on 25 Activations Per Day)
- Mounting Options: Surface Mount or Pedestal Mount
- Warranty: 1 Year Accessory Warranty
Compatible Applications:
Compatible with LiftMaster® UL325 Listed gate operators utilizing burgundy control boards and Security+ 2.0® technology.
Applications include:
- Residential gate access systems
- Solar-powered gate operator systems
- Commercial gate access control
- Commercial door operator access systems
- Visitor and vendor access management
- Wireless perimeter access control systems
Key Features:
- Designed exclusively for Security+ 2.0® systems
- Supports 5 permanent PIN codes
- Supports 10 temporary PINs for guest or service access
- Temporary PINs programmable for 1 to 9 uses
- Wireless keypad operation for gate and access systems
- Rugged high-impact polycarbonate housing
- Blue LED backlit metal keypad for nighttime visibility
- NEMA 4X-rated sealed electronics for outdoor environments
- Fully enclosed internal antenna for improved durability
- Long-life 5-year lithium battery
- Surface or pedestal mounting flexibility
- Ideal for residential, solar, and light commercial applications
