Description

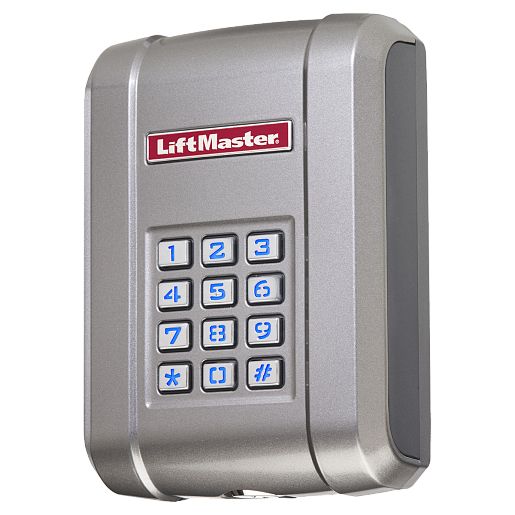

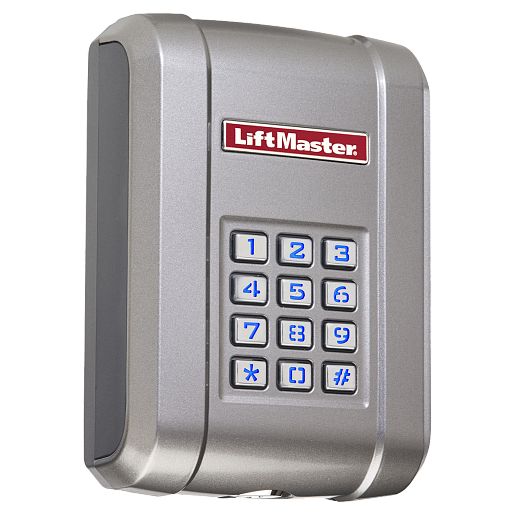

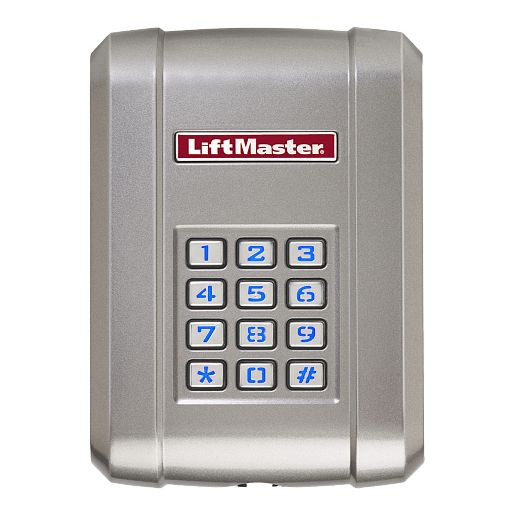

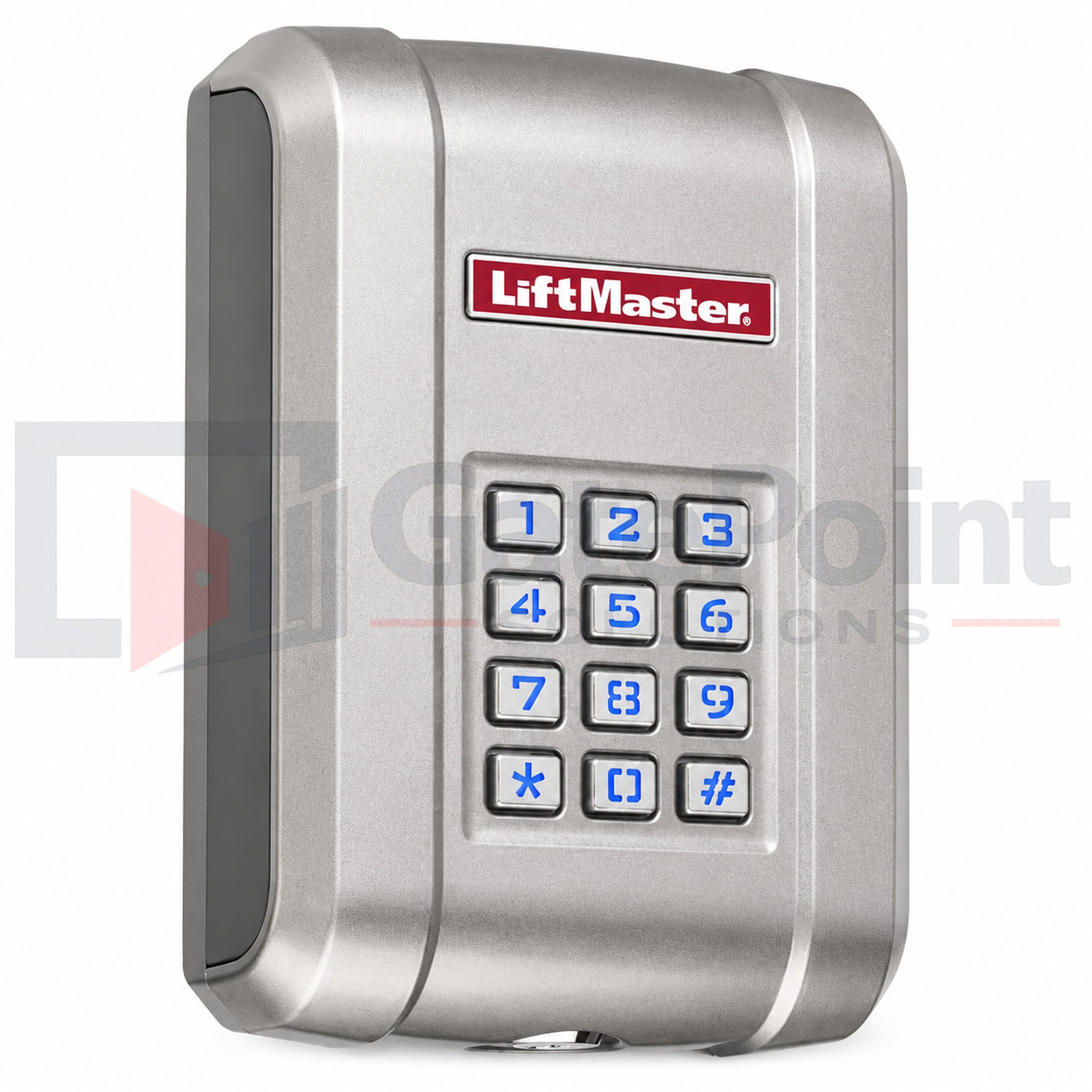

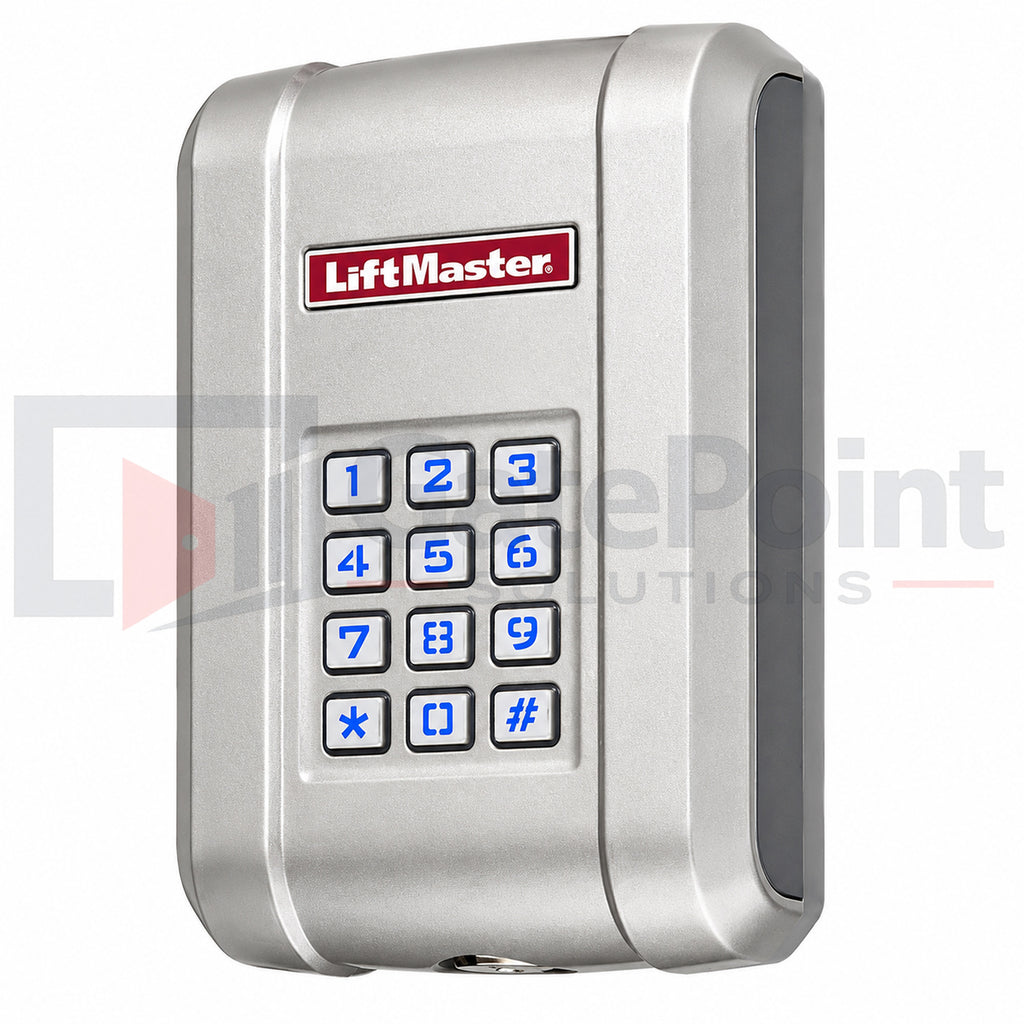

The LiftMaster KPW250MC is a wireless commercial security keypad designed for larger commercial gate and access control applications requiring flexible multi-user access management and durable outdoor performance. Engineered for compatibility with Security+ 2.0®, Security+®, and Linear Multi-Code 300 MHz systems, the KPW250MC provides a versatile and cost-effective wireless keypad solution for commercial perimeter security and access control systems.
Designed for maintenance entrances, gated commercial properties, warehouses, service entrances, and small business access applications, the KPW250MC supports up to 250 permanent PIN codes and 10 temporary PINs for advanced user management. Temporary PINs can be configured for limited-use access between 1 and 9 activations, making the keypad ideal for visitors, vendors, deliveries, and temporary personnel access.
The rugged zinc-alloy metal front cover, sealed electronics, and NEMA 4X-rated weather protection provide dependable outdoor durability in demanding commercial environments. A blue LED backlit metal keypad ensures reliable visibility during nighttime operation, while the fully enclosed internal antenna improves protection from vandalism and environmental exposure.
Powered by an industry-leading 5-year lithium battery, the KPW250MC delivers dependable long-term wireless performance and improved cold-weather reliability.
Specifications:
- Model: KPW250MC
- Product Type: Wireless Commercial Security Keypad
- Manufacturer: LiftMaster
- Technology Compatibility: Security+ 2.0®, Security+®, Linear Multi-Code 300 MHz
- Permanent PIN Capacity: 250 Users
- Temporary PIN Capacity: 10 Unique Temporary PINs
- Temporary PIN Usage Range: 1 to 9 Uses
- Wireless Communication: Yes
- Standalone Operation: Yes
- Maximum Controlled Gates/Doors: 1
- User Interface: PIN Entry
- Operating Temperature: -4°F to 140°F (-20°C to 60°C)
- Enclosure Rating: NEMA 4X Weather Protection
- Housing Material: Zinc-Alloy Metal Front Cover
- Keypad Illumination: Blue LED Backlit Metal Keypad
- Battery Type: Long-Life Lithium Battery
- Estimated Battery Life: Up to 5 Years (Based on 25 Activations Per Day)
- Mounting Options: Surface Mount or Pedestal Mount
- Warranty: 1 Year Accessory Warranty
Compatible Applications:
Compatible with LiftMaster® UL325 Listed gate operators utilizing burgundy control boards and supported wireless technologies.
Applications include:
- Commercial gate access systems
- Maintenance entrance access control
- Warehouse and industrial access control
- Small business gated entry systems
- Wireless perimeter access control systems
- Multi-user commercial gate operator systems
Key Features:
- Compatible with Security+ 2.0®, Security+®, and Linear Multi-Code 300 MHz systems
- Supports up to 250 permanent PIN codes
- Supports 10 temporary PINs for guest or service access
- Temporary PINs programmable for 1 to 9 uses
- Wireless keypad operation for gate and access systems
- Rugged zinc-alloy metal front cover
- Blue LED backlit metal keypad for nighttime visibility
- NEMA 4X-rated sealed electronics for outdoor environments
- Fully enclosed internal antenna for improved durability
- Long-life 5-year lithium battery
- Surface or pedestal mounting flexibility
- Ideal for commercial and multi-user access control applications
