Description

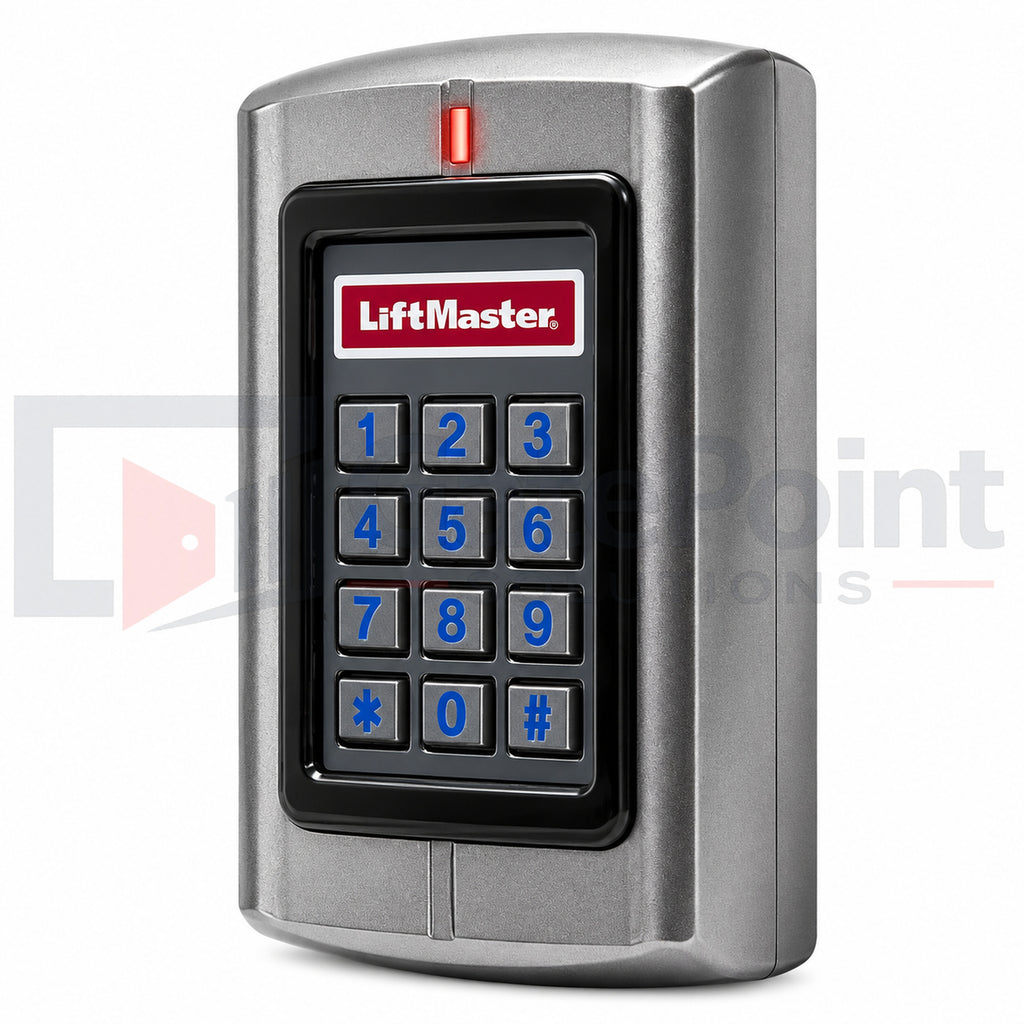

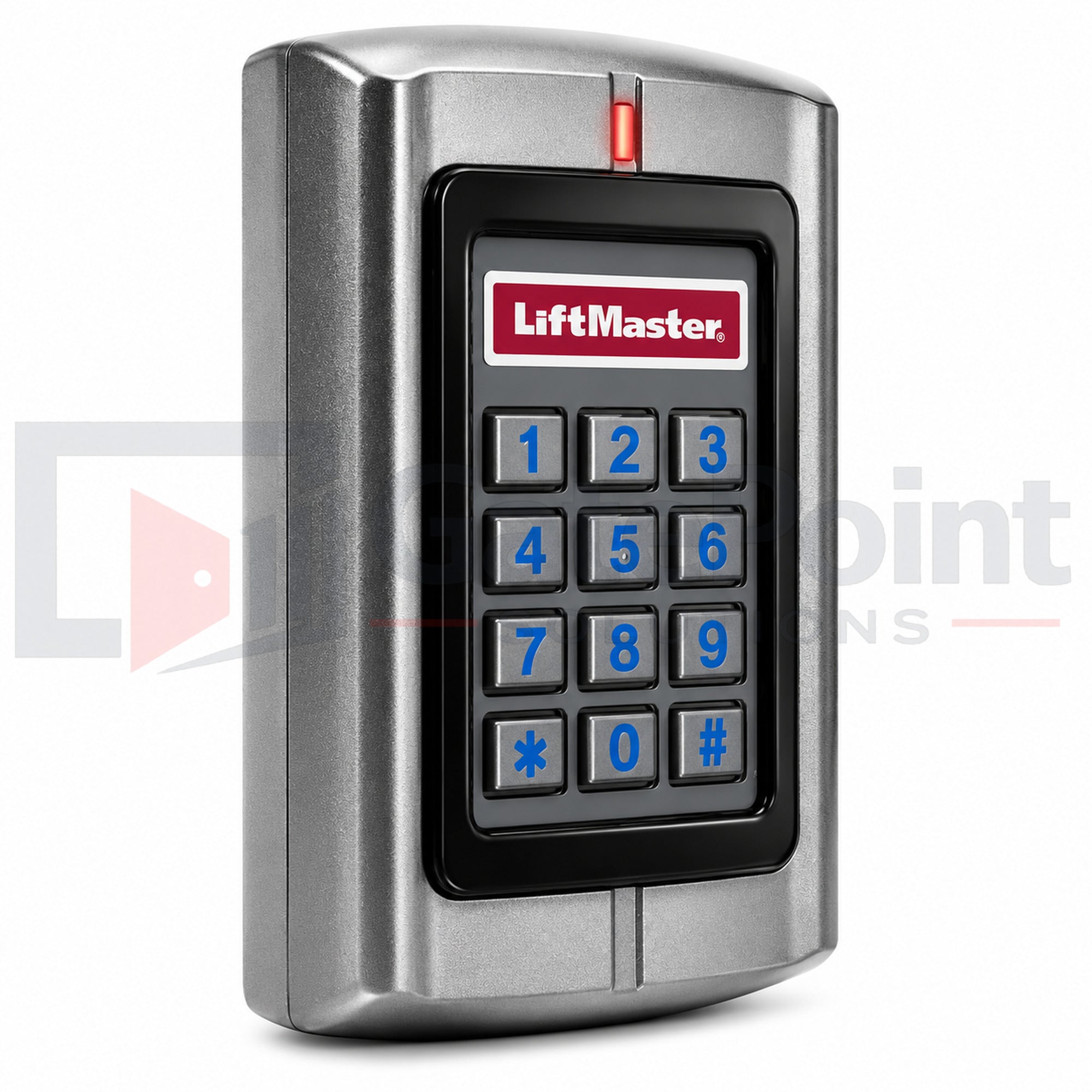

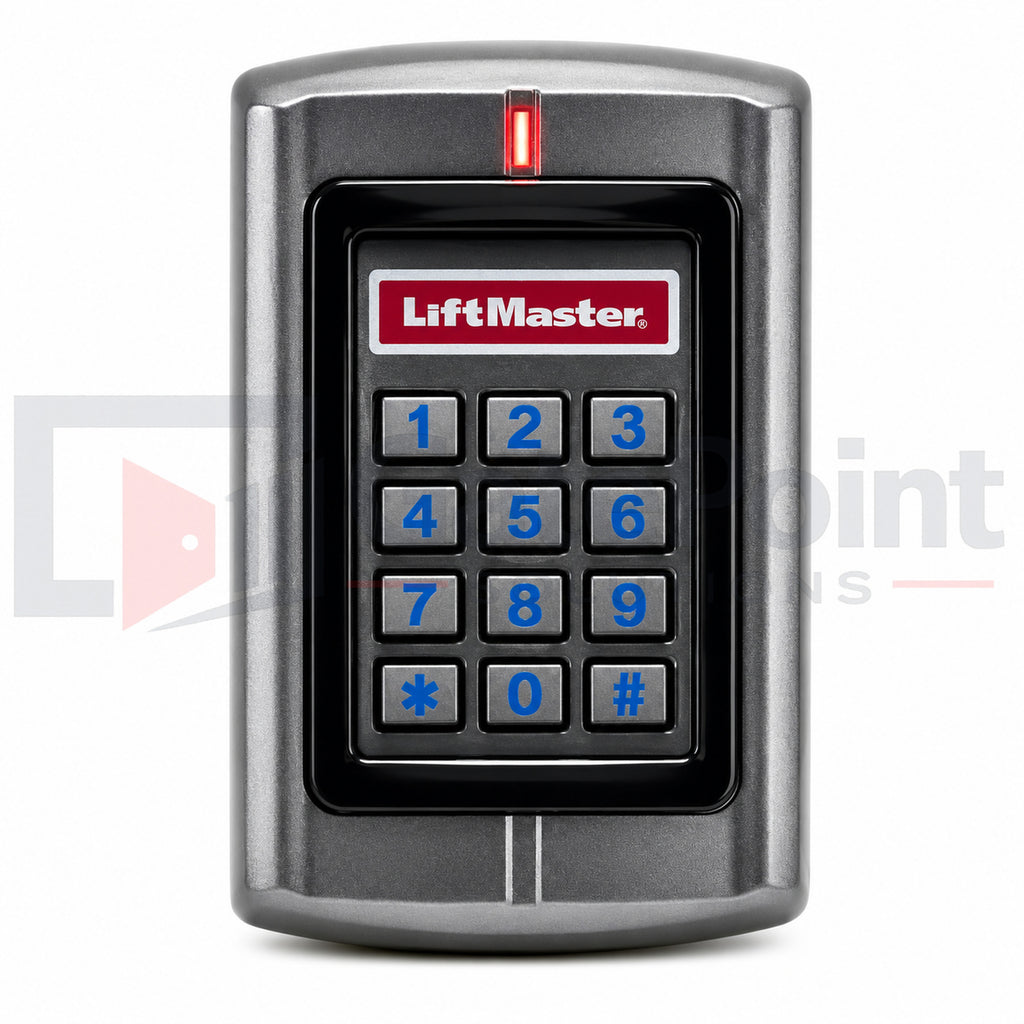

The LiftMaster KPR2000 is a feature-rich wired keypad and proximity card reader access controller designed for residential, commercial, and perimeter access control applications. Engineered for reliable standalone or integrated access management, the KPR2000 combines secure keypad entry, proximity credential support, vandal-resistant construction, and flexible programming capabilities into a professional-grade access control solution.
Designed for gate operators, commercial door operators, electric strikes, and magnetic locking systems, the KPR2000 supports up to 2,000 users with multiple access configurations including card-only, PIN-only, or combined card and PIN authentication. HID® 26-bit and 30-bit Wiegand credential compatibility provides flexible integration with existing access control systems and proximity credentials.
The rugged weather-resistant metal enclosure features blue backlit keys and a multicolor LED status display for reliable visibility in day or night operation. Integrated anti-tamper protection, alarm outputs, and programmable relay functionality make the KPR2000 ideal for gated communities, commercial facilities, industrial properties, warehouses, apartment complexes, and secured perimeter access systems.
The KPR2000 can function as a standalone controller or operate in pass-through mode for integration with larger access control systems.
Specifications:
- Model: KPR2000
- Product Type: Wired Keypad & Proximity Reader Access Controller
- Manufacturer: LiftMaster
- User Capacity: Up to 2,000 Users
- Supported Credential Formats: HID® 26-Bit & 30-Bit Wiegand
- Access Configurations: Card Only, PIN Only, Card + PIN
- PIN Length: 4 to 6 Digits
- Interface Modes: Standalone or Pass-Through Mode
- Wiegand Output Formats: 26-Bit, 30-Bit, ASCII for PIN
- Maximum Controlled Gates/Doors: 1
- Operating Temperature: -4°F to 140°F (-20°C to 60°C)
- Enclosure Type: Vandal-Resistant Metal Housing
- Finish: Gray Powder-Coated Finish
- Keypad Illumination: Blue Backlit Keys
- Status Display: Multicolor LED Indicators
- Warranty: 1 Year Accessory Warranty
Compatible Applications:
Applications include:
- Automatic gate operator access control
- Commercial door operator access systems
- Gated community entry systems
- Apartment and multi-tenant access control
- Warehouse and industrial access control
- Electric strike and magnetic lock control
- Standalone keypad access systems
- Wiegand access control integrations
Key Features:
- Supports up to 2,000 users
- Card-only, PIN-only, or card + PIN authentication modes
- HID® 26-bit and 30-bit Wiegand credential compatibility
- Blue backlit keypad for day and night visibility
- Multicolor LED status display
- Rugged vandal-resistant metal enclosure
- Weather-resistant design for outdoor installations
- Standalone controller or pass-through operation capability
- Programmable relay output with adjustable contact timing
- Anti-tamper alarm protection and integrated buzzer
- Networking capability between multiple KPR2000 units
- Rapid programming and block enrollment functionality
- Ideal for gate operators, commercial doors, and perimeter access systems
