Description
The LiftMaster IHSL24UL is an industrial-grade continuous-duty slide gate operator engineered for extreme heavy-gate applications requiring maximum durability, intelligent access control integration, and long-term high-cycle performance. Designed for industrial facilities, warehouses, transportation hubs, secured campuses, manufacturing plants, distribution centers, and high-security commercial sites, the IHSL24UL combines industrial-strength construction, advanced smart access functionality, and monitored safety protection for demanding perimeter security environments.

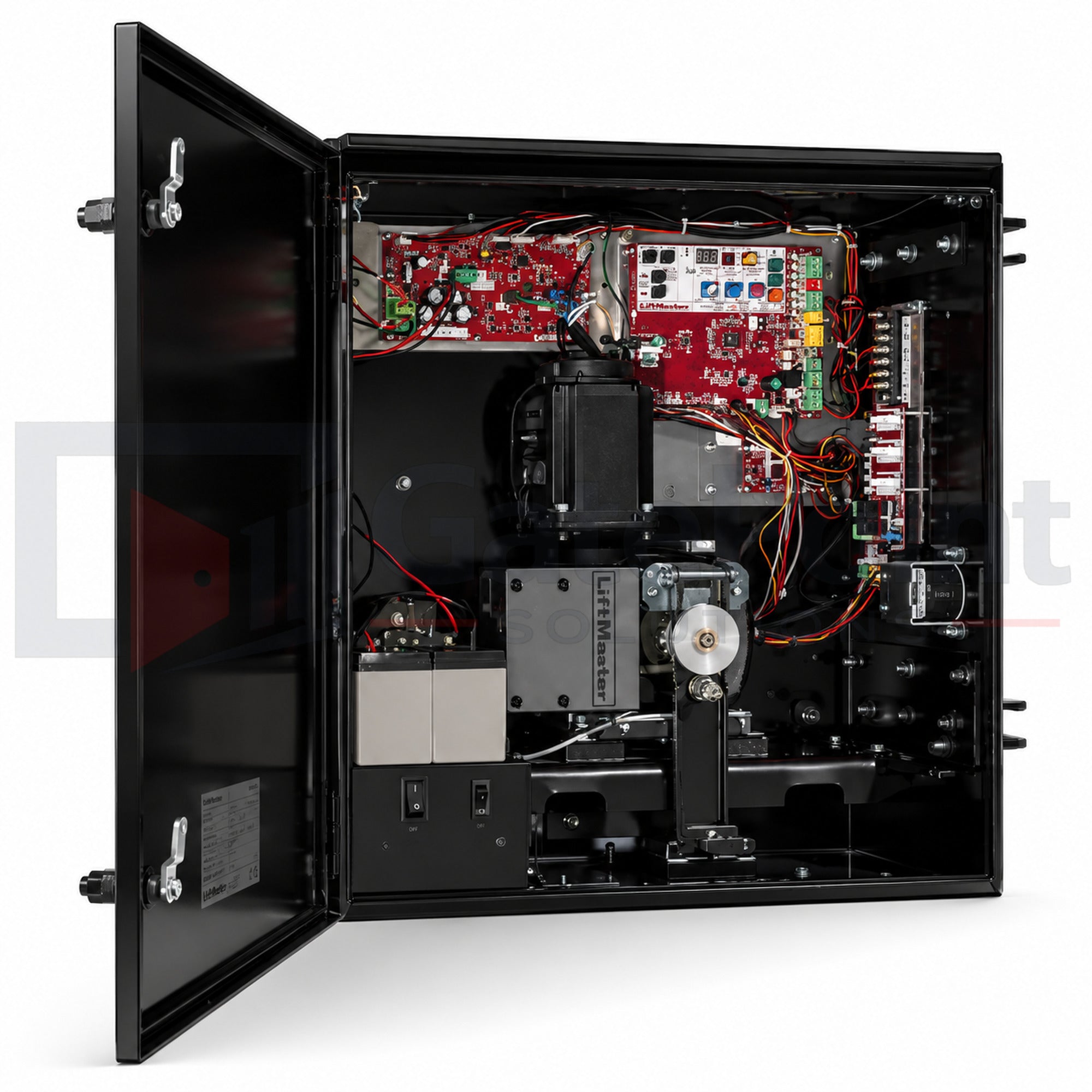

Powered by a custom industrial 24VBLDC brushless DC motor and industrial oil-bath size 70 gearbox, the IHSL24UL is capable of moving gates weighing up to 5,500 lbs. at speeds up to 1 ft. per second. Variable speed control allows adjustment from 0.5 ft./sec. to 1 ft./sec. to meet application-specific operational requirements, while smooth start/stop functionality and mid-travel reversal help minimize mechanical wear and extend operator hardware life. A heavy-duty #50 industrial chain provides pull strength rated at twice the gate weight for dependable operation in extreme-duty conditions.
Integrated myQ® connectivity provides advanced monitoring and control capabilities for industrial and commercial access points through Smart Facility Access and Smart Community Access platforms. Wireless dual-gate communication synchronizes gate operation while eliminating costly trenching requirements between operators, with independently adjustable gate speeds available when needed.

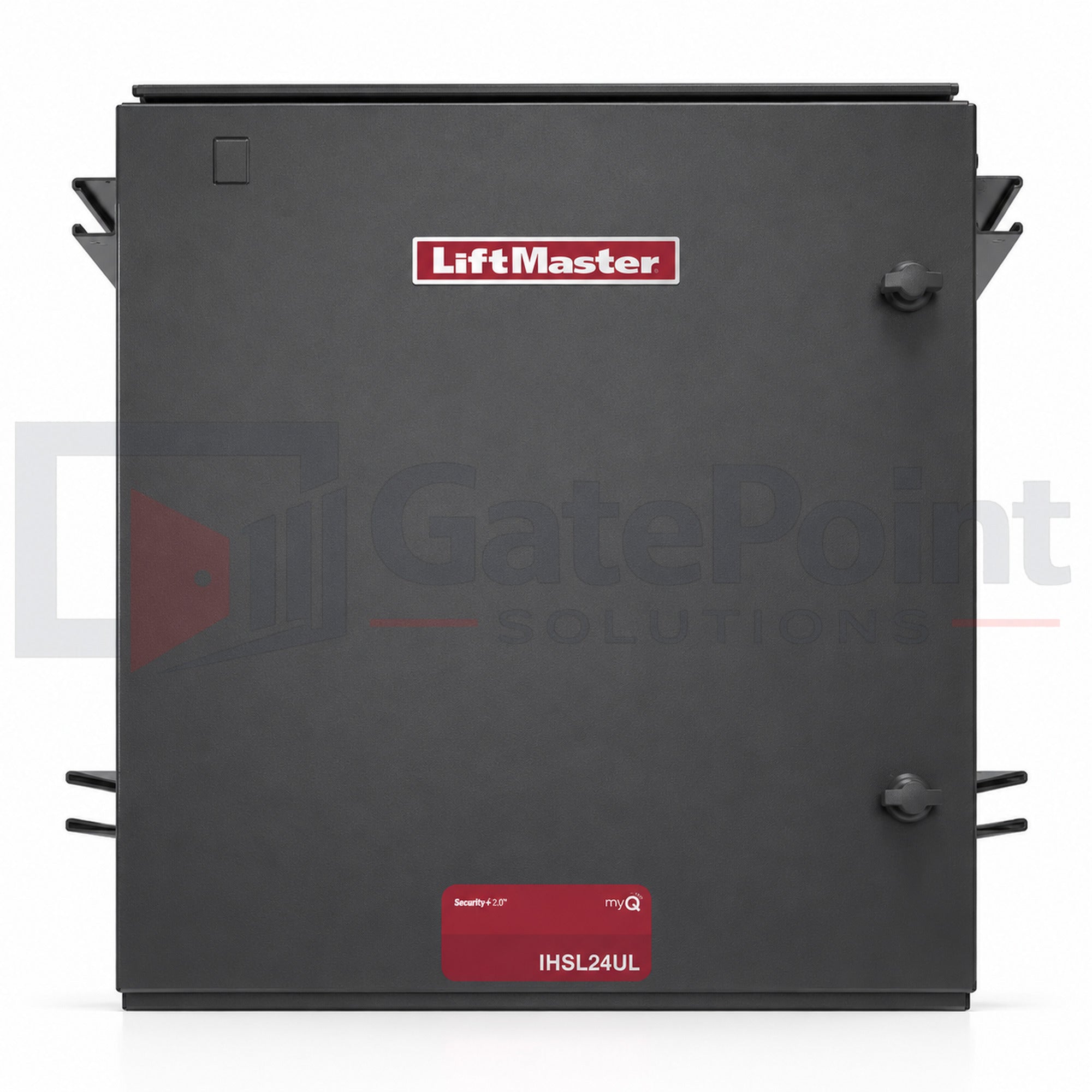

The IHSL24UL includes monitored entrapment protection devices and is UL® Listed for Class II, III, and IV applications. Quick Close and Anti-Tailgate functionality help minimize unauthorized access opportunities, while PosiLock® automatically secures the gate if forced from the closed position. The operator is housed within a powder-coated 14-gauge NEMA 3R weatherproof lockable steel cabinet engineered for harsh industrial environments and long-term outdoor durability.
Included Accessories:
LMRRUL Monitored Retro-Reflective Photo Eye: Heated monitored retro-reflective photo eye with widened beam engineered to maintain alignment; sensing range up to 50 ft.

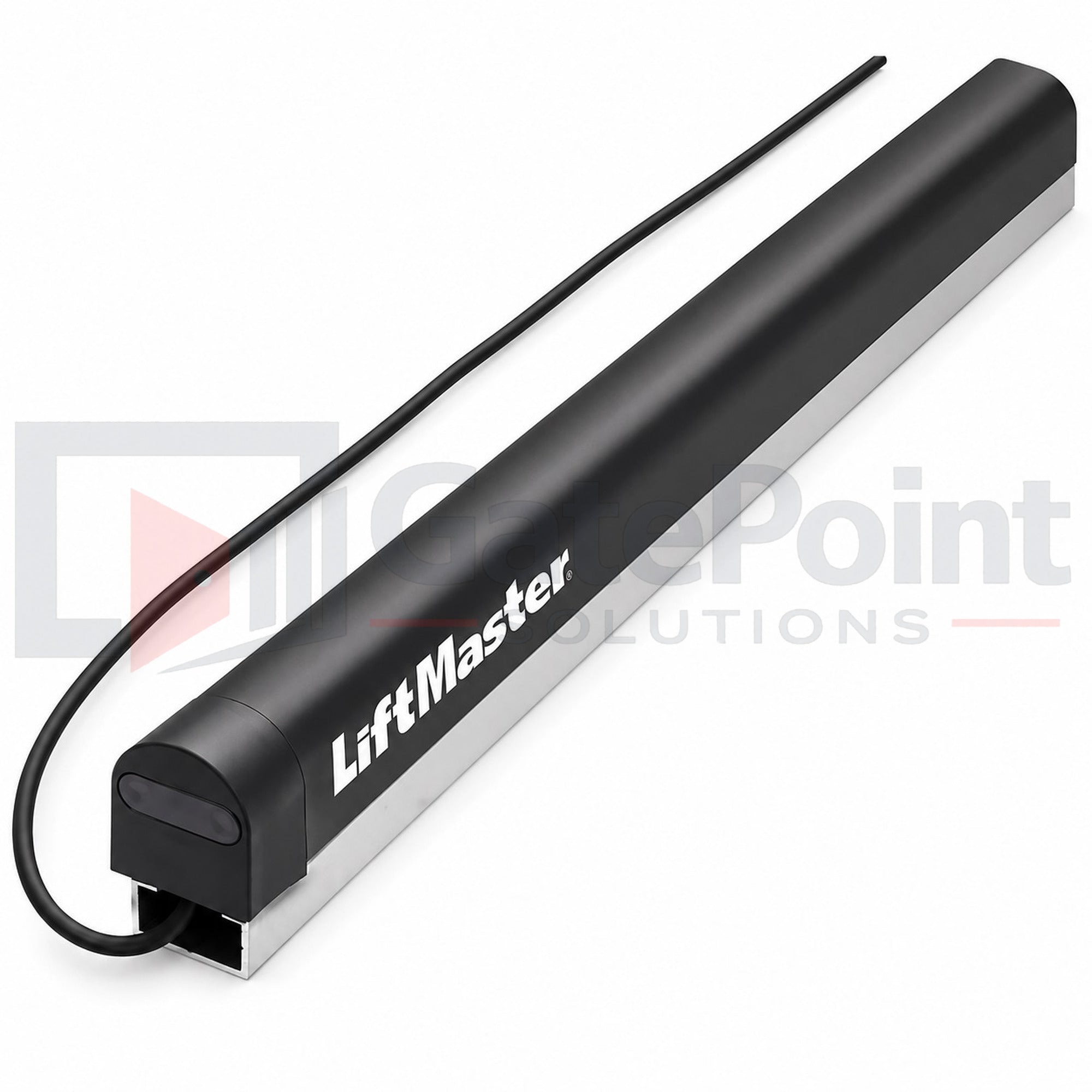

S505AL Monitored Resistive Edge: Pressure-sensitive monitored edge designed to detect obstructions and stop or reverse gate movement.
Optional Accessories:

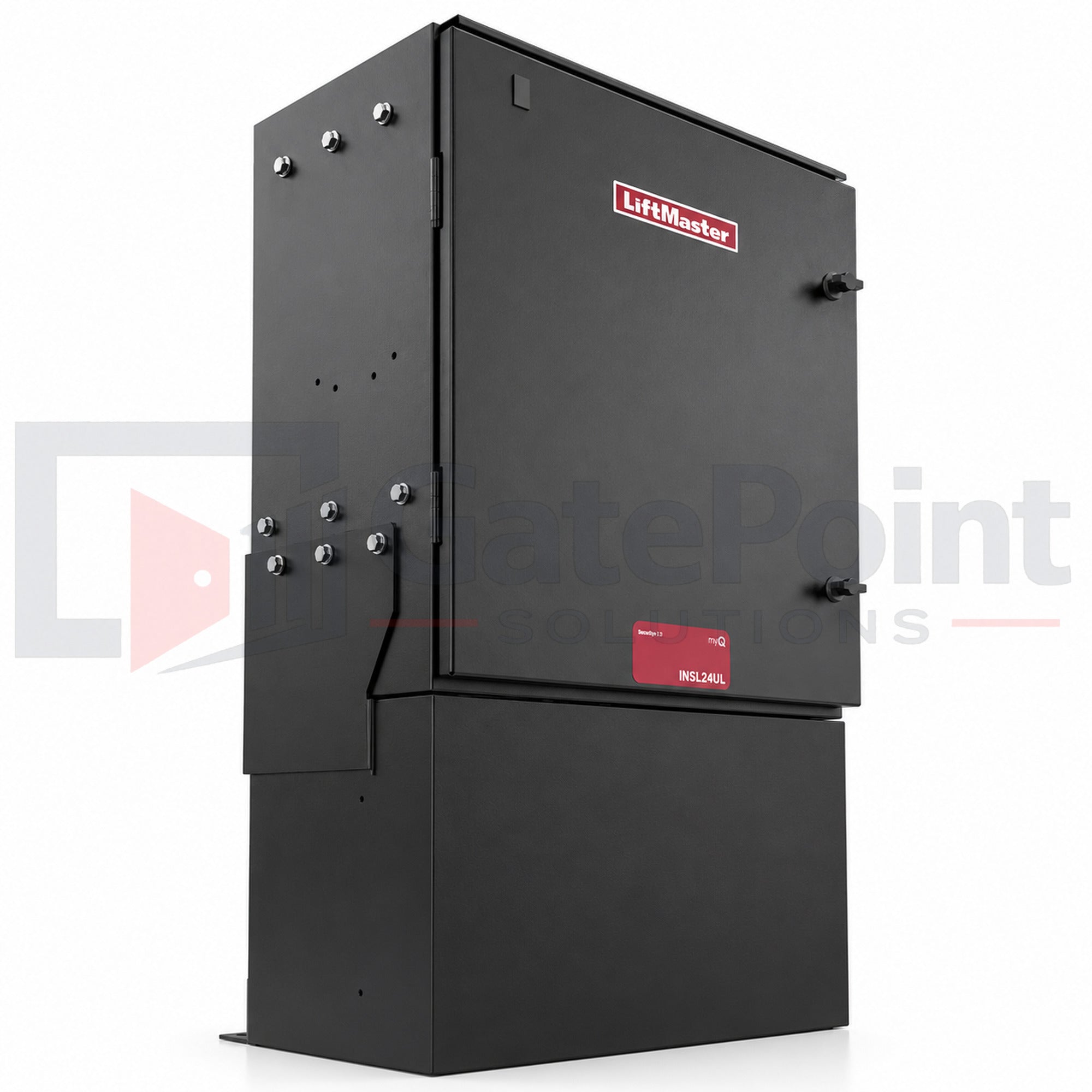

MRIN Riser Mount: Riser mount accessory designed for industrial operator installations.
Specifications:
- Model: IHSL24UL
- Product Type: Industrial Continuous Duty Slide Gate Operator
- Motor Voltage: 24VBLDC Brushless DC Motor
- Duty Rating: High-Cycle, High-Temperature Continuous Duty
- Maximum Gate Weight: 5,500 lbs.
- Variable Gate Speed: 0.5 ft./sec. to 1 ft./sec.
- Drive System: Direct Drive
- Gearbox: Industrial Oil-Bath Size 70 Gearbox
- Chain Type: #50 Industrial Chain
- Input Voltage: 120/240VAC Single-Phase
- Optional 3-Phase Conversion: 208/240/480/575VAC with 3PHCONV Kit
- Accessory Power: 24VDC 1A Max Output
- Solar Compatible: Yes
- Wireless Communication: Dual-Gate Wireless Synchronization
- Security Technology: Security+ 2.0® Encrypted Radio
- Remote Capacity: Up to 50 Remotes On-Board
- Monitored Safety Inputs: 3 Main Board / 3 Expansion Board
- UL® Usage Classification: Class II, III, IV
- Chassis Construction: 1/4 in. Powder-Coated Steel
- Housing Type: 14-Gauge NEMA 3R Weatherproof Lockable Steel Cabinet
- Operator Weight: 142 lbs.
- Dimensions: 30.1 in. H × 27.5 in. W × 17.1 in. D
- Manufacturer: LiftMaster
Key Features:
- Moves industrial gates up to 5,500 lbs. in extreme-duty applications
- Variable speed adjustment from 0.5 ft./sec. to 1 ft./sec.
- Industrial oil-bath size 70 gearbox for continuous-duty operation
- 24VBLDC industrial brushless DC motor for high-cycle reliability
- Smooth start/stop and mid-travel reversal help reduce component wear
- Heavy-duty #50 industrial chain provides superior pull strength
- Lockable weatherproof NEMA 3R steel enclosure for industrial environments
- myQ® enabled remote monitoring and facility access management
- Wireless dual-gate communication eliminates trenching requirements
- Quick Close and Anti-Tailgate functionality for enhanced site security
- PosiLock® automatically secures gate from forced movement
- Monitored entrapment protection devices for UL 325 compliance
- Manual disconnect with direct mechanical linkage and latch
- LED diagnostic display simplifies installation and troubleshooting
- Four programmable auxiliary relays support expanded accessory integration
- HomeLink® compatible with supported vehicle systems
