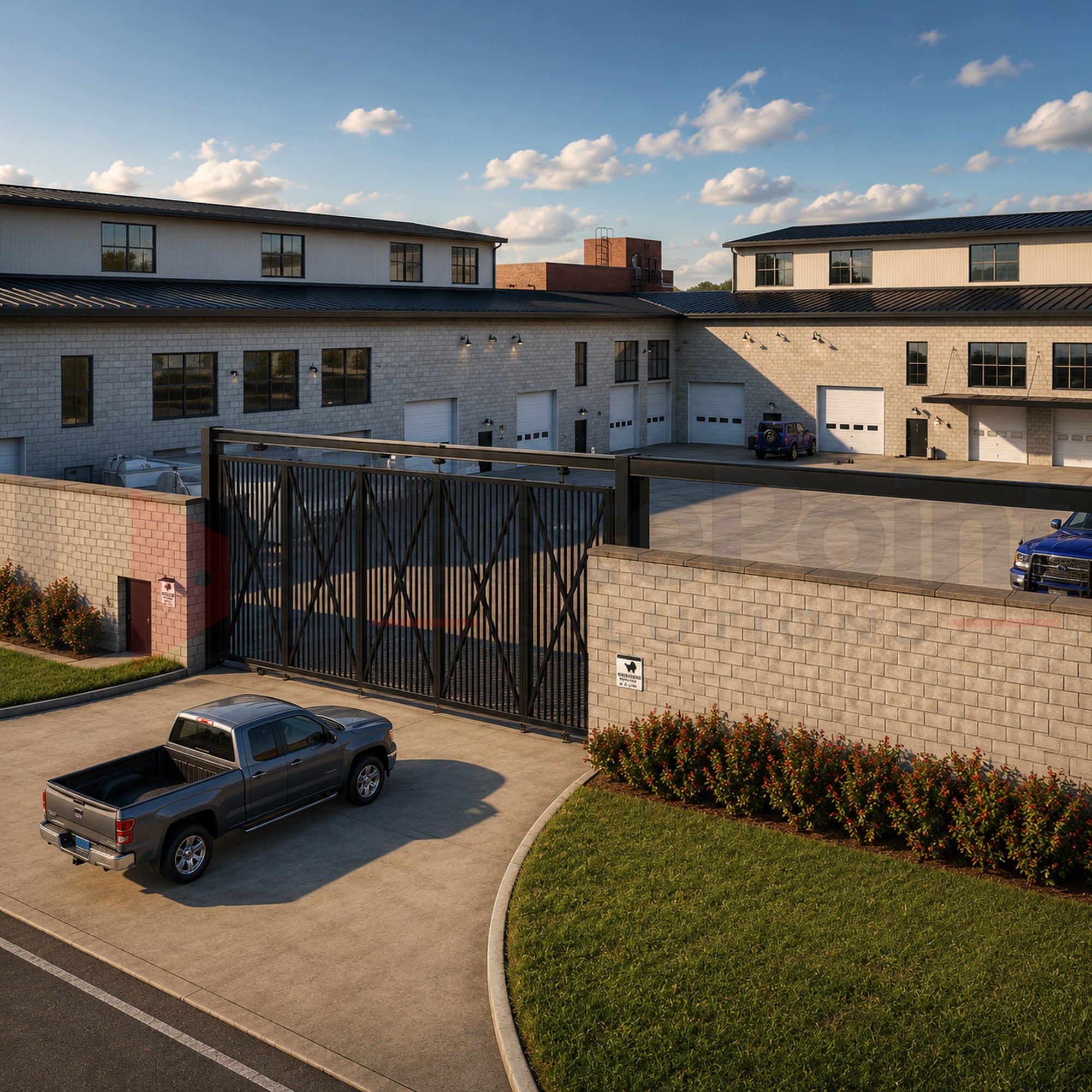

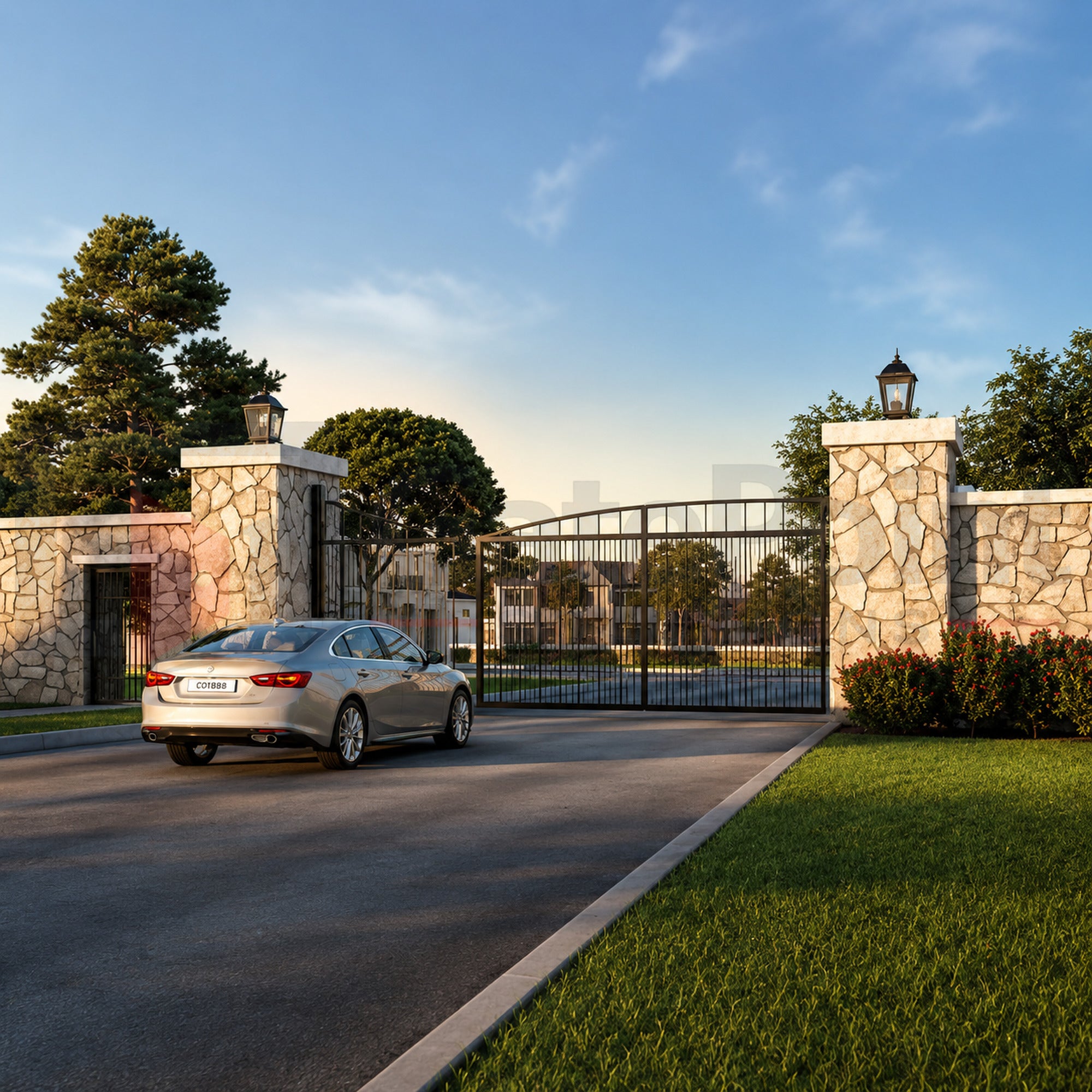

The LiftMaster HDSL24UL is a heavy-duty variable speed slide gate operator engineered for extreme high-cycle applications requiring maximum pulling force, continuous-duty reliability, and advanced smart access functionality. Designed for industrial facilities, distribution centers, commercial properties, secured campuses, transportation facilities, and large gated communities, the HDSL24UL combines high-performance gate operation with intelligent control and monitored safety protection for demanding perimeter security environments.
Powered by a custom 1.5 HP peak 24VDC brushless continuous-duty motor and heavy-duty size 70 direct-drive gearbox with 40:1 gear reduction, the HDSL24UL is capable of moving gates weighing up to 3,000 lbs. at speeds up to 1 ft. per second. Variable speed control allows adjustment from 0.5 ft./sec. to 1 ft./sec. to meet application-specific requirements, while smooth start/stop operation and mid-travel reversal help reduce mechanical wear and extend hardware life. The operator’s #40 industrial chain provides pull strength rated at twice the gate weight for reliable operation in extreme-duty environments.
Integrated myQ® connectivity provides full visibility and control over facility and community access points, allowing remote monitoring and management through Smart Community Access and Smart Facility Access platforms. Wireless dual-gate communication synchronizes dual-operator systems while eliminating costly trenching requirements, with independently adjustable gate speeds available when needed.
The HDSL24UL includes monitored entrapment protection devices and is UL® Listed for Class I, II, III, and IV applications. Quick Close and Anti-Tailgate functionality help minimize unauthorized access opportunities, while PosiLock® automatically secures the gate if forced from the closed position. Multiple programmable auxiliary relays allow expanded accessory integration for advanced site functionality.
Included Accessories:
LMRRUL Monitored Retro-Reflective Photo Eye: Heated monitored retro-reflective photo eye with widened beam engineered to maintain alignment; sensing range up to 50 ft.
S505AL Monitored Resistive Edge: Pressure-sensitive monitored edge designed to detect obstructions and stop or reverse gate movement.
Specifications:
- Model: HDSL24UL
- Product Type: Heavy-Duty Variable Speed Slide Gate Operator
- Motor Voltage: 24VDC Brushless Continuous Duty
- Motor Power: 1.5 HP Peak Brushless Motor
- Duty Rating: High-Cycle, High-Temperature Continuous Duty
- Maximum Gate Weight: 3,000 lbs.
- Variable Gate Speed: 0.5 ft./sec. to 1 ft./sec.
- Drive System: Direct Drive
- Gear Reduction: 40:1 Heavy-Duty Gearbox
- Chain Type: #40 Industrial Chain
- Input Voltage: 120/240VAC Single-Phase
- Optional 3-Phase Conversion: 208/240/480/575VAC with 3PHCONV Kit
- Accessory Power: 24VDC 1A Max Output
- Solar Compatible: Yes
- Battery Backup: Included
- Wireless Communication: Dual-Gate Wireless Synchronization
- Security Technology: Security+ 2.0® Encrypted Radio
- Remote Capacity: Up to 50 Remotes On-Board
- Monitored Safety Inputs: 3 Main Board / 3 Expansion Board
- UL® Usage Classification: Class I, II, III, IV
- Chassis Construction: 1/4 in. Powder-Coated Steel
- Cover Material: High-Density UV-Resistant Polyethylene
- Operator Weight: 172 lbs.
- Dimensions: 26.51 in. H × 18.14 in. W × 20.39 in. D
- Manufacturer: LiftMaster
Key Features:
- Moves gates up to 3,000 lbs. in extreme-duty applications
- Variable speed adjustment from 0.5 ft./sec. to 1 ft./sec.
- 24VDC brushless continuous-duty motor rated for up to 6 million cycles
- Smooth start/stop and mid-travel reversal help reduce component wear
- myQ® enabled remote monitoring and facility access management
- Wireless dual-gate communication eliminates trenching requirements
- Quick Close and Anti-Tailgate functionality for enhanced site security
- PosiLock® automatically secures gate from forced movement
- Monitored entrapment protection devices for UL 325 compliance
- LED diagnostic display simplifies installation and troubleshooting
- Four programmable auxiliary relays support expanded accessory integration
- Manual disconnect allows gate operation during service or power loss
- HomeLink® compatible with supported vehicle systems
