Description

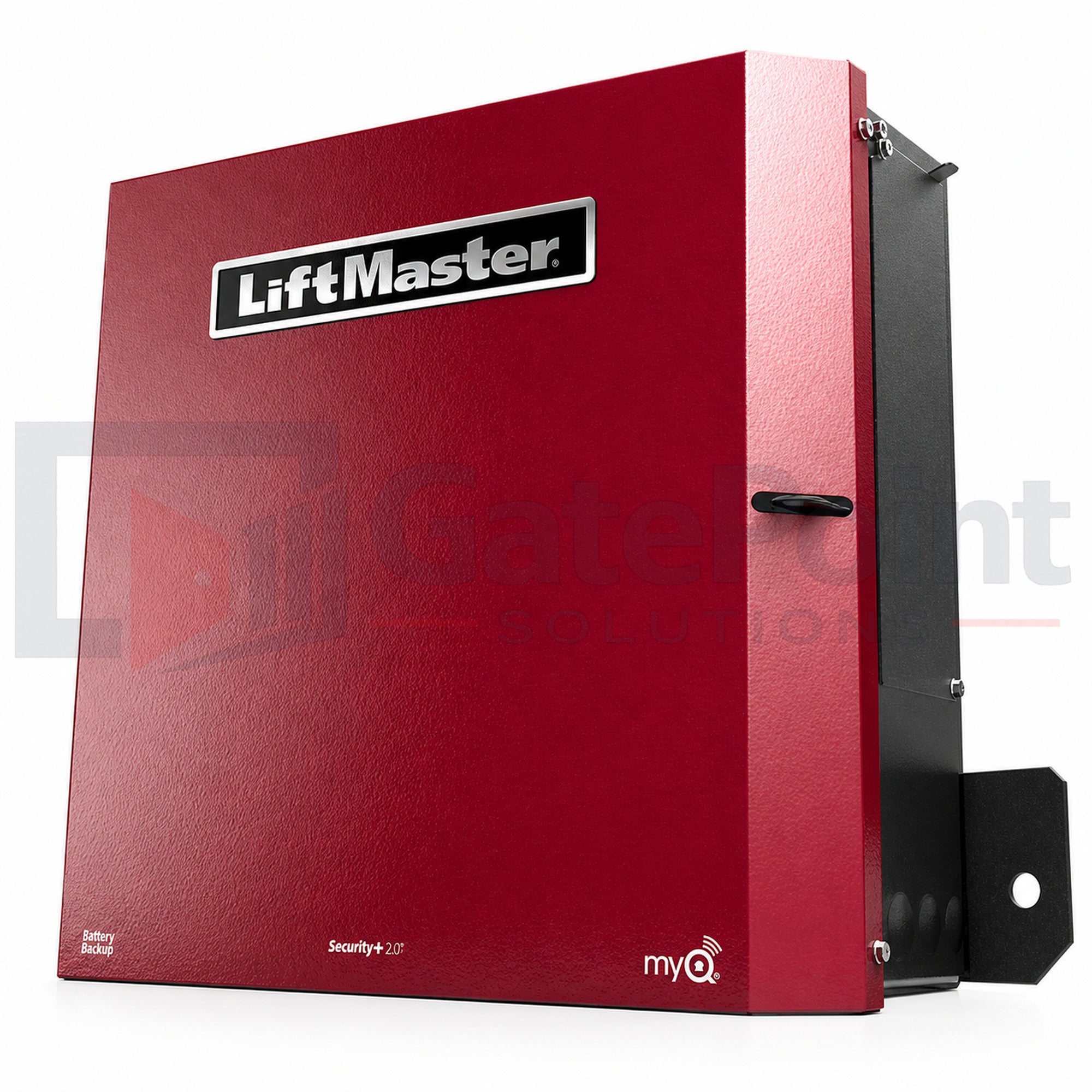

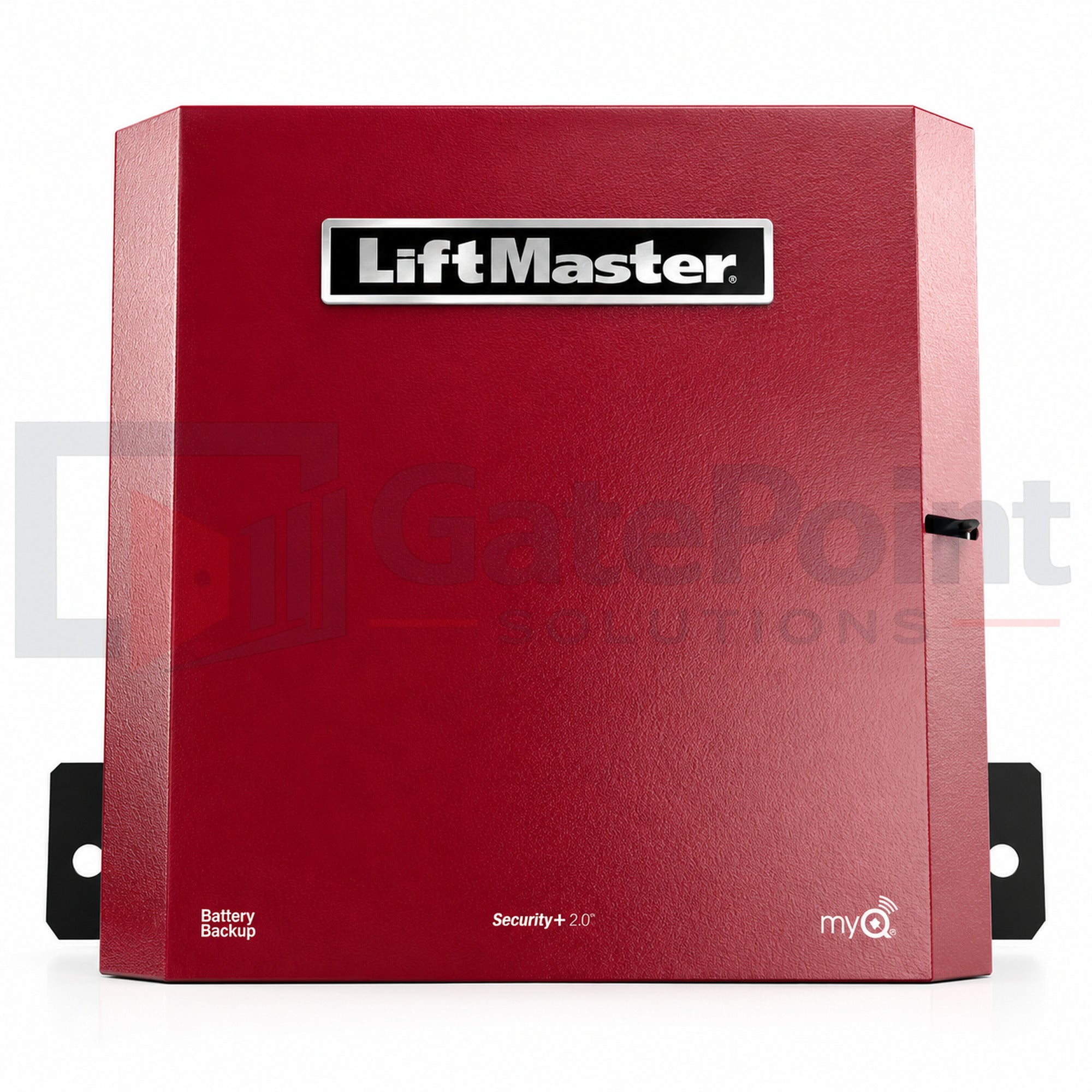

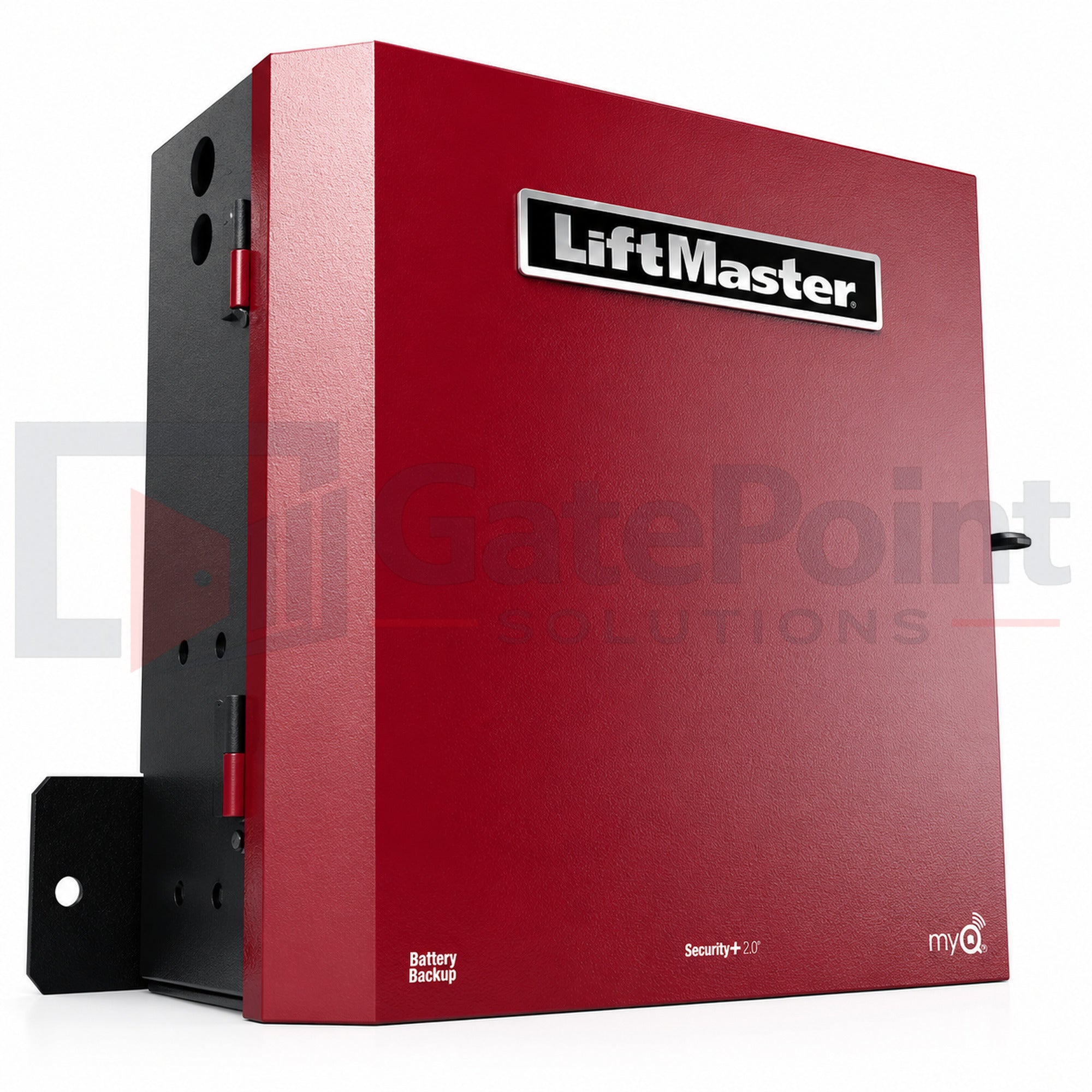

The LiftMaster HCTDCUL is a high-cycle commercial overhead gate operator engineered for multi-unit residential parking facilities, commercial parking structures, and secured overhead gate applications requiring smooth, quiet, and continuous-duty performance. Designed for demanding high-traffic environments, the HCTDCUL combines advanced DC motor technology, intelligent control functionality, and integrated battery backup operation for dependable long-term access control performance.
Powered by a 24VDC continuous-duty motor and heavy-duty oil-bath wormgear transmission, the HCTDCUL delivers exceptionally smooth and quiet operation while reducing wear on operator and gate hardware. Selectable speed control allows opening speeds up to 11 inches per second to help improve traffic flow in busy parking and access control environments.
The HCTDCUL includes integrated battery backup functionality to maintain operation during power outages and supports solar-ready capability for flexible installation options. Security+ 2.0® encrypted communication technology helps protect against unauthorized access, while integrated myQ® connectivity enables remote monitoring and control when connected via Wi-Fi® or cellular communication.
Designed specifically for overhead parking gate applications, the HCTDCUL features a compact low-profile design for installations with limited headroom and is built with commercial-grade steel components for dependable continuous-duty operation in demanding environments.
Ideal Applications
- Multi-Unit Residential Parking Facilities
- Apartment & Condominium Garages
- Commercial Parking Structures
- Underground Parking Facilities
- High-Traffic Vehicle Access Points
- Secured Commercial Overhead Gates
- Industrial Parking & Access Systems
Included Accessories

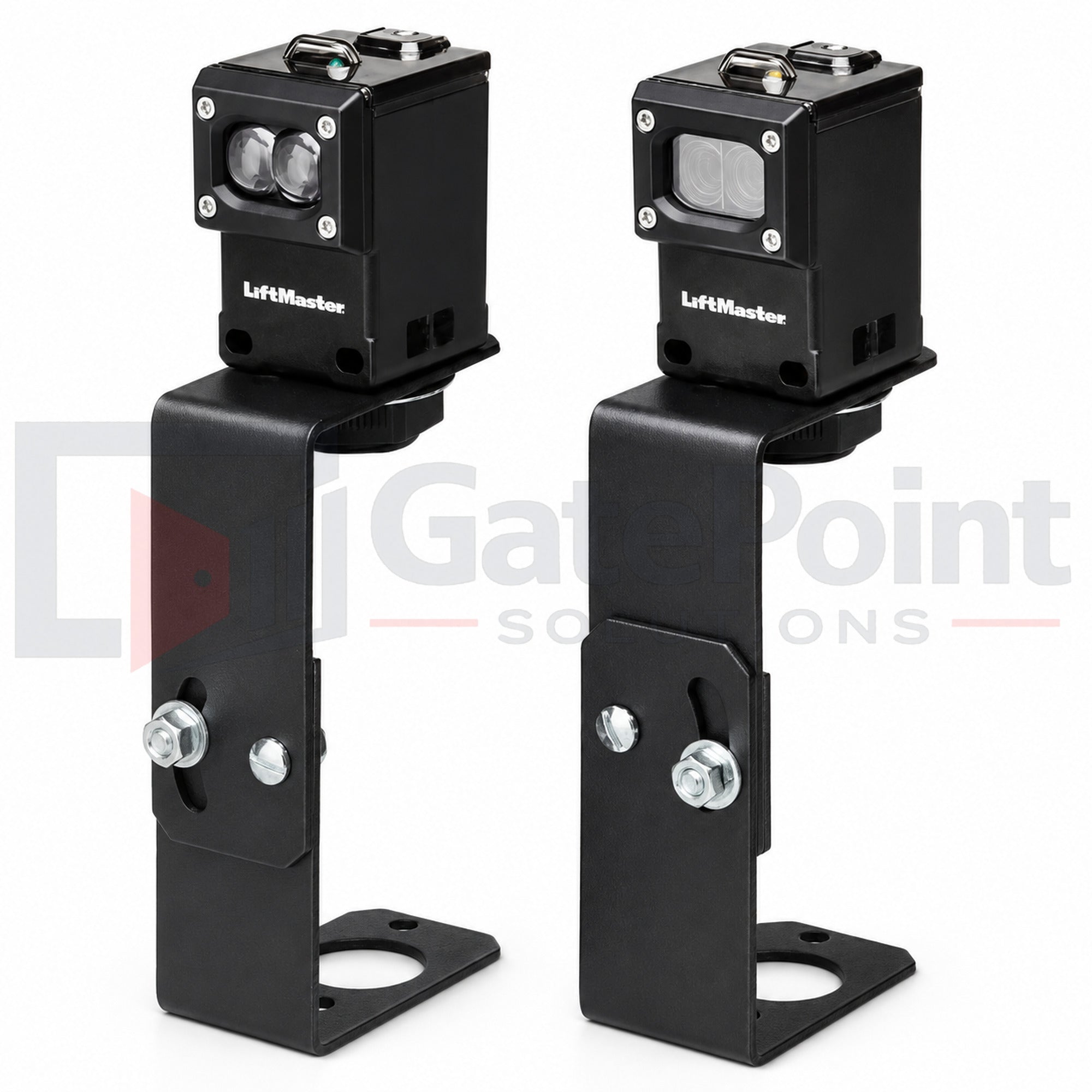

CPSUN4G Monitored Commercial Protector System®
Monitored through-beam infrared safety sensors with heavy-duty NEMA 4-rated housings and brackets designed to increase entrapment protection in commercial applications.
- Maximum Range: 45 ft.
- Heavy-duty commercial construction
- Monitored UL-compliant safety operation
Compatible Safety Accessories
LMRRUL Monitored Retro-Reflective Photo Eye
Enhanced retro-reflective monitored photo eye with integrated heater and widened beam engineered for stable alignment and reliable performance.
- Maximum Range: 50 ft.
LMTBUL Monitored Through-Beam Photo Eyes
Commercial monitored through-beam photo eyes with integrated heater and widened sensing beam for demanding environments.
- Maximum Range: 90 ft.
- COMING SOON
Total Solution Accessories
- CAPXL Connected Access Portal – Cloud-based access control for residential communities
- CAP2D Connected Access Portal – 2-door controller with keypad and proximity reader functionality
- MAT High-Traffic DC Barrier Gate Operator – Designed for continuous traffic flow applications
- LOOPDETLM Plug-In Loop Detector – Vehicle detection for gate and door systems
- RGL24LY Red/Green Traffic Light – Traffic indication for safe vehicle entry and exit
Specifications
Model: HCTDCUL
Product Type: Commercial Overhead Gate Operator
Configuration: Operator Only
Motor: 24VDC Continuous-Duty Motor
Duty Rating: High-Cycle, High-Temperature Continuous Duty
Gate Speed: Selectable 8 in./sec. or 11 in./sec. Open Speed
Transmission: Oil-Bath Wormgear Gearbox
Gear Reduction: 28:1 Wormgear Reduction
Maximum Gate Weight: 1,000 lbs.
Maximum Rail Length: 16 ft.
Input Voltage: 120/230V Single-Phase
Accessory Power: 24VDC 500mA Output
Battery Backup: Included
Battery Configuration: (2) 7Ah Batteries
Solar Ready: Yes
Security Technology: Security+ 2.0® Encrypted Radio
Remote Capacity: Up to 50 Remote Controls On-Board
Operating Temperature: 4°F to 140°F (-20°C to 60°C)
Chassis Construction: 1/4 in. Gold Zinc-Plated Steel
Rail Construction: Heavy-Duty 12-Gauge Steel Track with 6 UHMW Rollers
UL Usage Classification: Class II, III & IV
Dimensions: 14.49 in. H × 23.75 in. W × 8.08 in. D
Powerhead Weight: 86 lbs.
Manufacturer Warranty: 5-Year Warranty
Manufacturer: LiftMaster
Compatible Rails
HCT08: 8 ft. Rail
HCT10: 10 ft. Rail
HCT12: 12 ft. Rail
HCT14: 14 ft. Rail
HCT16: 16 ft. Rail
Rail Weights
HCT08 Rail: 93 lbs.
HCT10 Rail: 111 lbs.
HCT12 Rail: 129 lbs.
HCT14 Rail: 150 lbs.
HCT16 Rail: 172 lbs.
Rail Lengths
HCT08: 121.5 in.
HCT10: 145.5 in.
HCT12: 169.5 in.
HCT14: 193.8 in.
HCT16: 217.8 in.
Key Features
- High-cycle commercial overhead gate operator for parking facilities
- Smooth start/stop operation reduces mechanical wear
- Exceptionally quiet performance with integrated noise isolators
- Integrated battery backup for uninterrupted operation during outages
- Heavy-duty oil-bath wormgear transmission for long-term reliability
- Selectable gate speed improves traffic flow in high-volume applications
- Low-profile design ideal for tight overhead installations
- myQ® enabled remote monitoring and control capability
- Security+ 2.0® encrypted communication technology
- Quick Close and Anti-Tailgate functionality enhances security
- Fire department compliance for emergency access operation
- Corrosion-resistant rail finish improves durability
- LED diagnostic display simplifies installation and troubleshooting
- Programmable auxiliary relays for expanded system integration
- Dynamic braking system improves gate position control
- Monitored entrapment protection compatible
- Solar-ready commercial platform
Standard Features
- Pre-motion warning alarm
- External alarm reset button
- Maximum-run timer protection
- Mid-travel reversal functionality
- Dynamic braking system
- Monitored safety inputs
- Security+ 2.0® onboard radio receiver
- LED diagnostic display
- Programmable auxiliary relays
- HomeLink® compatible (Compatibility Bridge may be required)
