Description

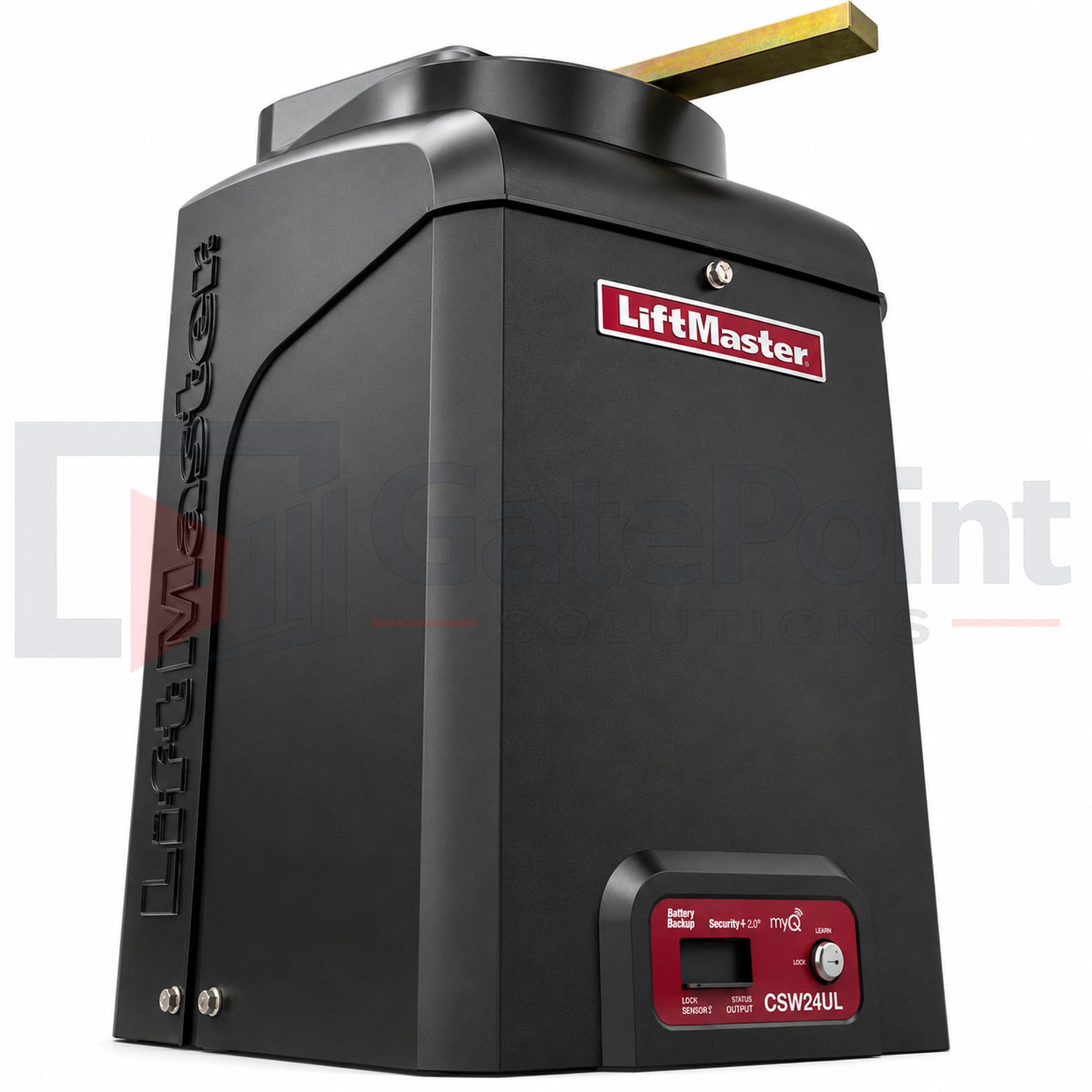

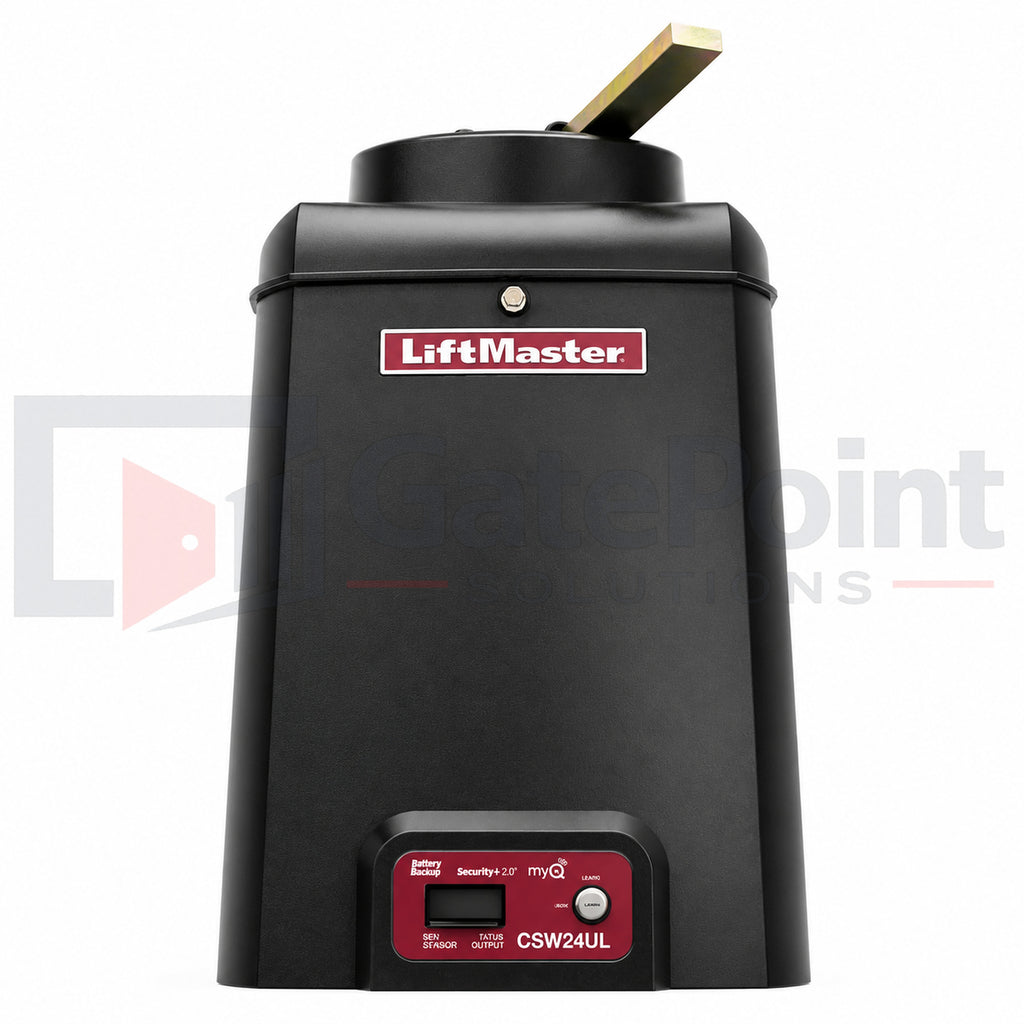

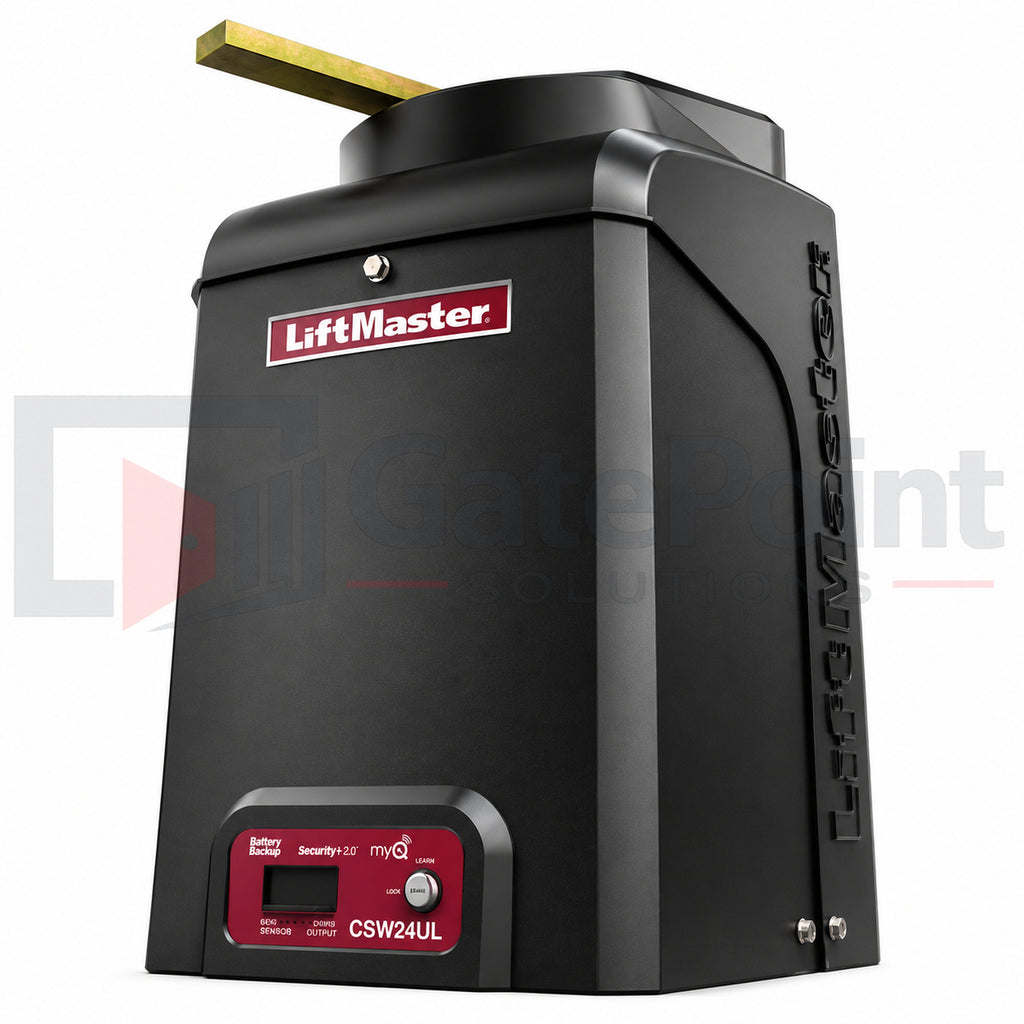

Introducing the LiftMaster CSW24UL 24VDC Commercial Swing Gate Operator—a high-traffic, high-cycle perimeter solution built for reliability, security, and smart access in demanding facilities. Ideal for campuses, hospitals, airports, parking structures, and industrial sites, it combines industrial-duty power with enterprise-grade connectivity for seamless control and safety.
- Power & Drive System: 24VDC continuous industrial-duty motor with dual oil-bath worm gearboxes (900:1 reduction) delivering smooth, reliable swing; 90° open in 13–15 seconds; operator weight 206 lbs.
- Electrical Power & Options: 120/230VAC single-phase input; optional 3-Phase Conversion Kit (208/230/460/575VAC → 120VAC); 24VDC accessory power up to 500 mA; solar compatibility (application/region dependent).
- Construction & Durability: 1/4" gold zinc-plated steel chassis; UV-resistant high-density polycarbonate enclosure; UL Usage Classification: Class I, II, III, IV.
- Environmental Range: Without heater: -4°F to 140°F (-20°C to 60°C); With heater option (HTR): -40°F to 140°F (-40°C to 60°C).
- Safety & Security: UL Listed system with entrapment protection; pre-motion warning alarm; inherent reversing sensor; bi-part delay sequencing; monitored safety inputs; Quick Close & Anti-Tailgate protection; Fire Department auto-open on AC power loss or battery depletion.
- Smart Technology & Connectivity: Powered by myQ Technology for secure remote monitoring and control; Security+ 2.0 tri-band encrypted signal; wireless dual-gate communication (no trenching); synchronized close for dual-gate systems; centralized multi-site access management; LED diagnostic display; HomeLink compatibility.
- Range & Access Management: Range up to 50 ft; supports up to 50 remotes (expandable to unlimited); compatibility with multi-site control for enterprise deployments.
- Safety Accessories: LMRRUL Monitored Retro-Reflective Photo Eye; heated design option; wider polarized beam; alignment-stable construction.
- Warranty & Compliance: 5-year commercial / 7-year residential warranty; UL Listed with monitored safety features and Fire Department auto-open capabilities.
The LiftMaster CSW24UL is engineered to minimize downtime and maximize perimeter security in demanding environments. Dual oil-bath gearboxes and a rugged industrial-duty motor deliver dependable performance during peak traffic, while battery backup ensures continued access during power interruptions. Smart features like myQ integration and centralized multi-site management reduce maintenance needs and enable secure, scalable control across multiple entrances. With comprehensive safety protections, encrypted communications, and a design built for long-term reliability, this operator provides a future-ready, professional-grade solution for institutional and commercial gate access.
