Description
The LiftMaster CSL24ULWK is a premium commercial-grade DC slide gate operator designed for high-cycle applications requiring exceptional reliability, advanced security, and UL 325 compliance. Built on the trusted CSL24UL platform, the CSL24ULWK includes the LiftMaster LMWEKITU Wireless Edge Kit, providing a convenient wireless monitored entrapment protection solution that simplifies installation while helping meet current UL safety requirements. Ideal for commercial properties, industrial facilities, gated communities, storage facilities, and mixed-use developments, the CSL24ULWK delivers powerful performance with reduced installation complexity.
Add This Key Feature

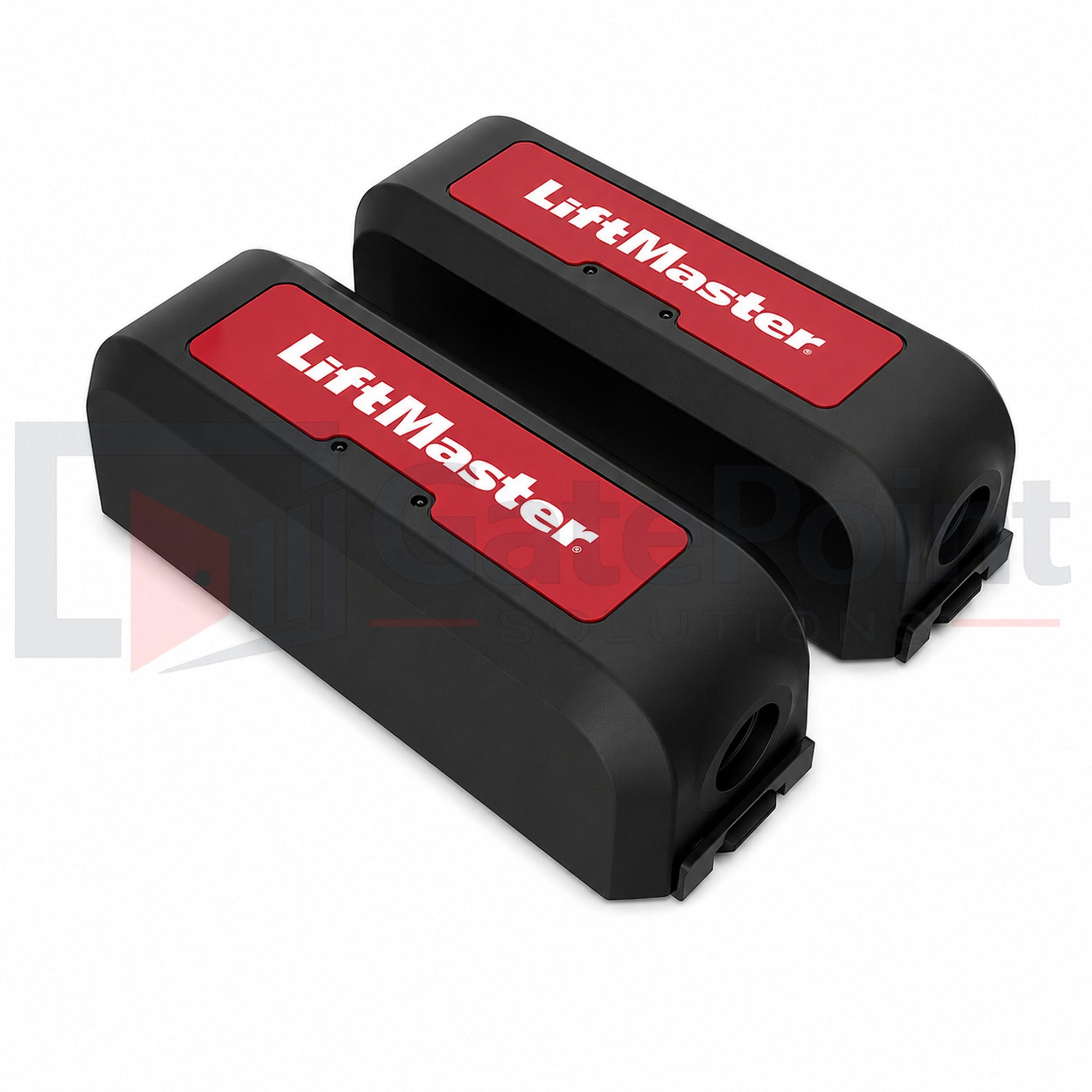

Includes LMWEKITU Wireless Edge Kit: Pre-packaged with LiftMaster's wireless monitored safety edge solution, reducing trenching, wiring, and installation labor while maintaining UL 325 compliance when used with compatible monitored safety edges.
Ideal Applications
- Commercial Facilities
- Industrial Sites
- Distribution Centers
- Self-Storage Facilities
- Gated Communities
- Apartment Complexes
- Business Parks
- Government Facilities
- HOA Entrances
- High-Traffic Access Points
Specifications
Wireless Safety System Included
- LiftMaster LMWEKITU Wireless Edge Kit Included
- Compatible with monitored safety edges
- Wireless communication between gate edge and operator
- Helps simplify UL 325 compliant installations
- Reduces conduit and trenching requirements
What's Included
- (1) LiftMaster CSL24UL Commercial Slide Gate Operator
- Integrated MyQ® Technology
- Battery Backup System
- Mounting Hardware
- Installation Documentation
- (1) LiftMaster LMWEKITU Wireless Edge Kit
- Receiver Module
- Wireless Transmitter
- Installation Components

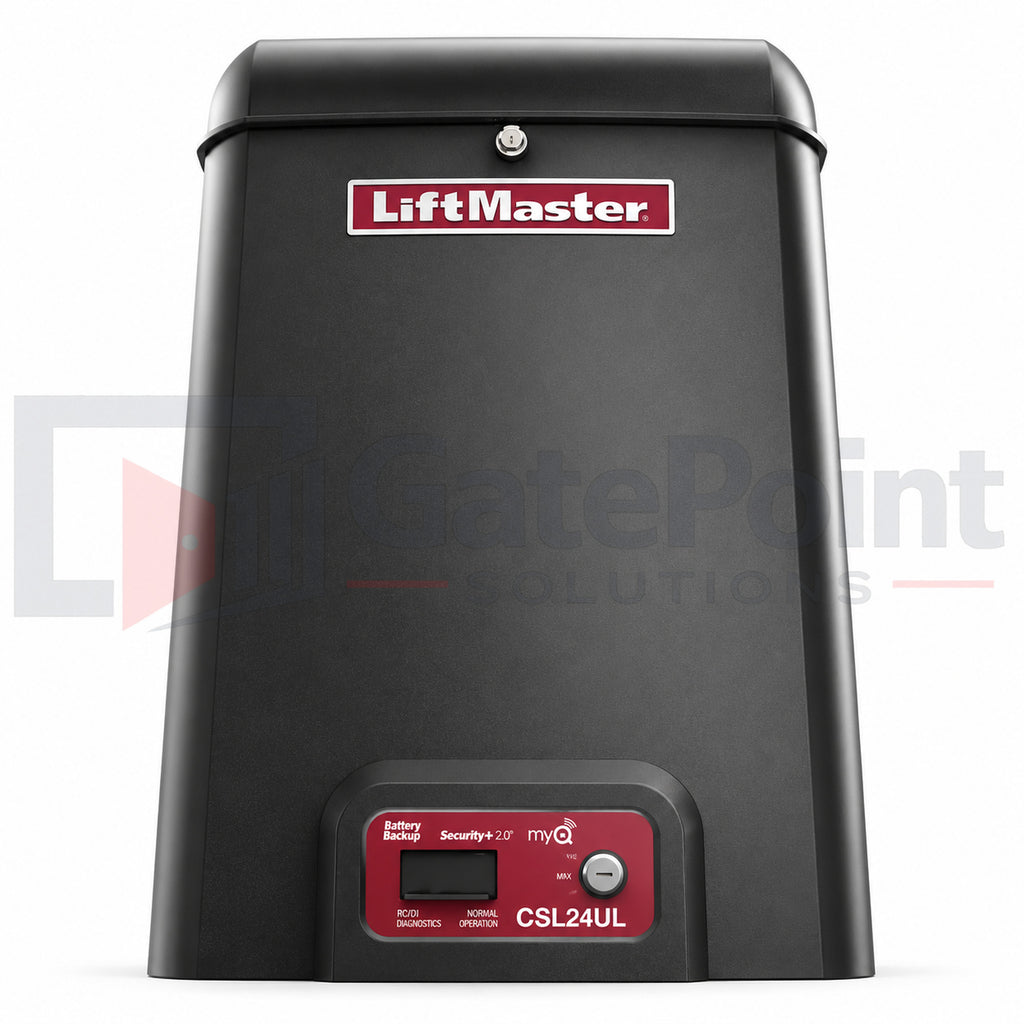

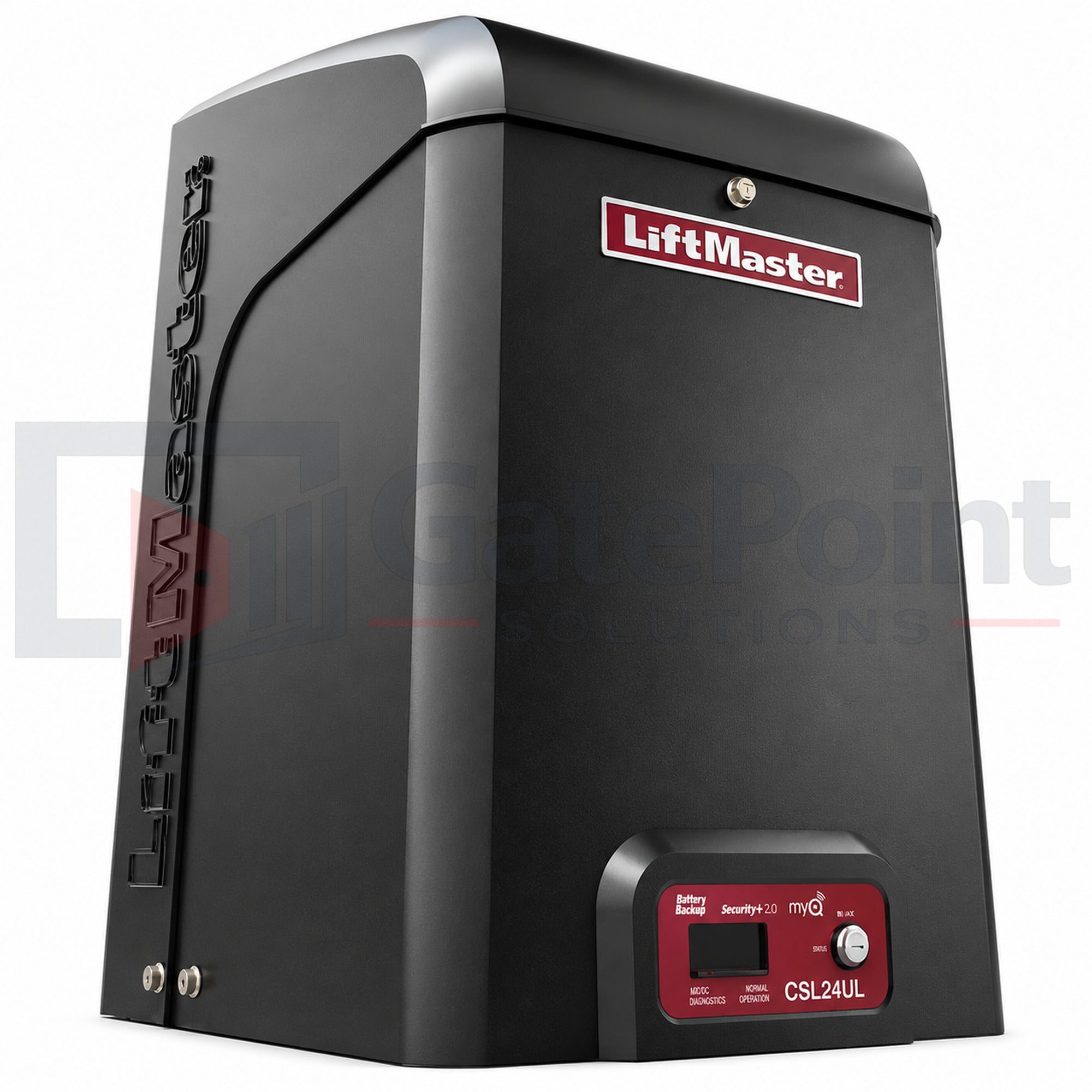

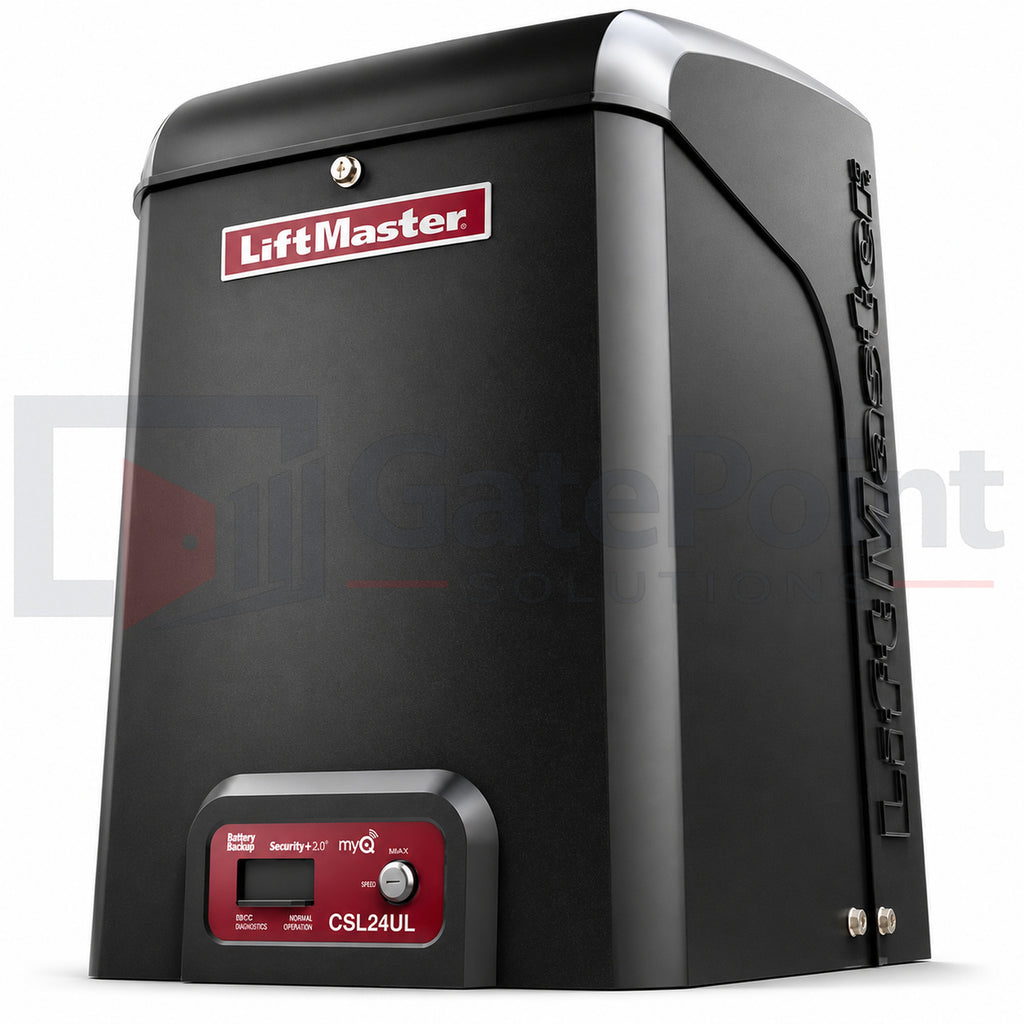

Why Choose the LiftMaster CSL24UL?
The LiftMaster CSL24UL is designed for commercial slide gate applications where reliability, traffic capacity, security, and long-term durability are priorities. Its 24VDC continuous-duty motor and commercial gearbox make it well suited for properties that experience frequent daily gate cycles.
Unlike lighter-duty residential slide gate operators, the CSL24UL is built to handle slide gates up to 50 ft. long and 1,500 lbs., making it a strong choice for commercial entrances, gated communities, industrial facilities, apartment communities, HOAs, and other controlled-access properties.
LiftMaster CSL24UL Highlights
-
Commercial high-cycle design for demanding slide gate applications
-
Supports gates up to 50 ft. and 1,500 lbs.
-
24VDC continuous-duty motor
-
Integrated battery backup for operation during power outages
-
Solar-ready for compatible solar installations
-
Built-in myQ® technology for supported remote monitoring and control
-
Security+ 2.0® encrypted radio technology
-
Soft start/stop operation helps reduce wear on gate hardware
-
Quick Close and Anti-Tailgate functionality
-
Wireless dual-gate communication for supported dual-operator installations
-
Multiple monitored safety device inputs
-
UL Listed for UL 325 compliant gate operator applications
LiftMaster CSL24UL Frequently Asked Questions
What size gate can the LiftMaster CSL24UL operate?
The LiftMaster CSL24UL is designed for commercial slide gates up to 50 ft. long and 1,500 lbs. Proper gate construction, hardware, installation, and site conditions are important when selecting and installing a gate operator.
Is the LiftMaster CSL24UL a commercial gate operator?
Yes. The CSL24UL is a commercial high-cycle slide gate operator designed for demanding applications such as gated communities, commercial properties, industrial facilities, apartment communities, HOAs, and other high-traffic controlled entrances.
Does the LiftMaster CSL24UL include battery backup?
Yes. The CSL24UL features integrated battery backup, allowing the gate operator to continue functioning during many AC power interruptions. Actual backup performance depends on battery condition, gate size and weight, accessory loads, temperature, and frequency of operation.
Can the LiftMaster CSL24UL be powered by solar?
Yes. The LiftMaster CSL24UL is solar capable when configured with compatible solar equipment. Solar system sizing depends on the installation location, gate usage, accessory power requirements, and available sunlight.
Does the CSL24UL work with LiftMaster myQ?
Yes. The CSL24UL features myQ® technology and supports compatible LiftMaster connectivity and access-control solutions for supported monitoring and control applications.
Can two CSL24UL operators be used on a dual slide gate?
Yes. The CSL24UL supports wireless dual-gate communication, which can simplify communication between compatible operators in properly configured dual-gate installations.
What safety devices are required for a LiftMaster CSL24UL?
A CSL24UL installation must use appropriate monitored entrapment protection devices for the gate configuration and installation. Required protection varies by the potential entrapment zones and application. Installers should follow the current LiftMaster installation manual and applicable UL 325 requirements.
Where can I find the LiftMaster CSL24UL manual and wiring diagram?
GatePoint Solutions provides links to the CSL24UL installation manual, product guide, wiring diagram, product data sheet, troubleshooting guide, and site planning checklist in the Resources section below.
LiftMaster CSL24UL Replacement Parts
Need parts for an existing operator? Shop our complete selection of LiftMaster CSL24UL and CSL24U Replacement Parts, including control boards, motors, gear reducers, batteries, harnesses, covers, switches, electrical components, and hardware.
Shop LiftMaster CSL24UL Replacement Parts →
Related Gate Operators
Looking for additional gate operator options? Browse our selection of Commercial Slide Gate Operators and Slide Gate Operators for commercial and high-traffic access applications.
Why Buy From GatePoint Solutions
The CSL24ULWK is an excellent choice for installers and property owners seeking the proven performance of the CSL24UL while reducing installation time and labor costs associated with wired monitored edge systems. By including the LMWEKITU Wireless Edge Kit, this package helps streamline UL-compliant installations without sacrificing safety or reliability.
Resources
- LiftMaster CSL24UL Installation Manual
- LiftMaster CSL24UL Product Guide
- LiftMaster CSL24UL Wiring Diagram
- LiftMaster CSL24UL Product Data Sheet
- LiftMaster CSL24UL Troubleshooting Guide
- LiftMaster CSL24UL Site Planning Checklist
