Description

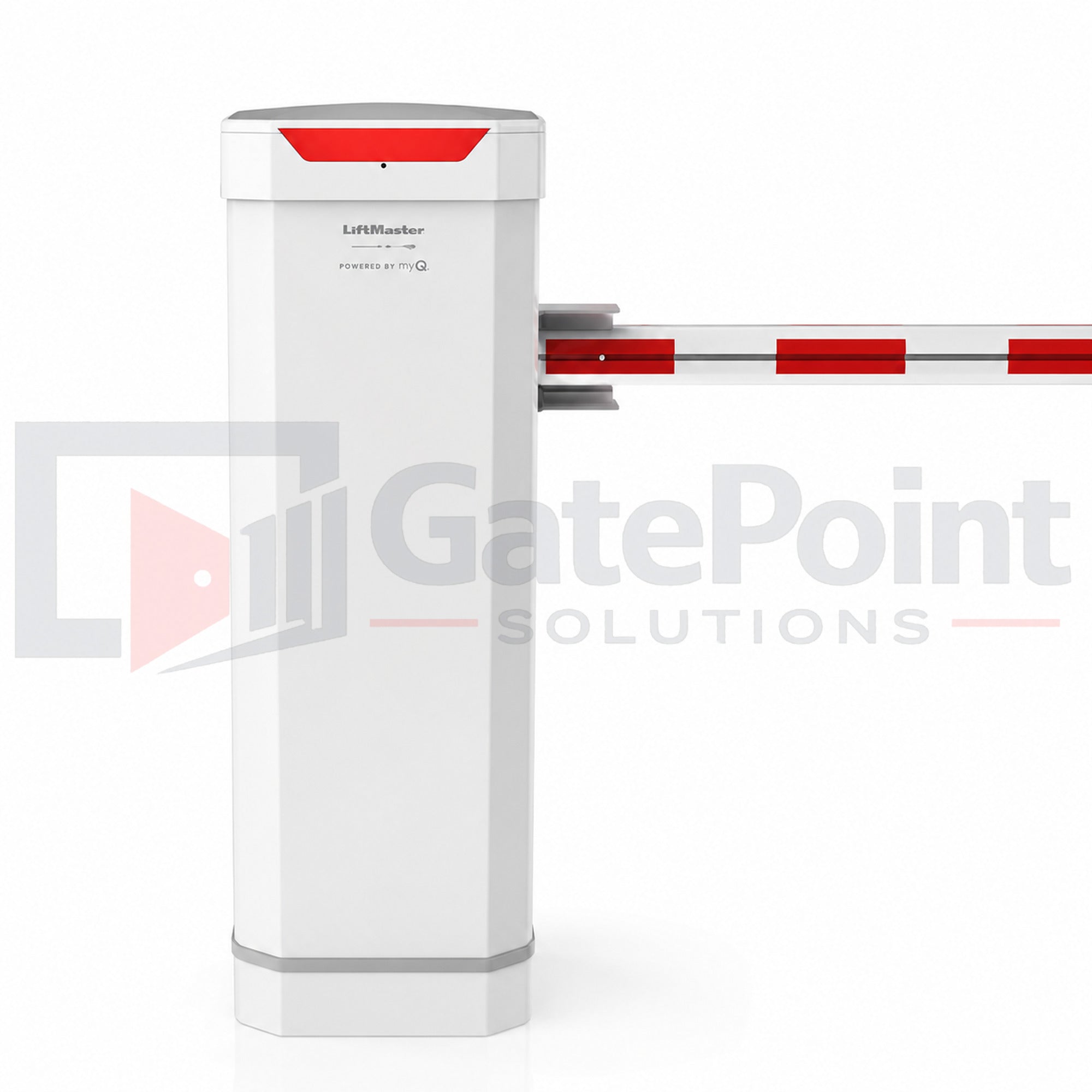

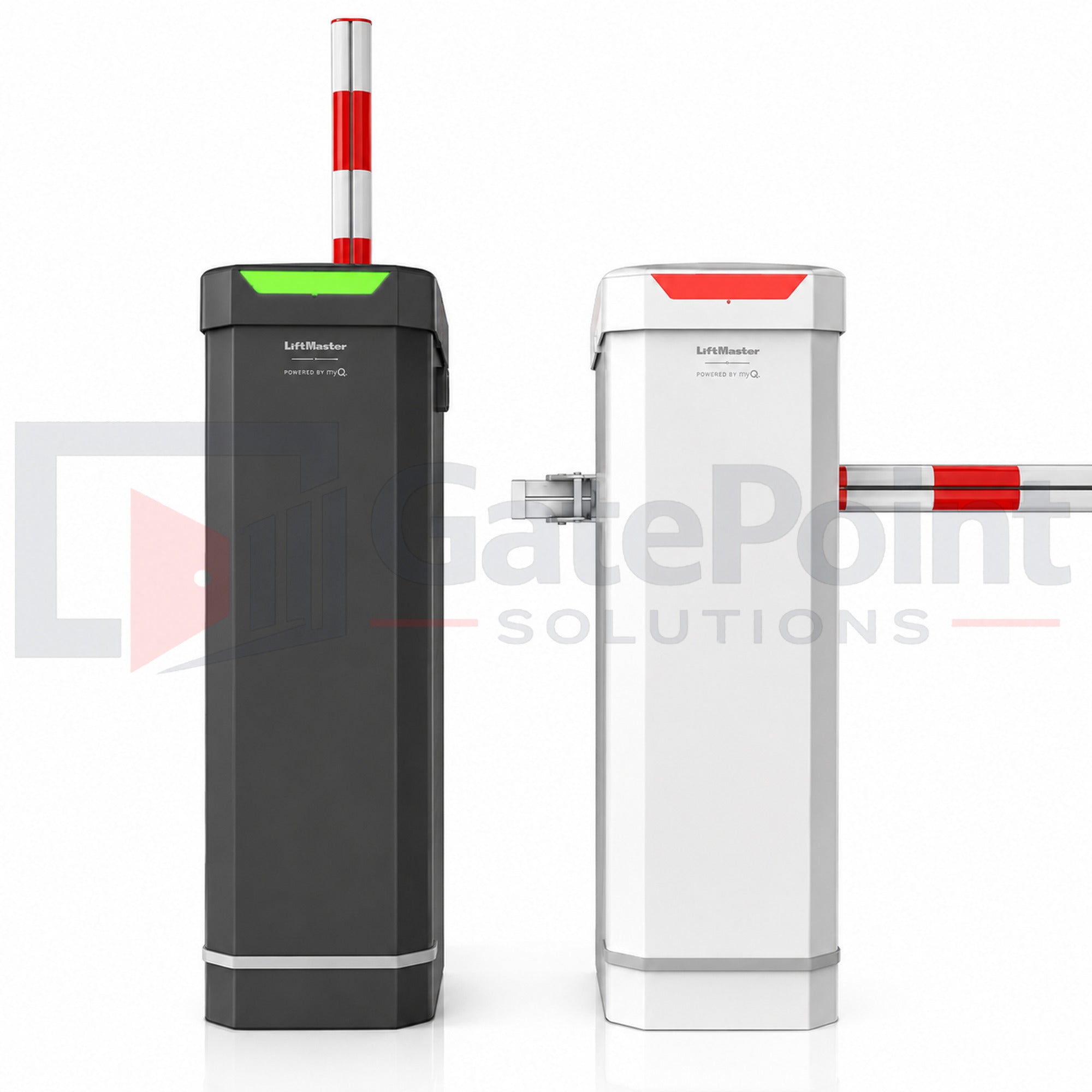

The LiftMaster CBG24DC TECHNA DC Barrier Gate Operator is a next-generation commercial barrier gate system engineered for modern parking control, traffic management, and high-cycle vehicle access applications. Designed for commercial facilities, parking structures, gated communities, industrial properties, and secured access lanes, the TECHNA platform combines advanced connectivity, intelligent diagnostics, and durable brushless DC performance in a streamlined modern design.
Powered by advanced DC brushless motor technology and a direct-drive gear system, the CBG24DC delivers smooth, efficient, and reliable barrier arm operation with fast 2.5-second open and close speeds. Integrated soft start and soft stop functionality help reduce mechanical wear while improving long-term operator performance in demanding traffic environments.

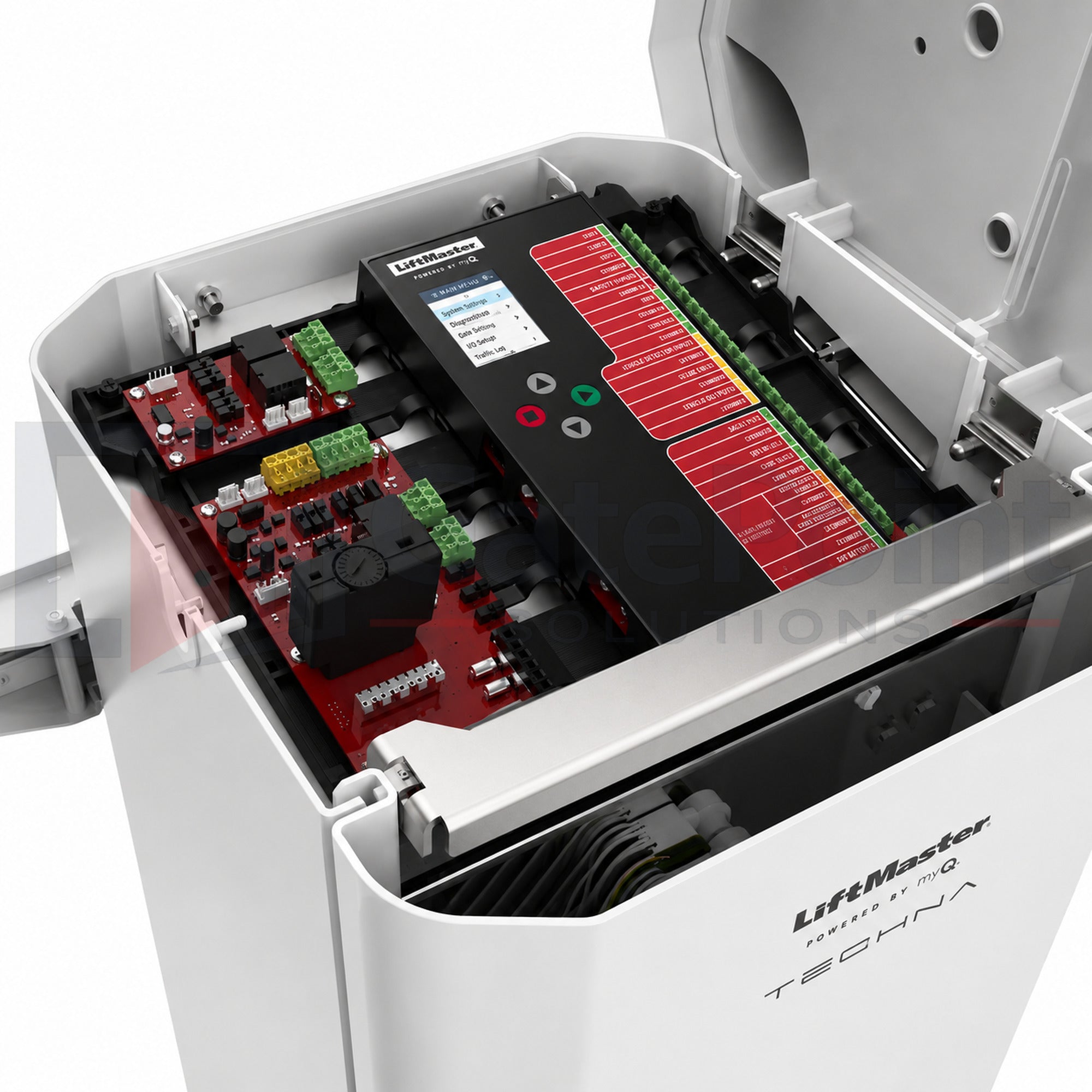

The TECHNA platform simplifies installation, programming, and troubleshooting through its integrated LCD color display and digital setup interface, eliminating the need for traditional mechanical adjustments. Built-in Wi-Fi®, Ethernet connectivity, and myQ® integration provide advanced remote monitoring and real-time system alerts for enhanced facility management and operational visibility.
Engineered for long-term reliability, the CBG24DC features an IP65-rated enclosure, integrated hood lighting for operational visibility, adjustable counterbalance support for multiple arm lengths, and integrated battery backup functionality for continued operation during power interruptions.
Ideal Applications
- Commercial Parking Facilities
- Gated Communities
- Industrial Vehicle Access
- Multi-Tenant Properties
- Traffic Control Lanes
- Secured Entry & Exit Points
- Commercial Access Control Systems
- High-Cycle Parking Operations
Specifications
Model: CBG24DC TECHNA
Product Type: Commercial Barrier Gate Operator
Operator Type: DC Barrier Gate System
Motor Type: DC Brushless Motor
Drive System: Direct Drive Gear System
Power Input: 120VAC / 230VAC Single Phase
Power Supply: DC
Connectivity: Built-In Wi-Fi® & Ethernet
Outdoor Rating: IP65
Maximum Arm Length: 14 ft.
Open/Close Speed: 2.5 Seconds
Soft Start/Stop: Yes
Display Type: LCD Color Display with 4-Button Interface
Integrated Lighting: Standard Hood Lighting Included
Frequency: 900MHz
Event History Capacity: 50 Events
Rated Load: 15A
Battery Backup: Standard
Standard Batteries: (2) 12V 7Ah Batteries Included
Optional Batteries: (2) 12V 33Ah Batteries Available
Operating Temperature:
- Without Heater: -4°F (-20°C) to 140°F (60°C)
- With Optional Heater: -40°F (-40°C) to 140°F (60°C)
Security/Lock: Yes
Mounting: Concrete Base Mount with Keyhole Openings
Dimensions: 150mm × 115mm × 35mm
myQ Compatibility: Supports myQ Facility
Accessory Warranty: 2 Years
Manufacturer: LiftMaster
Smart Connectivity Features
- Built-in Wi-Fi® for simple internet connectivity
- Ethernet connectivity for commercial network integration
- Real-time alerts and remote monitoring through myQ®
- Integrated diagnostics simplify troubleshooting and maintenance
- LCD interface provides intuitive digital programming access
- Automatic failover from Ethernet/Wi-Fi® to cellular connectivity
- Supports myQ Facility and myQ Community integration
- Remote device management through the myQ platform
- Multi-carrier non-steering SIM capability included
- Recognizes and prioritizes approved myQ devices
Key Features
- High-performance commercial DC barrier gate operator
- DC brushless motor technology for smooth and efficient operation
- Direct-drive gear system designed for long-term durability
- Fast 2.5-second open and close cycle speeds
- Adjustable counterbalance accommodates multiple arm lengths
- Integrated operator hood lighting provides operational status visibility
- Breakaway arm bracket minimizes downtime after impact events
- Fully digital setup eliminates mechanical programming adjustments
- IP65-rated construction for demanding outdoor environments
- Built-in battery backup for uninterrupted operation during outages
- Integrated Wi-Fi®, Ethernet, and cellular-ready connectivity
- Simplified diagnostics and programming via LCD display
- Shared TECHNA platform components streamline parts management
- Compatible with myQ Facility cloud-based management systems
Optional Accessories
- Optional NEMA 4 enclosure for outdoor mounting applications
- Optional larger-capacity battery backup kits
- LED illuminated barrier arm options
- Cellular communication accessories
- Commercial access control integrations
