Description

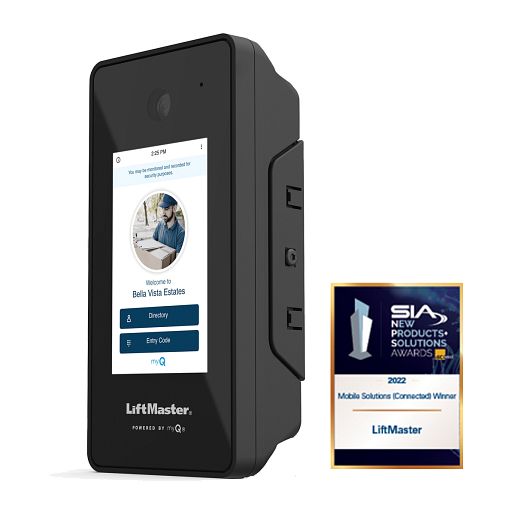

The LiftMaster CAPXS Smart Video Intercom – Small is a cloud-based smart access solution designed for single-family homes, small multifamily properties, gated communities, offices, and light commercial applications. Featuring a 5-inch HD capacitive touchscreen, integrated 1080p wide-angle camera, and seamless myQ® Community integration, the CAPXS provides secure visitor management and convenient remote access in a compact, modern design.

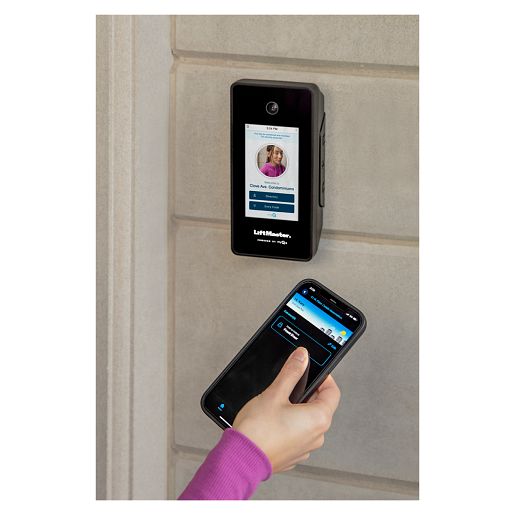

Designed to control one gate or door, the CAPXS allows residents and property owners to visually identify visitors, communicate through two-way audio, and grant or deny access remotely using the myQ Community App. Property managers can easily manage residents, credentials, schedules, and access permissions through the cloud-based myQ Community dashboard, eliminating the need for traditional keys or standalone access systems.
The CAPXS features Ethernet and Wi-Fi connectivity for flexible installation and includes a 135° wide-angle 1080p HD camera with live video and event recording capabilities. Built for outdoor installations, the unit is housed in a durable IP54 weather-resistant and IK07 impact-rated enclosure, making it ideal for demanding residential and commercial environments.
Key Features
- Genuine LiftMaster OEM Smart Video Intercom
- Part Number: CAPXS
- Compact 5-inch HD capacitive touchscreen
- Integrated 1080p HD camera with 135° wide-angle field of view
- Controls one gate or door
- Cloud-based management through myQ® Community
- Two-way voice communication with visitors
- Remote video viewing and access control through the myQ Community App
- Ethernet and Wi-Fi connectivity
- Local capacity for up to 500 residents
- IP54 weather-resistant and IK07 impact-rated enclosure

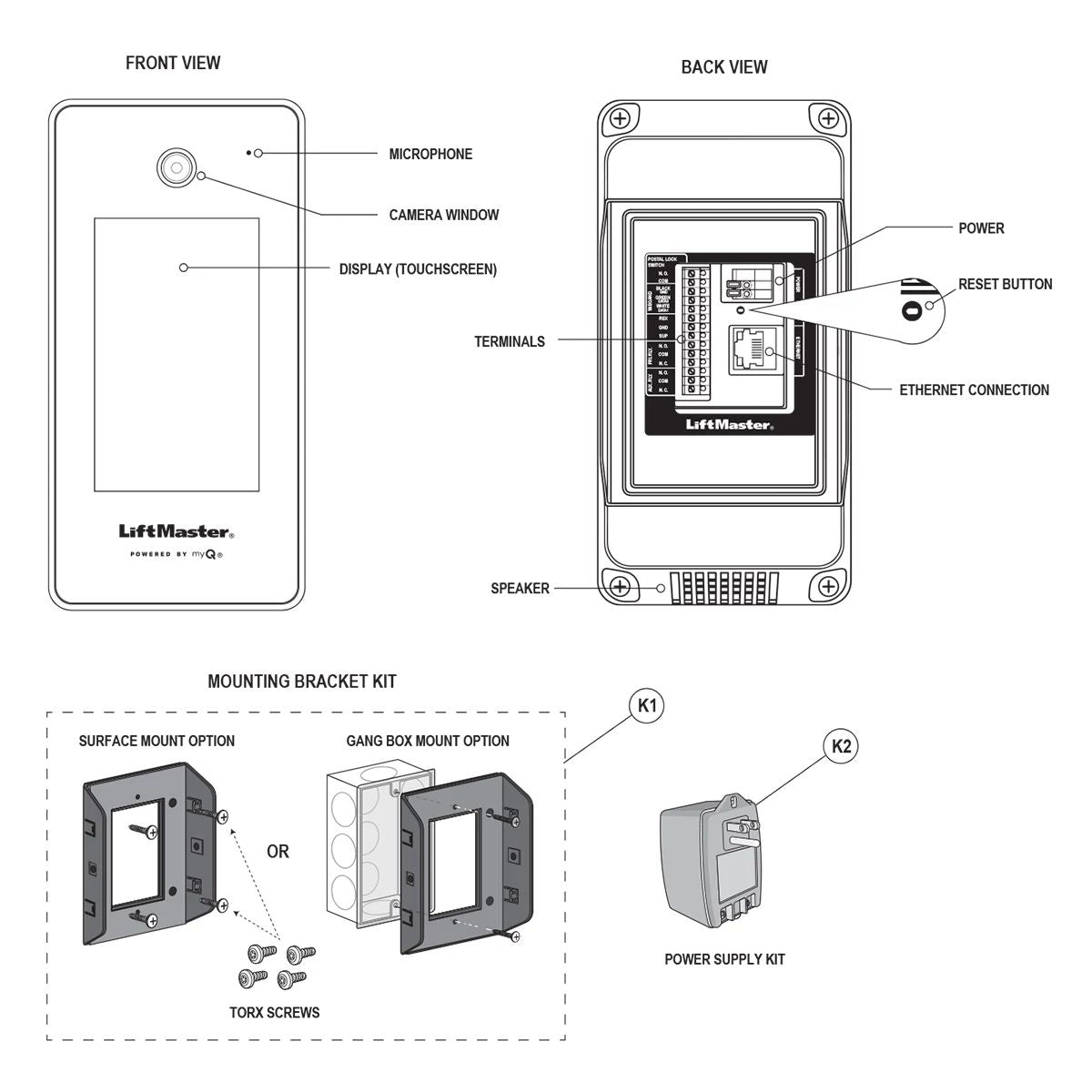

- Surface-mount design for simple installation
- Supports mobile credentials and virtual guest passes
- Two-factor authentication for enhanced security
Ideal Applications
- Single-family gated homes
- Small apartment buildings
- Condominiums
- Townhome communities
- Small HOA entrances
- Commercial offices
- Private vehicle gates
- Pedestrian entry doors
Specifications
- Display: 5" 720p HD capacitive touchscreen
- Camera: 1080p HD, 25 FPS
- Field of View: 135°
- Local User Capacity: 500
- Connectivity: Ethernet and Wi-Fi
- Power: 16 VDC, 1A (40W)
- Operating Temperature: -4°F to 122°F (-20°C to 50°C)
- Outdoor Rating: IP54 / IK07
