Description

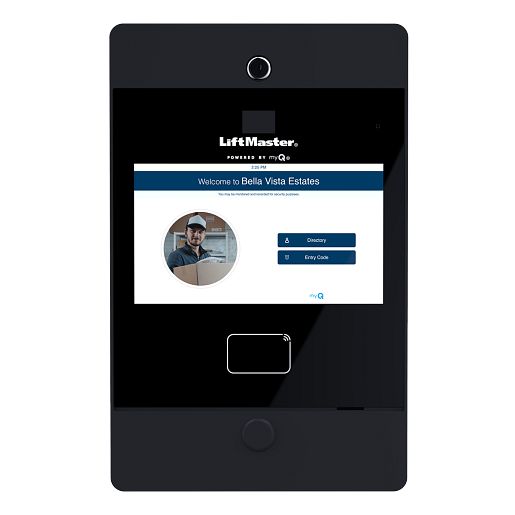

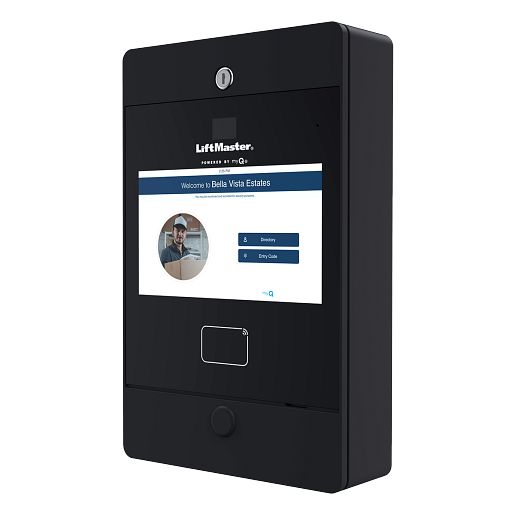

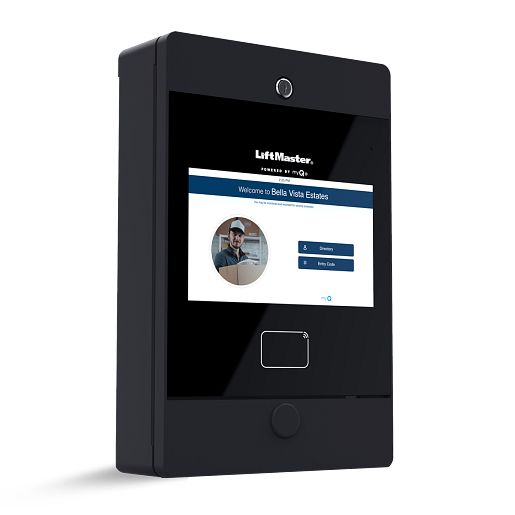

The LiftMaster CAPXLV2MC Smart Video Intercom – Large is a premium, cloud-based access control solution designed for large multifamily communities, high-rise buildings, gated neighborhoods, mixed-use developments, and commercial properties. Featuring a 10-inch HD touchscreen, integrated 1080p wide-angle camera, and seamless myQ® Community integration, the CAPXLV2MC provides a modern visitor management experience while giving property managers complete control over multiple access points from virtually anywhere.
Built to support communities ranging from 50 to 50,000 residents, the CAPXLV2MC offers exceptional scalability with 4 Wiegand inputs, 4 OSDP reader connections, and 8 programmable relay outputs to control vehicle gates, pedestrian doors, elevators, amenity entrances, and other relay-controlled devices. Residents can see and speak with visitors through the myQ Community App, grant or deny access remotely, and create recurring or one-time virtual guest passes for added convenience.
Installation is flexible with support for Ethernet, Wi-Fi®, or compatible third-party cellular connectivity, while LiftMaster's wireless gate operator communication helps eliminate trenching in many gate installations. The outdoor-rated enclosure is built to withstand demanding environments and delivers reliable operation year-round.
Key Features
- Genuine LiftMaster OEM Smart Video Intercom
- Part Number: CAPXLV2MC
- Large-format 10-inch 720p HD touchscreen display
- Integrated 1080p HD camera with 135° wide-angle field of view
- Supports 50 to 50,000 resident users
- Cloud-based management through myQ® Community
- 4 Wiegand inputs
- 4 OSDP reader connections
- 8 programmable relay outputs
- Ethernet and Wi-Fi® connectivity
- Compatible with approved third-party cellular modems
- Wireless communication with compatible LiftMaster gate operators

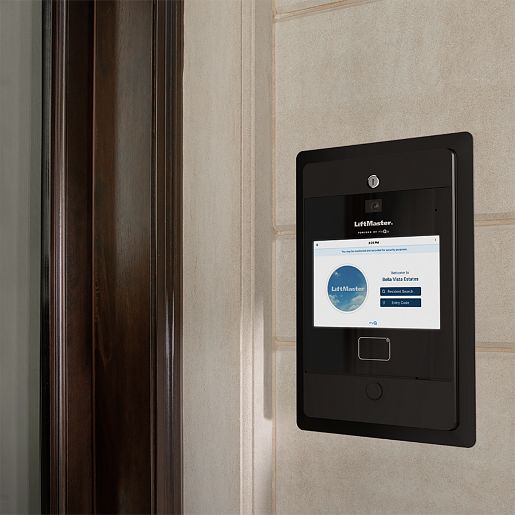

- Surface, flush, or pedestal mounting options

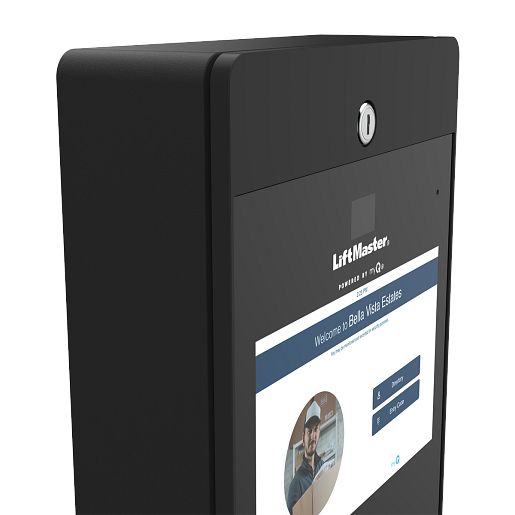

- IP54 weather-resistant and IK07 impact-rated enclosure
- Two-factor authentication for enhanced security
- Remote resident access, guest management, and event notifications through the myQ Community platform.
Ideal Applications
- High-rise apartment buildings
- Multifamily housing communities
- Gated residential developments
- HOA communities
- Mixed-use properties
- Commercial office buildings
- Industrial facilities
- Campus access control systems
Specifications
- Display: 10" HD fade-resistant touchscreen
- Camera: 1080p, 25 FPS
- Field of View: 135°
- Local Capacity: Up to 50,000 users
- Connectivity: Ethernet or Wi-Fi®
- Power: 24 VDC (3A, 72W) or 802.3bt Type 3 PoE
- Operating Temperature: -20°F to 130°F (-29°C to 54°C)
- Outdoor Rating: IP54 / IK07
