Description

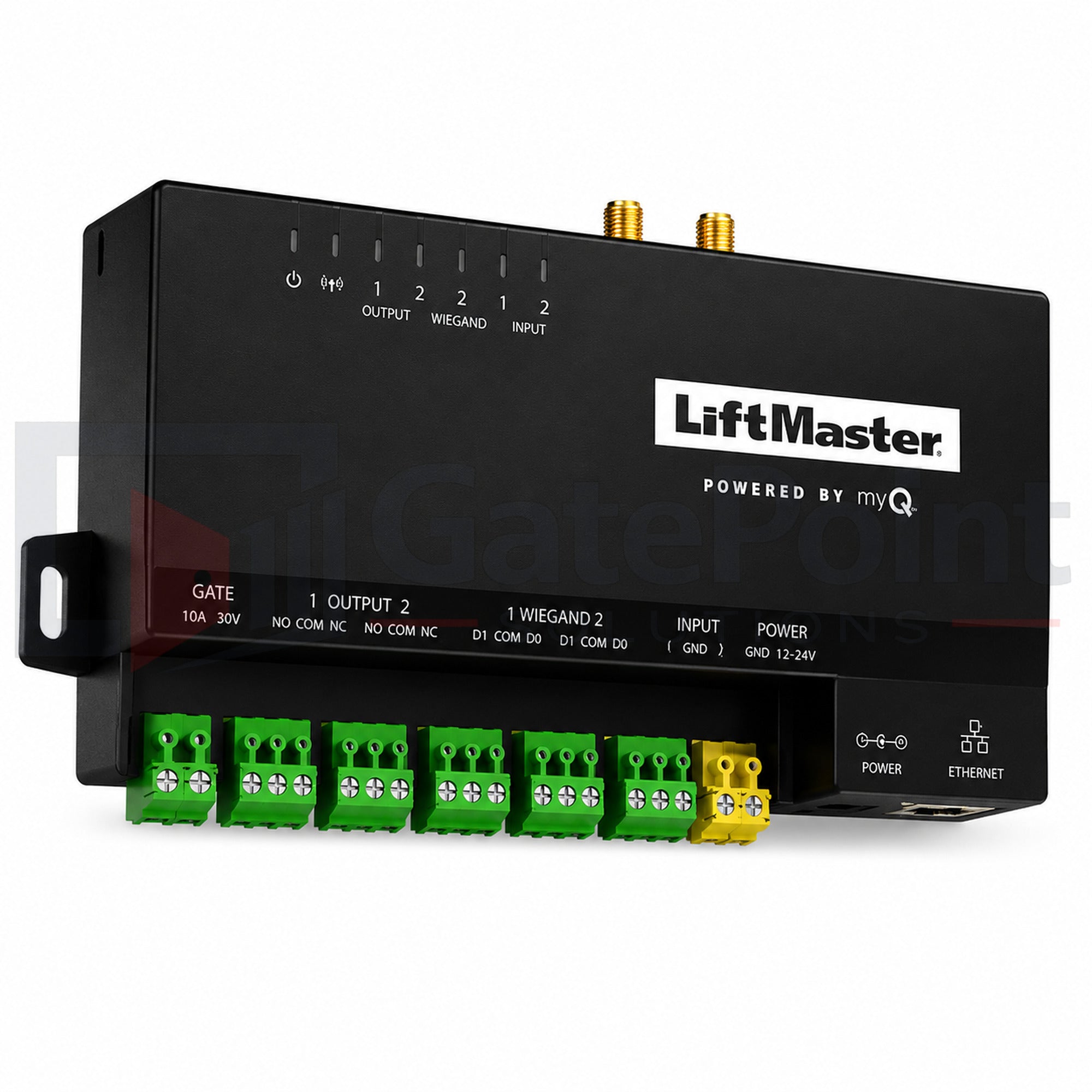

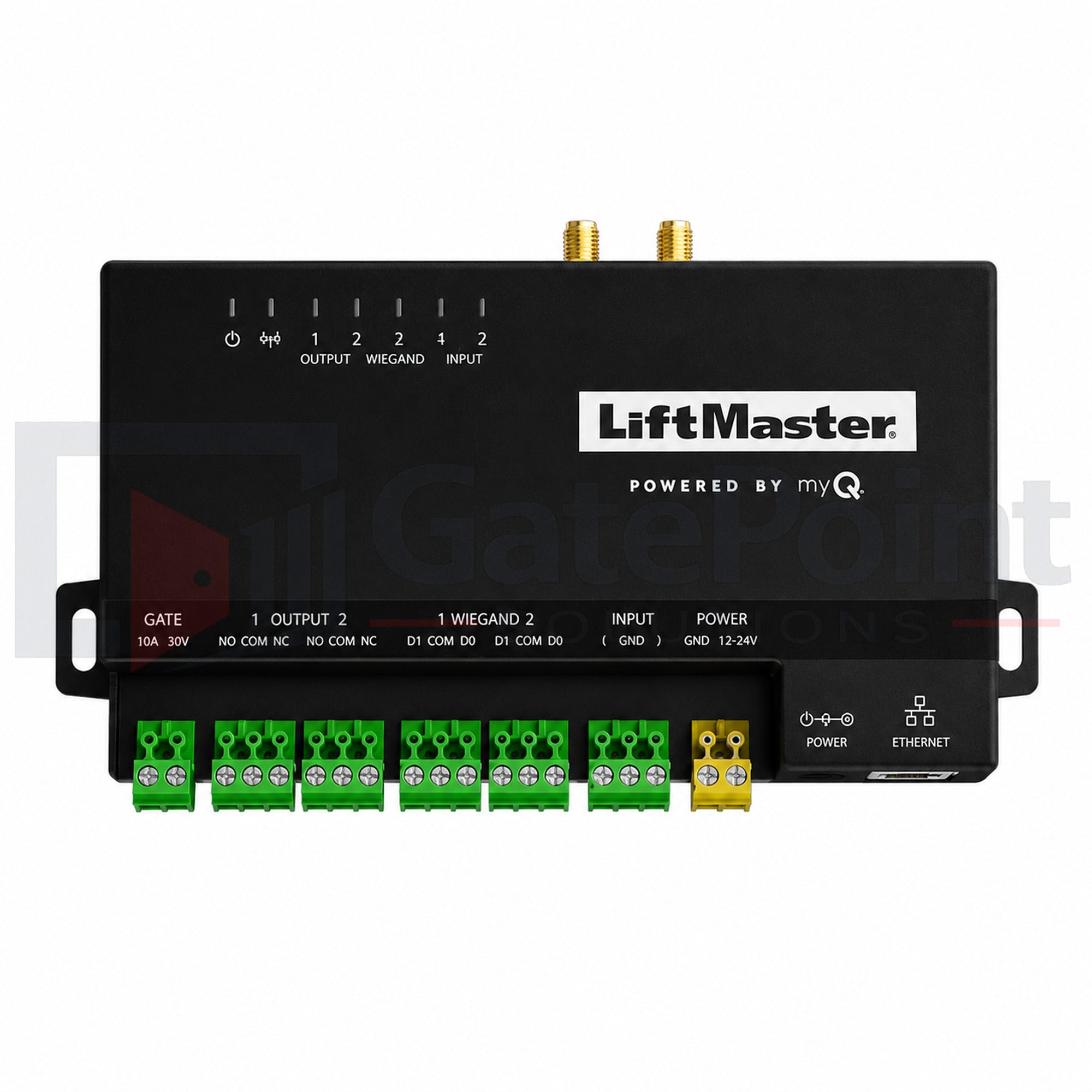

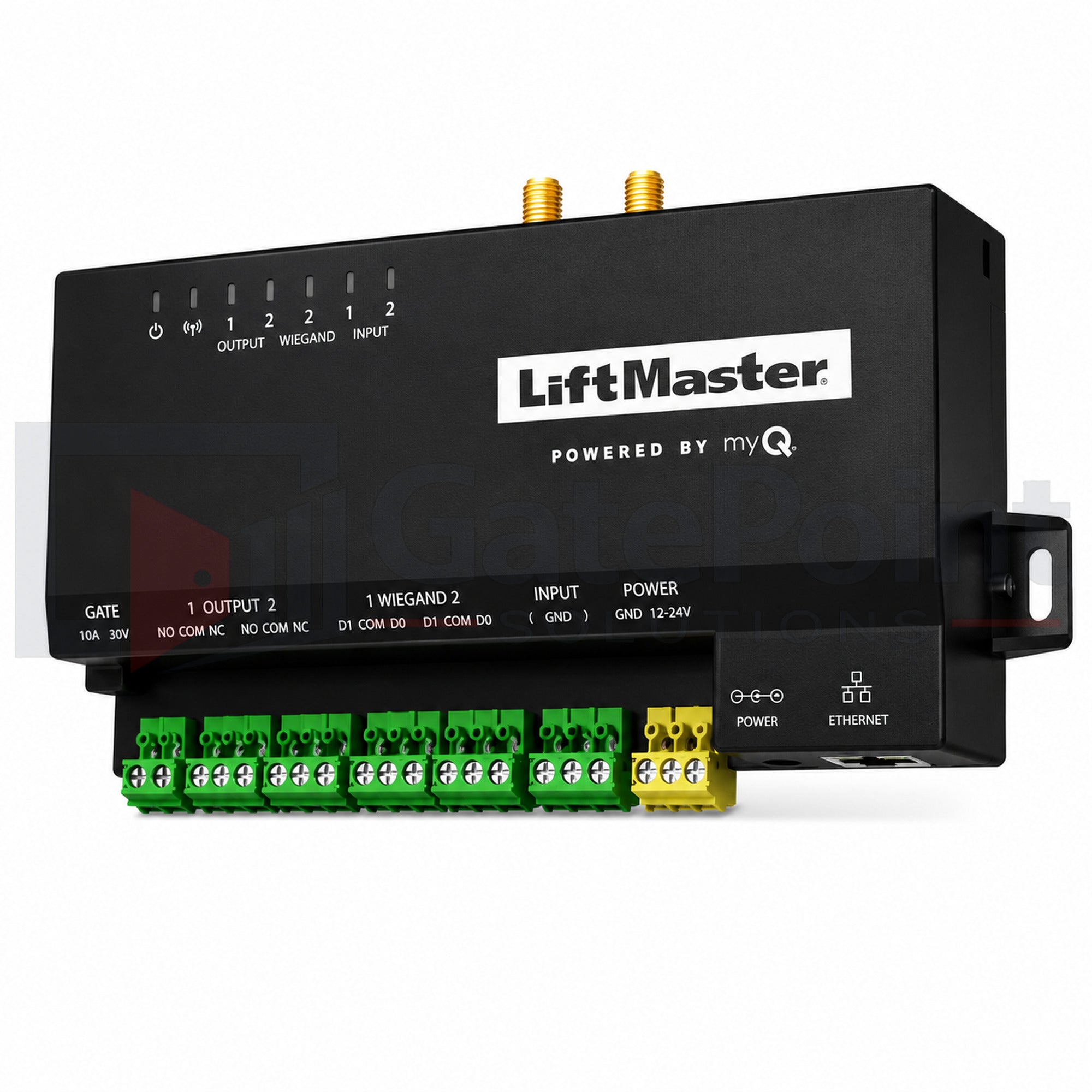

The LiftMaster CAPAC Smart Access Hub is a cloud-based retrofit access control solution that transforms existing gates, doors, telephone entry systems, and access control hardware into smart, connected access points without replacing your current system. Powered by myQ® Community, the CAPAC enables property managers to remotely monitor, control, and manage up to four access points from a centralized cloud dashboard, making it an ideal solution for multifamily communities, HOAs, commercial properties, and mixed-use developments.
Designed for both new and retrofit installations, the CAPAC supports Ethernet, Wi-Fi®, and cellular connectivity, allowing flexible installation in virtually any environment. Residents can unlock authorized entrances, receive virtual guest passes, and manage visitor access directly through the myQ Community App, while administrators can remotely add or remove users, configure access schedules, monitor activity, and receive real-time notifications.
The Smart Access Hub supports up to 50,000 users and 50,000 event records, making it an excellent solution for communities of nearly any size. Compatible with most existing gate operators, pedestrian doors, maglocks, door strikes, and telephone entry systems, the CAPAC offers a cost-effective path to modern cloud-based access control without replacing existing infrastructure.
Key Features
- Genuine LiftMaster OEM Smart Access Hub
- Part Number: CAPAC
- Powered by myQ® Community
- Controls up to four (4) gates and/or doors
- Retrofit solution for existing access control systems
- Supports Ethernet, Wi-Fi®, and cellular connectivity
- Cloud-based remote programming and management
- Supports up to 50,000 users
- Stores up to 50,000 event history records
- Compatible with vehicle gates, pedestrian gates, amenity gates, door strikes, and maglocks
- Real-time activity monitoring and alerts
- Secure cloud platform with two-factor authentication
- Plug-and-play installation for new or retrofit applications
- Compatible with LiftMaster access control products and many third-party systems
Ideal Applications
- Apartment complexes
- Condominium communities
- HOA entrances
- Gated residential communities
- Commercial office buildings
- Mixed-use developments
- Industrial facilities
- Parking garages
- Amenity access control
- Retrofit access control upgrades
Specifications
- Maximum Controlled Access Points: 4
- Local User Capacity: 50,000
- Event History: 50,000 events
- Connectivity: Ethernet, Wi-Fi®, or Cellular
- Power Input: 6–24 VDC (power supply sold separately)
- Mounting: Surface mount
- Operating Temperature: -20°F to 130°F (-29°C to 54°C)
- Platform: myQ® Community (subscription required)
