Description

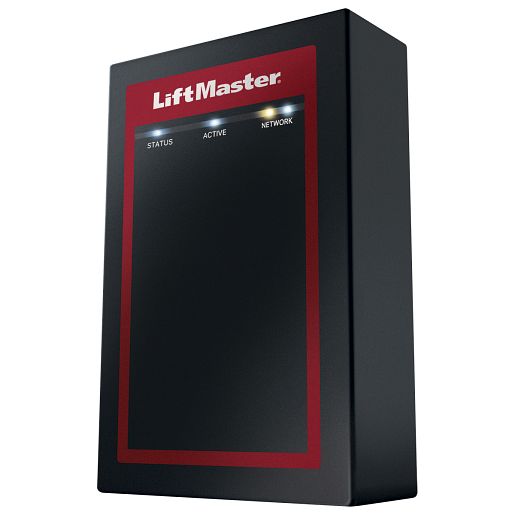

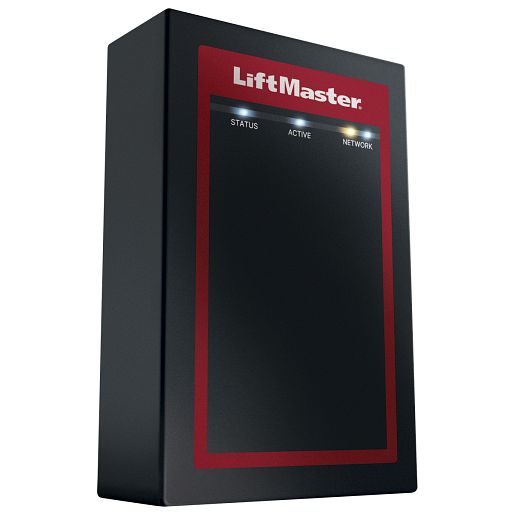

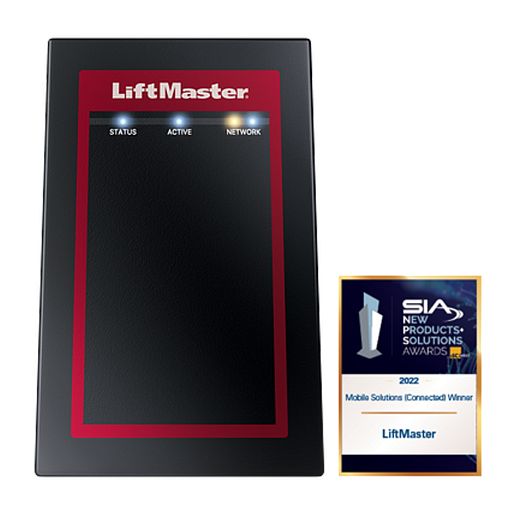

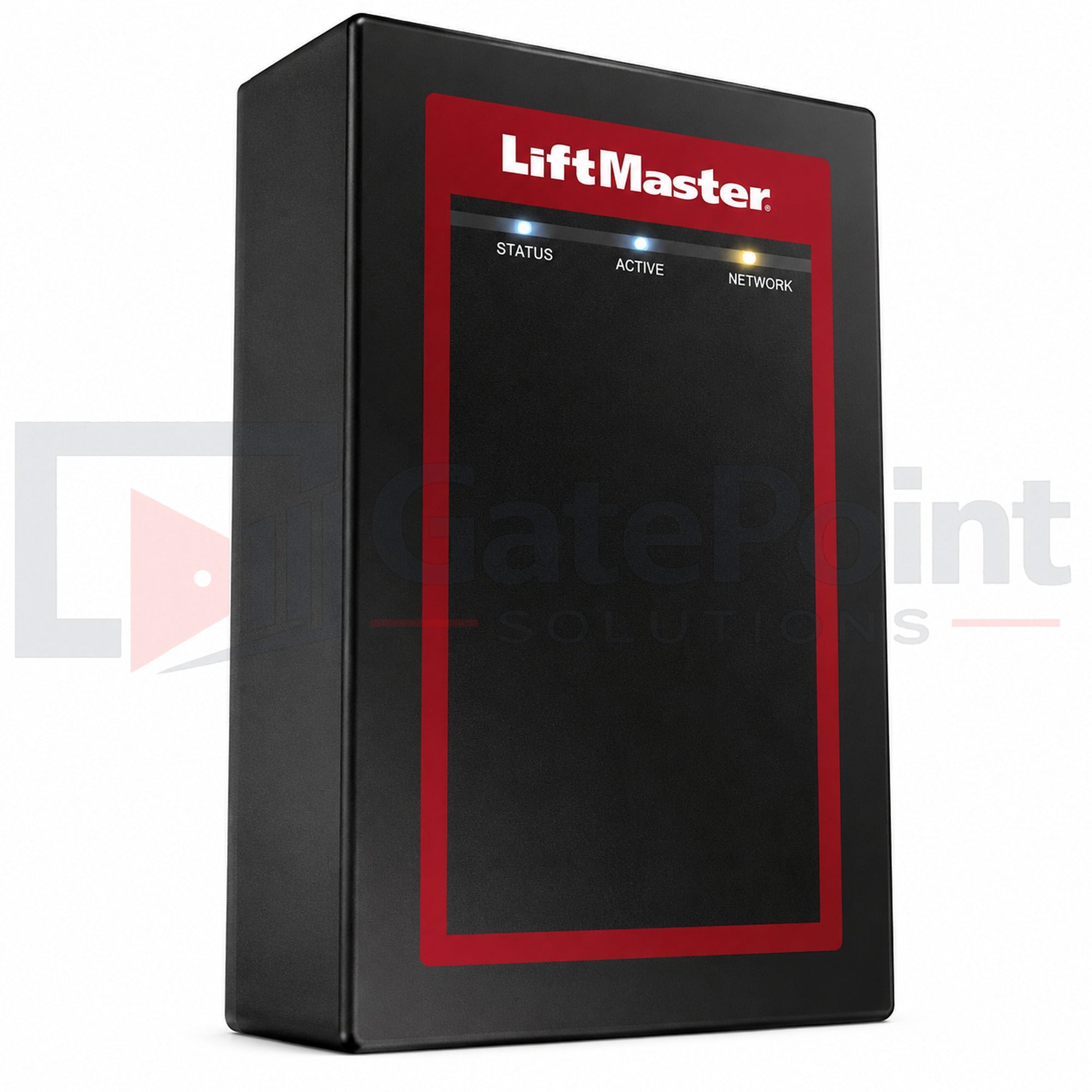

The LiftMaster CAP2D Smart Access 2-Door Controller is a cloud-based access control solution designed to manage up to two doors, gates, or controlled access points from a single controller. Built on the myQ® Community platform, the CAP2D provides secure credential management, remote administration, and scalable access control for multifamily communities, commercial buildings, gated neighborhoods, offices, parking facilities, and industrial properties.
Designed to work behind the scenes, the CAP2D connects with compatible Wiegand readers, keypads, RFID readers, and LiftMaster Smart Readers to create a flexible access control system. Property managers can remotely manage users, schedules, credentials, and activity logs through the myQ Community web portal while residents and authorized users enjoy secure, convenient access. Even if internet connectivity is temporarily lost, the controller's local memory allows authorized users to continue accessing the property.
The CAP2D supports up to 25,000 local users, stores 6,000 event history records, and features 2 Wiegand inputs along with 4 relay outputs (2 primary and 2 auxiliary) for controlling multiple access points and connected devices. Its compact design, backup battery, and Ethernet connectivity make it an ideal solution for both new installations and expanding existing LiftMaster access control systems.
Key Features
- Genuine LiftMaster OEM Smart Access Controller
- Part Number: CAP2D
- Controls up to two (2) doors or gates
- Cloud-based management through myQ® Community
- Supports 25,000 local users
- Stores 6,000 event history records
- 2 Wiegand inputs
- 4 relay outputs (2 primary, 2 auxiliary)
- Compatible with 26-bit, 30-bit, and 37-bit Wiegand readers
- Local credential storage allows continued operation during internet outages
- Ethernet connectivity for cloud management
- Compact enclosure with no exposed wiring
- Backup battery preserves controller operation during power interruptions
- Expandable as part of a larger myQ Community access control network.
Ideal Applications
- Apartment complexes
- Condominium communities
- HOA entrances
- Commercial office buildings
- Mixed-use developments
- Parking garages
- Industrial facilities
- Pedestrian doors and vehicle gates
- Amenity and clubhouse access points
Specifications
- Maximum Controlled Access Points: 2
- Local User Capacity: 25,000
- Event History: 6,000 events
- Wiegand Inputs: 2
- Relay Outputs: 4 (2 primary, 2 auxiliary)
- Connectivity: Ethernet / myQ Community
- Operating Temperature: -31°F to 150°F (-35°C to 66°C)
- Warranty: 2-Year Limited Warranty
