Description

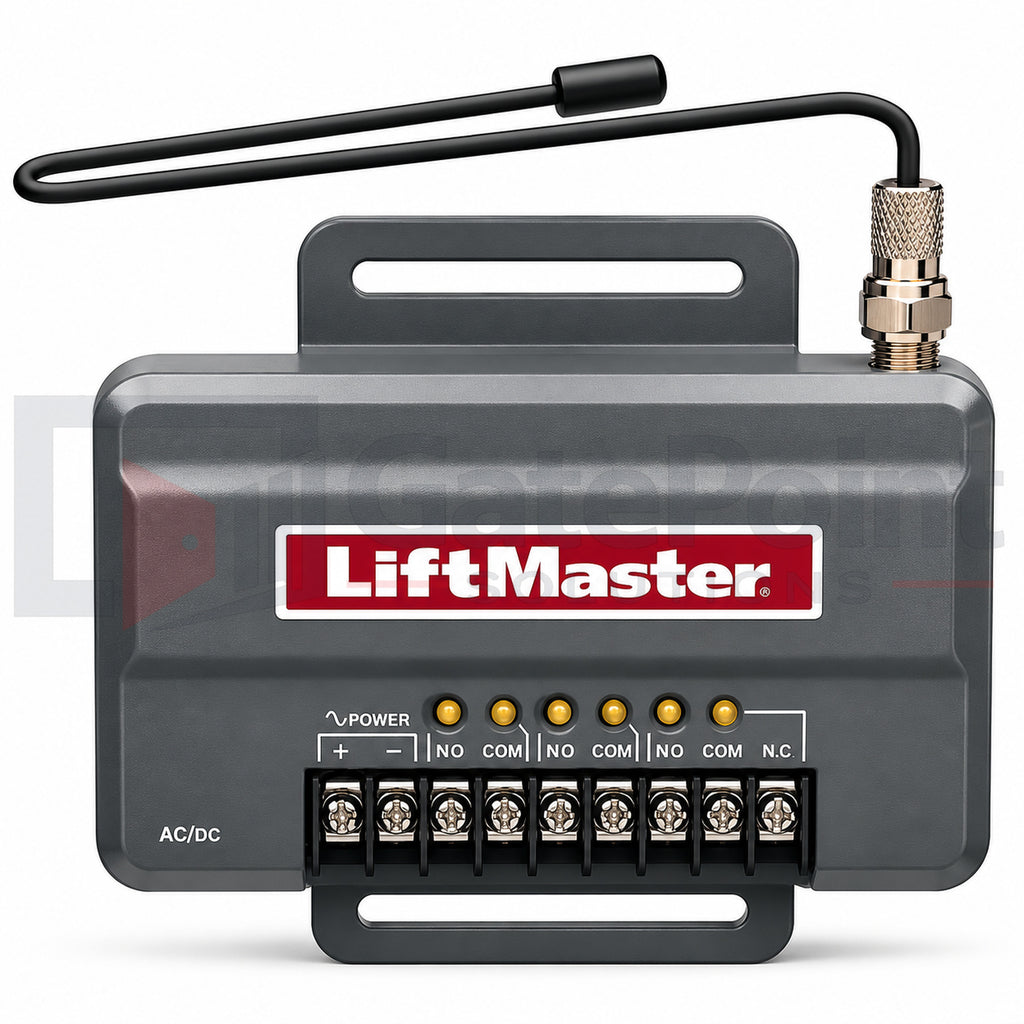

The LiftMaster 850LMMC is a universal 3-channel receiver designed for commercial access control systems, gated communities, industrial facilities, and multi-entry perimeter security applications. Engineered with Security+ 2.0® rolling code and encrypted communication technology, the 850LMMC provides secure long-range wireless access management for multiple gates, commercial doors, parking entrances, and controlled access points using a single transmitter solution.
Designed for flexible integration with gate operators and commercial door operators, the 850LMMC supports multiple remote control configurations while providing secure encrypted communication to help prevent unauthorized access. The three-channel design allows independent control of multiple access points with separate remote capacities assigned to each channel.
Its compact design fits most commercial gate and door operators, while wide input voltage compatibility allows installation across a variety of residential, commercial, and industrial access control systems. The receiver is compatible with LiftMaster® 811LM, 813LM, and MAX series remote controls for expanded access management flexibility.
Specifications:
- Model: 850LMMC
- Product Type: Universal 3-Channel Receiver
- Manufacturer: LiftMaster
- Technology: Security+ 2.0® Rolling Code & Encrypted DIP
- Channels: 3
- Channel Capacity:
- Channel 1: 50 Remotes
- Channel 2: 20 Remotes
- Channel 3: 20 Remotes
- Compatible Remotes: 811LM, 813LM, and MAX Series Controls
- Input Power: 12-24VDC or 12-24VAC
- Relay Outputs:
- 1 FORM C Relay
- 2 FORM A Relays
- Relay Output Count: 3 (N/O and COM)
- Operating Temperature: -31°F to 149°F (-35°C to 65°C)
- Storage Temperature: -40°F to 185°F (-40°C to 85°C)
- FCC Compliant: FCC Part 15
- Weather-Resistant Version Available: 860LM
Compatible Applications:
Applications include:
- Gated community access systems
- Commercial building access control
- Industrial facility access systems
- Parking gate and barrier control
- Commercial door operator integration
- Multi-entry perimeter access management
- Remote access control upgrades
Key Features:
- Security+ 2.0® rolling code and encrypted wireless communication
- Universal 3-channel receiver design
- Supports multiple controlled access points from one transmitter solution
- Channel capacities support up to 90 total remotes
- Compatible with LiftMaster® 811LM, 813LM, and MAX remotes
- Compact housing fits most gate and commercial door operators
- Wide 12-24VAC/VDC input voltage compatibility
- FORM C and FORM A relay outputs for flexible integration
- Designed for gated communities and commercial facilities
- Provides secure long-range wireless access control
- FCC Part 15 compliant
- Weather-resistant receiver option available (860LM)
