Description

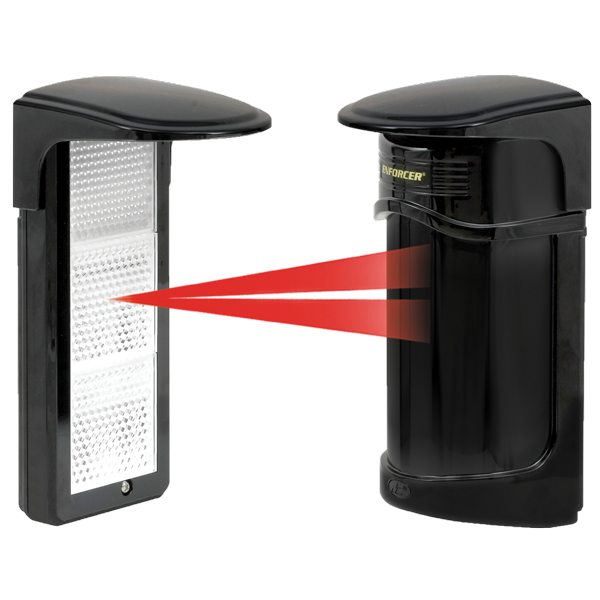

The Large Reflective Photoelectric Beam Sensor delivers robust perimeter protection with a long-range reflective beam, ideal for garages, gates, and outdoor facilities. Built for indoor or outdoor use, it combines easy alignment with dependable performance to minimize nuisance alarms.
- Sensing range: Up to 50 ft (15 m) with a large reflector for expansive coverage and easier alignment.
- Patented design & large reflector: Large sensor and reflector create a broad sensing area that simplifies setup and maintenance.
- Reflective beam reliability: Reduces false alarms from leaves, birds, and debris; lensed optics reinforce beam strength and provide excellent immunity to rain, snow, mist.
- Adjustable response time: 50–700 ms to suit fast doors or slower industrial processes.
- Field of view & alignment: Horizontal adjustment ±90° and vertical adjustment ±5° for precise targeting.
- Output & control: Form C NO/NC alarm output for flexible integration into security or automation systems.
- Power & status indicators: Non-polarized inputs 12–250 VAC/VDC; LEDs show power, beam signal, and triggered state.
- Tamper protection: NC tamper switch rated 0.5A @ 30VDC for added security.
- Durability: IP55 weatherproof, sunlight-filtering case suitable for indoor and outdoor use.
- Included accessories: Large reflector, hoods for sensor and reflector, and wall- and pole-mounting hardware.
- Typical applications: Ideal for garage or overhead doors, outdoor gates, and industrial automation—detects objects on manufacturing lines.
- Unit specs: Sensing range up to 50 ft (15 m); Adjustment range: horizontal ±90°, vertical ±5°; Output: Form C NO/NC; Power: non-polarized 12–250 VAC/VDC; Protection: NC tamper switch 0.5A @ 30VDC; Enclosure: IP55; Mounting: wall- and pole-mount hardware included.
This sensor protects your perimeter with a thoughtfully designed, weather-resistant package that’s simple to install and easy to fine-tune. Its long-range reflective beam, robust optics, and flexible wiring help you tailor detection for gateways, doors, and industrial lines—reducing false alarms while ensuring timely alerts when security or process monitoring matters most.
