Description

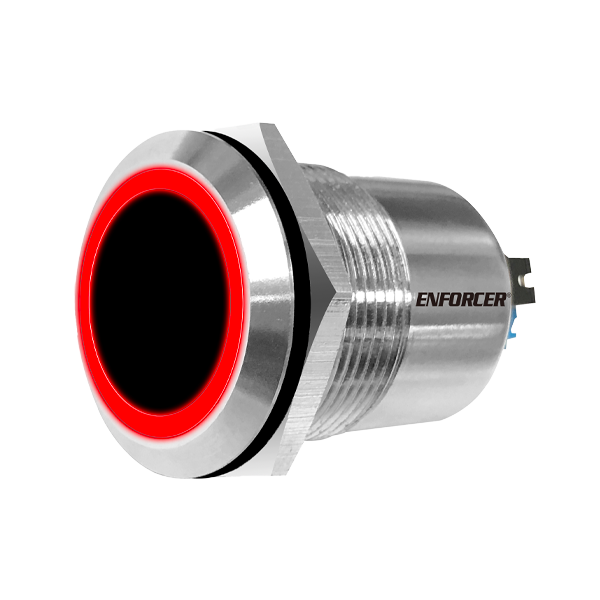

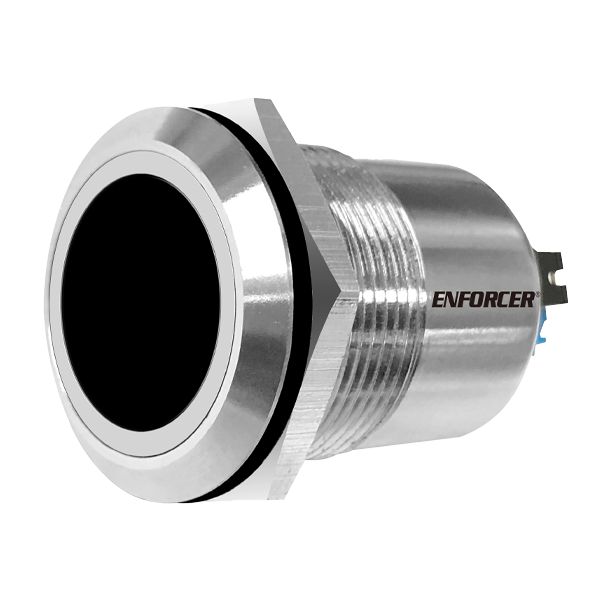

Secure, no-touch infrared proximity sensor designed for doors, gates, and access points. The 22mm stainless steel front panel combines durability with a clean, professional look, while enabling hands-free operation to reduce the spread of germs and cross-contamination.
- Unit specs: 12–24 VDC operation; Form C relay output (1A @ 30VDC); adjustable output duration 0.5–30 seconds or toggle; adjustable sensor range up to 7" (18 cm); selectable LED colors that switch on activation; weatherproof front panel (IP65) when properly installed; power must come from a low-voltage, power-limited/Class 2 supply; use only low-voltage field wiring with a maximum run of 30 m (98.5 ft); ETL, conforms to UL Std. 294
- No-touch sensor: Delivers reliable detection without physical contact, helping reduce germ transmission in high-traffic areas
- Output control: Triggers a warning or locking device upon detection, making it easy to integrate with existing access-control systems
- Detection range: Adjustable range up to 7" (18 cm) to suit different door widths and mounting situations

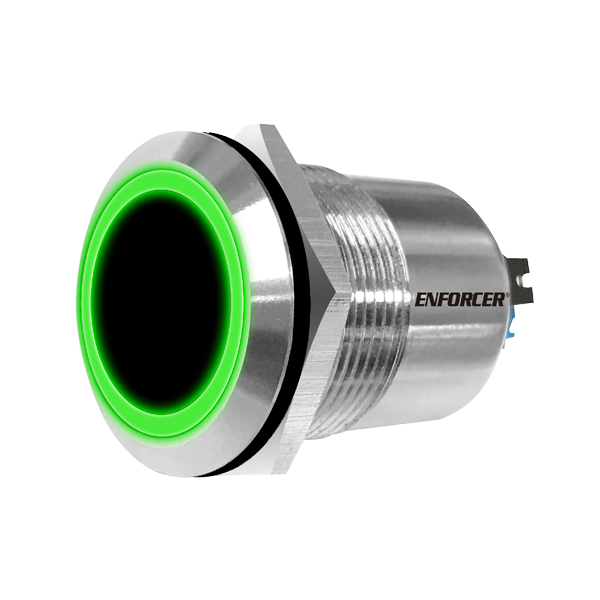

- LED indicators: User-selectable colors; color changes from red to green (or green to red) upon activation for clear, immediate feedback
- Rugged durability: 22 mm stainless steel front panel provides robust wear resistance in demanding environments
- Interference rejection: Filters out interference from other infrared sources to reduce false activations
- Environmental readiness: Weatherproof front panel supports reliable operation in indoor and semi-outdoor settings when properly installed
This infrared proximity sensor is ideal for commercial doors, restroom entries, and access-controlled points where hygiene, reliability, and quick integration matter. Its adjustable 18 cm range, configurable output duration, and easy wiring make it suitable for retrofits or new installations alike. By combining a durable stainless steel exterior with a clean, slim profile, it blends seamlessly into professional environments while delivering hands-free operation that enhances safety and convenience.
