Description

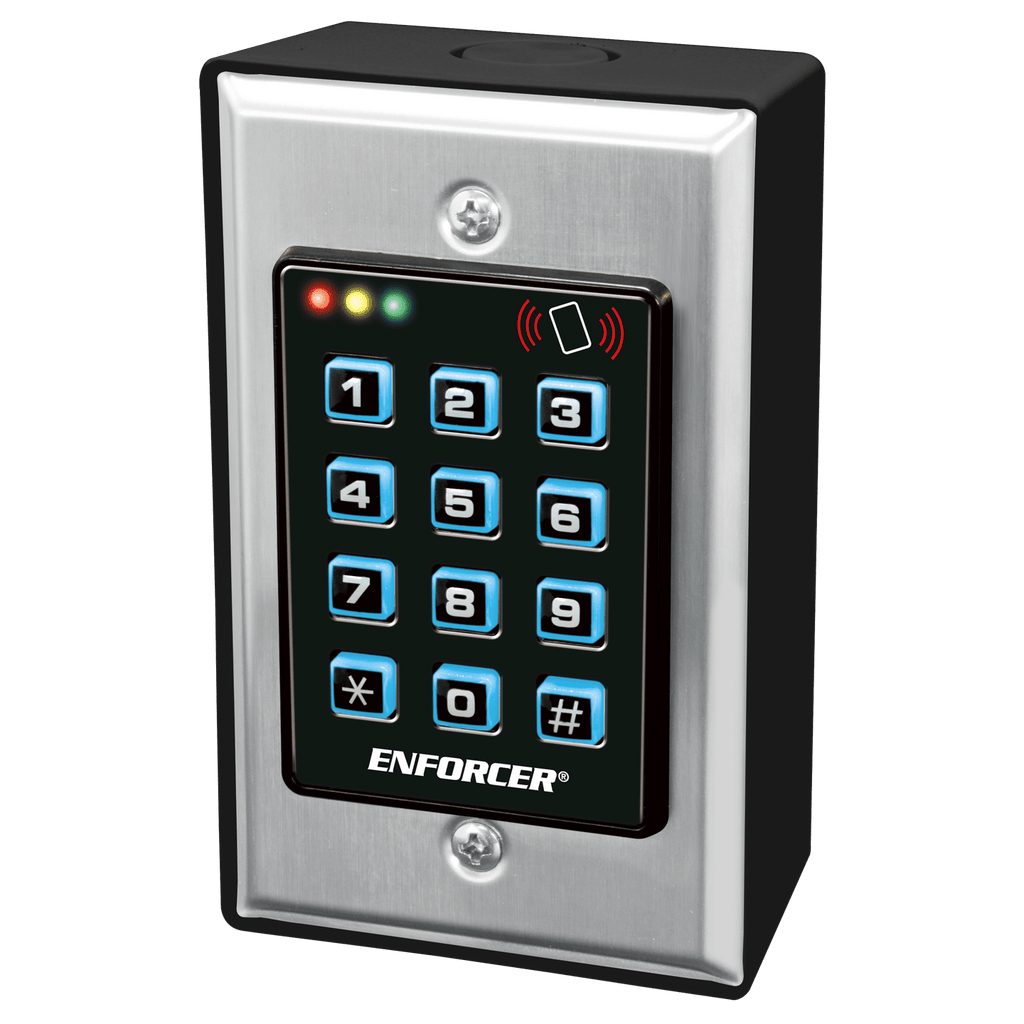

The Indoor Illuminated Access Control Keypad with Proximity Reader is a compact, all-in-one entry solution designed for offices, small businesses, and multi-tenant spaces. It combines a backlit keypad with a built-in proximity reader to deliver fast, secure access without extra hardware.
- Built-in proximity reader: Seamless keyless entry alongside the keypad for quick, secure access.
- Auto-adjusting power: Operates on 12–24 VAC or VDC with automatic voltage detection for flexible installation.
- High user capacity: Up to 1,000 codes/cards for Output 1; 100 for Output 2; 100 for Output 3; up to 50 visitor codes (1–99 hours); up to 50 duress codes for Output 1 and 10 for Outputs 2 and 3.
- Flexible outputs: Output 1 and Output 2 use Form C relays (1 A @ 30 VDC max); Output 3 a transistor ground (100 mA @ 24 VDC). Tamper output is a NC dry contact (50 mA @ 24 VDC max).
- Self-contained programmability: All features programmed directly from the keypad; no external programmer required; EEPROM memory preserves configurations during power loss.
- Advanced security features: Duress codes trigger a silent alarm if assistance is needed; egress input allows safe exit without code entry; interlocking input supports a second keypad for higher security setups; door sensor input aids anti-tailgating.
- User-friendly interaction: Illuminated keypad lights up when pressed and can be set to FULL or AUTO in standby for visibility in dim environments.
- Easy installation: Mounts to a standard single-gang back box with a surface-mount back box included for versatile installation.
- Expansion and future-proofing: Expansion port for future features and a data I/O terminal for split-series configurations enhancing security options.
- Unit specs: Power: 12–24 VAC/VDC; Outputs: Output 1/2 Form C relays (1 A @ 30 VDC max), Output 3 transistor ground (100 mA @ 24 VDC); Tamper output: NC dry contact (50 mA @ 24 VDC max); Memory: EEPROM; Keys illuminated; Visitor codes: up to 50 (1–99 hours); Duress codes: up to 50 (Output 1) and 10 (Outputs 2/3); Egress input; Interlock input; Door sensor input; Expansion port; Back box included.
This keypad is ideal for environments that require robust, flexible access control without managing multiple devices. Use it at the main entrance of an office, a multi-tenant lobby, or a small clinic to grant time-based guest access, enforce secure entry for employees, and respond swiftly in emergencies with silent duress alerts. Its built-in proximity reader speeds up entry for authorized users, while the extensive programming options let you tailor who can access which door, when, and under what conditions—without relying on external controllers.
