Description

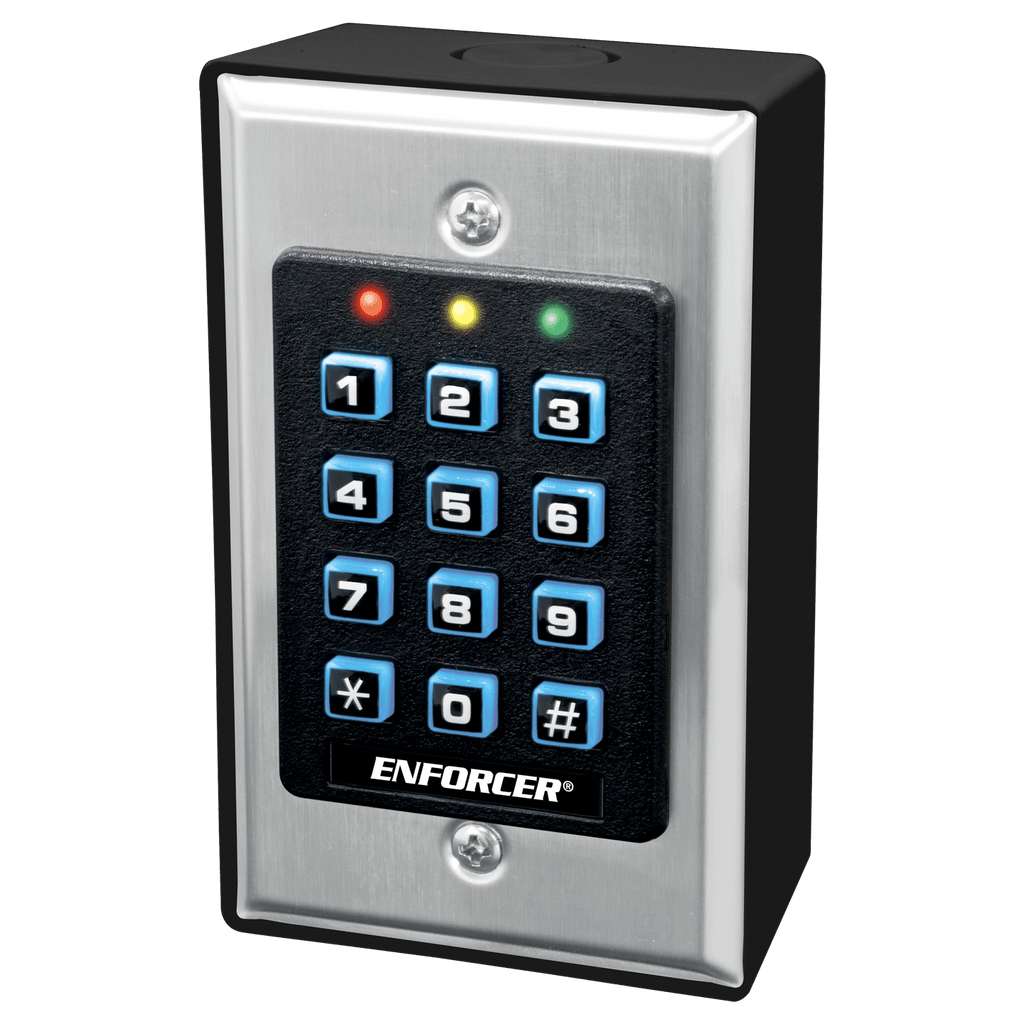

The Indoor Access Control Keypad is a dedicated entry solution designed for small offices, multi-tenant spaces, and secure indoor environments. It delivers flexible code management and robust on-device configuration for reliable, scalable access control.
- High-capacity access codes: Up to 1,000 unique user codes (000–999) plus 50 temporary visitor codes (01–50) that can be set for one-time or limited-time use (1–99 hours).
- Self-contained keypad programming: All features are configured directly from the keypad—no external programmer required for setup or changes.
- Relays and timing: Form C relay rated at 1A @ 30VDC; activation duration programmable up to 99,999 seconds (about 27.8 hours).
- Secure and reliable: EEPROM memory preserves programmed information during power loss; tamper output (NC dry contact) adds monitoring capability (50mA @ 24VDC max).
- Exit and entry controls: Egress input enables secure exit without code entry; Data I/O terminal supports split-series setups for enhanced security.
- Installation-ready: Mounts to a standard single-gang back box (surface-mount back box included); always-on backlit keypad for easy use in low light.
- Expansion and future-proofing: Expansion port supports future features; built-in compatibility with additional security enhancements as needs evolve.
- Integrated security features: All critical functions are accessible from the keypad, reducing the need for external devices and streamlining maintenance.
This keypad delivers precise access control with a focus on reliability and ease of use. Ideal for front desks, shared workspaces, and residential or commercial buildings, it supports both permanent staff codes and temporary visitor codes, helping you manage who enters and when. The EEPROM memory guards against data loss during outages, while the egress input ensures smooth, secure exits. The always-on backlit keypad improves usability in dim environments, and the included back box simplifies installation for a clean, professional installation.
