Description
Compact and reliable, the Illuminated RTE Plate – Slimline is a field-ready push-to-exit solution designed for secure door access. Ideal for offices, schools, and commercial environments that require multilingual captioning and durable performance.
- Plate & Seal: Stainless-steel slimline plate with a rubber-sealed switch to prevent liquid penetration when properly installed.

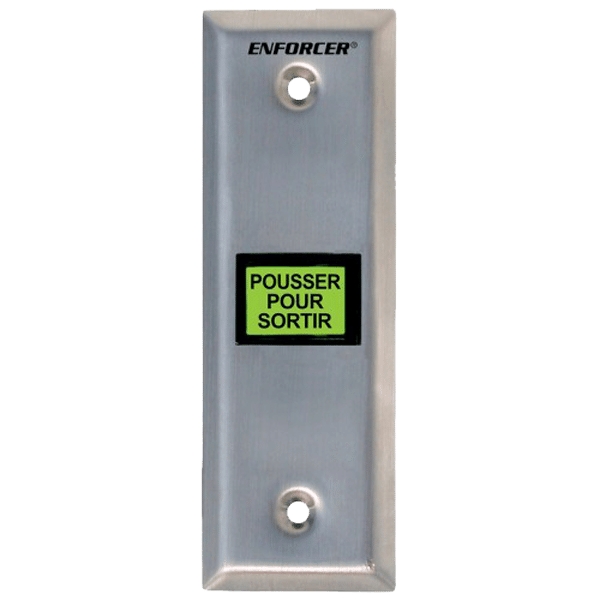

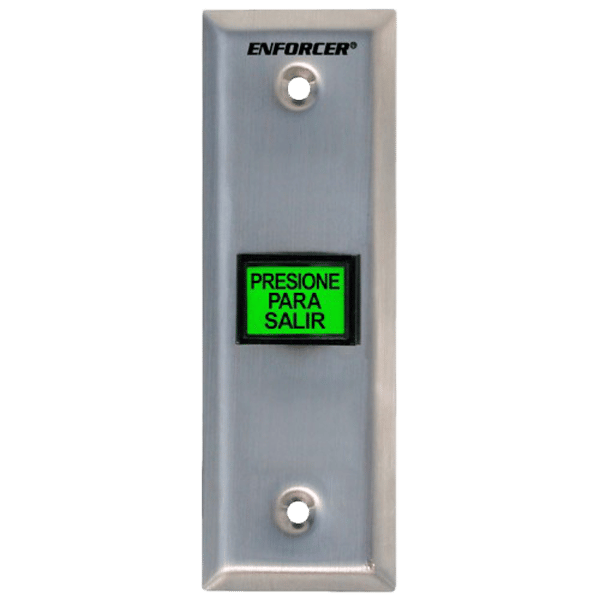

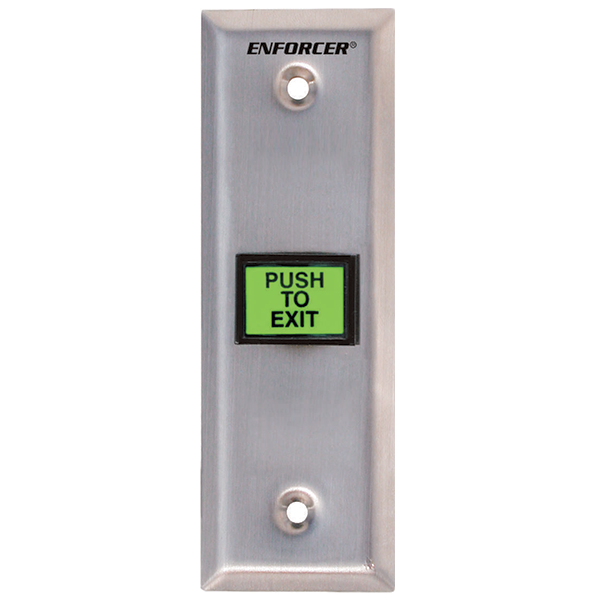

- Caption & Language: Caption reads “PUSH TO EXIT” and can be changed in the field to Spanish or French.
- Illumination: Long-life green LED powered by 12/24 VAC or VDC, rated for ~35,000 hours of operation.
- Electrical & Contacts: Momentary DPST switch with NO/NC contacts; rated up to 5A at 24 VAC.
- Wiring: Six colored 12-inch leads with easy-to-attach spade lugs for fast installation.
- Unit specs: Plate material is stainless steel with a slimline form factor; field-changeable caption to Spanish or French; LED life ~35,000 hours; input 12/24 VAC/VDC; six 12-inch leads; DPST NO/NC; 5A @ 24VAC max; certifications ETL, CE, UL 294; rubber-sealed switch for weather resistance; UL 294 access control levels: Destructive attack I; Line security I; Endurance I; Standby power I.
This illuminated RTE plate delivers clear, immediate guidance for safe egress while integrating with existing access control systems. Its rugged stainless-steel slimline design saves space and maintains a clean aesthetic in modern interiors. Field language switching reduces confusion in multilingual environments, and the long-lasting LED minimizes maintenance visits. Quick wiring with color-coded leads accelerates installation, and the UL 294/CE listings provide confidence in security performance and reliability across a range of applications—from corporate lobbies to educational facilities and healthcare environments. Protect doorways, streamline maintenance, and ensure compliant, dependable exit signaling with this durable, easy-to-install plate.
