Description

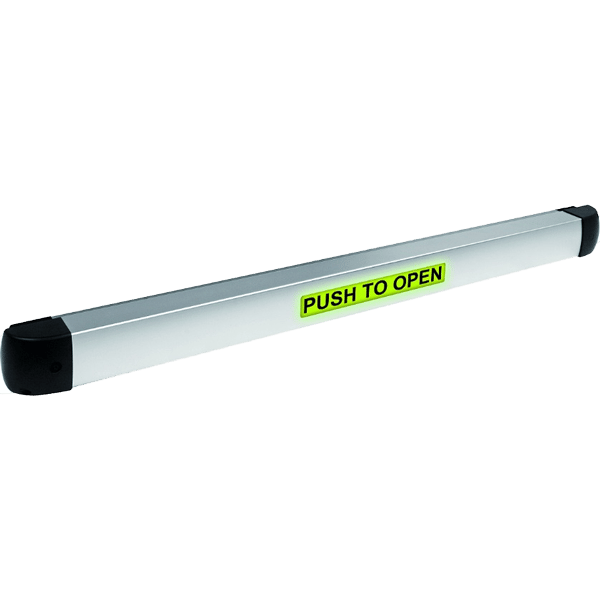

The Illuminated Push-to-Open Bar is a door-release solution that provides clear on-door egress status with an integrated LED indicator. Designed for commercial spaces, it can operate as a standalone unit or be connected to an access control system to fit your security and workflow needs.
- On-door egress LED: Large LED clearly shows status—red in standby and green when triggered; programmable color options (red/green/blue) via an access control panel.
- Door compatibility and cut-to-fit: Sized for 36" doors; actual length 33 7/16" (85 cm); can be cut to fit smaller doors with a minimum length of 23 5/8" (60 cm).
- dogging and hex key: Standard dogging with hex key for secure, predictable door operation.
- Electrical and switch configuration: Two built-in non-latching (momentary) dual-contact switches (NO/NC/COM) rated at ≤5A@230VAC for flexible wiring.
- Timing control: Adjustable release timing from 0.5 to 60 seconds to match door hardware and security policy.
- Relock signaling and audible alert: Blinking LED and programmable buzzer for relock warnings; built-in buzzer indicates unlocked (selectable, up to 92 dB).
- Stand-alone or access control compatible: Functions independently or integrates with an access control system for centralized management.
- Unit specs: For 36" doors; overall length 33 7/16" (85 cm) with cut-to-fit capability down to 23 5/8" (60 cm); electrical rating ≤5A@230VAC; two NO/NC/COM switches; 0.5–60 s adjustability; status LED (red/green/blue options) and buzzer (up to 92 dB).
The result is a dependable, user-friendly door release that improves safety and efficiency. The visible LED status reduces confusion during peak hours and shift changes, while the option to program colors, timing, and audible cues aligns with security policies and emergency procedures. Whether deployed as a stand-alone release or integrated with an access control system, this bar delivers clear feedback to occupants and administrators alike, simplifying door management in busy environments.
