Description

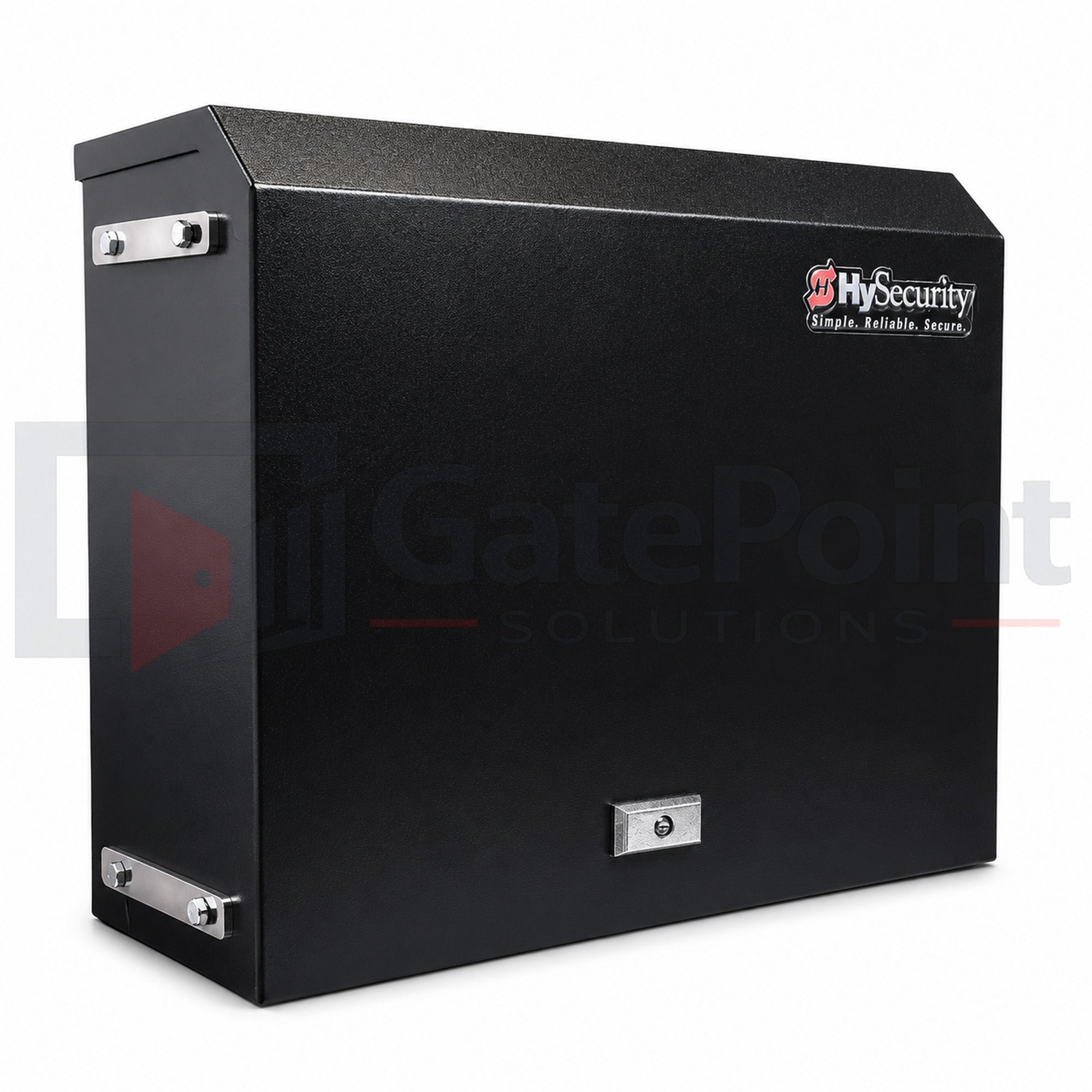

The HySecurity SlideSmart HD15F is a high‑speed, heavy‑duty slide gate operator built for commercial and industrial entrances that demand rapid, reliable access control. As the fastest model in the SlideSmart HD series, it delivers quick openings and secure operation, even in high‑traffic environments.
- Fastest model in the SlideSmart HD lineup: operates up to 2.25 ft/s, enabling rapid gate cycles to minimize queue times.
- Gate capacity: supports gates up to 1,500 lbs and 50 feet long for large installations.
- Smart DC Controller: 70+ configurable settings with an event log for streamlined troubleshooting; LCD display with 5 tactile controls.
- Battery Backup: standard 8Ah battery with ~100 cycles; upgradeable to 50Ah for 600+ cycles to maintain access during power outages.
- Drive & Motion: soft‑start and soft‑stop technology to reduce wear and provide smooth, controlled operation.
- Rugged enclosure: corrosion‑resistant, rodent‑proof steel enclosure with zinc‑rich primer and durable powder coating.
- Safety & Compliance: UL 325 compliant with entrapment sensing and multiple safety integrations for secure operation.
- Weather‑ready design: operates reliably from -13°F to 158°F, suitable for diverse climates and outdoor use.

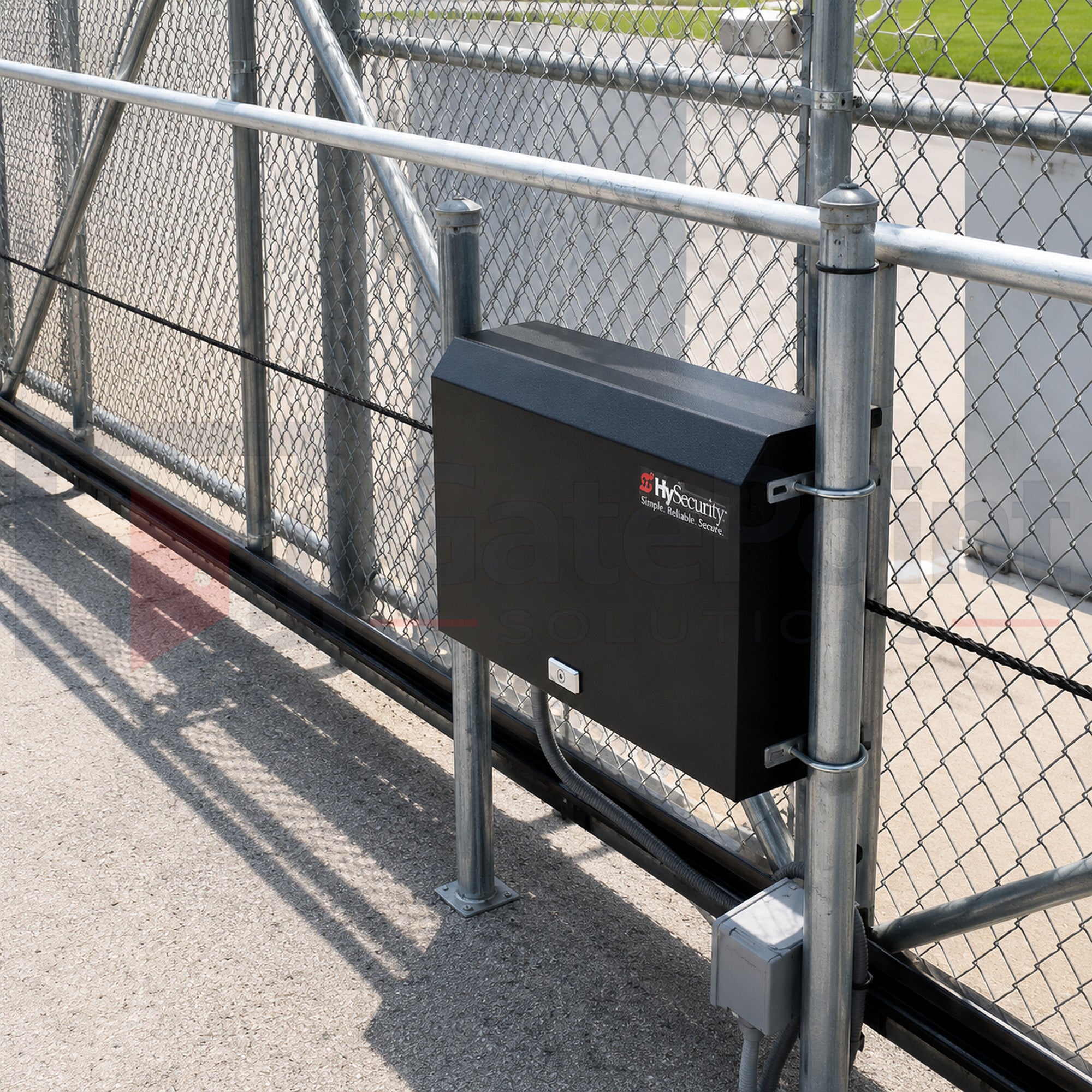

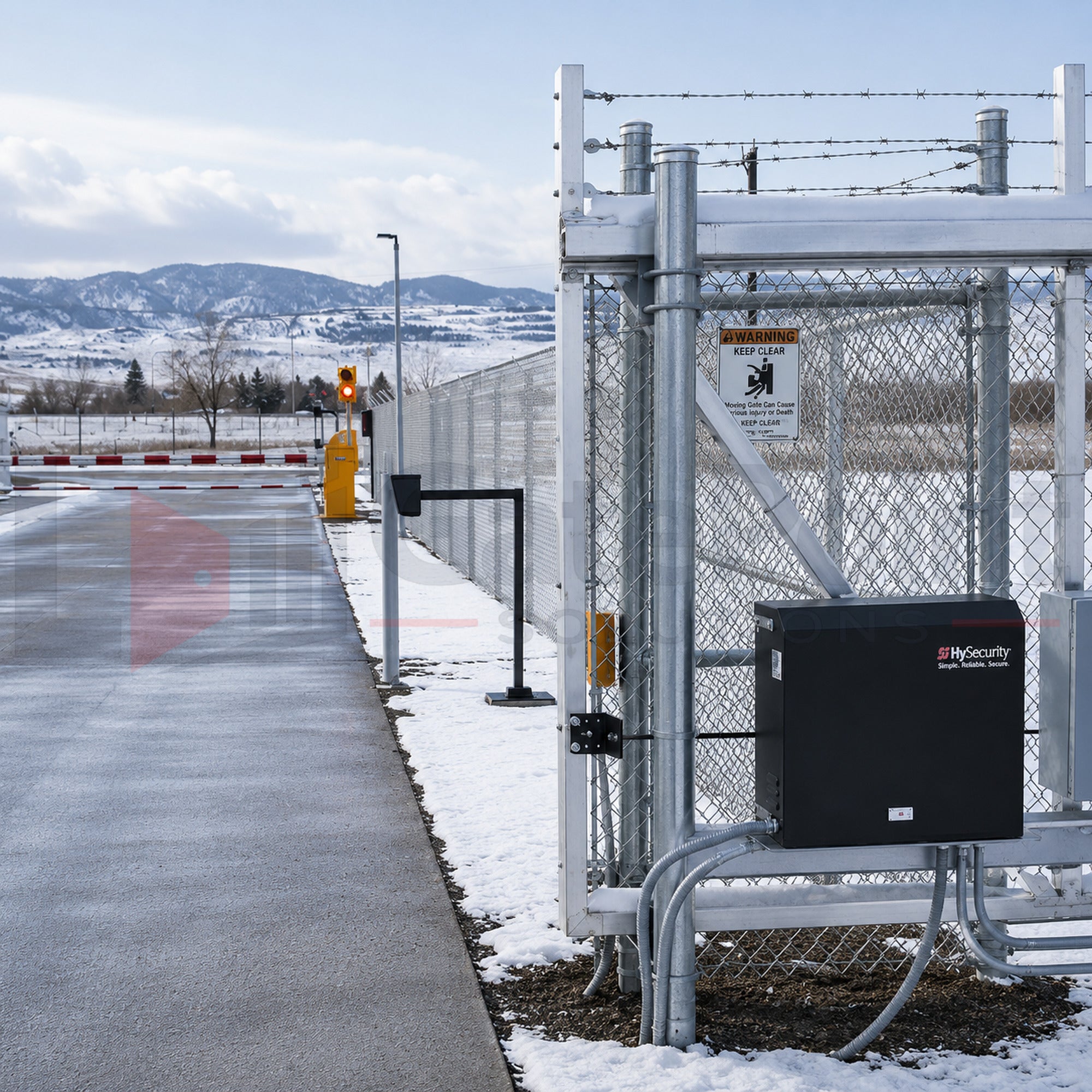

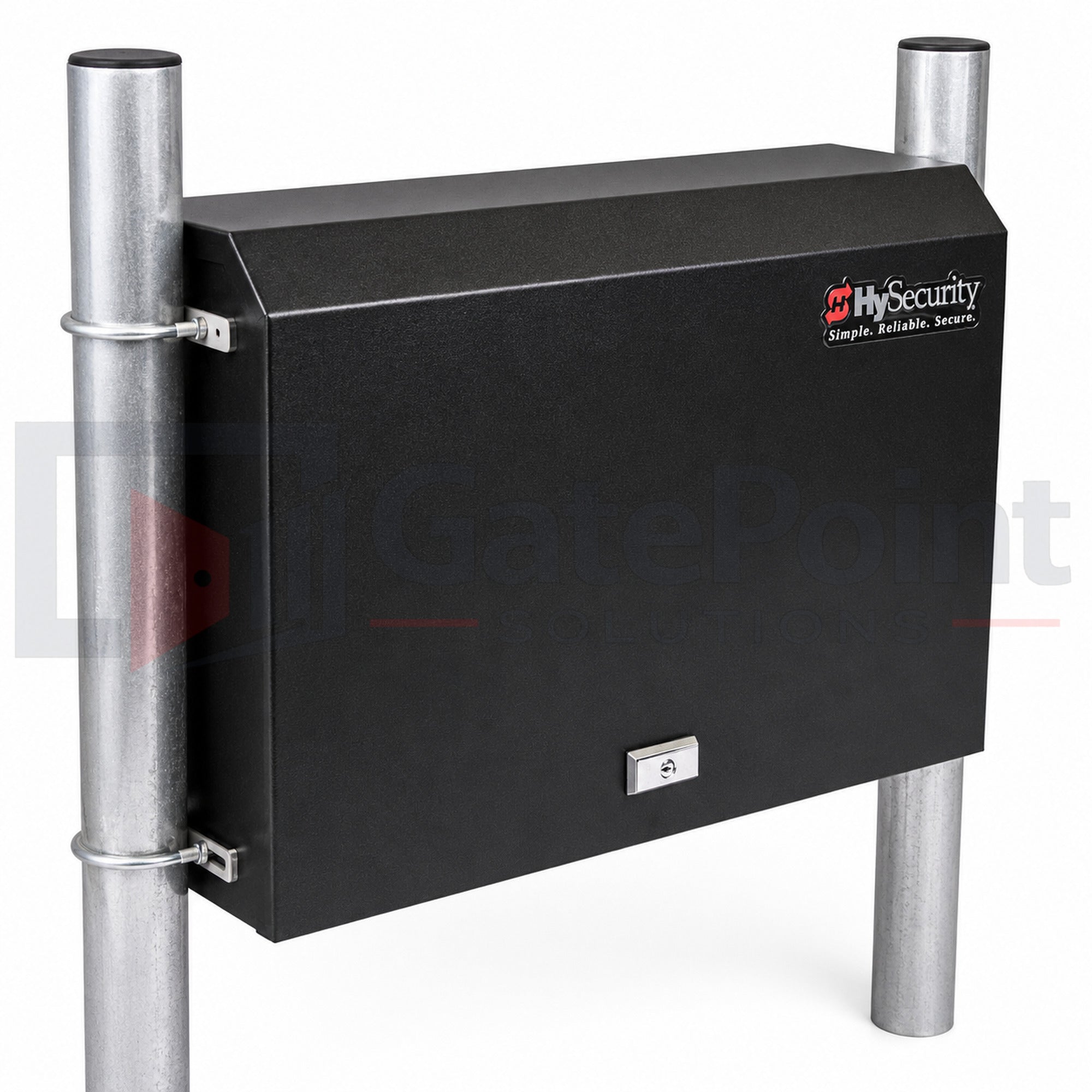

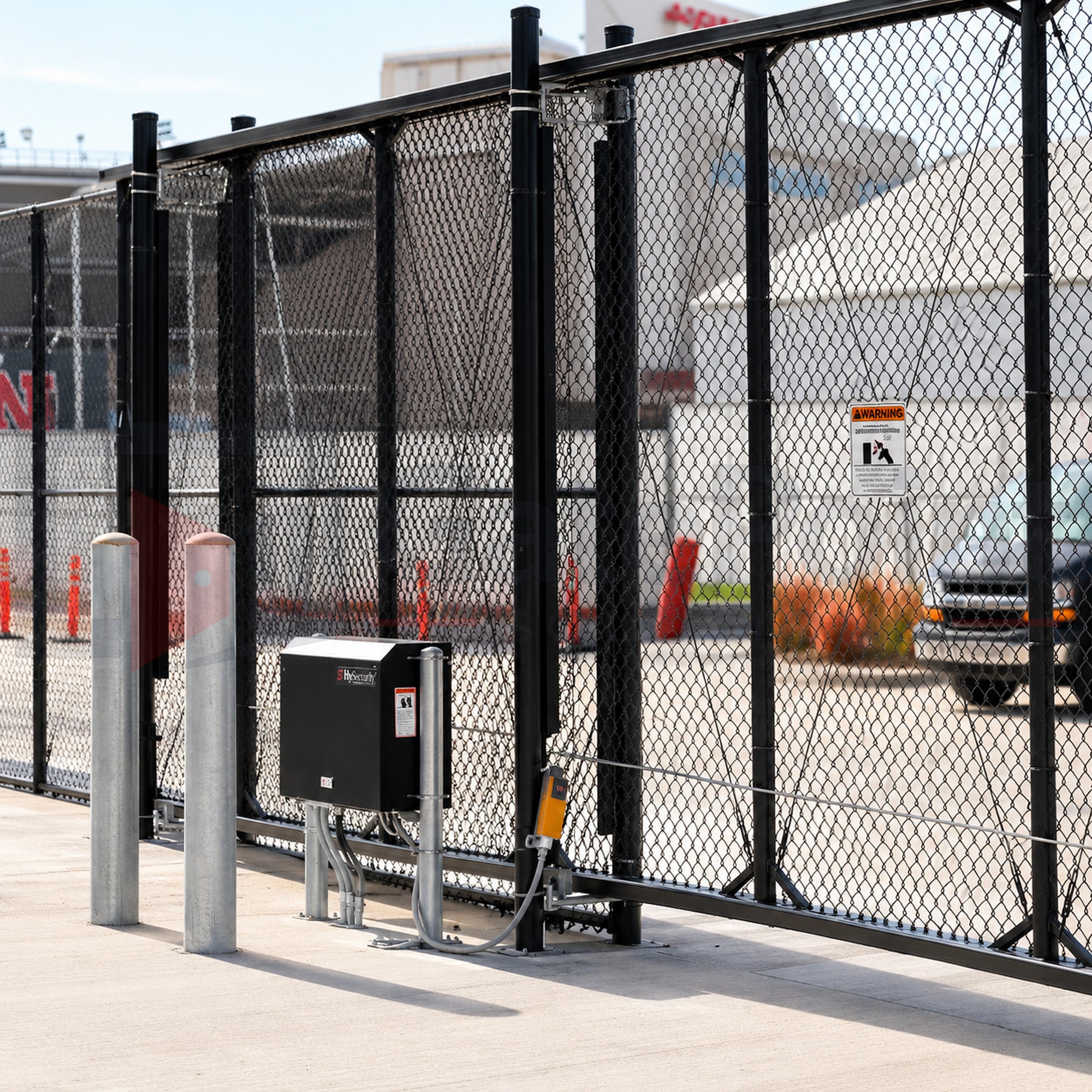

- Installation flexibility: post‑mounted or pad‑mounted configurations to fit a variety of site layouts.

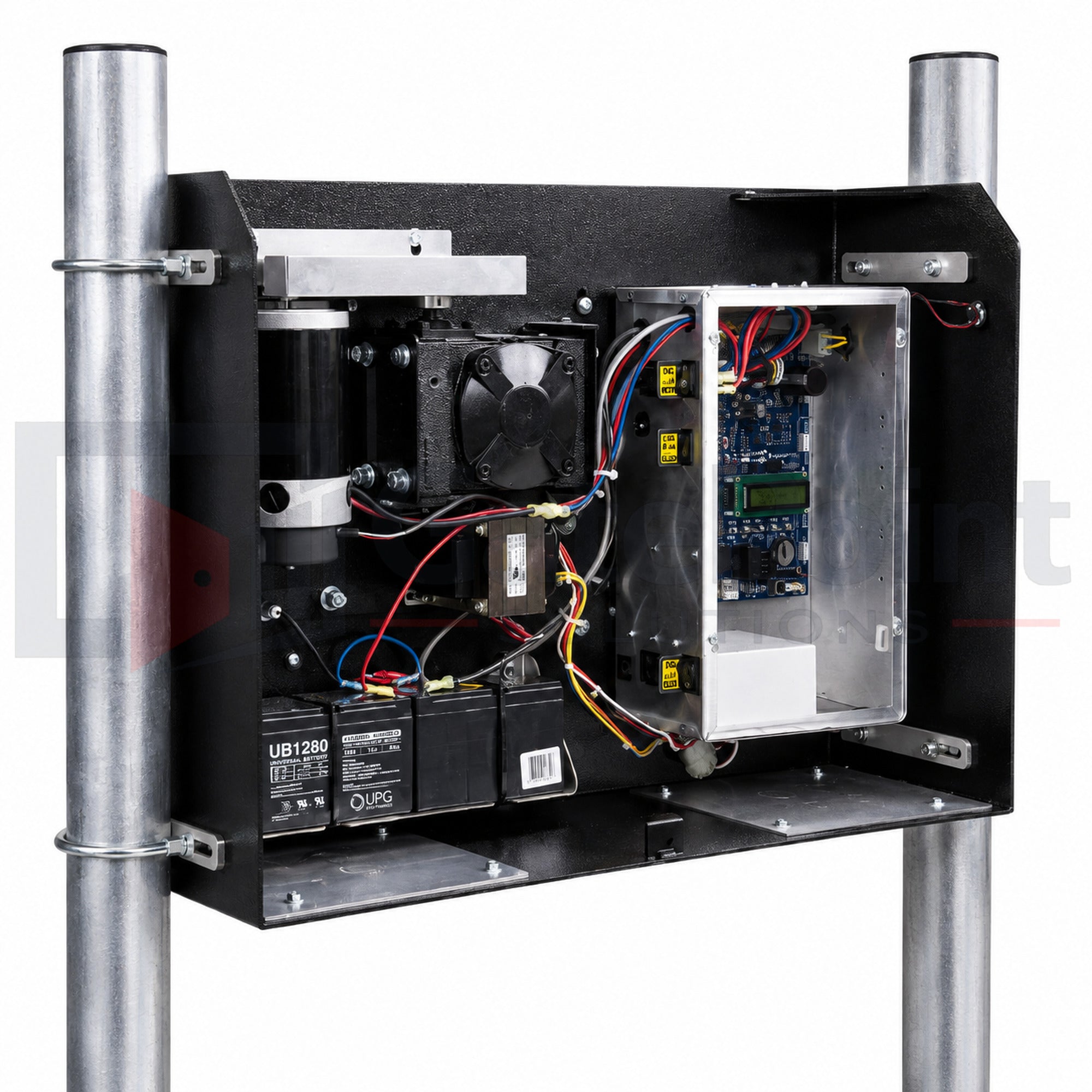

- Power & controls: 1HP electromechanical drive; 24VDC motor; input voltage options of 115V or 208–230V (50/60Hz); accessory power at 12VDC and 24VDC, 1A each.
- User interfaces & expansion: two configurable relays, expandable with Hy8Relay for added control options.
- Certification & usage: ETL Listed, UL 325; suitable for Usage Class I–IV installations.
Ideal for high‑traffic facilities such as parking centers, security checkpoints, industrial campuses, and loading docks, the HD15F delivers rapid throughput without sacrificing safety or reliability. Its combination of high speed, robust construction, safe operating features, and flexible installation options helps reduce gate bottlenecks while maintaining secure access control. For best results, verify compatibility with your site requirements before purchasing.
