Description

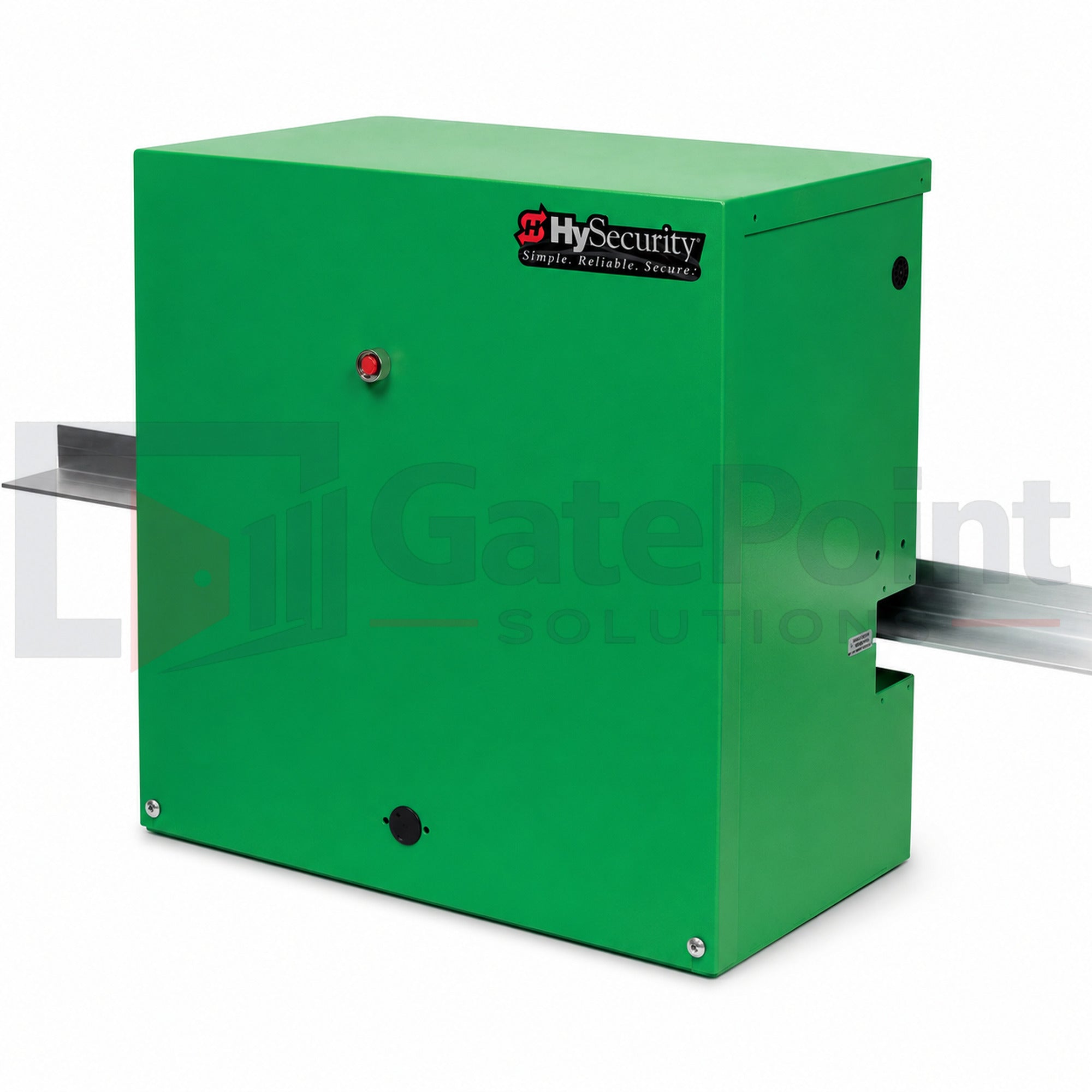

HySecurity SlideDriver 40 is a rugged, industrial hydraulic slide gate operator designed for high-security sites and harsh environments. This 3-phase, 230V model delivers dependable, continuous-duty performance with long service life and minimal maintenance. Note: This product has been discontinued and replaced by the SlideDriver II SD40.
- Operator Specs: SlideDriver 40 3 Phase 230 Volt
- Gate Capacity & Speed: Handles gates up to 4,000 lb (1,814 kg) at 1 ft/s (0.3 m/s)

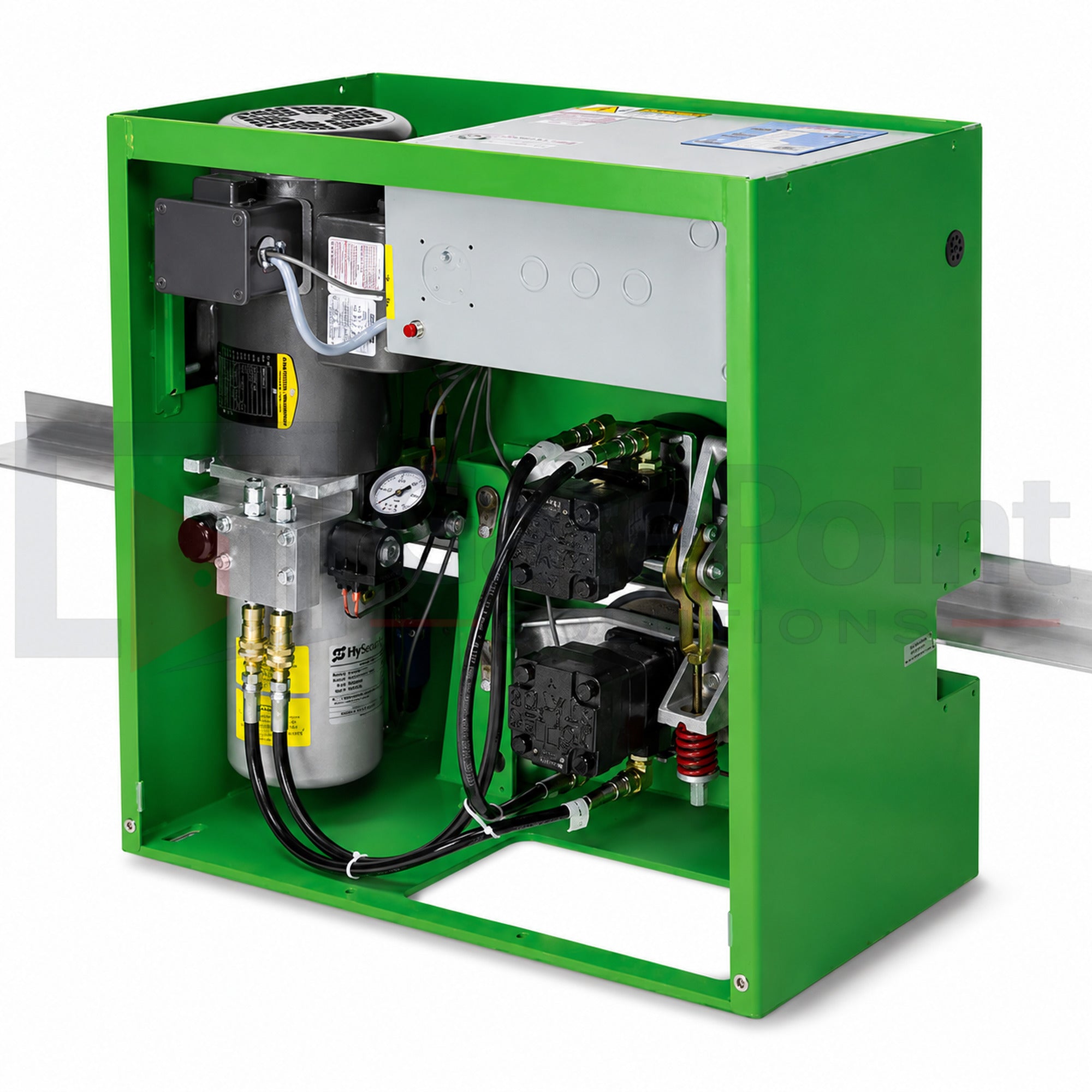

- Drive System: Hydraulic motors power two compressed polyurethane AdvanceDrive wheels for smooth cycling on a rigid drive rail
- Durability & Maintenance: Built for continuous-duty operation with a rugged design and decades-long life; low-maintenance by design
- XtremeDrive System: Optional system to boost traction in snow, ice, or when gates are roll-resistant
- Included Safety & Control Accessories: One premium EMX IRB-MON photo eye and one 5-foot premium ASO edge sensor; pre-wired Hy2NC adapter

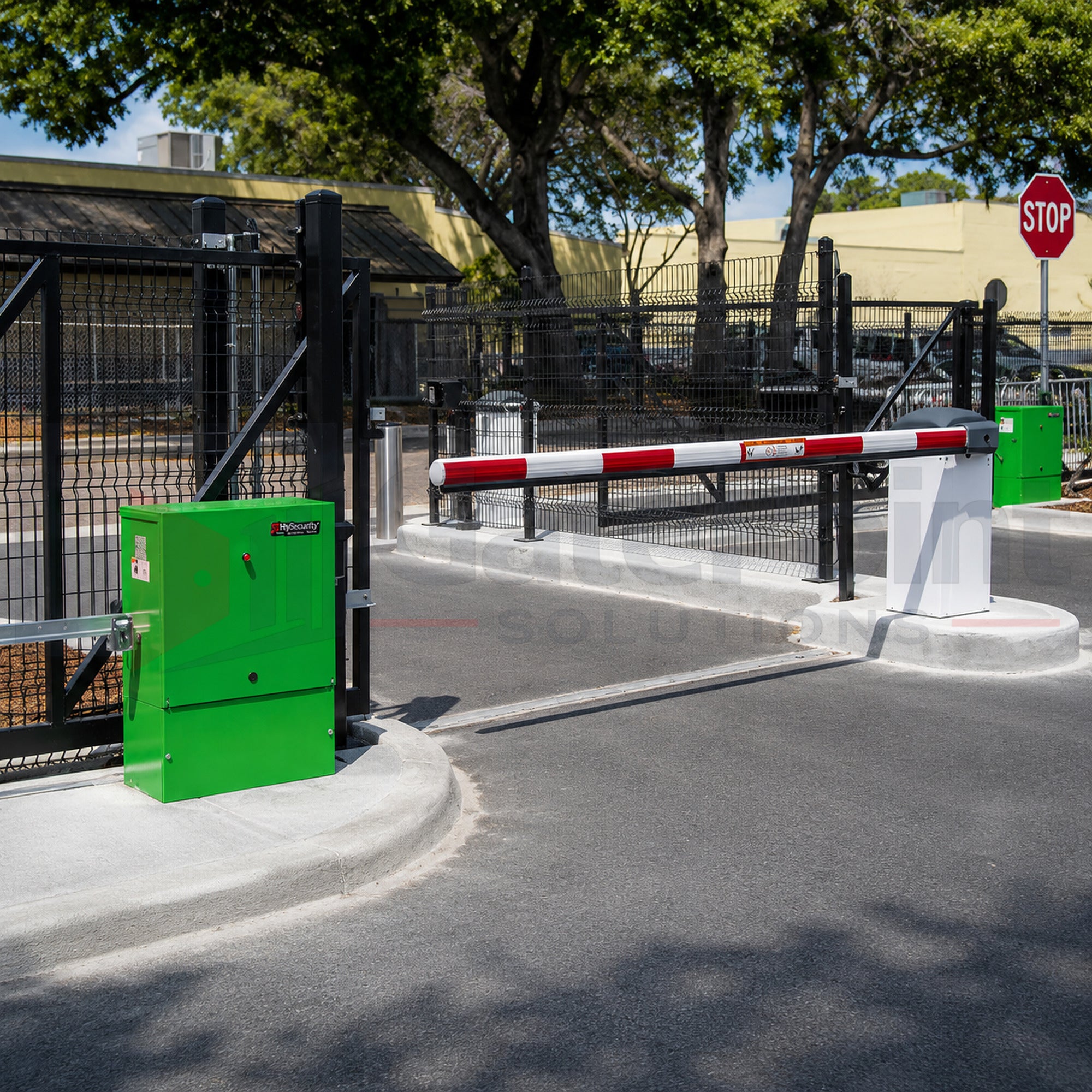

- Industry & Applications: Widely used on industrial and crash sites worldwide for secure, reliable gate control
- Specifications & Packaging: Part Number 222 E ST; Est. Ship Weight 260 lb; Shipping 26" W x 30" D x 35" H; Shipping Class 70
Designed for demanding environments, the SlideDriver 40 offers fast, dependable gate movement with precise control and safety integration. Its two AdvanceDrive wheels deliver consistent traction and smooth operation on a rigid drive rail, while the optional XtremeDrive System enhances grip in challenging weather conditions. The included EMX IRB-MON photo eye and ASO edge sensor support safer site access management, helping prevent collisions with pedestrians and vehicles. If you’re planning upgrades or future-proofing, consider migration to the SlideDriver II SD40, as this model has been superseded by newer performance enhancements.
