Description

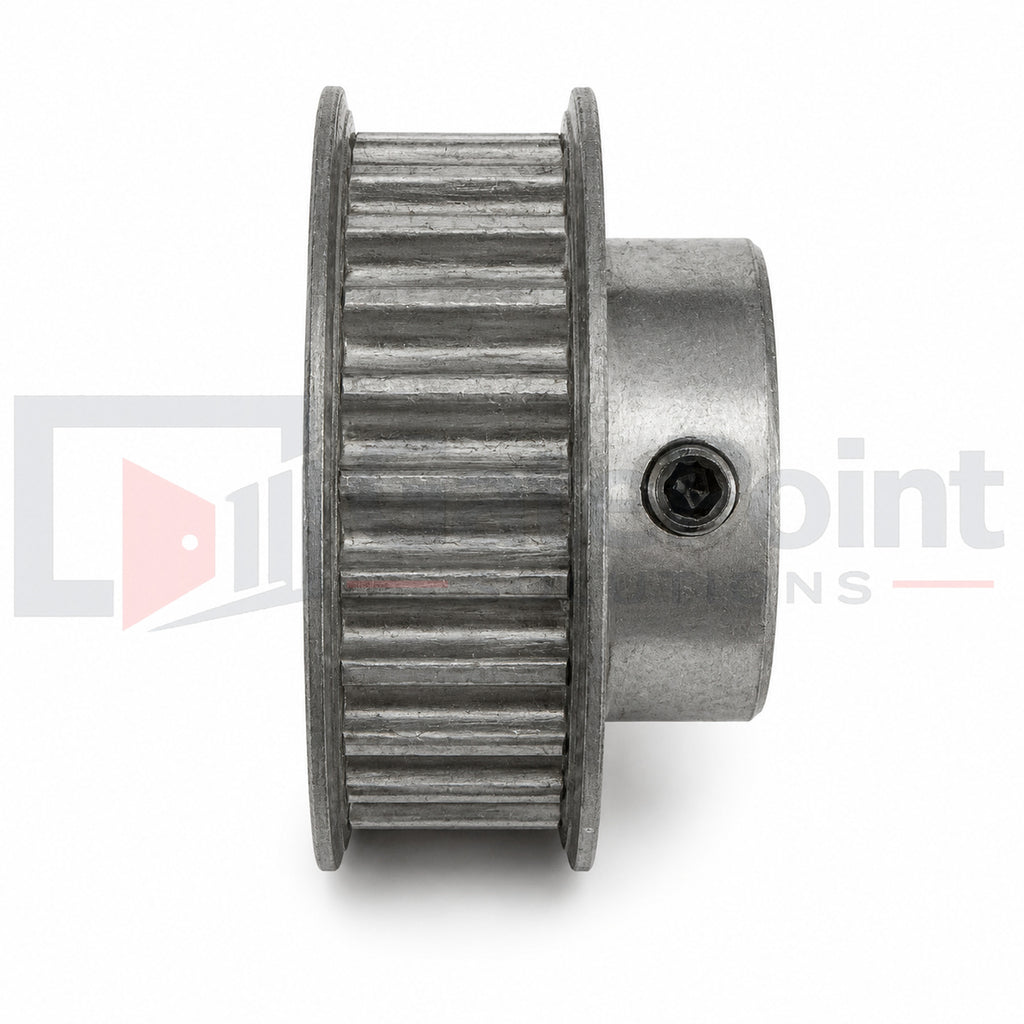

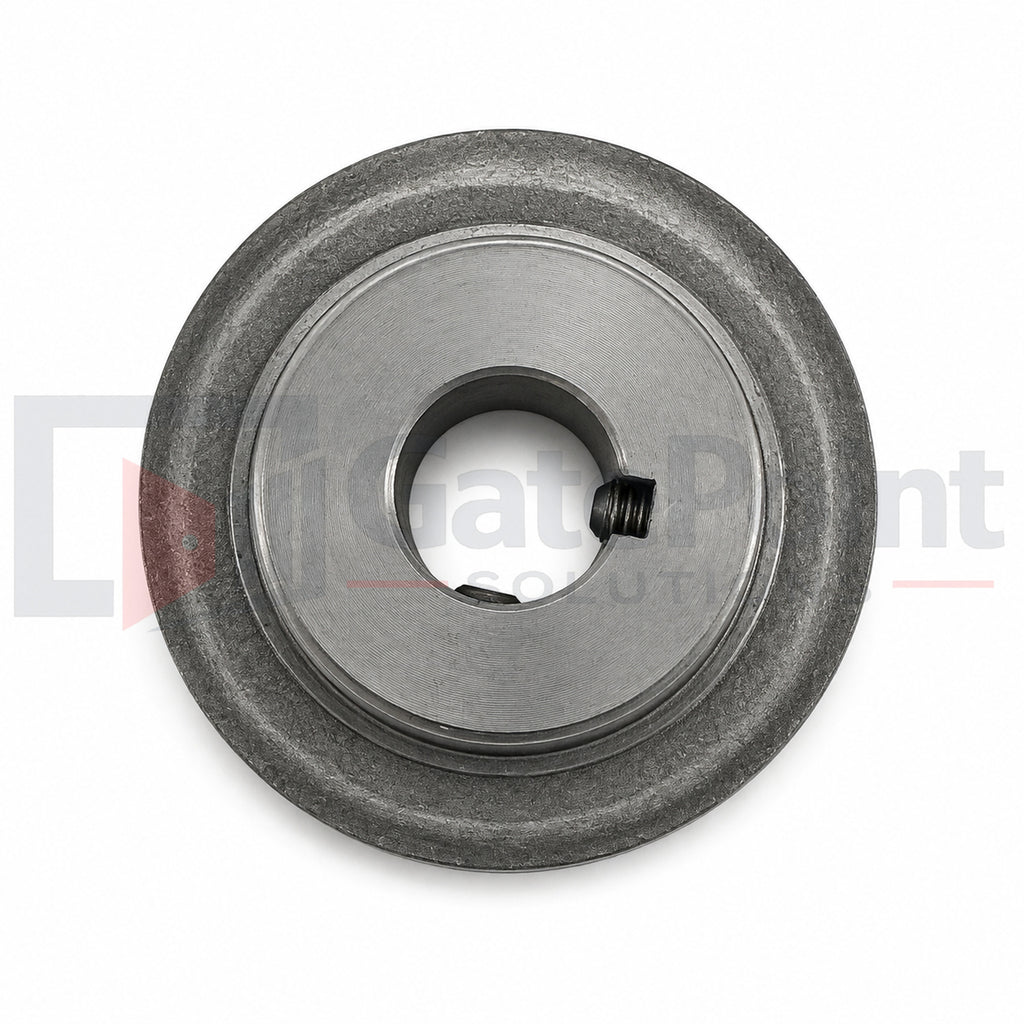

The HySecurity MX001403 Timing Pulley is a replacement GT2 5mm, 24-tooth (24T) pulley designed for compatible HySecurity SlideSmart DC and SlideSmart HD slide gate operators. This pulley is part of the operator's drive system and works with the timing belt to transfer power through the drive assembly.
The MX001403 is used when the existing timing pulley becomes worn, damaged or requires replacement during drive-system repair or preventative maintenance.
Product Specifications:
- HySecurity Part Number: MX001403
- Component: Timing Pulley
- Pulley Type: GT2
- Pitch: 5mm
- Teeth: 24T / 24-Tooth
Compatible HySecurity Slide Gate Operators:
- SlideSmart DC
- SlideSmart HD
The HySecurity MX001403 24T timing pulley is an important replacement drive component for professional gate installers and service technicians maintaining SlideSmart automatic slide gate systems.
Because timing pulleys can vary by tooth count, pitch and operator configuration, the MX001403 should be identified by both its part number and GT2 5mm x 24T specification when selecting a replacement.
Whether repairing a SlideSmart DC or SlideSmart HD gate operator, this replacement timing pulley provides the correct drive-system component for supported applications.
Compatibility Note: Verify the complete SlideSmart operator model and existing pulley specifications before ordering.
