Description

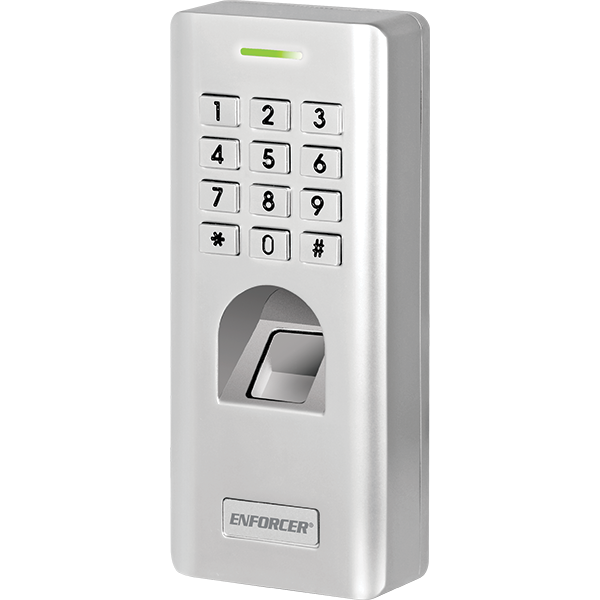

The Fingerprint Reader and Keypad is a rugged, outdoor-ready access control device that blends biometric security with keypad entry for reliable, scalable access management. Ideal for commercial, campus, and facility entrances, it delivers fast authentication in challenging environments.
- Power & current: 12V DC operation with a low current draw of up to 210 mA
- Relay output: Form C relay rated at 2A @ 12V DC for door strike or relay devices
- Output timing: Adjustable output duration from 1 to 99 seconds, or a toggle mode for continuous access
- Security & alarms: Built-in tamper alarm and an external alarm output for integration with security systems
- User capacity: Supports up to 1,000 users for scalable access control
- Door status features: Monitors and reports door-propped-open and door-forced-open conditions
- Durability: Outdoor rated with IP66 weatherproof protection for rain, dust, and harsh environments
- Reader interface: Functions as a Wiegand reader with 26–37 bit output for seamless system integration
- Interlock: 2-Door interlock support for synchronized access control across two handles/doors
- Fingerprint sensor: 500 DPI optical fingerprint reader with an illuminated fingerprint window for easy enrollment and verification
- Performance: Fingerprint identification time ≤ 1 second with low false acceptance rate ≤ 0.01% and false rejection rate ≤ 0.1%
-
Unit specs:
- Power: 12V DC
- Current draw: up to 210 mA
- Relay: Form C, 2A at 12V DC
- Output: Adjustable 1–99 seconds or toggle
- Alarm: Built-in tamper alarm and external alarm output
- Users: Up to 1,000
- Weather rating: IP66 outdoor protection
- Interface: Wiegand output 26–37 bits
- Interlock: 2-Door interlock
- Fingerprint sensor: 500 DPI optical with illuminated window
- Identification time: ≤ 1 second
- Accuracy: FAR ≤ 0.01%, FRR ≤ 0.1%
This compact, reliable unit streamlines access control by delivering fast, accurate fingerprint authentication while providing flexible integration options for existing security systems. With strong anti-tamper measures, outdoor durability, and scalable user management, it’s well-suited for frontline entry points, gated campuses, and multi-door facilities. Whether you’re replacing an aging keypad system or upgrading to biometric security, this device offers precise verification, quick throughput, and robust environmental resilience to keep your site secure.
