Description

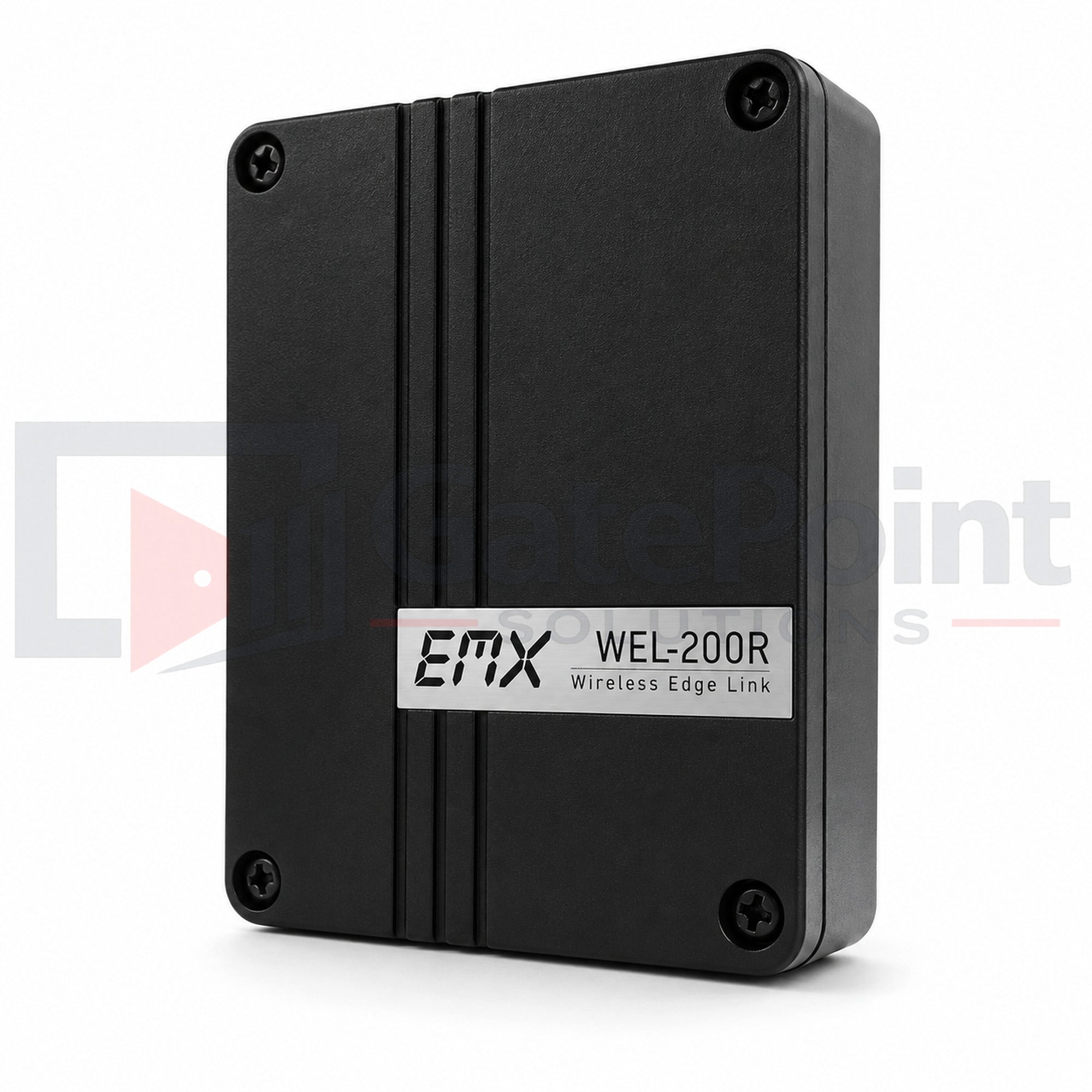

EMX WEL-200R Wireless Safety Edge Receiver for WEL-200 Wireless Edge Link System
The EMX WEL-200R Wireless Safety Edge Receiver is the receiving component of the EMX WEL-200 Wireless Edge Link System, providing reliable wireless communication between monitored safety edge transmitters and automatic gate operators. Designed to meet UL325 safety requirements, the WEL-200R receives monitored safety edge signals from up to four EMX WEL-200T transmitters, eliminating the need for moving cables and significantly reducing installation time.
Operating on the 915 MHz frequency, the WEL-200R supports wireless communication up to 200 feet (line of sight) and is compatible with Normally Closed (NC), 10K monitored, and pulse monitored safety edge systems. Multiple output configurations allow seamless integration with virtually any residential, commercial, or industrial gate operator.
The receiver features individual channel assignment for OPEN and CLOSE safety functions, along with a built-in Signal Quality Display that reports wireless signal strength from 0–9, allowing installers to verify proper communication during setup and maintenance.
Housed in a durable NEMA 4X weather-resistant enclosure, the WEL-200R is engineered for dependable outdoor performance in demanding environments. Built-in surge protection, thermal fuse protection, and multiple output options ensure reliable operation for years of service.
Whether you're installing a new UL325 monitored gate system or replacing an existing receiver, the EMX WEL-200R delivers dependable wireless safety monitoring while simplifying installation and reducing maintenance.
Key Features
- Replacement receiver for EMX WEL-200 Wireless Edge Link System
- Compatible with up to 4 WEL-200T transmitters
- UL325 compliant monitored safety device
- Supports NC, 10K and Pulse monitored safety edges
- Wireless communication up to 200 ft line-of-sight
- 915 MHz wireless operation
- Individual OPEN/CLOSE channel assignment
- Built-in Signal Quality Display
- Green channel status LEDs
- Red power LED
- NEMA 4X weather-resistant enclosure
- Surge protected with thermal fuse and MOV
- Fast installation with no traveling wires
Ideal Applications
- Automatic Slide Gates
- Swing Gate Operators
- Commercial Gates
- Industrial Facilities
- Self Storage Facilities
- Apartment Communities
- HOA Entrances
- Distribution Centers
- Warehouse Access Control
Specifications
Model
EMX WEL-200R
Wireless Frequency
915 MHz
Operating Range
Up to 200 ft (Line-of-Sight)
Compatible Transmitters
EMX WEL-200T
Maximum Transmitters
4
Outputs
- Open Relay
- Close Relay
- Open Pulse
- Close Pulse
Power Supply
12–24 VAC/VDC
Monitoring Compatibility
- Normally Closed (NC)
- 10K Monitored
- Pulse Monitored
Environmental Rating
NEMA 4X
Operating Temperature
-40°F to 140°F (-40°C to 60°C)
Dimensions
5.5" × 3.5" × 1.3"
Weight
Approximately 7 oz
What's Included
- EMX WEL-200R Wireless Receiver
- Installation Instructions
Wireless transmitters sold separately.
