Description

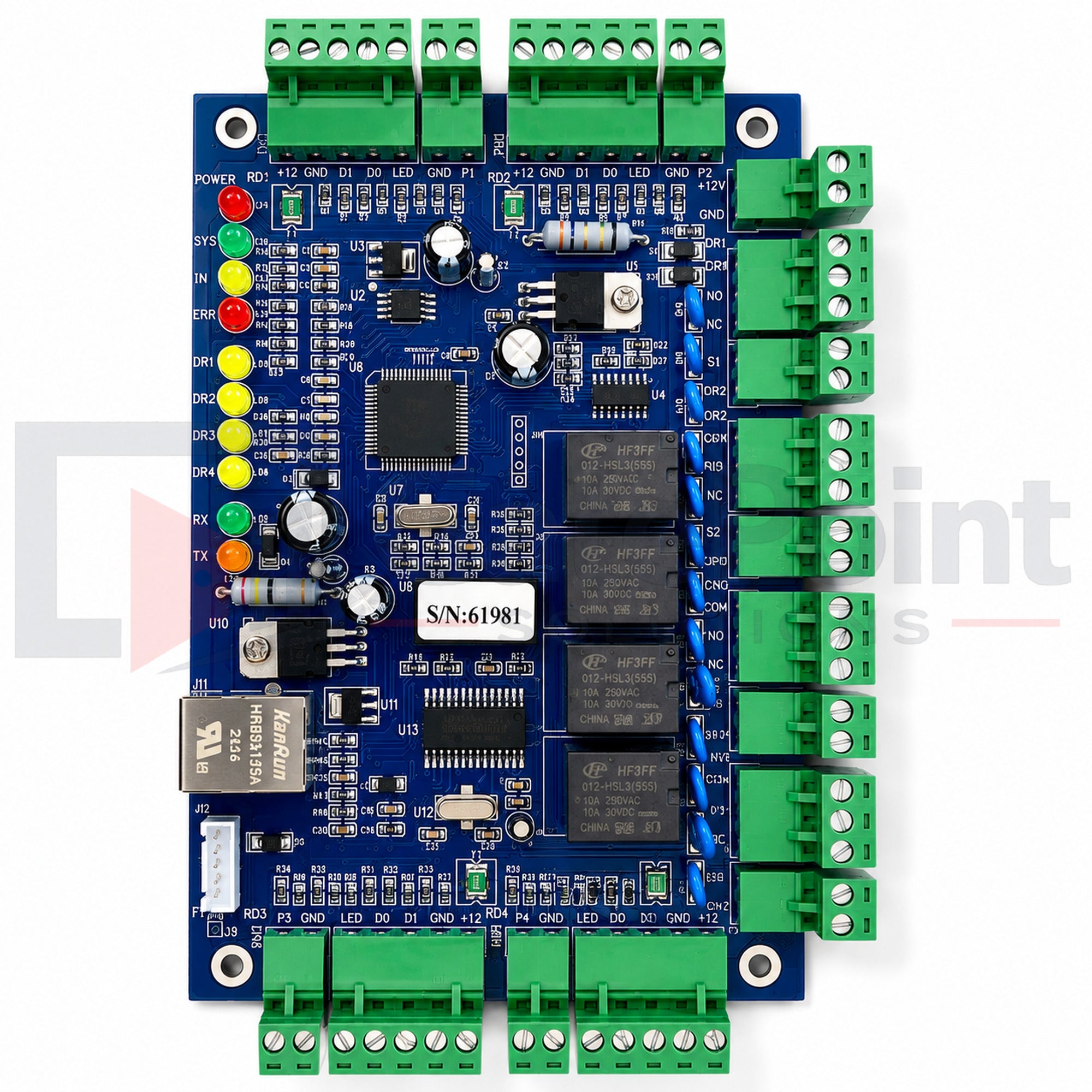

The EMX TRES-400-DEFENDER Access Controller Board is a genuine OEM 4-door TCP/IP access control controller PCB designed for professional vehicle and pedestrian access control systems. Supporting up to 20,000 users, 100,000 event records, and up to eight Wiegand readers (4 entry / 4 exit), this controller is ideal for commercial buildings, gated communities, industrial facilities, apartment complexes, and other high-traffic access control applications.
Designed for both online and offline operation, the Defender controller continues to process access events even during temporary network interruptions. Built-in TCP/IP networking allows real-time communication, remote management, and seamless integration into modern access control systems. Four programmable relay outputs provide independent control of up to four doors or gates, while Request-to-Exit (REX) inputs and door status monitoring offer flexible installation options.
This listing includes the controller board (PCB) only, making it the ideal replacement or component for custom access control panel installations. It is compatible with all standard 26-bit Wiegand readers, including card readers, keypads, and combination reader/keypad devices.
Key Features
- Genuine EMX Industries OEM controller board
- Part Number: TRES-400-DEFENDER
- Controller board (PCB) only
- Controls up to four (4) doors or gates
- Supports up to 20,000 users
- Stores up to 100,000 event records
- Supports up to eight Wiegand readers (4 entry / 4 exit)
- Compatible with standard 26-bit Wiegand readers
- Built-in TCP/IP network communication
- Online and offline operation
- Four programmable SPDT relay outputs
- Four Request-to-Exit (REX) inputs
- Door/gate status monitoring inputs
- Diagnostic LED indicators
- Compact PCB design for custom enclosure installations
Ideal Applications
- Commercial access control
- Gated communities
- Apartment and condominium complexes
- Office buildings
- Industrial facilities
- Warehouses
- Parking access systems
- Schools and universities
- Multi-door security installations
Specifications
- Model: TRES-400-DEFENDER
- Controller Type: 4-door access controller PCB
- User Capacity: 20,000 users
- Event Buffer: 100,000 events
- Reader Support: Up to 8 Wiegand readers (4 in / 4 out)
- Reader Protocol: Standard 26-bit Wiegand
- Relay Outputs: 4 SPDT
- Network Communication: TCP/IP (10/100 Mbps)
- Power Requirement: 12 VDC
- Operating Temperature: -31°F to 149°F (-35°C to 65°C)
- Board Dimensions: 6.3" × 4.2" (160 × 106 mm)
