Description

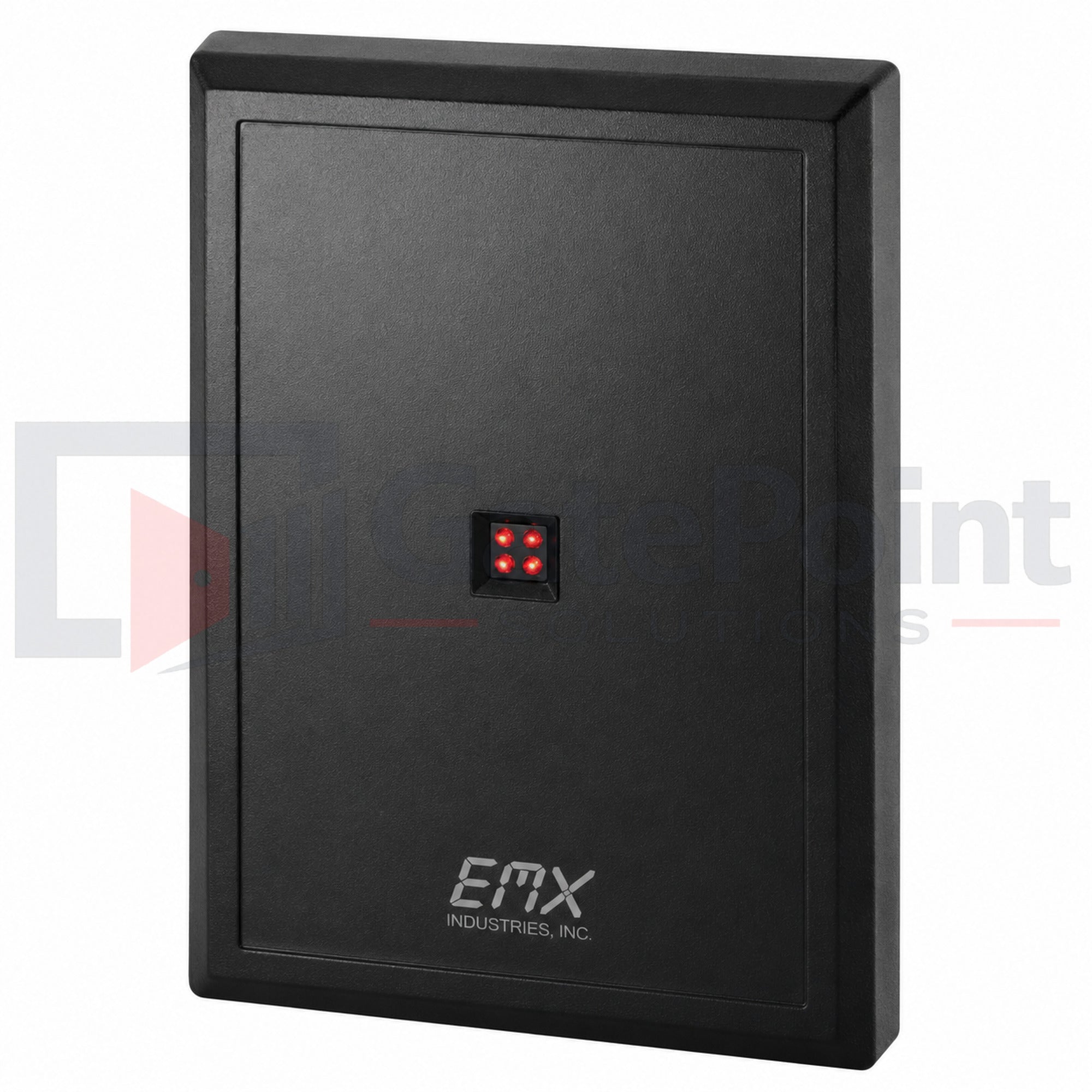

The EMX TRES-100-P-710-HA Proximity Reader is a high-performance 125 kHz long-range RFID reader designed for reliable access control at gates, doors, parking facilities, and secured entry points. Featuring an extended read range of up to 15 inches, this reader supports Farpointe Data® Pyramid Series credentials, as well as select HID® and AWID® 125 kHz proximity formats, making it an ideal solution for facilities using multiple credential technologies.
Built for demanding indoor and outdoor environments, the TRES-100-P-710-HA features a rugged IP67-rated weather-resistant enclosure and interfaces with most electronic access control systems through the industry-standard Wiegand output. Advanced MAXSecure™ technology helps enhance credential security, while fleaPower™ technology reduces power consumption without sacrificing performance.
Its larger 6" × 8.5" design provides exceptional read performance for vehicle gates, pedestrian entrances, parking facilities, apartment complexes, commercial buildings, and industrial sites where a longer read distance improves user convenience and traffic flow.
Key Features
- Genuine EMX Industries OEM proximity reader
- Part Number: TRES-100-P-710-HA
- Long-range 125 kHz Proximity RFID reader
- Read range up to 15 inches (378 mm)
- Compatible with Farpointe Data® Pyramid Series credentials
- Supports select HID® and AWID® 125 kHz proximity formats
- Wiegand output for broad access control compatibility
- MAXSecure™ credential protection technology
- fleaPower™ energy-saving technology
- IP67-rated weather-resistant construction
- Indoor or outdoor installation
- Mounts to walls, mullions, metal door frames, and other surfaces
- Maintenance-free operation with no batteries required
Ideal Applications
- Automatic gate access control
- Commercial buildings
- Apartment and condominium communities
- Parking garages
- Industrial facilities
- Office buildings
- Vehicle access control
- Pedestrian entry systems
Specifications
- RFID Technology: 125 kHz Proximity
- Read Range: Up to 15 in. (378 mm)
- Dimensions: 6" W × 8.5" H × 1" D
- Power Input: +5 to 16 VDC
- Output: Wiegand
- Operating Temperature: -40°F to 149°F (-40°C to 65°C)
- Environmental Rating: IP67
- Certifications: FCC, CE, C-Tick, UL 294
