Description

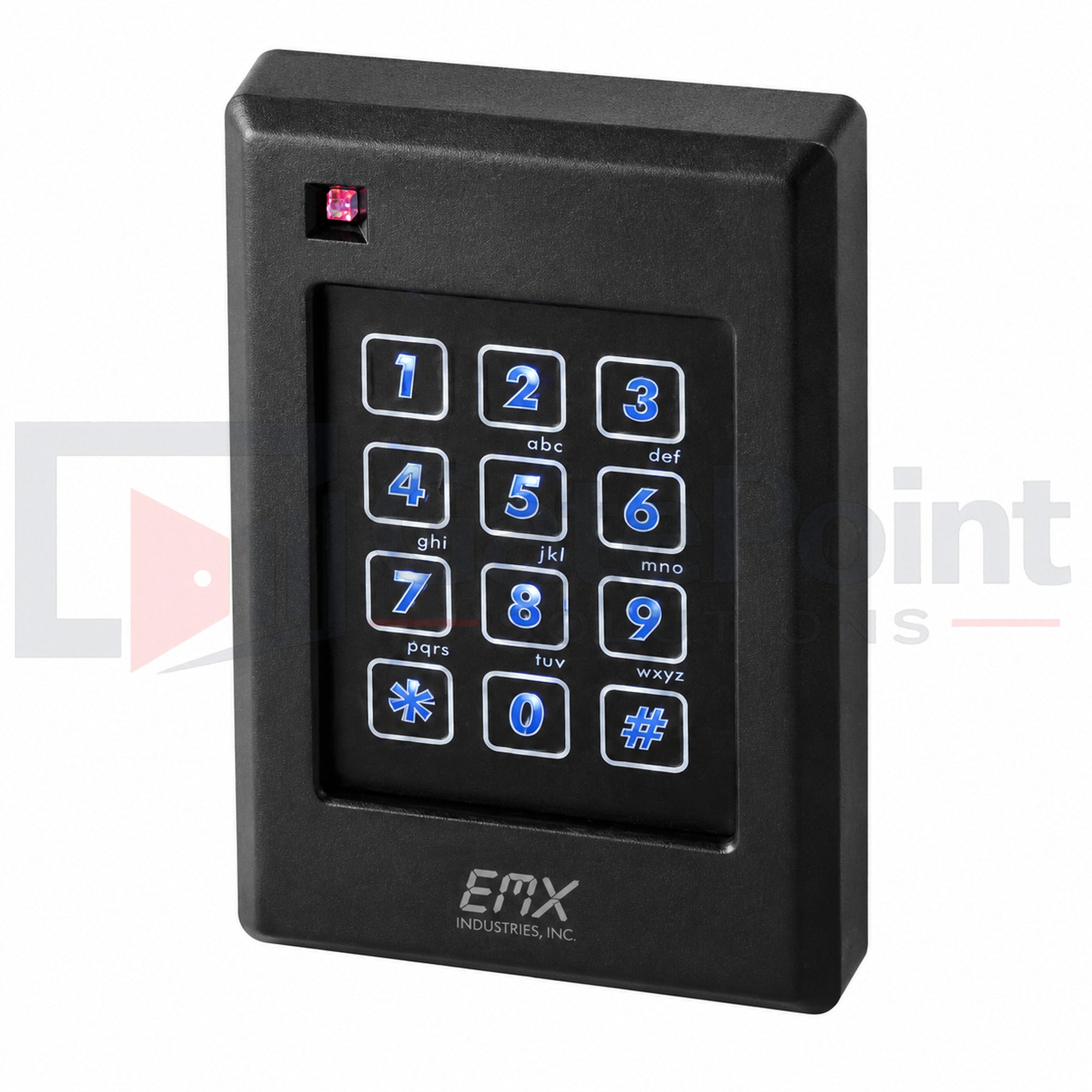

The EMX TRES-100-P-640-HA Proximity Reader & Keypad is a high-performance 125 kHz multi-format RFID reader that combines secure proximity credential authentication with an integrated keypad for enhanced access control. Designed for vehicle gates, pedestrian doors, commercial buildings, apartment communities, and industrial facilities, this reader provides flexible authentication using either a proximity credential, PIN code, or both (depending on the access control system).
Compatible with Farpointe Data® Pyramid Series credentials as well as select HID® and AWID® 125 kHz proximity formats, the TRES-100-P-640-HA interfaces with virtually any Wiegand-compatible access control system. With a read range of up to 7 inches, an IP67-rated weather-resistant enclosure, and advanced MAXSecure™ and fleaPower™ technologies, this reader delivers reliable performance while helping improve credential security and reduce power consumption.
Its switch-plate form factor allows for quick installation on standard single-gang electrical boxes, making it an excellent choice for both new installations and retrofit projects.
Key Features
- Genuine EMX Industries OEM proximity reader and keypad
- Part Number: TRES-100-P-640-HA
- Advanced 125 kHz Proximity RFID technology
- Integrated keypad for PIN entry
- Reads Farpointe Data®, compatible HID®, and AWID® 125 kHz credentials
- Up to 7-inch (176 mm) read range
- Industry-standard Wiegand output
- MAXSecure™ technology for enhanced credential security
- fleaPower™ technology for reduced power consumption
- IP67-rated weatherproof construction
- Indoor and outdoor installation
- Mounts to standard single-gang electrical boxes and flat surfaces
- Built-in beeper and four-state LED status indicator (Red, Green, Amber, Off)
Ideal Applications
- Automatic gate operators
- Commercial access control
- Apartment and condominium communities
- Gated residential developments
- Office buildings
- Industrial facilities
- Parking access systems
- Pedestrian entry doors
Specifications
- Technology: 125 kHz Proximity RFID
- Read Range: Up to 7 in. (176 mm)
- Dimensions: 3" W × 4.6" H × 0.75" D
- Input Voltage: 5–16 VDC
- Interface: Wiegand
- Operating Temperature: -40°F to 149°F (-40°C to 65°C)
- Environmental Rating: IP67
- Certifications: FCC, CE, UL 294, C-Tick
