Description

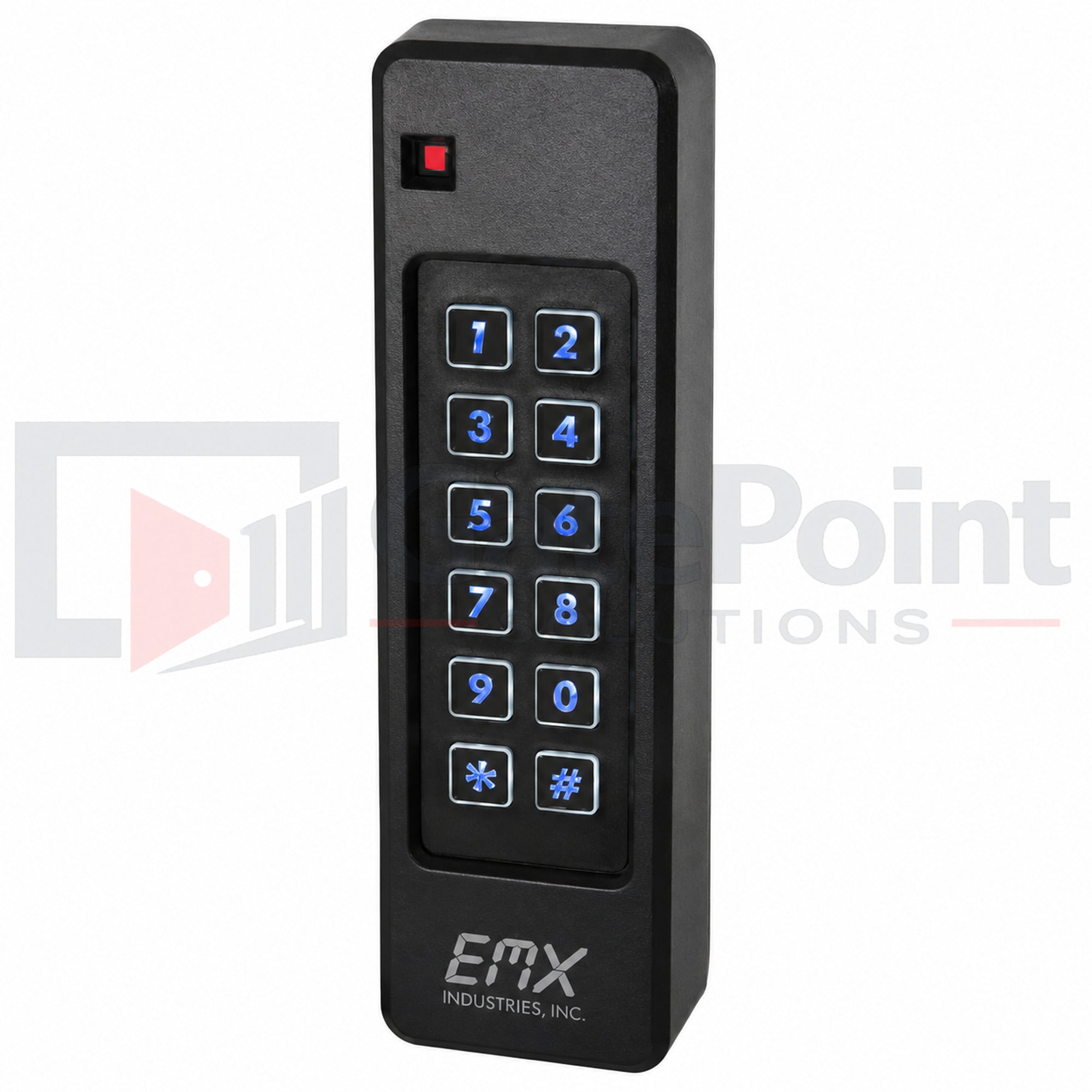

The EMX TRES-100-P-620-HA Proximity Reader & Keypad is a premium 125 kHz mullion-mount RFID reader with an integrated keypad, designed for secure access control at gates, pedestrian doors, office buildings, apartment communities, and commercial facilities. Its slim mullion-style design makes it ideal for narrow door frames, gate posts, metal door frames, and other space-constrained installations while providing reliable credential and PIN authentication.
Compatible with Farpointe Data® Pyramid Series credentials as well as select HID® and AWID® 125 kHz proximity formats, the TRES-100-P-620-HA interfaces with virtually any Wiegand-compatible access control system. Users can authenticate with a proximity credential, PIN code, or both (depending on the access control controller), providing flexible security for a wide range of installations.
Built for demanding indoor and outdoor environments, the reader features an IP67-rated weather-resistant enclosure, MAXSecure™ technology for enhanced credential protection, and fleaPower™ technology to reduce power consumption. With a read range of up to 5 inches, the TRES-100-P-620-HA delivers dependable performance in residential, commercial, and industrial access control applications.
Key Features
- Genuine EMX Industries OEM proximity reader and keypad
- Part Number: TRES-100-P-620-HA
- Advanced 125 kHz Proximity RFID technology
- Slim mullion-mount design
- Integrated keypad for PIN entry
- Compatible with Farpointe Data®, HID®, and AWID® 125 kHz credentials
- Read range up to 5 inches (126 mm)
- Industry-standard Wiegand output
- MAXSecure™ credential protection technology
- fleaPower™ energy-saving technology
- IP67-rated weather-resistant construction
- Four-state LED status indicator and built-in beeper
- Designed for indoor and outdoor installations
- Direct mount to mullions, metal door frames, gate posts, and flat surfaces
Ideal Applications
- Automatic gate operators
- Commercial access control
- Apartment and condominium communities
- Office buildings
- Industrial facilities
- Pedestrian entry doors
- Gated residential developments
- Parking access systems
Specifications
- Technology: 125 kHz Proximity RFID
- Read Range: Up to 5 in. (126 mm)
- Dimensions: 1.78" W × 6.1" H × 0.91" D
- Input Voltage: 5–16 VDC
- Interface: Wiegand
- Operating Temperature: -31°F to 150°F (-35°C to 66°C)
- Environmental Rating: IP67
- Certifications: FCC, CE, C-Tick, UL 294
