Description

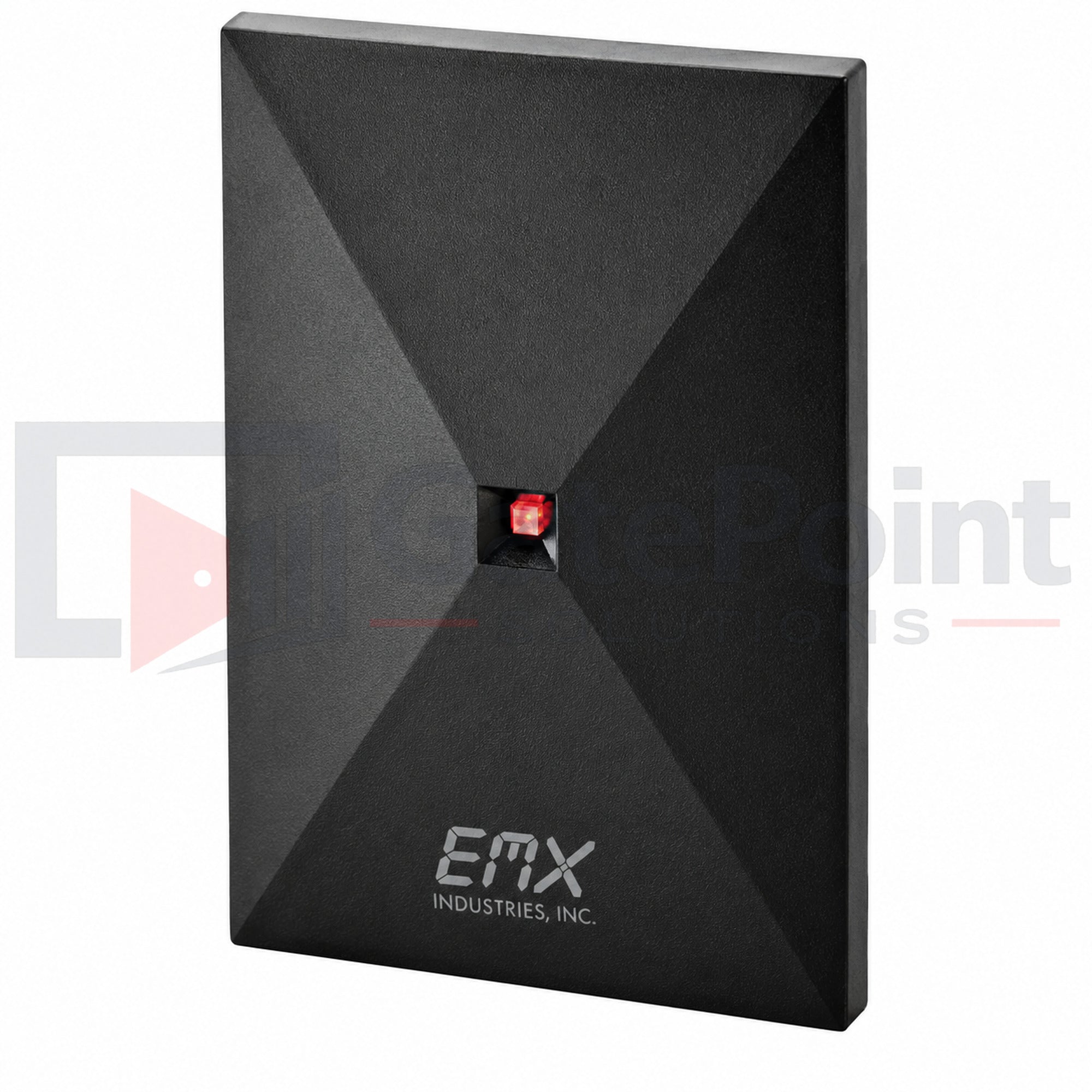

The EMX TRES-100-P-500-HA Proximity Reader is a professional-grade 125 kHz RFID proximity reader designed for reliable access control at automatic gates, pedestrian doors, commercial buildings, apartment communities, parking facilities, and industrial sites. Featuring a single-gang switch plate design, this reader provides an excellent balance of compact size, extended read range, and broad credential compatibility. It supports Farpointe Data® Pyramid Series credentials along with select HID® and AWID® 125 kHz proximity formats, making it an ideal choice for upgrading or expanding existing access control systems.
Built on proven 125 kHz Proximity RFID technology, the TRES-100-P-500-HA delivers a read range of up to 8 inches while communicating through the industry-standard 26-bit Wiegand output, allowing seamless integration with most electronic access control systems. The reader incorporates MAXSecure™ technology for enhanced credential security and fleaPower™ technology to reduce power consumption without compromising performance.
Designed for long-term durability, the TRES-100-P-500-HA features a rugged IP67-rated weather-resistant enclosure, making it suitable for both indoor and outdoor installations. Its passive RFID operation requires no batteries, minimizing maintenance while providing dependable performance in demanding environments.
Key Features
- Genuine EMX Industries OEM proximity reader
- Part Number: TRES-100-P-500-HA
- Reliable 125 kHz Proximity RFID technology
- Single-gang switch plate mounting design
- Reads Farpointe Data® Pyramid Series credentials
- Compatible with select HID® and AWID® 125 kHz proximity formats
- Up to 8-inch read range
- Industry-standard 26-bit Wiegand output
- MAXSecure™ technology for enhanced credential security
- fleaPower™ technology for reduced power consumption
- IP67-rated weather-resistant enclosure
- Four-state LED status indicator and built-in beeper
- Passive operation with no batteries required
- Compatible with most electronic access control systems
Ideal Applications
- Automatic gate operators
- Pedestrian access control
- Commercial office buildings
- Apartment and condominium communities
- Industrial facilities
- Parking garages
- Gated residential developments
- Schools and campuses
Specifications
- Technology: 125 kHz Proximity RFID
- Read Range: Up to 8 in. (202 mm)
- Dimensions: 3" W × 4.6" H × 0.4" D
- Power Supply: +5 to 16 VDC
- Interface: 26-bit Wiegand
- Operating Temperature: -40°F to 149°F (-40°C to 65°C)
- Environmental Rating: IP67
- Certifications: FCC, CE, C-Tick, UL 294
