Description

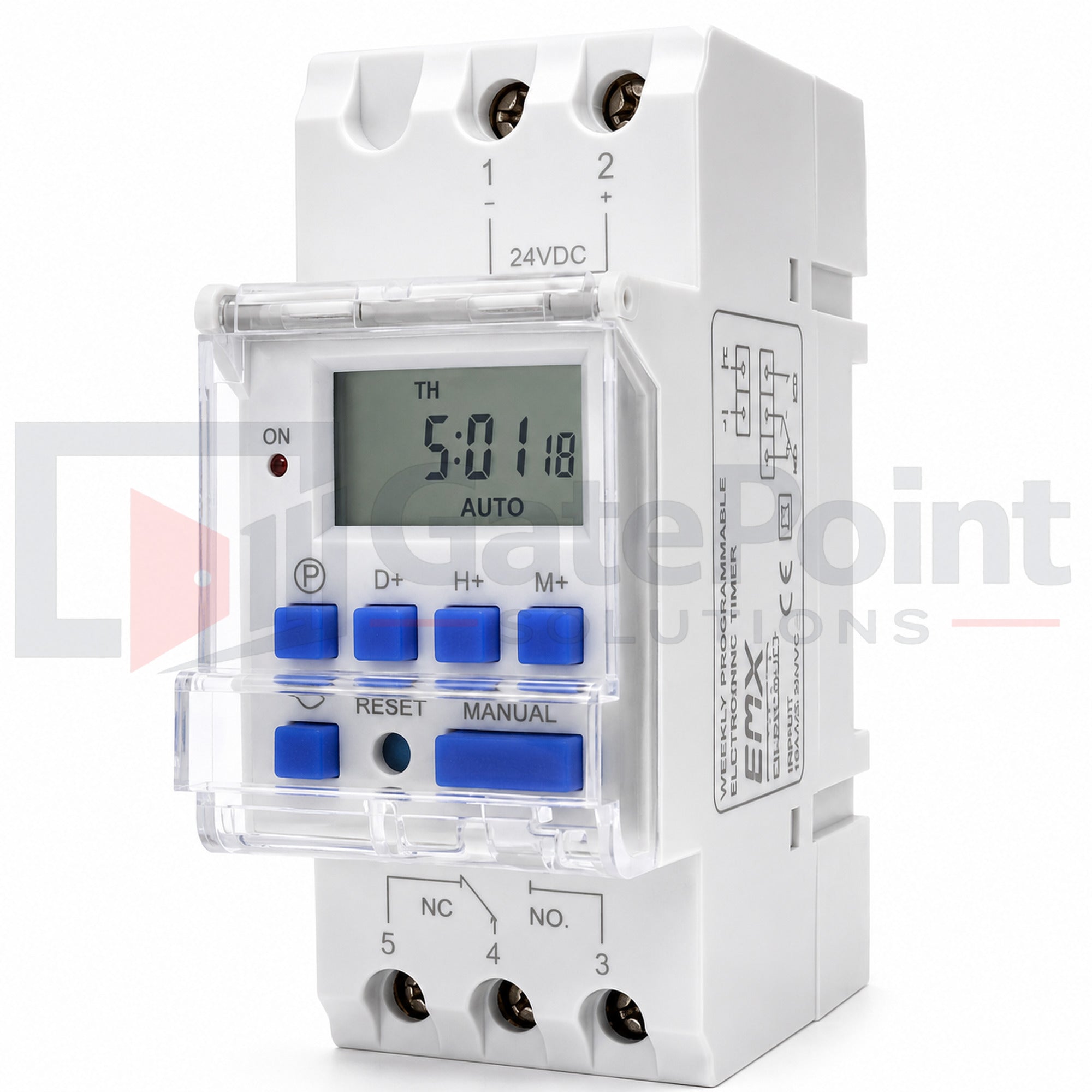

The EMX PTM-24 24 VDC/AC Programmable Timer is a professional-grade 7-day digital timer designed to automate the operation of automatic gates, overhead doors, parking barriers, access control systems, and other 24-volt control circuits. Operating on 24 VDC or 24 VAC, the PTM-24 allows facilities to schedule automatic opening and closing times with up to 16 programmable ON/OFF events per day and 15 daily program combinations, making it ideal for commercial, industrial, and residential access control applications.
The PTM-24 features a compact DIN rail mount design for easy installation inside control enclosures and includes an internal battery backup that preserves programmed schedules during power outages. A large LCD display with intuitive push-button controls simplifies programming, while selectable 12-hour or 24-hour clock formats provide installation flexibility. By automating scheduled access, the PTM-24 helps reduce unnecessary gate cycling, minimizing wear on gate operators and extending equipment life.
Key Features
- Genuine EMX Industries OEM programmable timer
- Part Number: PTM-24
- Operates on 24 VDC or 24 VAC
- Easy-to-program 7-day digital timer
- Up to 16 programmable ON/OFF events per day
- 15 daily scheduling combinations
- SPDT relay rated at 16A @ 24 VDC / 120 VAC
- Large LCD display with simple push-button programming
- DIN rail mount for quick installation
- Battery backup stores schedules during power outages (up to 90 days)
- Selectable 12-hour or 24-hour clock format
- Helps extend the life of gate operators and access control equipment through scheduled automation.
Ideal Applications
- Automatic gate operators
- Parking barrier systems
- Overhead and roll-up doors
- Commercial access control systems
- HOA and gated communities
- Warehouses and distribution centers
- Timed lighting and equipment control
Specifications
- Input Voltage: 24 VDC/AC
- Programming: 16 ON/OFF events per day
- Daily Programs: 15 schedule combinations
- Relay Rating: SPDT 16A @ 24 VDC / 120 VAC
- Mounting: DIN Rail
- Operating Temperature: 14°F to 122°F (-10°C to 50°C)
- Memory Backup: Up to 90 days
- Housing: ABS Plastic
