Description

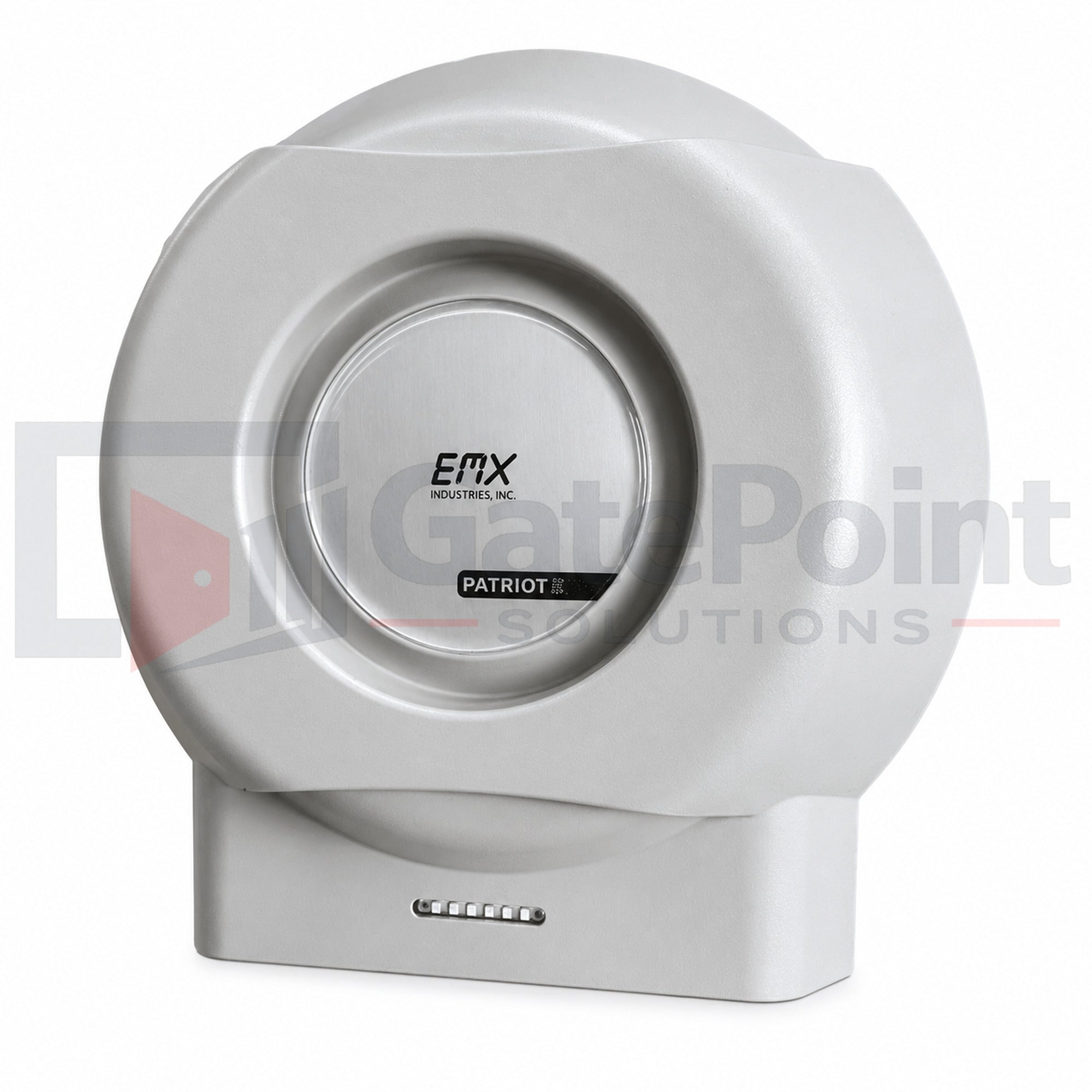

The EMX PATRIOT-E-BLE is a professional-grade long-range UHF RFID reader engineered for reliable vehicle identification and access control at gated communities, commercial facilities, parking garages, industrial sites, and secured vehicle entrances. Featuring a circular polarized 7.5 dBi antenna, integrated Bluetooth® credential capability, and support for multiple communication protocols, the PATRIOT-E-BLE delivers dependable long-range credential recognition with an average read distance of 18–25 feet.
Operating in the 902–928 MHz UHF EPC Gen2 frequency band, the PATRIOT-E-BLE supports windshield tags, hang tags, cards, headlamp tags, and optional Bluetooth mobile credentials. Multiple interface options—including Wiegand, RS-232, RS-485, OSDP, and relay output—allow seamless integration with virtually any modern access control system. The circular polarized antenna improves tag readability regardless of orientation, making it ideal for high-traffic vehicle entrances.
Designed for demanding outdoor environments, the reader features an IP65-rated weather-resistant enclosure, adjustable RF output power up to 30 dBm (1 Watt), configurable LED and buzzer settings, and the ability to store up to 500 authorized tag numbers for standalone operation without an external access controller. This flexibility makes the PATRIOT-E-BLE an excellent solution for both fully integrated and standalone RFID access systems.
Key Features
- Genuine EMX Industries OEM RFID reader
- Part Number: PATRIOT-E-BLE
- Long-range UHF RFID reader with Bluetooth® credential capability
- Circular polarized 7.5 dBi antenna
- Average read range of 18–25 ft. (5.4–7.6 m)
- Operates on 902–928 MHz EPC Gen2 UHF RFID
- Supports Bluetooth mobile credentials
- Reads windshield tags, hang tags, cards, and headlamp tags
- Supports multiple Wiegand bit formats
- Interfaces: Wiegand, RS-232, RS-485, OSDP, and relay output
- Adjustable RF output power up to 30 dBm (1 Watt)
- Stores up to 500 authorized tag numbers for standalone operation
- Configurable LED, buzzer, relay, and timing functions
- Includes mounting bracket, power supply, and test tag
- IP65-rated weather-resistant enclosure for indoor and outdoor installations
Ideal Applications
- Gated communities
- Commercial vehicle entrances
- Apartment and condominium access
- Industrial facilities
- Distribution centers
- Parking garages
- Fleet management
- Self-storage facilities
- Corporate campuses
- Secured vehicle access control systems
Specifications
- Model: PATRIOT-E-BLE
- Frequency: 902–928 MHz
- RF Power: Up to 30 dBm (1 Watt)
- Average Read Range: 18–25 ft. (site and tag dependent)
- Antenna: Circular Polarized, 7.5 dBi
- Power Input: 9–48 VDC
- Outputs: Wiegand, RS-232, RS-485, OSDP, Relay
- Credential Types: EPC Gen2 UHF Tags and Bluetooth Credentials
- Operating Temperature: -20°C to +70°C (-4°F to 158°F)
- Environmental Rating: IP65
- Dimensions: 10.7" × 10.7" × 3.7"
