Description

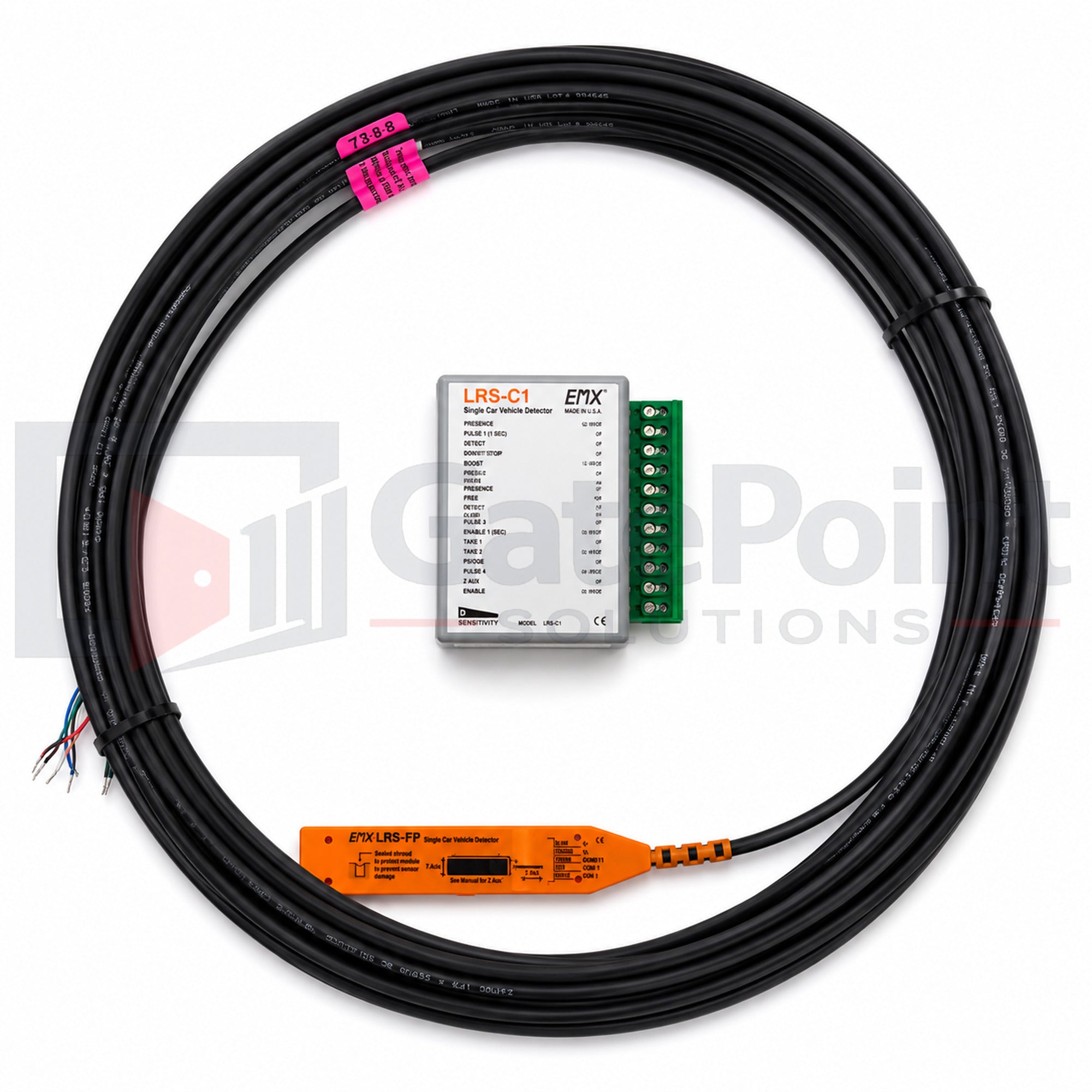

The EMX LRS-FP-100-K Long-Range Radar Sensor Kit is a complete loop replacement vehicle detection system designed to eliminate the need for traditional inductive loops. The kit includes an LRS Flat Pack magnetoresistive sensor, a 100-foot lead, and the LRS-C1 controller, providing a reliable, cost-effective solution for vehicle detection in automatic gate, barrier gate, parking, and access control applications. The LRS utilizes advanced 3-axis magnetoresistive sensing technology to detect changes in the Earth's magnetic field caused by ferrous vehicles, delivering accurate presence detection without extensive pavement cutting.
The included 100-foot sensor lead provides added installation flexibility for larger sites, while the compact flat pack sensor installs with a single saw cut or can be mounted above ground in non-ferrous enclosures. The system features DETECT-ON-STOP™ technology, allowing detection only after a vehicle comes to a complete stop to help eliminate unwanted activations from cross traffic. The controller also includes ULTRAMETER™ sensitivity display, automatic environmental compensation, and relay outputs for seamless integration with automatic gate operators and access control equipment.
Key Features
- Complete LRS vehicle detection kit
- Includes Flat Pack magnetoresistive sensor
- Includes LRS-C1 controller
- 100 ft. sensor lead
- Advanced 3-axis magnetoresistive sensing technology
- Single saw-cut installation reduces labor and pavement damage
- DETECT-ON-STOP™ technology minimizes false detections from cross traffic
- ULTRAMETER™ sensitivity display for easy setup
- Automatic environmental compensation
- Suitable for above-ground or below-ground installation
- Made for commercial, industrial, and high-traffic access control applications
Package Includes
- (1) EMX LRS Flat Pack Sensor
- (1) 100 ft. Sensor Lead
- (1) EMX LRS-C1 Controller
Ideal Applications
- Automatic slide gates
- Swing gate operators
- Barrier gate systems
- Commercial parking facilities
- Industrial facilities
- Distribution centers
- Gated communities
- Vehicle detection and access control systems
