Description

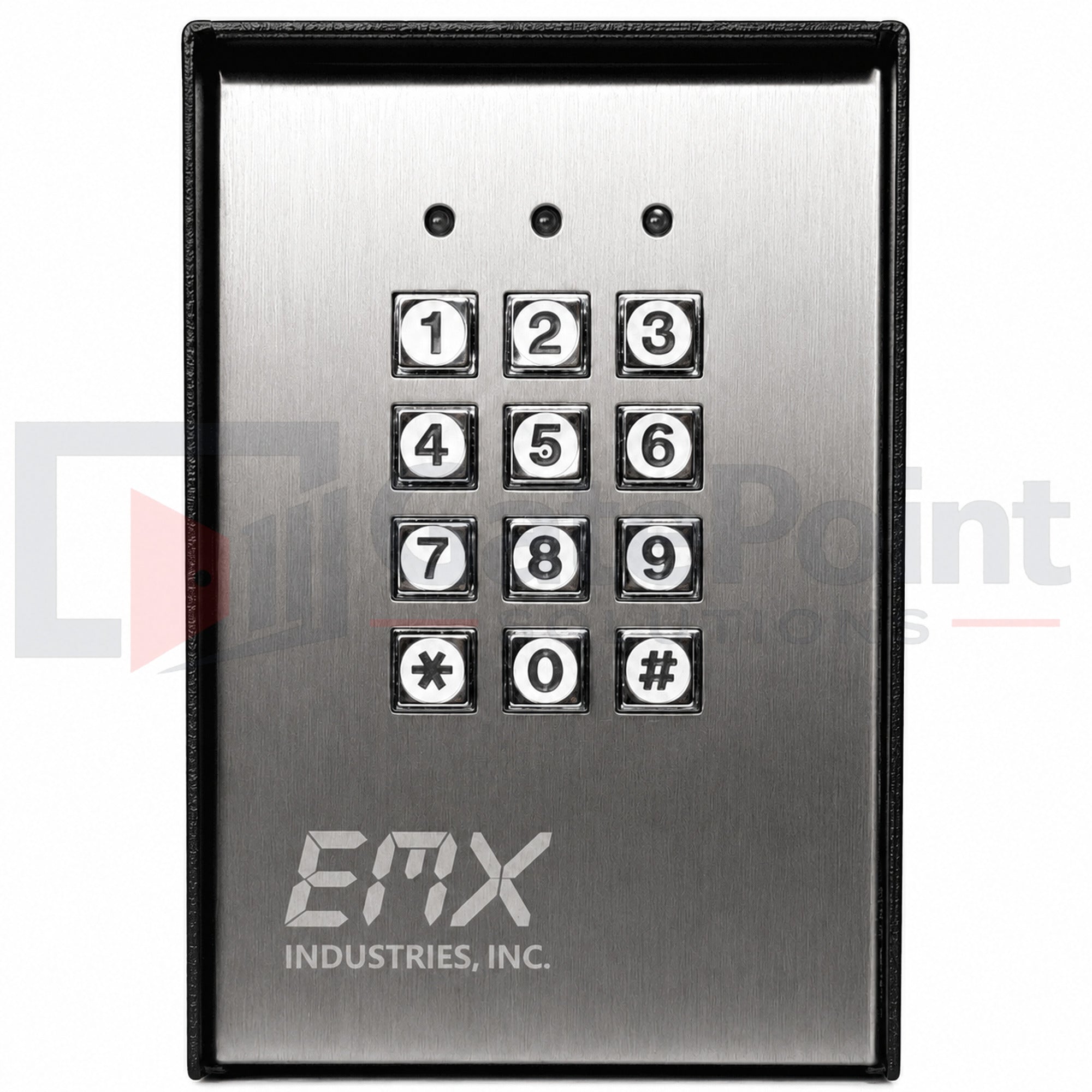

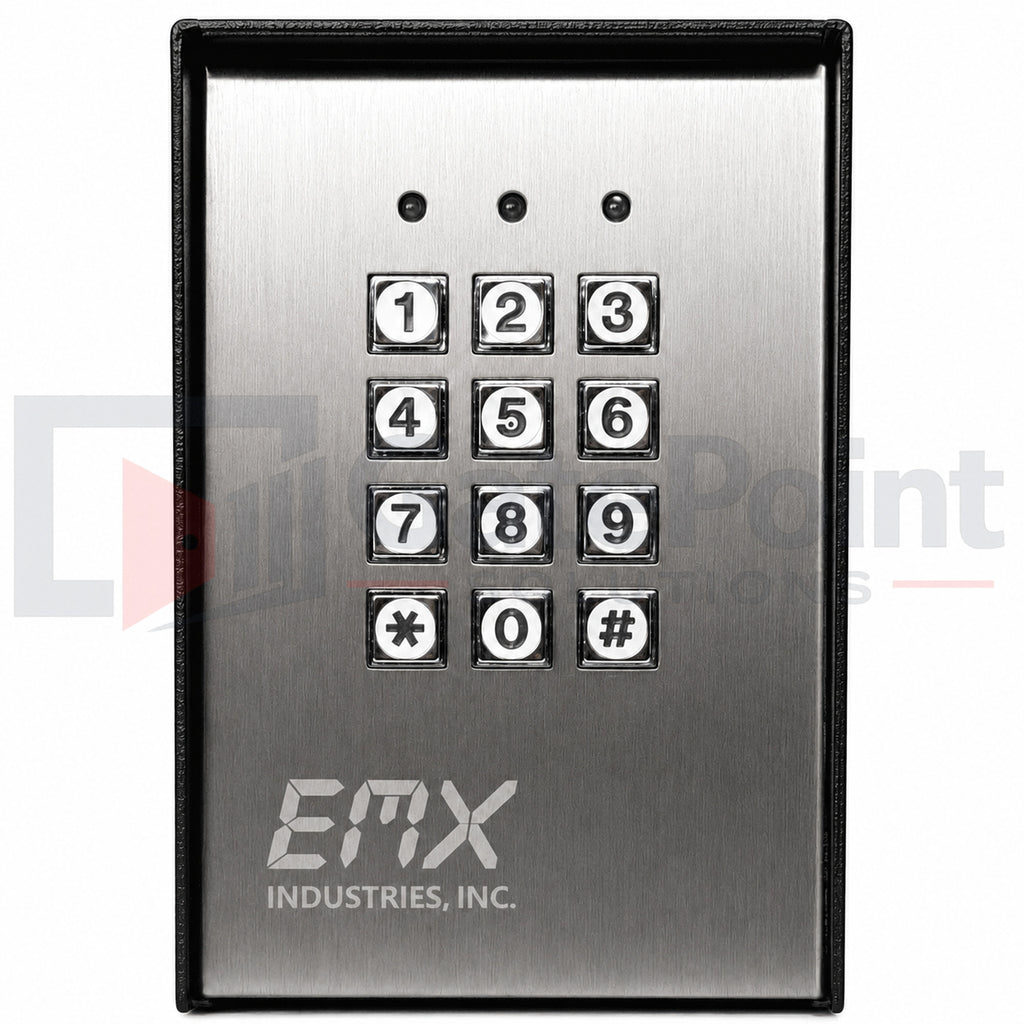

The EMX KPX100 Programmable Standalone Keypad is a rugged, professional-grade access control keypad designed for automatic gates, pedestrian doors, parking facilities, commercial buildings, and industrial access control applications. Built with backlit all-metal keys, a stainless steel faceplate, and an IP66-rated weatherproof housing, the KPX100 is engineered to withstand high-traffic environments and harsh outdoor conditions while delivering dependable, secure access control.
Designed for standalone operation, the KPX100 supports 100 programmable user codes on Relay 1 and 10 user codes on Relay 2, making it ideal for applications requiring control of multiple gates, doors, or auxiliary devices. Its dual relay outputs provide installation flexibility for controlling separate access points or additional equipment from a single keypad. Supporting 12–24 VAC/DC operation with no jumper selection required, the keypad installs easily on walls, gate posts, or gooseneck pedestals.
Whether you're securing a gated community, commercial facility, warehouse, or industrial site, the KPX100 offers reliable keypad-only access with durable construction built for years of dependable performance.
Key Features
- Genuine EMX Industries OEM programmable keypad
- Part Number: KPX100
- Standalone digital access control keypad
- Supports 100 user codes on Relay 1
- Supports 10 user codes on Relay 2
- Dual programmable relay outputs
- 12–24 VAC/DC universal power input
- Backlit cast-metal keypad buttons
- Stainless steel faceplate
- IP66-rated weatherproof and vandal-resistant housing
- Status LED indicators
- Universal mounting for walls, posts, and gooseneck pedestals
- Ideal for indoor and outdoor installations
Ideal Applications
- Automatic gate operators
- Commercial access control
- Pedestrian entry doors
- Apartment and condominium communities
- Industrial facilities
- Parking gates
- Warehouses
- Self-storage facilities
- HOA and gated residential communities
Specifications
- Operating Voltage: 12–24 VAC/DC
- User Capacity: 100 codes (Relay 1), 10 codes (Relay 2)
- Relay Outputs: 2
- Operating Temperature: -22°F to 159°F (-30°C to 70°C)
- Environmental Rating: IP66
- Dimensions: 6.15" H × 4.10" W × 2.75" D
- Housing: Powder-coated anodized steel with stainless steel faceplate
