Description

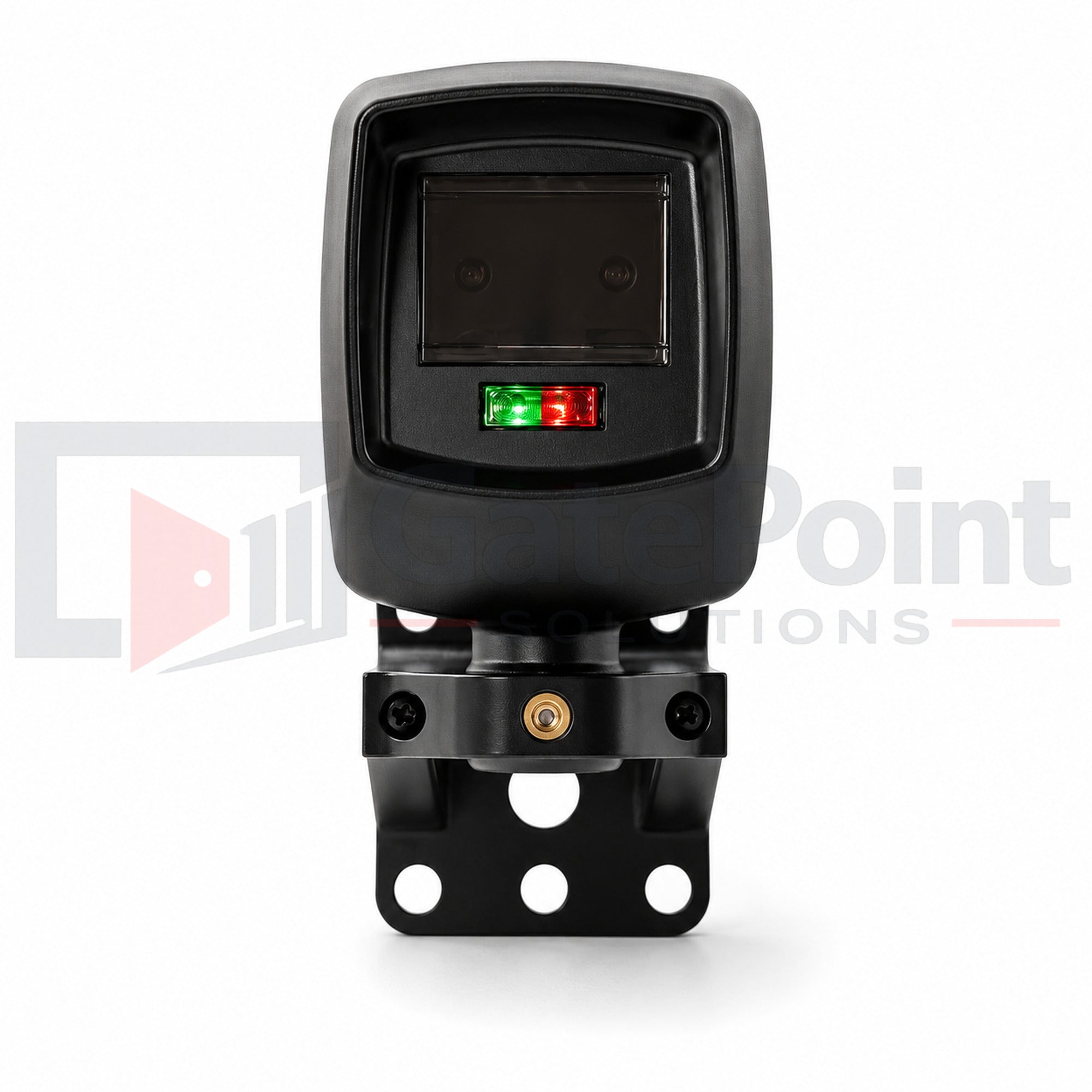

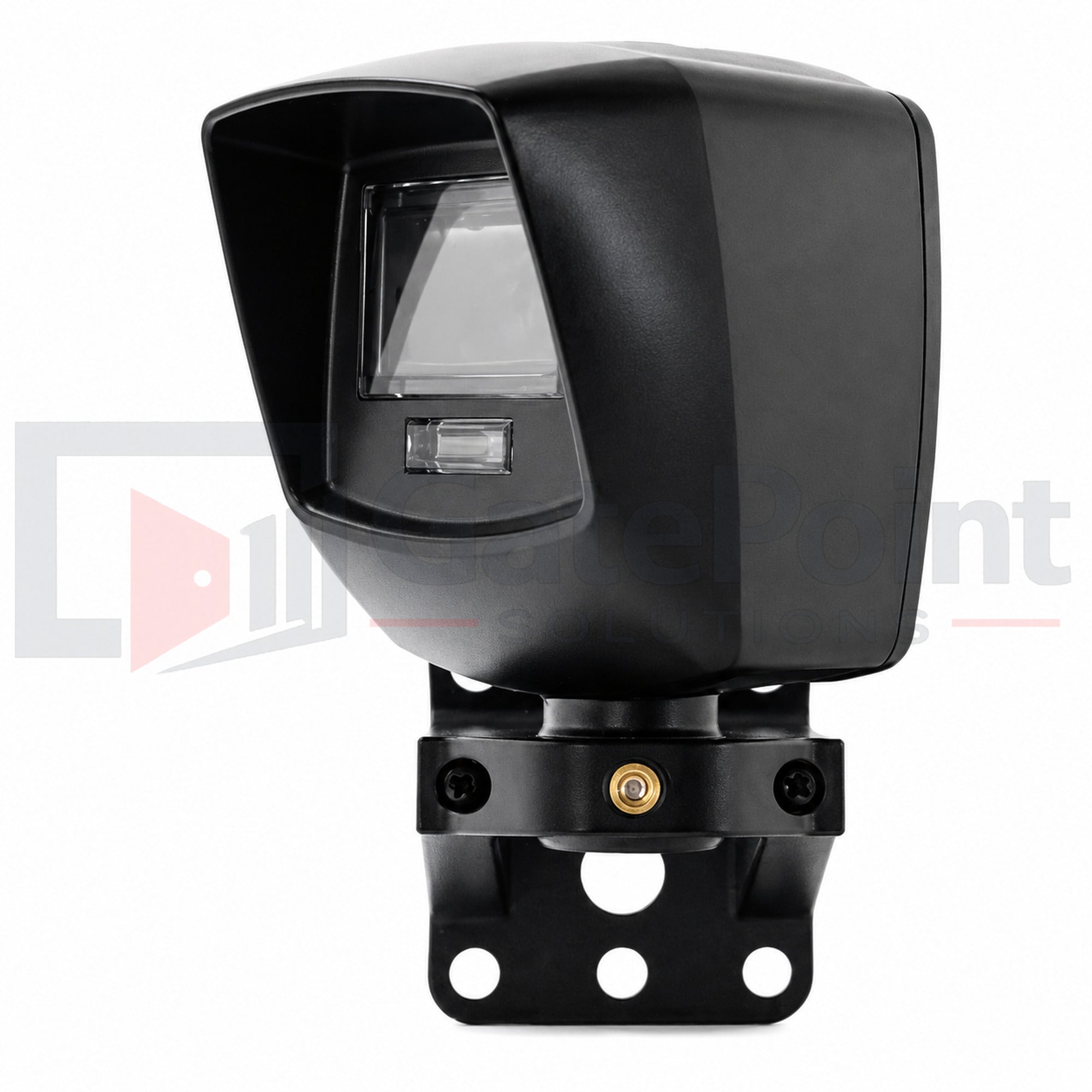

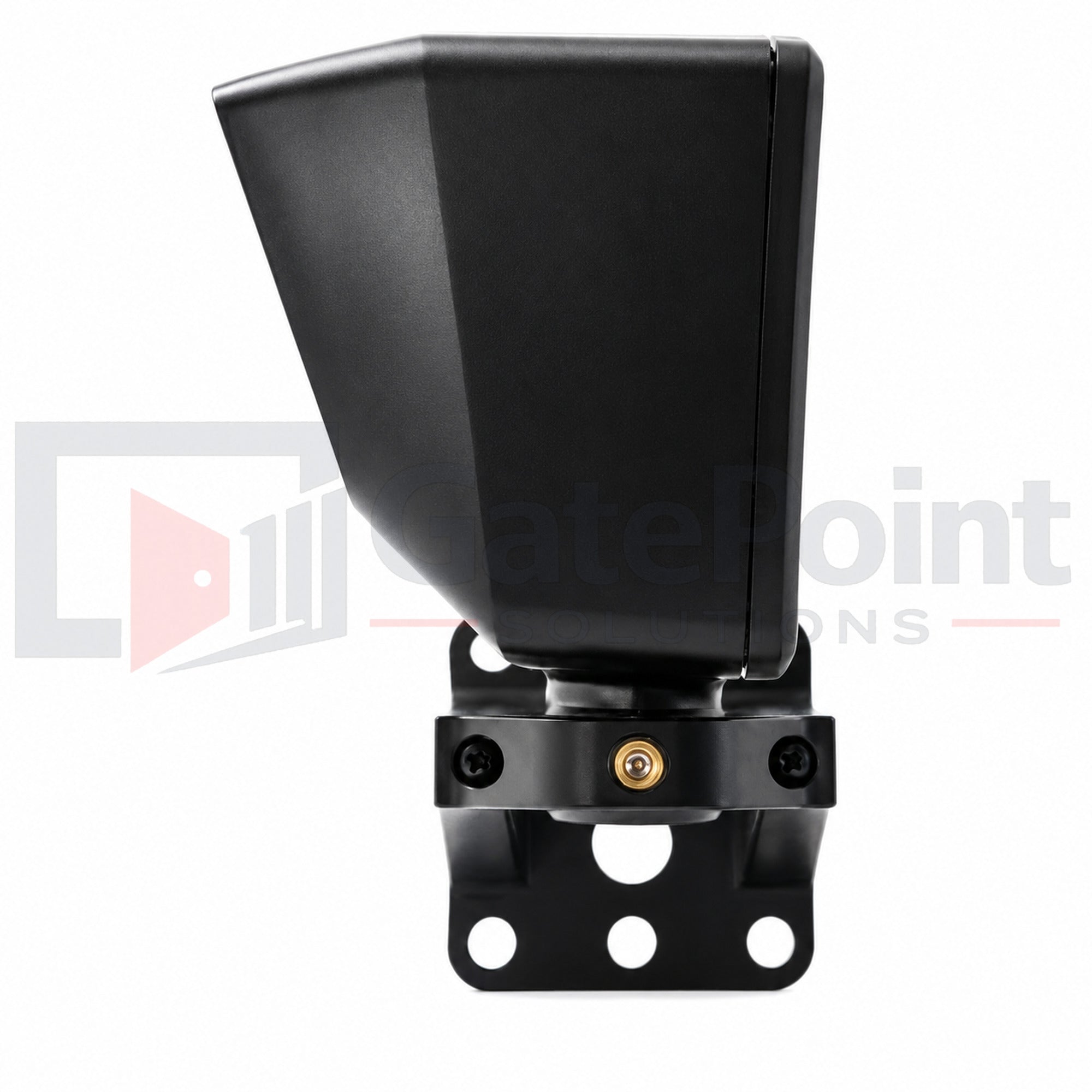

EMX IRB-RET2 Universal UL325 Retro-Reflective Photo Eye Kit
Protect automatic gates with one of the most versatile and installer-friendly safety sensors available. The EMX IRB-RET2 Retro-Reflective Photo Eye Kit is a universal UL325-compliant monitored photoelectric safety sensor designed for residential, commercial, and industrial automatic gate operators. With an operating range of up to 60 feet, integrated sensor hood, reflector hood, adjustable ball-and-socket mounting bracket, and multiple monitoring interface options, the IRB-RET2 provides dependable entrapment protection while simplifying installation.
Unlike traditional photo eyes that require two powered devices, the IRB-RET2 uses a retro-reflective design that combines the transmitter and receiver into a single housing while reflecting the infrared beam from the included reflector. This reduces installation time, minimizes wiring, and makes alignment quick and straightforward using the built-in LED indicators and sensitivity adjustment.
Designed for compatibility with virtually every major gate operator manufacturer, the EMX IRB-RET2 supports both monitored and non-monitored installations through six selectable monitoring methods, making it an excellent replacement or upgrade for new UL325 gate systems.
Key Features
- Universal UL325 Type B1 monitored photo eye
- Retro-reflective sensing technology
- Operating range from 5 to 60 feet
- Integrated sensor hood minimizes sunlight interference
- Includes reflector hood for improved outdoor performance
- Easy LED alignment indicators
- Adjustable sensitivity potentiometer
- Rugged weather-resistant enclosure
- Selectable Light ON / Dark ON operation
- Six selectable monitoring interface options
- Easy ball-and-socket mounting bracket
- ½" NPT conduit connection
- Surge protection with thermal fuse and MOV
- Compatible with residential, commercial, and industrial gate operators
Monitoring Interface Options
The EMX IRB-RET2 supports multiple monitoring methods for maximum compatibility.
- Normally Closed
- Two-Wire Pulse (2 Frequency)
- Two-Wire Pulse (3 Frequency)
- Four-Wire Pulse (2 Frequency)
- Four-Wire Pulse (3 Frequency)
- 10K Resistive Monitoring
Ideal Applications
Perfect for:
- Slide Gate Operators
- Swing Gate Operators
- Commercial Gates
- Industrial Gates
- HOA Entrances
- Apartment Communities
- Distribution Centers
- Warehouses
- Self Storage Facilities
- Parking Access Systems
- Controlled Entry Gates
Technical Specifications
Model
EMX IRB-RET2
Sensor Type
UL325 Type B1 Retro-Reflective Photo Eye
Operating Range
5–60 ft (1.5–18.3 m)
Power Input
6–40 VDC
12–24 VAC
Current Draw
- 50mA (NC & 10K Monitoring)
- 15mA (Pulse Monitoring)
Relay Output
Selectable Light ON / Dark ON
Response Time
250ms
Sensitivity Adjustment
Potentiometer
Operating Temperature
-30°F to 140°F (-34°C to 60°C)
Conduit Connection
½" NPT
Dimensions
5.1" × 3.15" × 5.5"
Weight
0.7 lbs

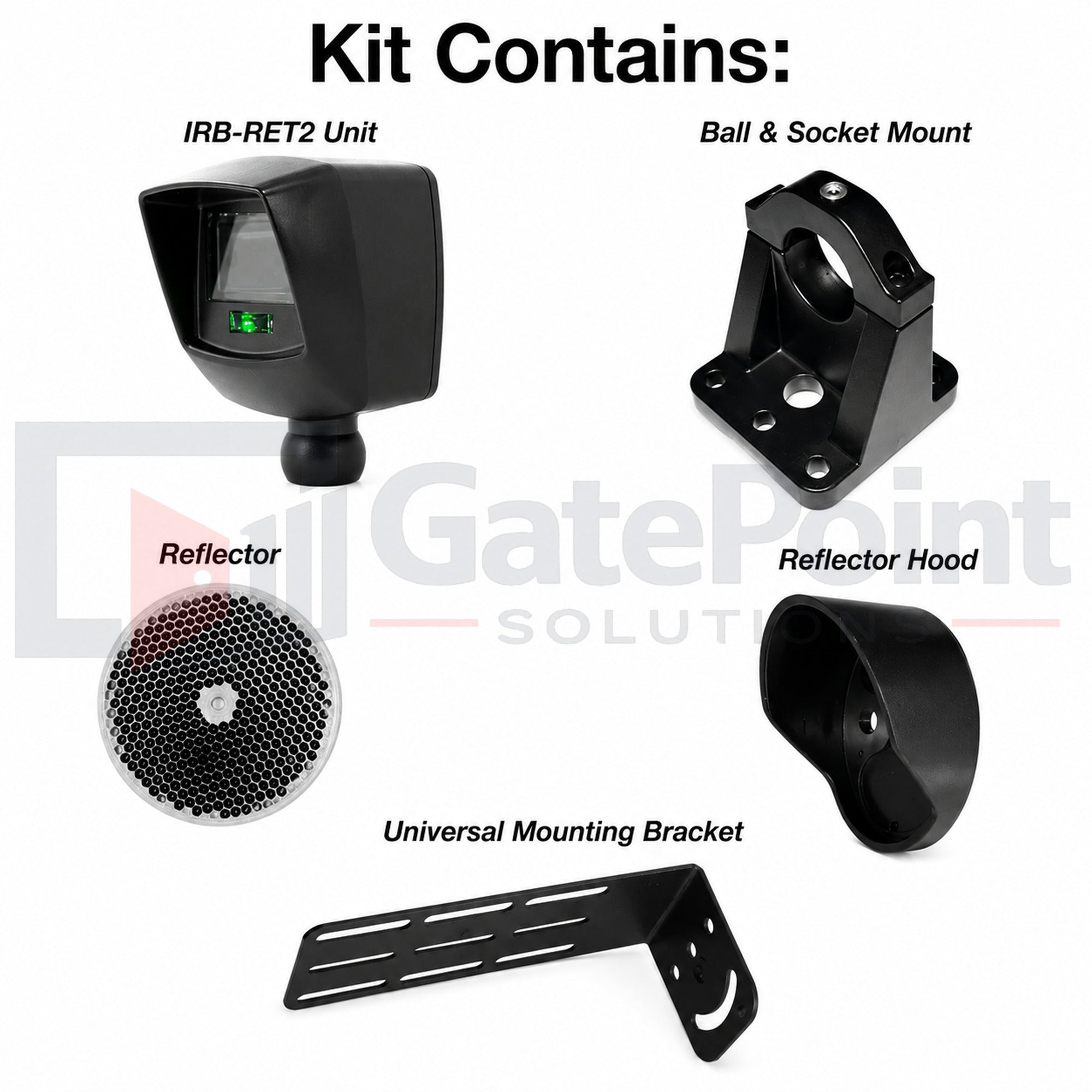

Kit Includes

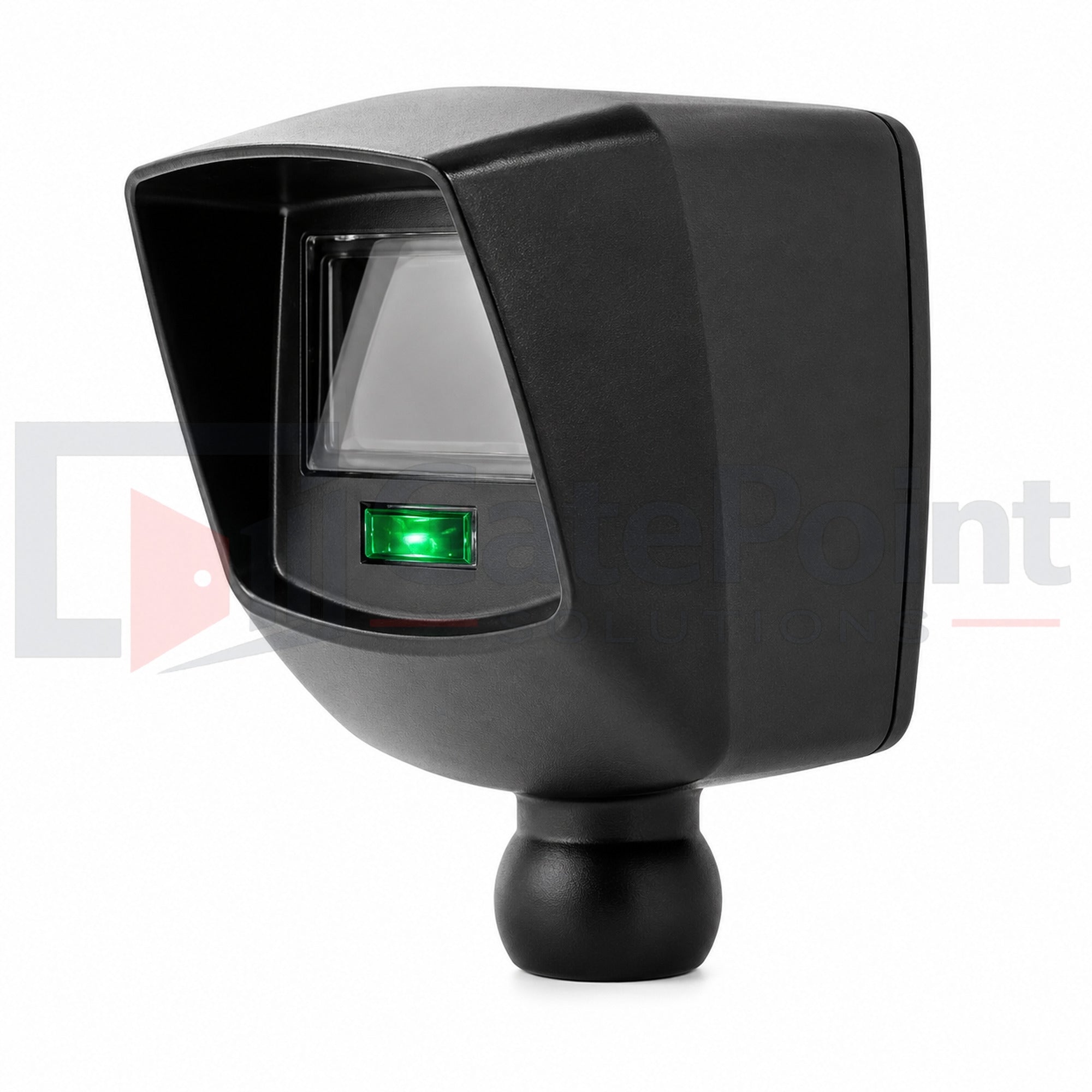

- EMX IRB-RET2 Photo Eye

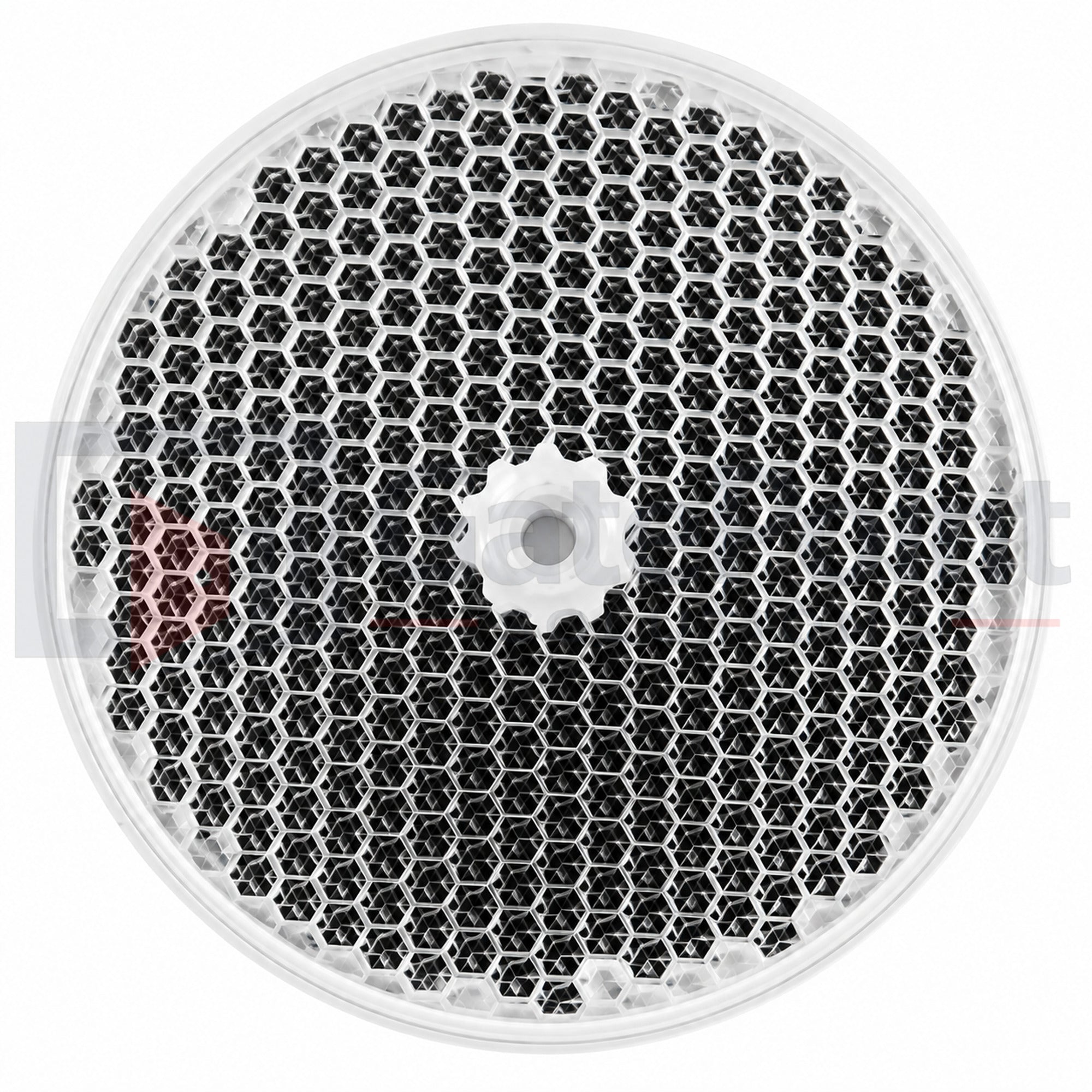

- Reflector

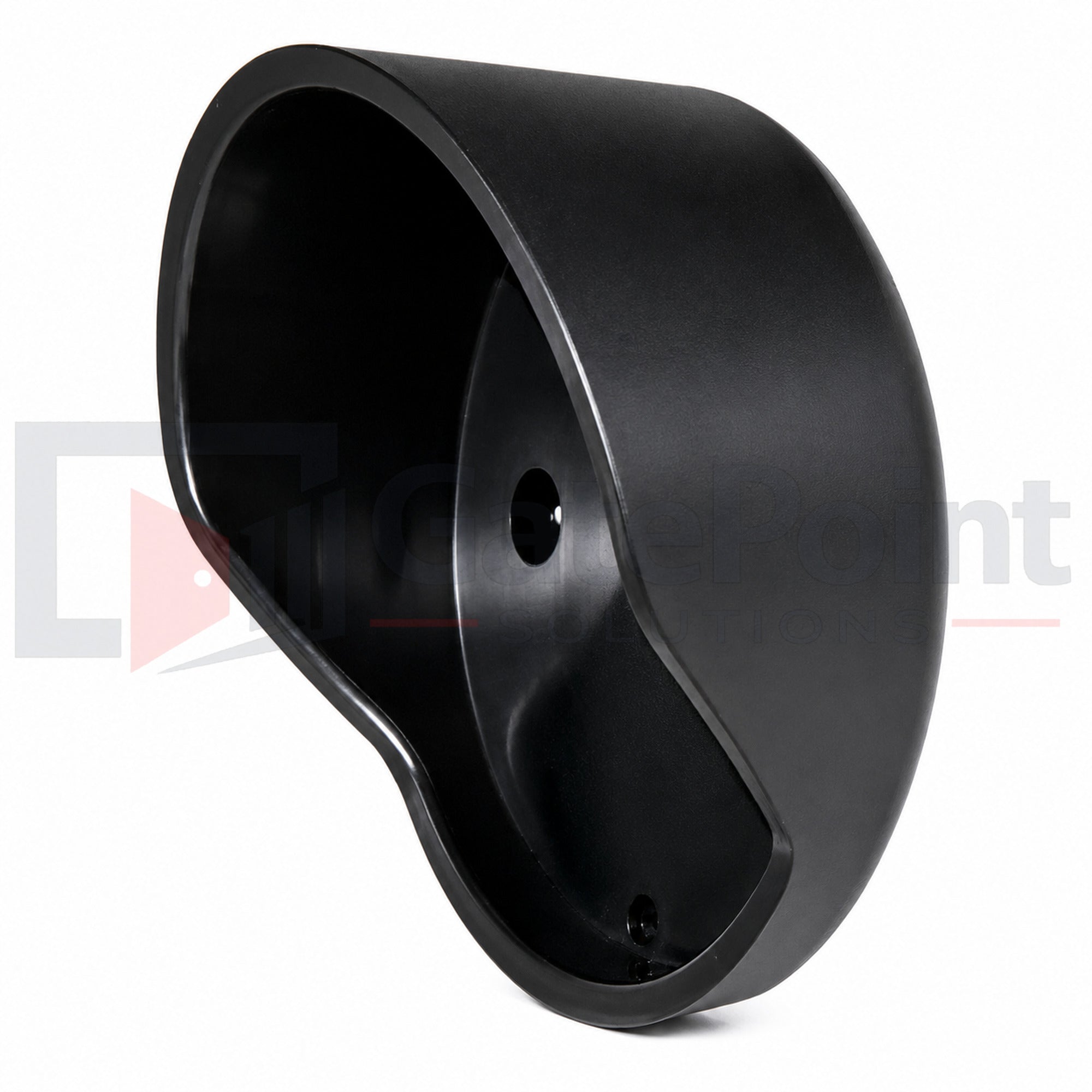

- Protective Reflector Hood

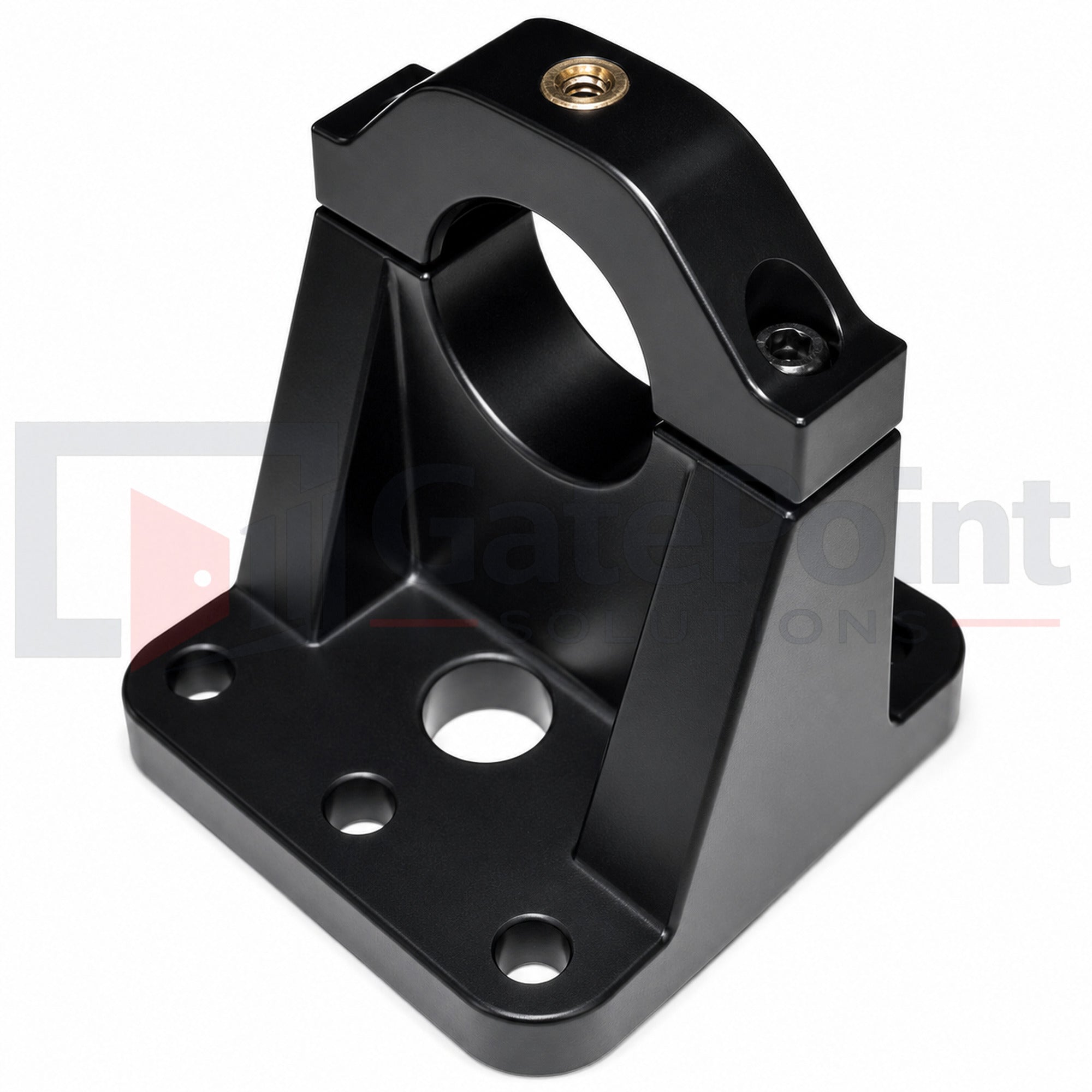

- Ball-and-Socket Mounting Bracket

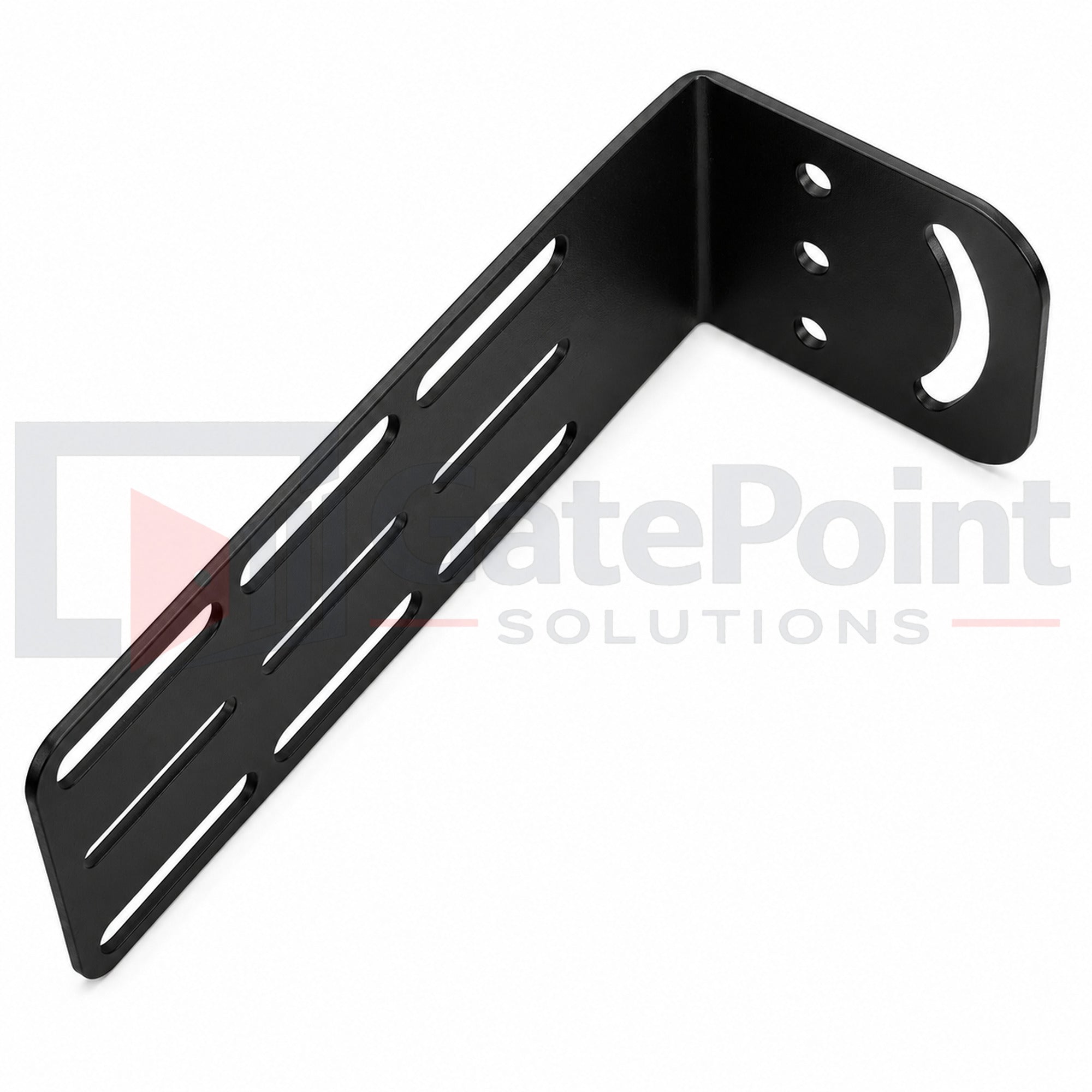

- Steel Mounting Bracket
- Installation Hardware
