Description

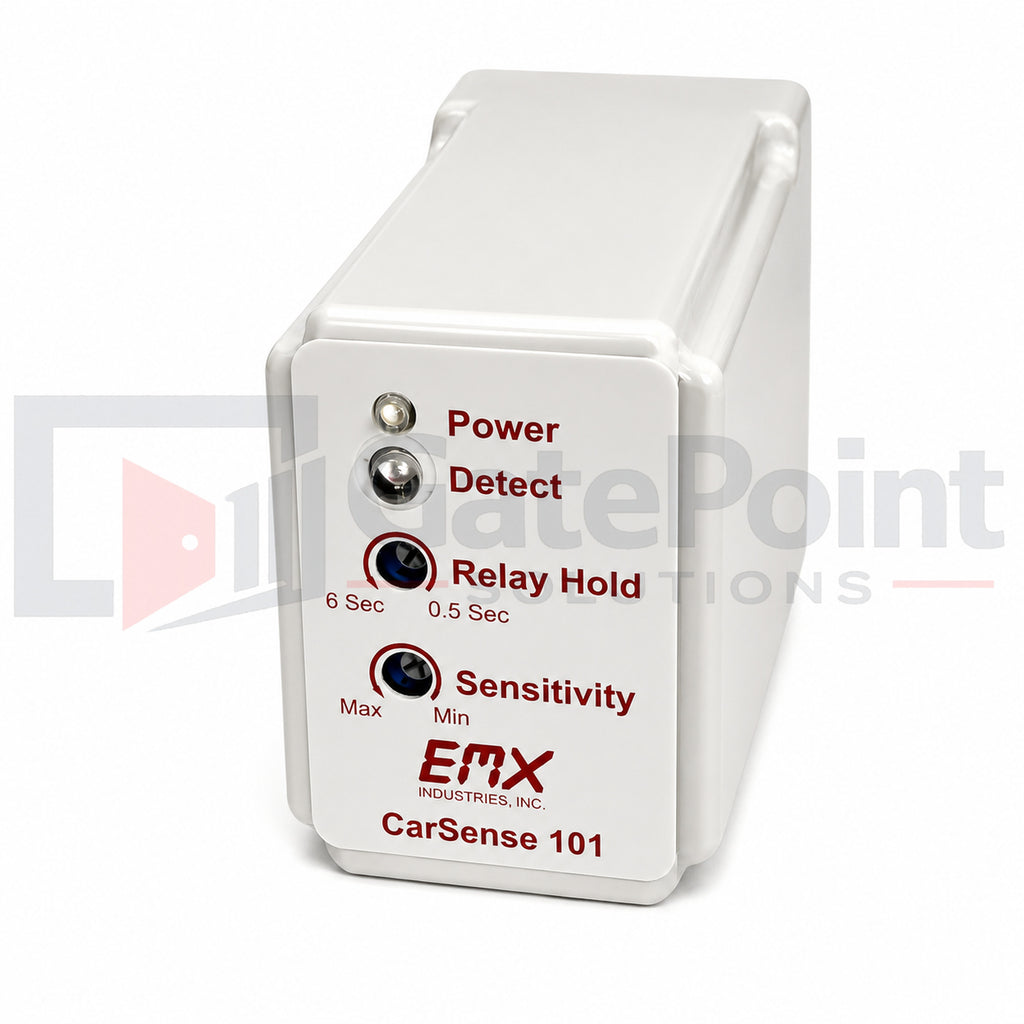

The EMX CS-101 CarSense 101 Controller is the control module used with EMX CarSense sensing probes to detect moving vehicles in automatic gate, overhead door, parking, warehouse, and security applications.
Designed for easy integration, the controller features adjustable sensitivity and off-delay controls, a wide operating voltage of 9–41 VDC or 6–29 VAC, low standby current for solar applications, surge protection, and a standard 11-pin connector.
Unlike traditional loop detectors, the CS-101 system uses a buried sensing probe to detect moving vehicles, making it an excellent solution for free-exit applications where saw-cut loops are impractical.
Features
- Genuine EMX CarSense 101 controller
- Works with all CS-101 sensing probes
- Adjustable sensitivity
- Adjustable off-delay (1–5 seconds)
- DPDT relay output
- Wide voltage input
- Low standby current
- Surge protection
- Standard 11-pin connector
- Ideal for solar-powered systems
Applications
- Automatic gates
- Free exit detection
- Parking barriers
- Overhead doors
- Warehouse traffic detection
- Security vehicle monitoring
