Description

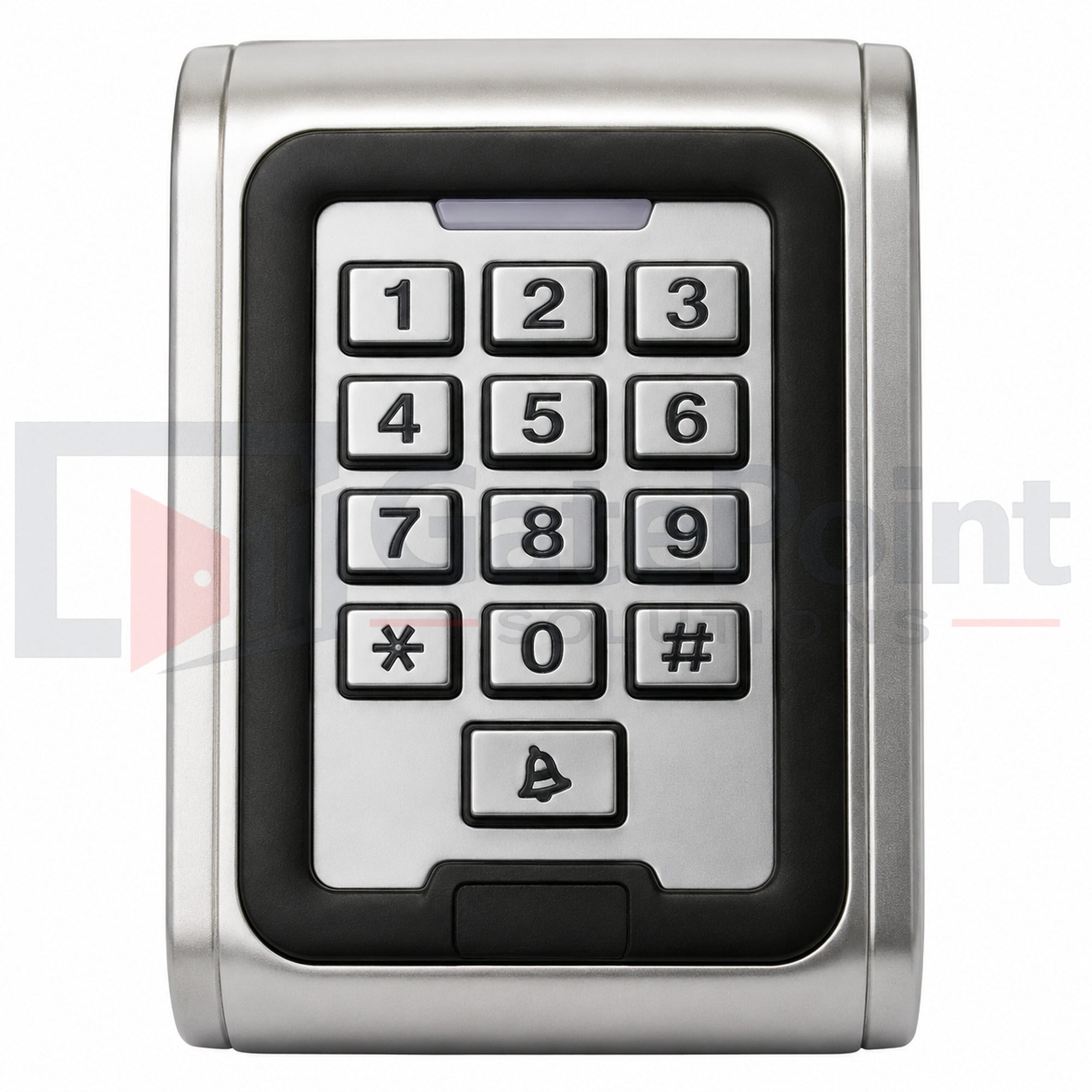

The EMX CR-2000 Waterproof Proximity Card Reader & Keypad is a rugged, standalone 125 kHz RFID access control device designed for automatic gates, pedestrian doors, parking facilities, commercial buildings, apartment communities, and industrial properties. Combining a weatherproof proximity card reader with a backlit keypad, the CR-2000 supports up to 2,000 users through RFID credentials, PIN codes, or a combination of both, delivering flexible and secure access control for virtually any application.
Constructed with a vandal-resistant waterproof metal housing, the CR-2000 is built to withstand harsh indoor and outdoor environments. It features a 26-bit Wiegand output for seamless integration with most access control systems while also offering relay output for standalone installations. Additional security features include a built-in tamper alarm, short-circuit protection, adjustable relay activation time, and user access monitoring. The illuminated keypad ensures easy operation in low-light conditions, while low standby power consumption makes it an excellent choice for energy-efficient and solar-powered installations.
Key Features
- Genuine EMX Industries OEM access control device
- Part Number: CR-2000
- 125 kHz proximity card reader with integrated keypad
- Supports up to 2,000 users
- 26-bit Wiegand output for access control integration
- Can operate as a standalone access controller or Wiegand reader
- Rugged vandal-resistant waterproof metal housing
- Backlit keypad for nighttime visibility
- Supports card, PIN, or card + PIN authentication
- Built-in tamper alarm and short-circuit protection
- Adjustable relay activation time (0–99 seconds)
- Low standby current (≤30 mA) for efficient operation
- Door call button for visitor notification
Ideal Applications
- Automatic gate operators
- Commercial access control
- Apartment and condominium communities
- Office buildings
- Industrial facilities
- Parking garages
- Self-storage facilities
- Gated residential communities
Specifications
- Technology: 125 kHz Proximity RFID
- User Capacity: 2,000 cards and/or PIN codes
- Read Range: 1.1–3.1 in. (3–8 cm)
- Operating Voltage: 9–28 VDC
- Standby Current: ≤30 mA
- Output: 26-bit Wiegand and relay
- Operating Temperature: -13°F to 140°F (-25°C to 60°C)
- Housing: Waterproof, vandal-resistant metal
- Dimensions: 4.74" × 2.20" × 0.71"
