Description

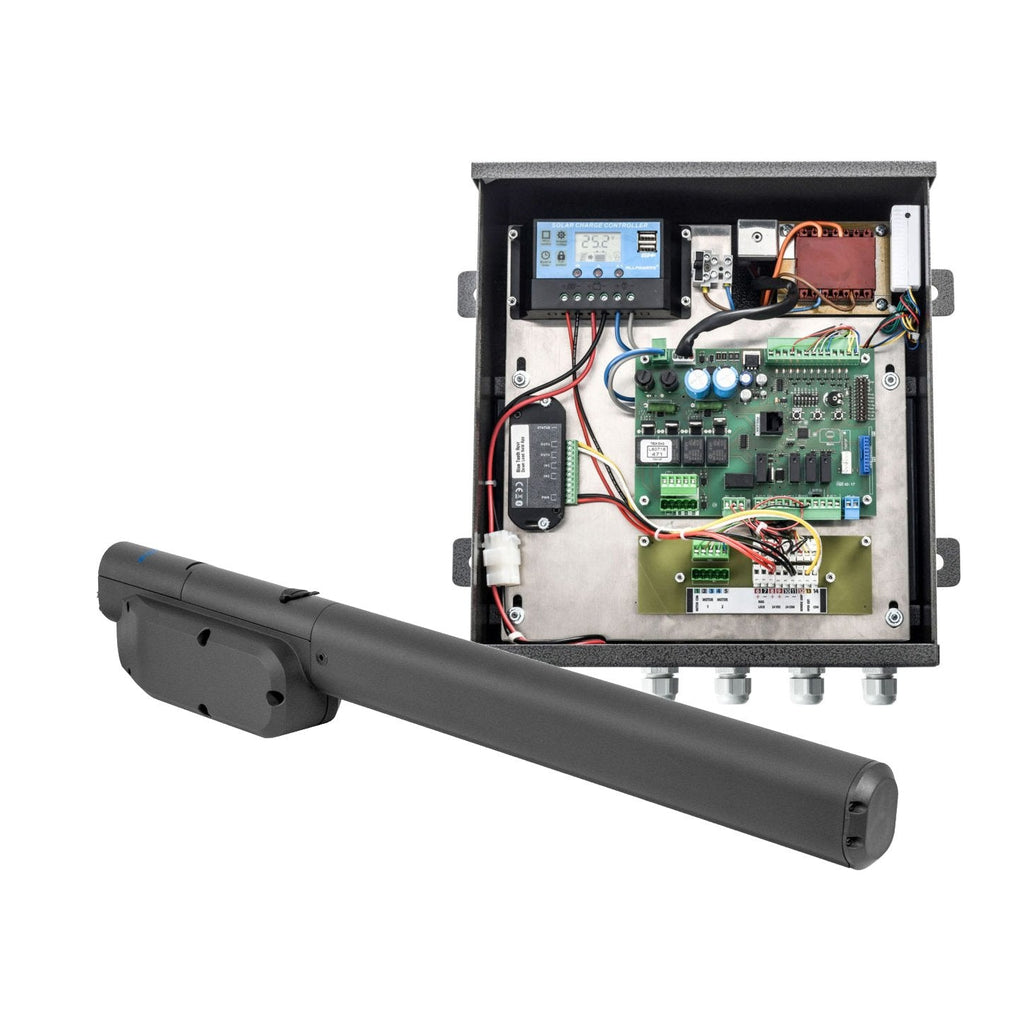

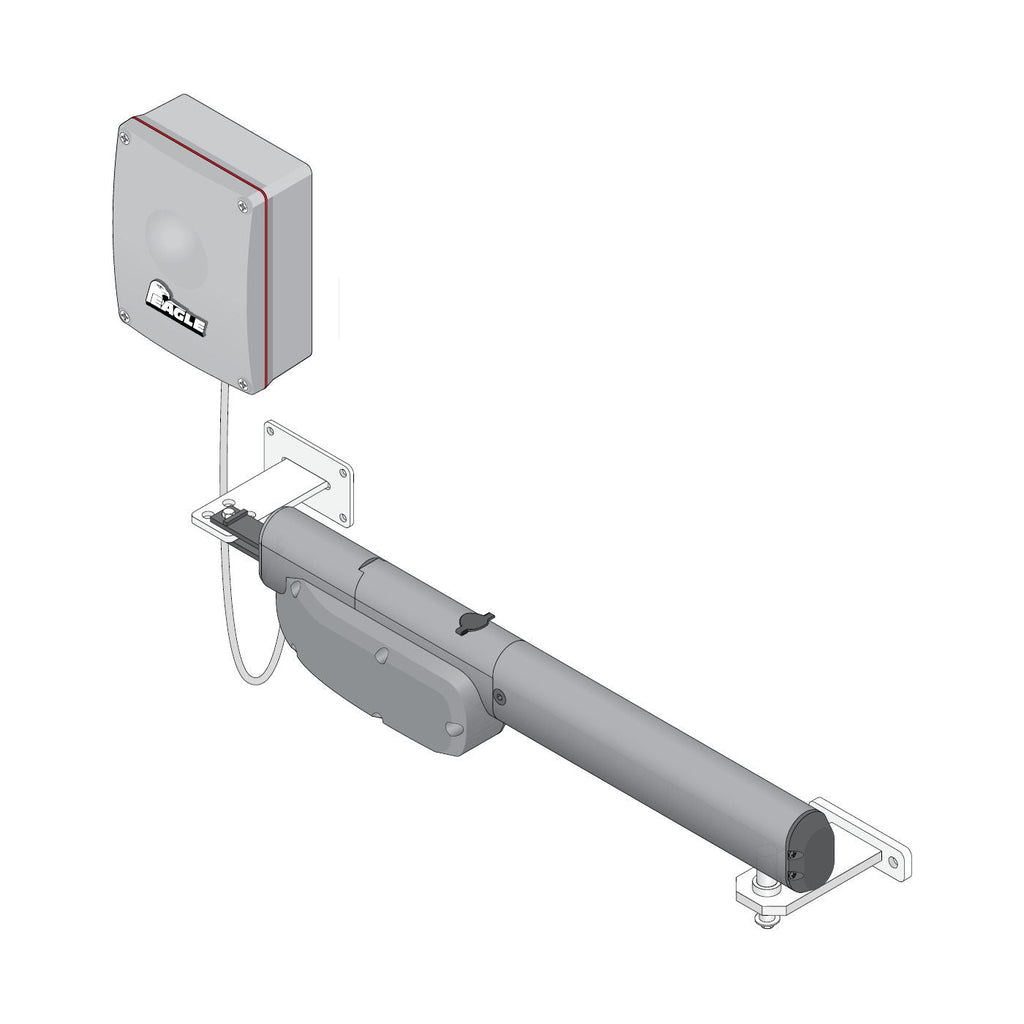

The Eagle X9L AC Long Arm Swing Gate Operator is a robust, single-gate automation solution designed for residential driveways and light commercial entries. It powers wide gates up to 16 feet and 800 pounds with quiet, smooth motion and integrated safety features for reliable perimeter control.
- Long Arm Gate Compatibility: Supports swing gates up to 16 ft long and weighing up to 800 lbs, ideal for wide driveways or entryways.
- 115V AC Power Input: Simple connection to standard residential electrical circuits for straightforward installation.
- 24VDC Motor: Delivers efficient, quiet operation with a soft-start/stop to reduce wear and extend gate life.
- UL 325 Compliant Safety: Built-in EG360 Photo Eye and Electronic Reversing Device (ERD) guard against entrapment and detect obstructions.
- Fully Integrated Kit: Comes with a receiver and EG360 Photo Eye; ERD included for complete, ready-to-install perimeter control.
- Remote Ready: Eagle receiver is included and compatible with standard Eagle remotes for convenient access.
- Wi‑Fi Connectivity Option: Optional EG380 Eagle Wi‑Fi Opener enables remote monitoring and control via app.
- Weather-Resistant Construction: Built to withstand outdoor conditions for year-round reliability.
unit specs
- Maximum Gate Length: 16 ft
- Maximum Gate Weight: 800 lbs
- Power Supply: 115V AC
- Motor: 24VDC
- Opening Speed: 90° in 25 seconds
- Safety Devices: EG360 Photo Eye and ERD
- Compliance: UL 325
- Package Includes: EG363 Monitored Photo Eye, EG380 Eagle Wi‑Fi Opener, receiver, and ERD
The X9L delivers reliable access control with minimal maintenance. The soft-start/stop motion reduces mechanical stress, helping extend the life of the operator and gate hardware. With UL 325 safety devices and a monitored photo eye, it minimizes the risk of entrapment and ensures safer operation for occupants, pedestrians, and vehicles. The long-arm design is particularly suited to wider driveways, and the weather-resistant build keeps performance steady through seasonal changes. For homes or light commercial properties, this system offers quick, secure gate operation, easy installation on standard 115V power, and optional remote management via the Wi‑Fi Opener for convenient control from anywhere.
