Description
The Eagle-2000 FSC Commercial Slide Gate Operator is built for high-traffic entrances, powering gates up to 45 feet or 1000 pounds with dependable performance and straightforward installation.
- Commercial-grade capacity: Designed to operate gates up to 45′ long and up to 1000 lbs (models like 2000-FSF, 2000-FSC, 2000-DM, 2000-FR).
- Heavy-duty chain assembly: Includes 20 ft of nickel-plated #40 chain with a no-weld chain kit for quick, secure installation.
- Power-out release: Release crank allows operation during power outages; manual push‑open is not required for normal operation.
- Lighting and surge protection: Integrated lighting and surge protection to safeguard the system and improve visibility at the gate.
- Control & connectivity: 2-Wire Master/Slave with Global Inputs; Open/Close Delay; One Pass (No Tailgate); Motor Brake for controlled stopping.
- Electrical outputs: 24 VDC output for MAG lock and 24 VAC auxiliary power for accessories.
- Auto-close & safety features: Auto-Close Timer (1–60 sec); Partial Open Stop-Reverse to optimize gate positioning and safety.

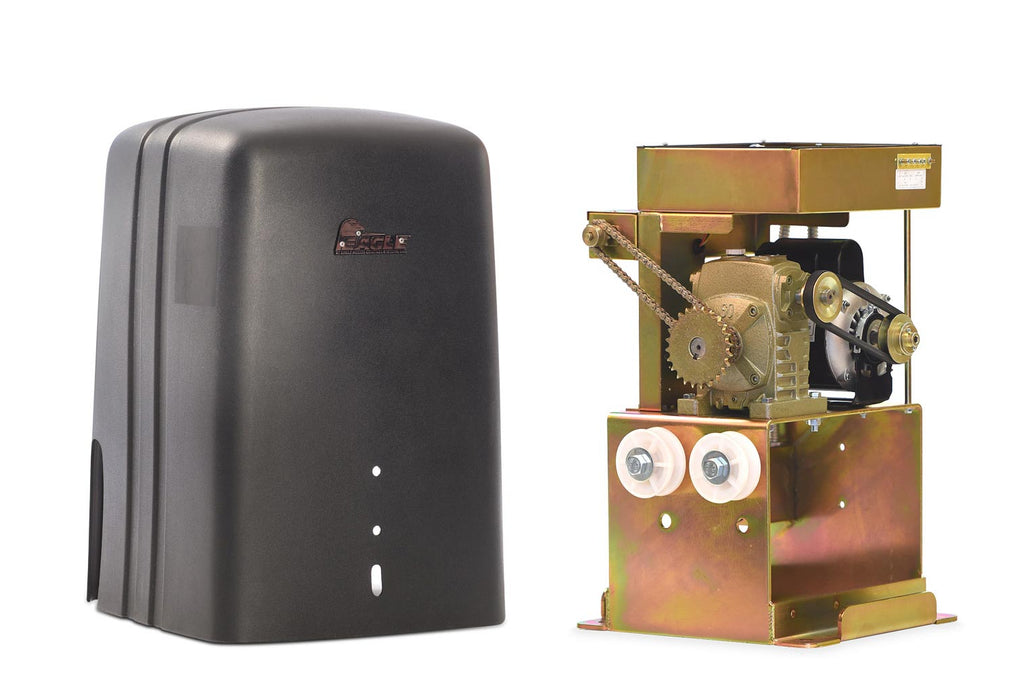

- Durable construction: All-weather/UV-resistant HDPE cover; 1/4″ zinc-plated steel chassis; corrosion-resistant hardware.
- Warranty & compliance: 5-Year Limited warranty (Commercial); UL 325 and UL 991 ETL Listed; Class I, II, III & IV operation.
- Manual options: Hand Crank included on FSC models for controlled operation when needed.
Unit specs
- Maximum gate capacity: 45′ length, up to 1000 lbs; 2000-FR-1HP supports up to 2000 lbs.
- Travel speed: 12 inches per second.
- Motor power: ½ HP continuous duty (standard FSC/FSF) or 1 HP configurations (FR variants); Power I/Power II options available with battery backup.
- Electrical requirement: 115 VAC, 60 Hz; 5.7 A (½ HP) or 11.4 A (1 HP).
- Dimensions: 26″ (H) x 18″ (W) x 17″ (D).
- Weight (shipping): 125–151 lbs depending on model (e.g., FSC/FSF ~125 lbs; FR models heavier).
- Drive components: Gear reducer Size 50; UHMW silent idler wheels; #40 nickel-plated chain (20′).
- Materials: All-weather/UV-resistant HDPE cover; 1/4″ zinc-plated steel chassis.
- Safety & approvals: UL 325, UL 991 ETL Listed; complies with applicable safety standards.
The Eagle-2000 FSC is designed to deliver reliable, secure gate access with a clear maintenance profile. It’s ideal for commercial properties like warehouses, office complexes, gated facilities, and multi-tenant entrances where durable construction, straightforward installation, and dependable operation are essential. With smart control features, optional battery backups, and a robust build, this operator helps reduce downtime, enhances security, and simplifies access management for busy entrances.
