Description

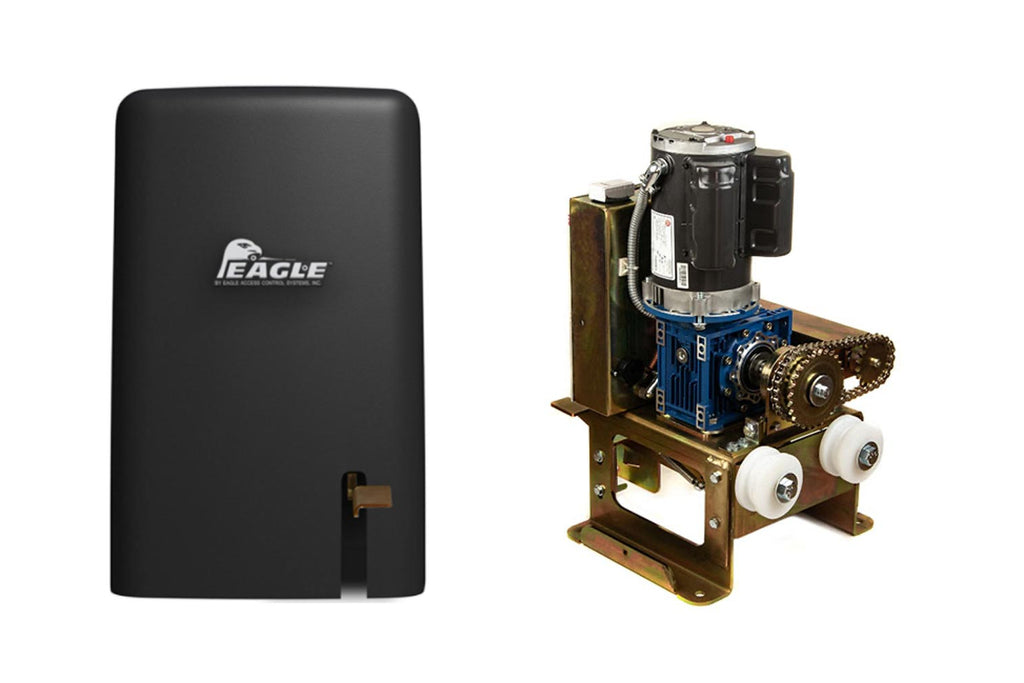

The Eagle 2000 FR 1HP Commercial Slide Gate Operator is built for busy commercial and industrial entrances, delivering dependable performance for gates up to 45 feet long and 2000 pounds. Designed to handle high-traffic environments, it combines power, security, and rugged durability in a single, scalable solution.
- 1 HP motor: Continuous-duty AC motor provides consistent opening and closing cycles for demanding gate applications.
- Gate capacity: Supports gates up to 45' in length and 2000 lb, making it ideal for high-traffic facilities and large entry points.
- Weatherproof, durable construction: All-Weather/UV Resistant HDPE cover with a 1/4" zinc-plated steel chassis resists corrosion and harsh outdoor conditions; reinforced lighting and surge protection enhance reliability.
- Manual release & security: In a power outage, easily push the gate open using the built-in foot pedal and can be padlocked for secure after-hours access; supports multiple release configurations (FSF, FSC, FR) with an optional crank for FSC models.
- Advanced controls & timing: 2-Wire Master/Slave with Global Inputs; Open/Close Delay; One Pass (No Tailgate); Partial Open Stop-Reverse; Auto-Close Timer (1–60 sec); Motor Brake; 24 VDC MAG Lock output; 24 VAC Auxiliary Power Output.
- Power, outputs & connectivity: Power Disconnect (1/2 HP); Auxiliary 120 VAC Power Outlet; Pre-Wired Receiver Terminal; Audio Alarm; UHMW Silent Idler Wheels; Hand Crank (FSC models only).
- Safety, compliance & warranty: UL 325 and UL 991 ETL Listed; Class I, II, III & IV operation; 5-Year Limited warranty (Commercial) or 7-Year Limited (Residential); installation instructions available in Spanish.
- Unit specs: Dimensions 26" H x 18" W x 17" D; Weight 151 lbs; Travel speed 12" per second; Optional Power I/Battery Backup or Power II/Battery Backup for up to 40–80 cycles; Ship weight 151 lbs.
- Included features & accessibility: Ready-to-install components with multilingual support and clear installation guidance to streamline deployment in warehouses, facilities, and campuses.
The Eagle-2000-FR-1HP delivers tangible benefits for facilities seeking durable, secure, and scalable gate access. Its combination of high gate capacity, reliable continuous-duty operation, and thoughtful manual-release options ensures smooth traffic flow, even during outages. The rugged build and safety-compliant design reduce maintenance and create a long-term perimeter security solution for industrial sites, distribution centers, parking facilities, and gated complexes.
