Description

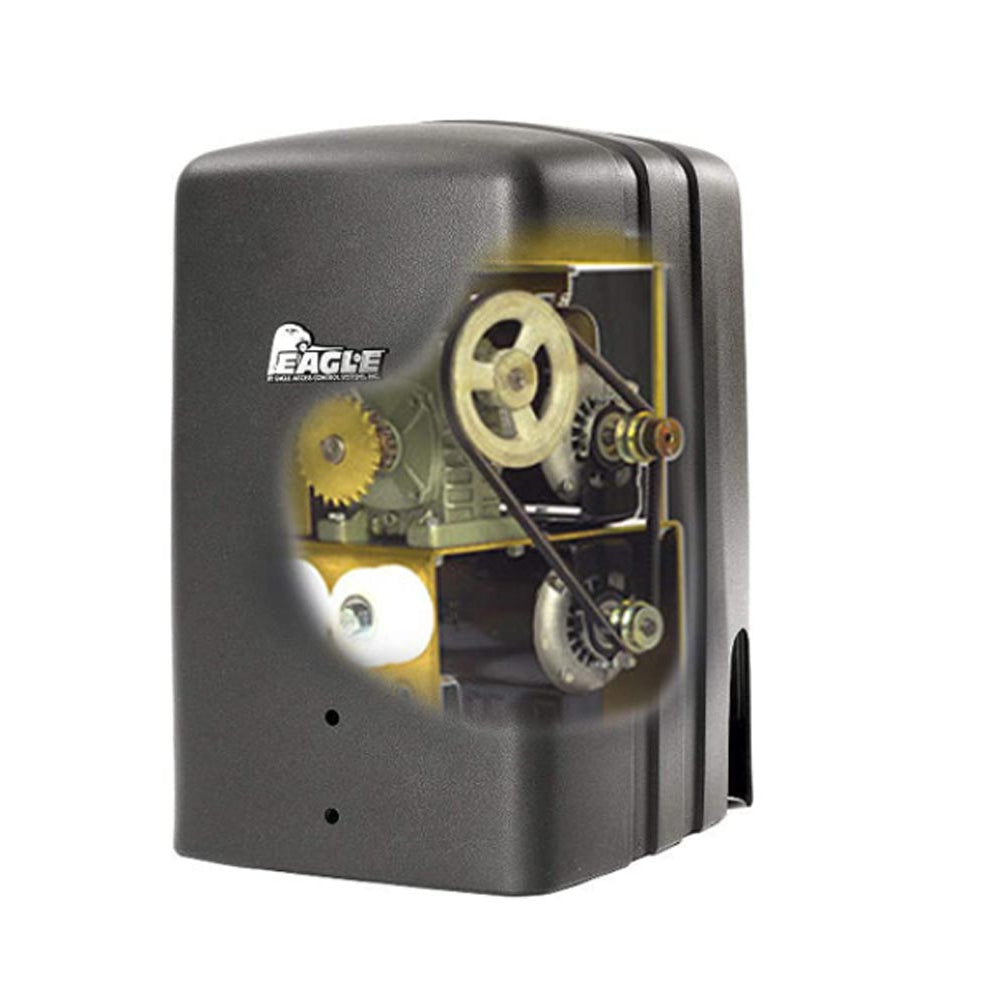

The Eagle-2000 DM ½HP Commercial Slide Gate Operator is a rugged, dual-motor solution built for high-traffic entrances. Designed for commercial and industrial gates, it confidently handles gates up to 45 feet or 1,000 pounds, delivering reliable, coordinated opening and closing for smooth, secure access.
- Dual ½ HP Motors: Two motors work in tandem—one opens the gate while the other closes—providing dependable, synchronized performance and built-in redundancy.
- Gate Capacity: Rated for up to 45′ gates and 1,000 lb, making it ideal for busy commercial driveways, loading docks, and gated facilities.
- Rugged Construction: All-weather/UV resistant HDPE cover with a 1/4″ zinc-plated steel chassis and a #40 nickel-plated chain (20′) for durability and corrosion resistance.
- Electrical & Accessory Outputs: 24 VDC output for magnetic lock, 24 VAC auxiliary power for accessories, and a pre-wired receiver for straightforward integration.
- Safety & Convenience Features: Auto-close timer (1–60 sec), Partial Open/Stop-Reverse, and a No Tailgate (one-pass) option to improve traffic flow and safety.
- Manual Release & Access: Fail-Safe (FSF) and Fail-Secure (FSC) options with a Foot Release (FR) for easy operation during power or access-control contingencies; Hand Crank available on FSC models.
- Warranty & Compliance: 5-year limited warranty for commercial use (7-year limited for residential applications); UL 325 and UL 991 ETL listed; Operating Classification: Class I, II, III & IV.
- Unit Specs: Dimensions 26″ (H) x 18″ (W) x 17″ (D); Weight varies by model (DM ≈ 150 lbs); Power: AC 115 VAC @ 60 Hz; Current draw listed per model; 12″/sec travel speed; 2-Wire Master/Slave with Global Inputs; 20′ chain, gear reducer Size 50.
- Installation & Accessibility: Easy-to-follow installation instructions, with availability in Spanish for broader accessibility.
Ideal for property managers, warehouses, campuses, and commercial facilities, the Eagle-2000 DM provides fast, reliable gate operation under heavy use. The dual-motor design minimizes wear and tear while delivering predictable cycle times, and its robust construction stands up to outdoor environments. Optional battery backup ensures continued operation during power interruptions, and integrated safety features help protect both vehicles and pedestrians during every gate cycle.
