Description

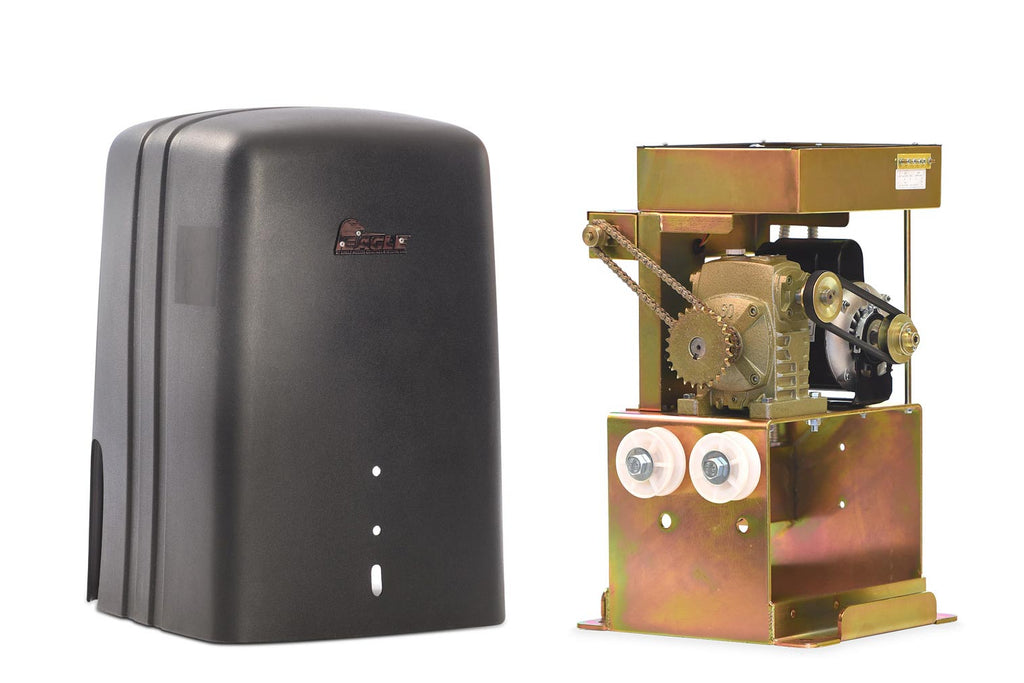

The Eagle 2000 APT 1HP Commercial Slide Gate Operator is a rugged, high-capacity gate opener built for demanding commercial sites—from apartment complexes to gated communities and industrial properties. With the ability to handle up to 50 feet and 2,500 pounds, it delivers dependable, door-to-gate performance when it matters most.
- Power & Duty: 1 HP continuous-duty AC motor designed for heavy-use, outdoor environments.
- Gate Compatibility: Ideal for gates up to 50 ft in length and up to 2,500 lbs (model-dependent limits apply).
- Chain & Drive: Includes 20 ft of nickel-plated #40 chain and a no-weld chain kit for straightforward installation.
- Control Board: Diamond control board—feature-packed and installer-friendly for faster setup and reliable operation.
- Construction: All-weather/UV resistant HDPE cover and 1/4" zinc-plated steel chassis to resist corrosion.
- Safety & Compliance: UL 325 and UL 991 ETL listed; Class I, II, III & IV operation; 5-year commercial warranty (7-year residential).
- Operating Features: 2-Wire Master/Slave with Global Inputs; Open/Close Delay; Auto-Close Timer (1–60 sec); Partial Open Stop-Reverse; Fail-Safe and Fail-Secure options; 24 VDC output for MAG lock; 24 VAC auxiliary power.
- Installation Helpers: Easy-to-follow installation instructions (available in Spanish); hardware includes No-Weld Chain Brackets and UHMW silent idler wheels; pre-wired receiver terminal; audio alarm; hand crank (FSC models).
- Warranty & Support: Backed by a best-in-class 5-year limited commercial warranty (7-year in certain residential applications).
- Unit Specs: Dimensions 26" H x 18" W x 17" D; travel speed 12" per second; Power 115 VAC @ 60 Hz; current typically 11.4 A for 1 HP configuration; maximum gate capacity up to 45' and up to 2,000–2,500 lbs (model dependent); shipping weight 125–151 lbs depending on variant.
- Battery Backup Options: Optional Power I (for 1/2 HP) or Power II (for 1 HP) battery backups to provide 40–80 cycles during power outages.
This Eagle gate operator is designed to streamline access control for busy properties while maintaining robust safety and reliability. Its durable construction, integrated Diamond control board, and included installation aids reduce setup time and ongoing maintenance. With broad compatibility, strong warranty coverage, and available battery backup, it’s well-suited for high-traffic entrances where consistent performance and security matter.
